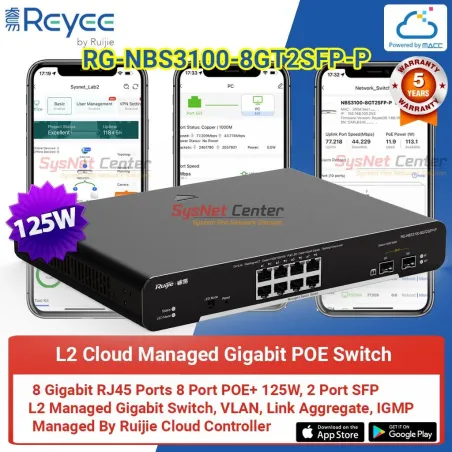

RG-NBS3100-8GT2SFP-P Switch L2 Managed Gigabit POE 8 Port ความเร็ว Gigabit สามารถจ่ายไฟ POE มาตรฐาน 802.3af/at (15.4W/30W) ได้ 8 Port รวมกำลังไฟสูงสุด 125W เฉลี่ยต่อ Port 15.6W
กรณีใช้กับ Access Point ที่เป็น WIFI 6 ประเภท 4x4 หรือกล้องพวก Speed dome พวกนี้ใช้กำลังไฟสูงมาก ต้องคำนวนดีๆครับ เพราะไฟอาจจะไม่พอ แต่ถ้าใช้กับ Access Point WIFI6 พวก 2x2 ใช้ได้ 8 ตัวสบายๆ หรือให้ทางร้านคำนวนให้ได้เลยครับ
รุ่นนี้ Port Uplink เป็น Port SFP x 2Port Gigabit ถ้าใช้ LAN RJ45 ครบทุก Port ต้องใช้ร่วมกับ SFP Module เชื่อมต่อผ่านสาย Fiber Optic ข้อดีเวลาใช้ Fiber Optice ทำ Uplink จะทำเดินสายได้เกิน 100 เมตรครับ ระยะที่ได้จะสูงถึง 10กิโลเมตร เลย
Product Specification |
|
10/100/1000Base-T ports |
8 Port |
SFP ports |
2 Port |
SFP+ ports |
- |
PoE/PoE+ ports |
8 |
Maximum PoE output power per switch |
125W |
Switching capacity |
20Gbps |
Packet forwarding rate |
14.88Mpps |
Packet Buffer | 4.1Mbit |
MAC address |
Support static MAC address, MAC address filtering |
MAC address table size |
8K |
Maximum VLAN Support |
4094 |
Dimensions (W x D x H) |
260 mm x 120 mm x 43.6 mm |
Weight (With package) |
2 kg |
Layer 2 Features |
|
Jumbo Frame |
9216 |
Flow Control |
Support |
STP (IEEE 802.1d) |
Support |
RSTP (IEEE 802.1w) |
Support |
MSTP (IEEE 802.1s) |
|
Port Fast |
Support |
BPDU Guard |
Support |
Max. Aggregation Group |
8 |
Max. Member per Group |
8 |
Many-to-One Mirroring |
Support |
VLAN Range |
Support |
Port-based VLAN |
Support |
Voice VLAN |
Support |
RLDP |
Support |
LLDP / LLDP-MED |
Support |
Cable Testing |
Support |
IGMP Snooping v1/v2/v3 |
Support |
Software Features |
|
Ping |
Support |
Traceroute |
Support |
ACL Entries |
1200 |
IP Standard ACL |
Support |
MAC-based Extended ACL |
Support |
IP-based Extended ACL |
Support |
Port-based Rate Limit (Ingress/Egress) |
Support |
SNMP v1/v2c/v3 |
Support |
Web Management |
Support |
Management IP |
10.44.77.200 |
HTTP/HTTPS |
Support |
Cloud Management |
Support |
SON (Self-Organizing Network) with IP |
Support |
Camera Recognition |
Support |
Loop Prevention |
Support |
Loop Notification |
Support |
PoE Usage Alarm |
- |
Protection Port |
Support |
IP Source Guard |
Support |
Anti-ARP Spoofing |
Support |
DHCP Snooping |
Support |
Power Consumption |
145W |
Temperature |
Operating temperature: 0C - 50C |
Humidity |
Operating humidity: 10% - 90% RH |
ประกัน |
5 ปี |
