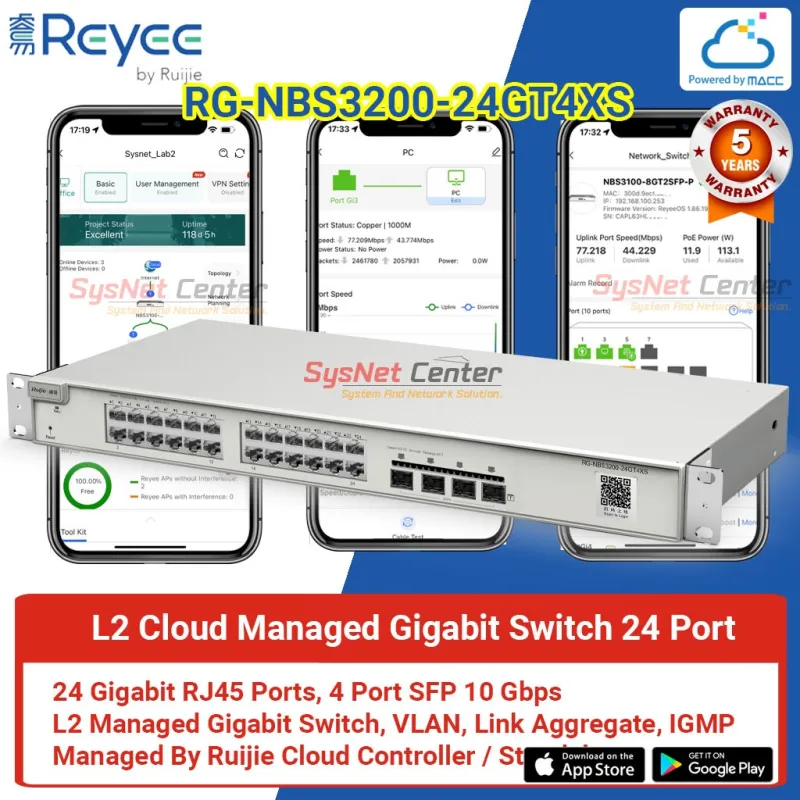

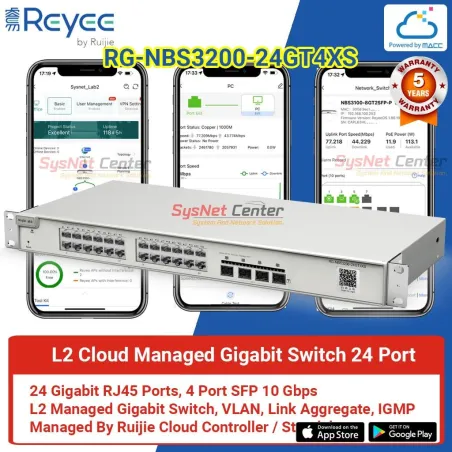

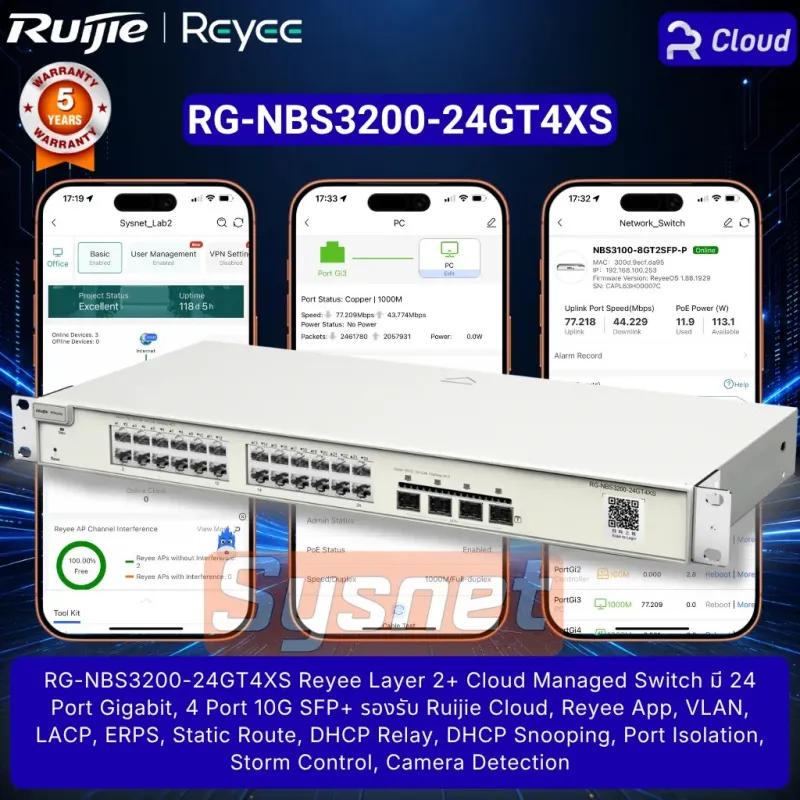

Reyee RG-NBS3200-24GT4XS L2 Cloud Managed Gigabit Switch 24 Port, 4 Port SFP+ 10Gbps บริหารจัดการผ่าน Ruijie Cloud
Review Ruijie Reyee POE Switch รองรับ Managed ผ่าน Ruijie Cloud
Review Ruijie RG-ES200 Series Cloud Managed POE Switch สำหรับงาน CCTV, WIFI
Review Ruijie Cloud ระบบ Managed & Monitor อุปกรณ์ Ruijie ผ่าน Cloud ฟรี
Ruijie RG-NBS3200 Series Cloud Managed Smart Switch Datasheet
L2 Managed Gigabit Switch 24 Port ความเร็ว Gigabit
ใน Series NBS3200 นี้ Port Uplink เป็น Port SFP+ x 4Port ความเร็วสูงถึง 10 Gigabit ใช้ร่วมกับ SFP+ Module เชื่อมต่อผ่านสาย Fiber Optic ข้อดีเวลาใช้ Fiber Optice ทำ Uplink จะทำเดินสายได้เกิน 100 เมตรครับ ระยะที่ได้จะสูงถึง 10กิโลเมตร เลย และได้ความเร็วสูงถึง 10Gbps
Product Specification | |
Ports | 24 10/100/1000Base-T ports |
Maximum output power per PoE port |
|
Maximum PoE output power per switch |
|

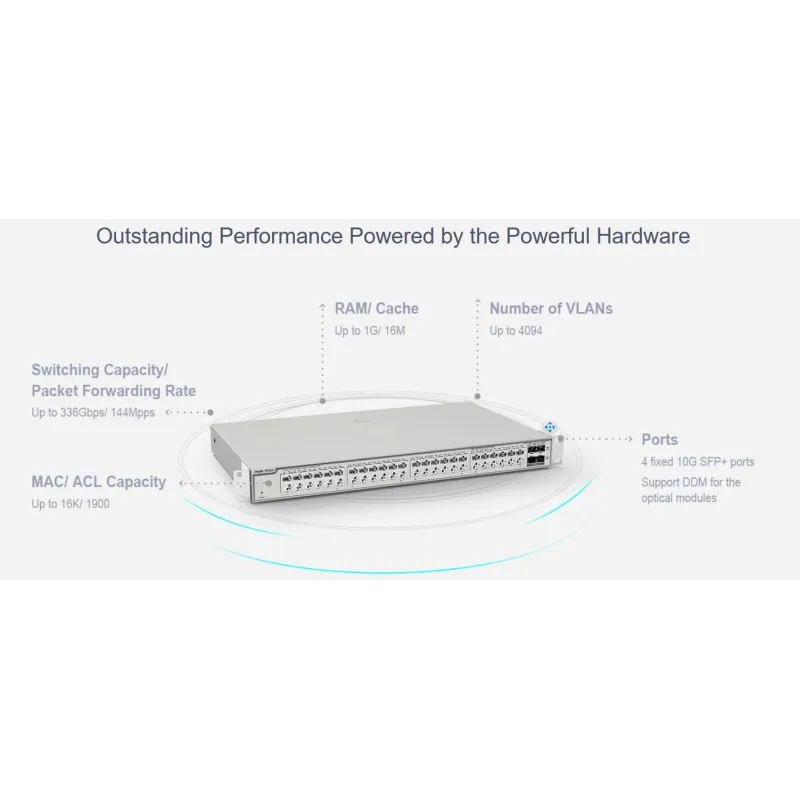

Switching capacity | 336Gbps |
Packet forwarding rate | 96Mpps |
MAC address | Support static MAC address, MAC address filtering |
MAC address table size | 16K |

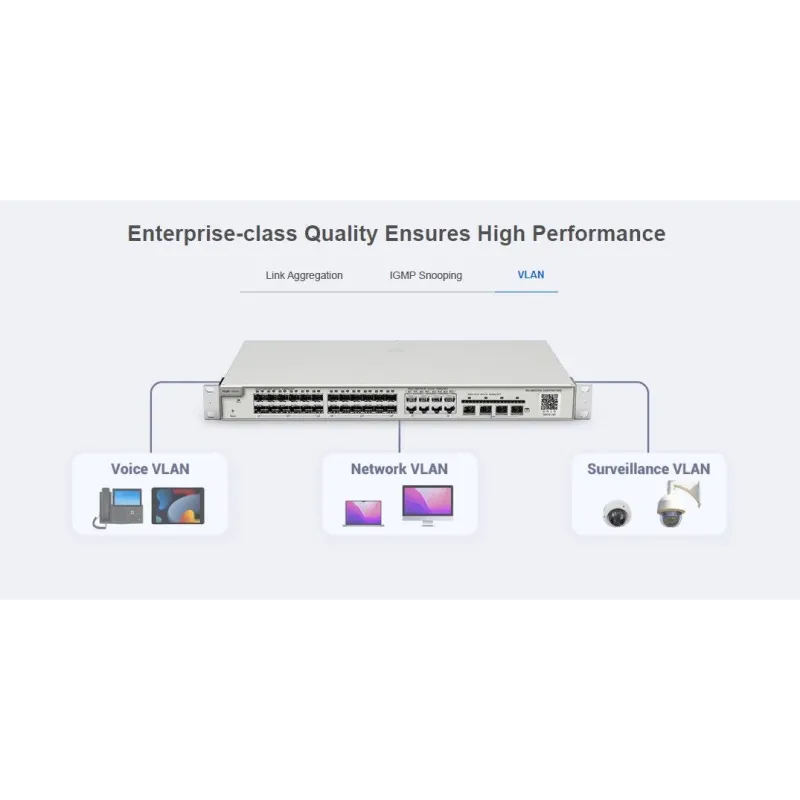

Number of VLANs | 4094 |

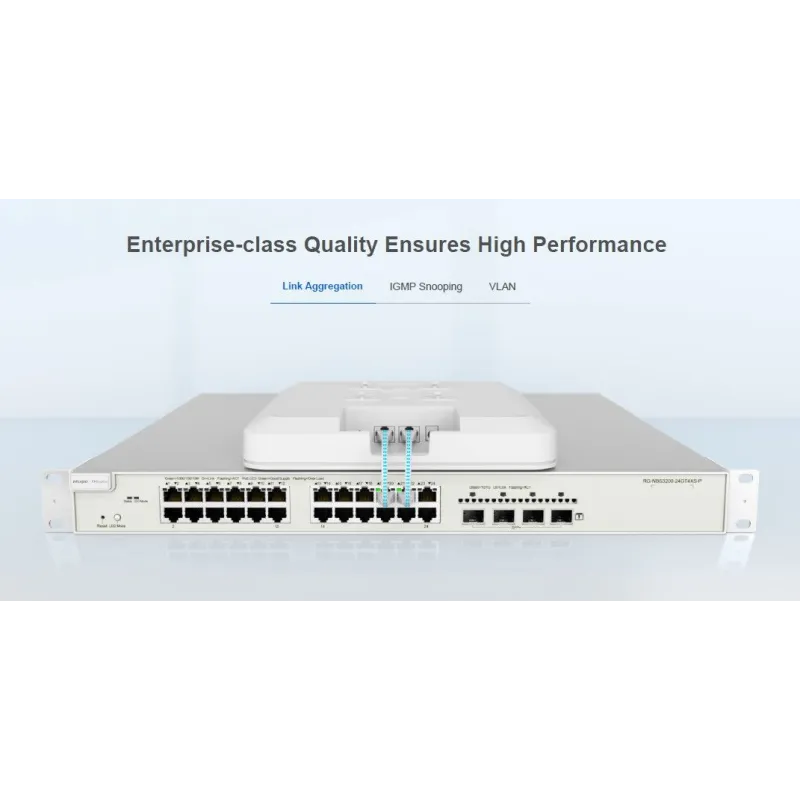

Link aggregation | Support Static Link Aggregation |
Port mirroring | Many-to-one mirroring |
Spanning tree | STP, RSTP |
LLDP | Support |
IP routing | N/A |
ACL | IP standard ACL |
QoS | Port-based speed limit (ingress/egress) |

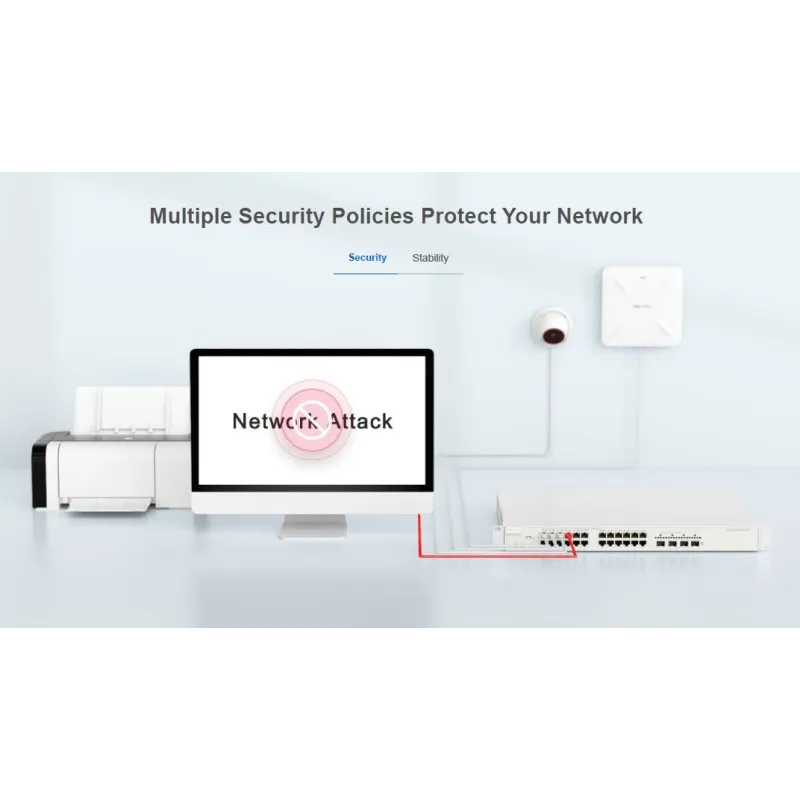

Security | Port protection |

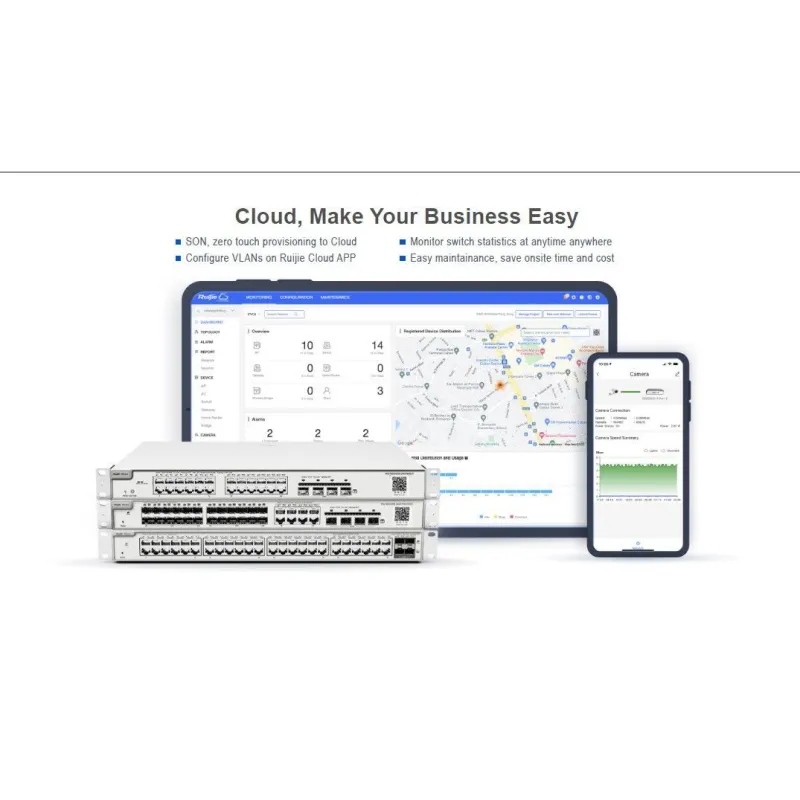

Management | Web management, Ruijie Cloud or Ruijie Cloud app management |
DHCP | DHCP snooping |
EEE | Support |
Dimensions | 440x357.6x43.6mm |
PoE |
|
Temperature | Operating temperature: 0 C - 50C |
Humidity | Operating humidity: 10% ~ 90% RH |
ประกัน | 5 ปี |
Feature | Ruijie Enterprise | Reyee |
Ruijie Cloud | Support | Support |
Mobile App | Support | Support |
Review Ruijie Cloud ระบบ Managed & Monitor อุปกรณ์ Ruijie ผ่าน Cloud | ||
Presales Tools | Support | Support |
Fast Provisioning | Scan QR-code Device | Self-organizing network (SON) |
Monitoring & Alarm | Support | Support |
Device Management | Additional: | Basic |
Gateway Management | WAN Load Balance | WAN Load Balance |
Gateway Authen | Local Authen (Captive Portal) | Local Authen (Captive Portal) |
Review Ruijie RG-EG3230/RG-EG3250 Loadbalance Gateway | ||
Multi-tenant | Support | Support |
Scenario-based | N/A | Support (App) |
Wireless | ||
Standard | WIFI 4 (n) | WIFI 5 Wave2 (ac) |
Capacity | Max Client 1024 (Wi-Fi 6) | Max Client 128 |
WLAN Auth | 802.1x Auth | PSK/WPA2 |
Review Ruijie Cloud WIFI Authentication ระบบ Login เข้าใช้งาน Internet | ||
WLAN Features | L2/L3 Roaming | L2 Roaming |
WLAN Controller | Yes | Yes |
Switches | ||
Capacity | Chassis model option (upto 48 10GE) | Box Switches model (upto 24GE +10G uplink |
L2 | IGMP Snooping | VLAN |
L3 | IPv6, RIP, OSPF, PBR, VRRP | N/A< |
Security / Availability | 802.1x, CPP/NFPP, REUP, VSU | N/A |
Management | Managed with Web & CLI (Console port), SSH, SNMP | Web Smart Managed & Unmanaged |
