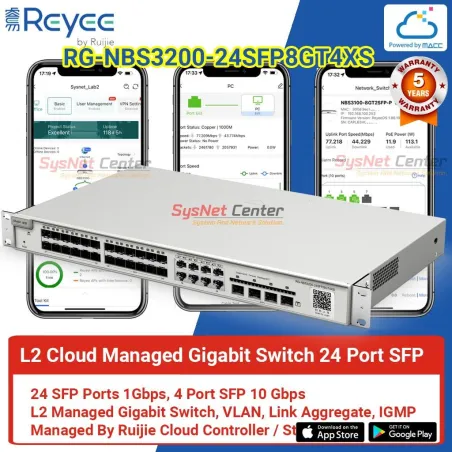

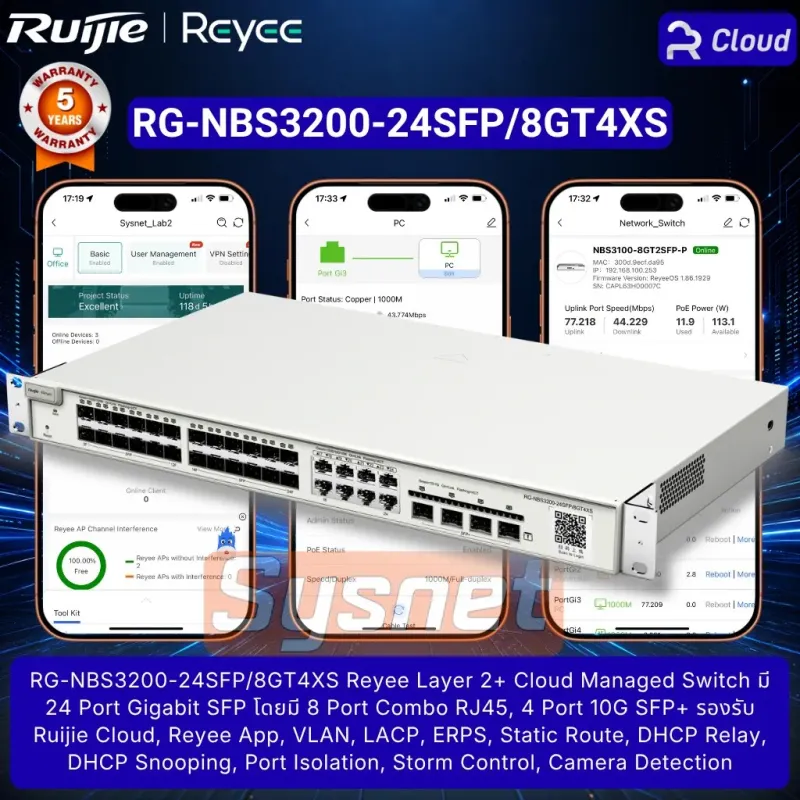

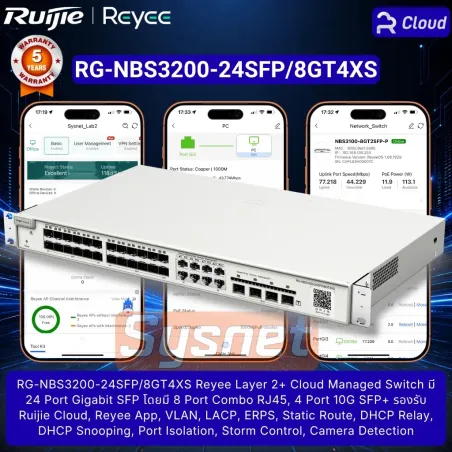

RG-NBS3200-24SFP/8GT4XS Reyee L2 Cloud Managed SFP Switch 24 Port, 4 Port SFP+

RG-NBS3200-24SFP/8GT4XS

Reyee RG-NBS3200-24SFP/8GT4XS L2 Cloud Managed SFP Switch 24 Port, 4 Port SFP+ 10Gbps รองรับการทำ VLAN, IGMP Snooping, Static Link Aggregate, บริหารจัดการผ่าน Ruijie Cloud Controller

฿17,900.00
ยังไม่ได้รวมภาษี
จำนวน


ตัวแทนจำหน่าย Ruijie/Reyee อย่างเป็นทางการ


Support / ติดตั้งด้วยทีมงาน
Certificate


สอบถามรายละเอียดสินค้าเพิ่มเติม LINE:
@sysnet



รายละเอียด

Review Ruijie Reyee POE Switch รองรับ Managed ผ่าน Ruijie Cloud
Review Ruijie RG-ES200 Series Cloud Managed POE Switch สำหรับงาน CCTV, WIFI

Review Ruijie Cloud ระบบ Managed & Monitor อุปกรณ์ Ruijie ผ่าน Cloud ฟรี

คู่มือ Reyee Switch NBS3100/NBS3200 Link Aggregate LACP

Reyee Series Implementation Cookbook V1.0
Ruijie RG-NBS Switch Web-Based Configuration Guide(ReyeeOS 1.84)

RG-NBS Series Web-Based Configuration Guide, Release SWITCH_3.0(1)B11P54(V1.0)

RG-NBS3100&3200 Datasheet

RG-NBS3100 Installation and Reference Guide

ทางร้านเป็นตัวแทนจำหน่ายอย่างเป็นทางการ ผ่านการสอบ Certificate จากทาง Ruijie Networks



Reyee by Ruijie RG-NBS3200-24SFP/8GT4XS L2 Cloud Managed Switch สำหรับงานเชื่อมต่อ Uplink ความเร็วสูง

RG-NBS3200-24SFP/8GT4XS L2 Managed Gigabit Switch 24 SFP Port ความเร็ว Gigabit และ 8 Port Combo (เลือกว่าจะใช้เป็น Port SFP หรือ Port LAN)

ใน Series NBS3200 นี้ Port Uplink เป็น Port SFP+ x 4Port ความเร็วสูงถึง 10 Gigabit ใช้ร่วมกับ SFP+ Module เชื่อมต่อผ่านสาย Fiber Optic ข้อดีเวลาใช้ Fiber Optice ทำ Uplink จะทำเดินสายได้เกิน 100 เมตรครับ ระยะที่ได้จะสูงถึง 10กิโลเมตร เลย และได้ความเร็วสูงถึง 10Gbps

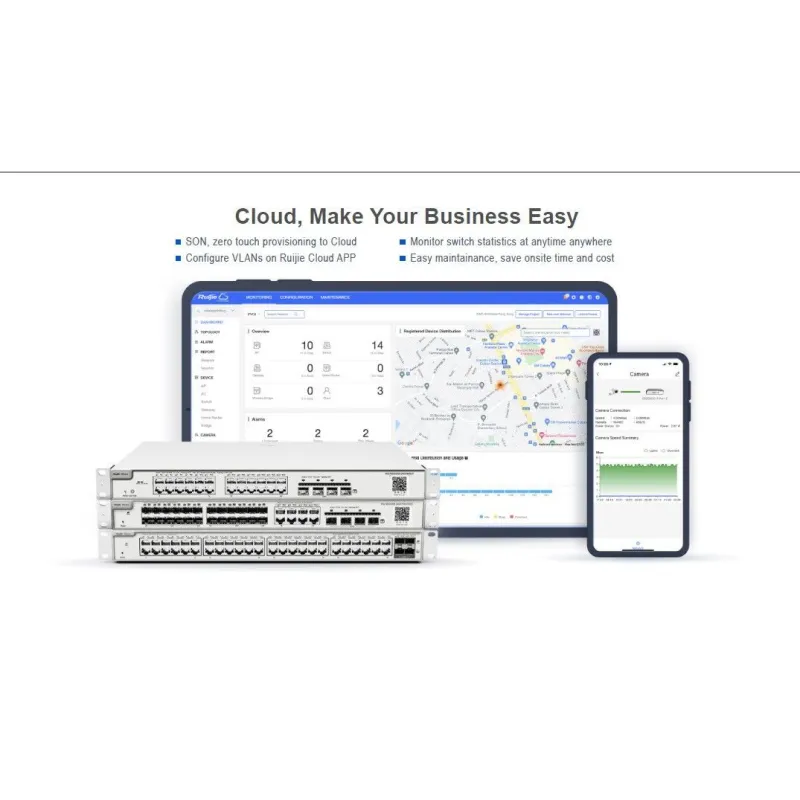

  • รองรับการจัดการ Config รวมถึง Monitor อุปกรณ์ เช่น Status Port Up/Down, จ่ายไฟ POE (สำหรับรุ่นที่รองรับ), Traffic, ผ่าน Ruijie Cloud ทั้งบน Browser และ App ติดตั้งใน Smartphone
  • Ruijie Cloud License ฟรี ตลอดชีพ

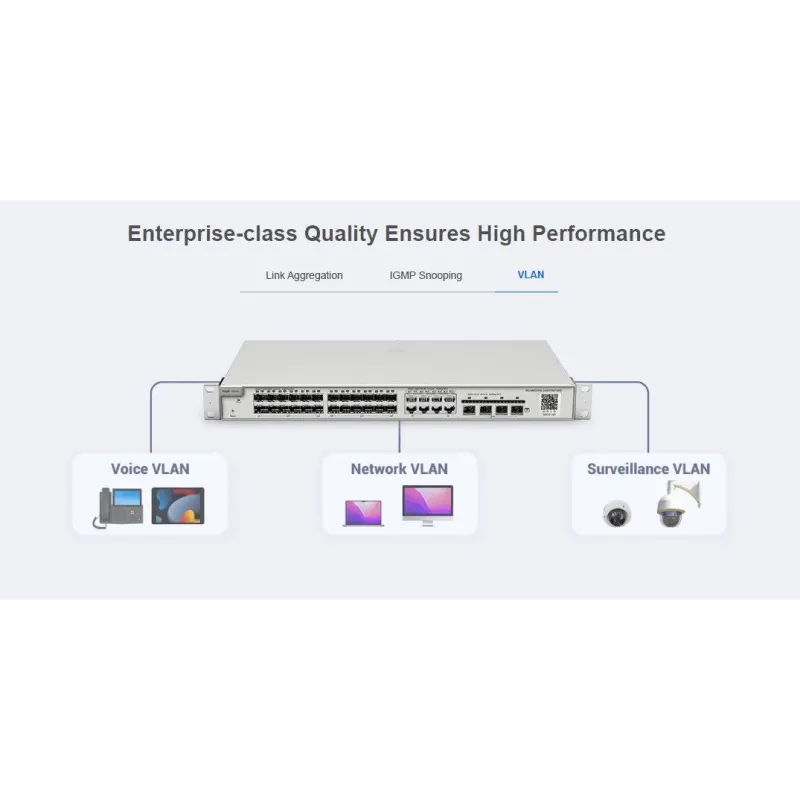

  • รองรับ VLAN 802.1q ได้สูงสุด 4094VLAN

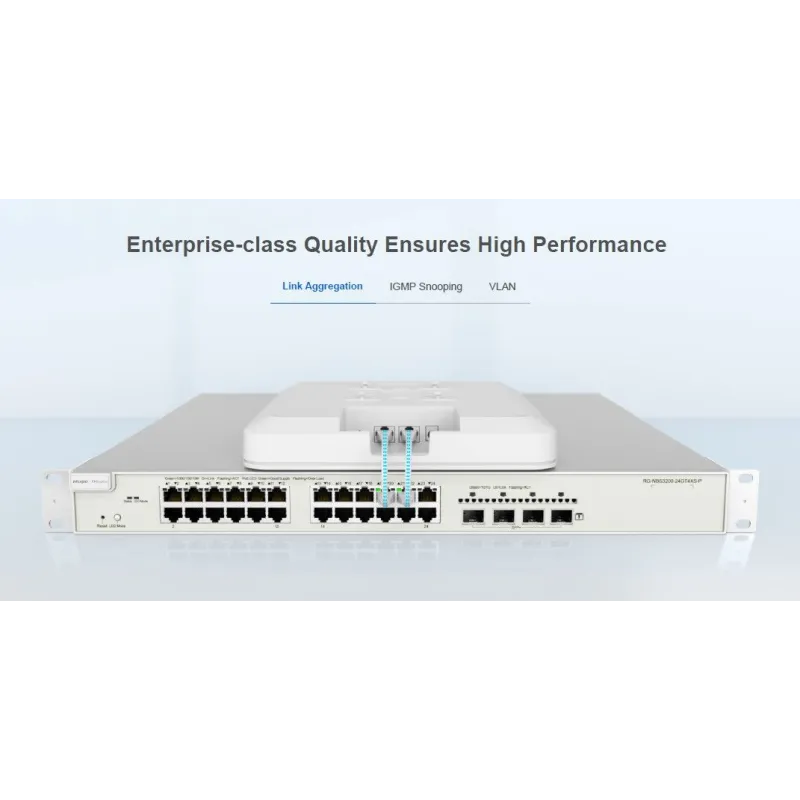

  • รองรับการทำ Static Link Aggregate กรณีต้องการรวมความเร็วสาย Lan มากกว่า 1 เส้น

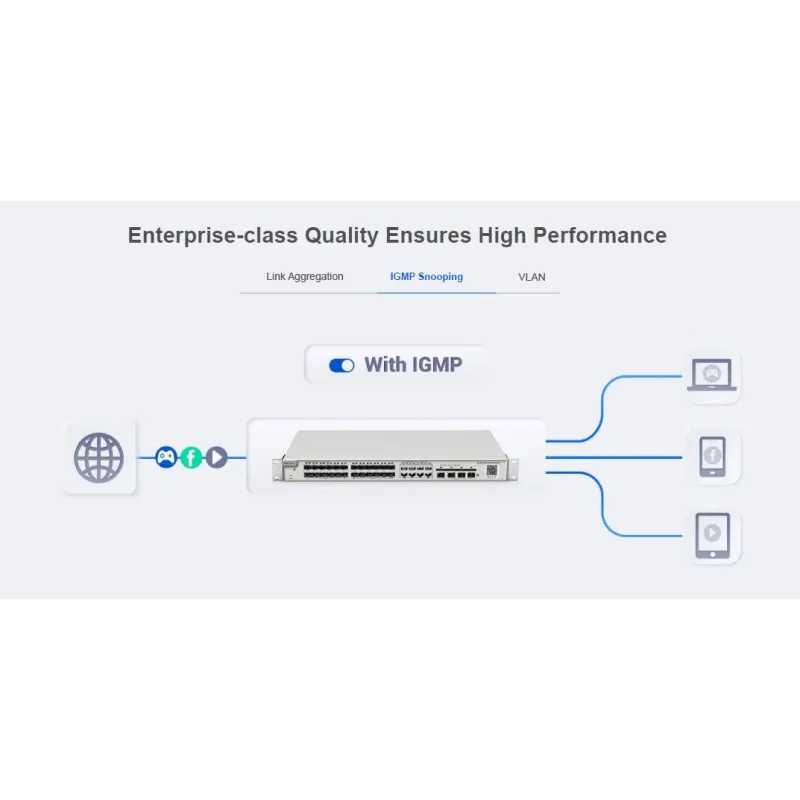

  • รองรับการทำ IGMP Snooping
  • รองรับ DHCP Snooping ป้องกันพวก DHCP Server ที่ไม่เกี่ยวข้องเชื่อมต่อเข้ามา
  • รองรับ Remote Rebbot POE
  • รองรับ Real-Time Alarm



Product Specification

10/100/1000Base-T ports

8 (Combo)

SFP ports

24

SFP+ ports

4

PoE/PoE+ ports

-

Maximum PoE output power per switch

-

Switching capacity

128Gbps

Packet forwarding rate

95.24Mpps

Packet Buffer 12Mbit

MAC address

Support static MAC address, MAC address filtering

MAC address table size

16K

Maximum VLAN Support

4094

Dimensions (W x D x H)

440 mm x 267.5 mm x 43.6mm

Weight (With package)

3.35 kg

Layer 2 Features

Jumbo Frame

9216

Flow Control

Support

STP (IEEE 802.1d)

Support

RSTP (IEEE 802.1w)

Support

MSTP (IEEE 802.1s)



Port Fast

Support

BPDU Guard

Support

Max. Aggregation Group

16

Max. Member per Group

8

Many-to-One Mirroring

Support

VLAN Range

Support

Port-based VLAN
MAC-based VLAN
IP-based VLAN

Support

Voice VLAN

Support

RLDP

Support

LLDP / LLDP-MED

Support

Cable Testing

Support

IGMP Snooping v1/v2/v3

Support

Software Features

Ping

Support

Traceroute

Support

ACL Entries

1200

IP Standard ACL

Support

MAC-based Extended ACL

Support

IP-based Extended ACL

Support

Port-based Rate Limit (Ingress/Egress)

Support

SNMP v1/v2c/v3

Support

Web Management

Support

Management IP

10.44.77.200

HTTP/HTTPS

Support

Cloud Management

Support

SON (Self-Organizing Network) with IP

Support

Camera Recognition

Support

Loop Prevention

Support

Loop Notification

Support

PoE Usage Alarm

-

Protection Port

Support

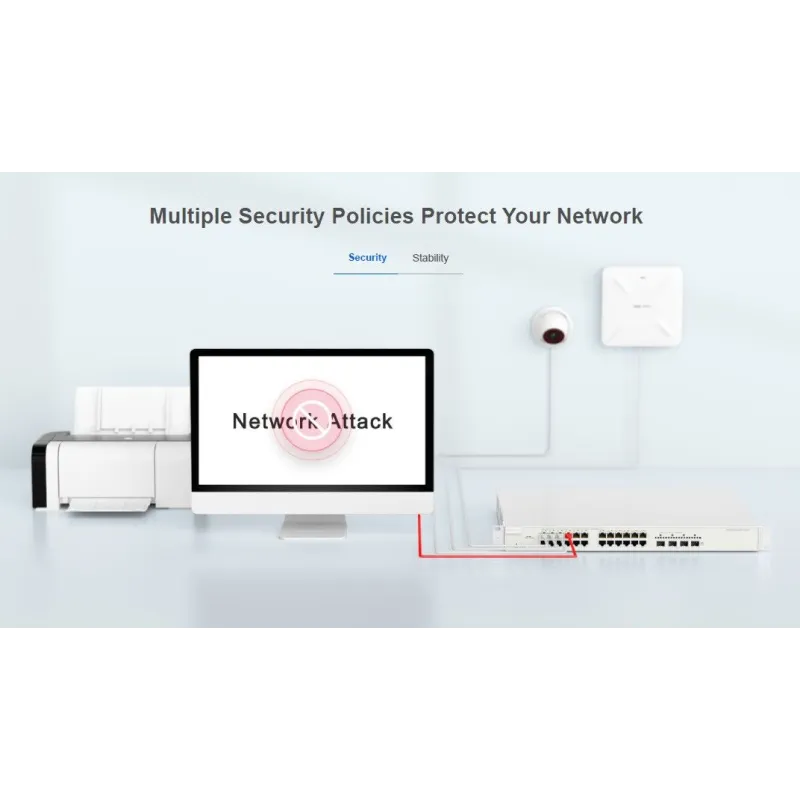

IP Source Guard

Support

Anti-ARP Spoofing

Support

DHCP Snooping

Support

Power Consumption

42W

Temperature

Operating temperature: 0C - 50C
Storage temperature: -40C - 70C

Humidity

Operating humidity: 10% - 90% RH
Storage humidity: 5% ~ 90% RH

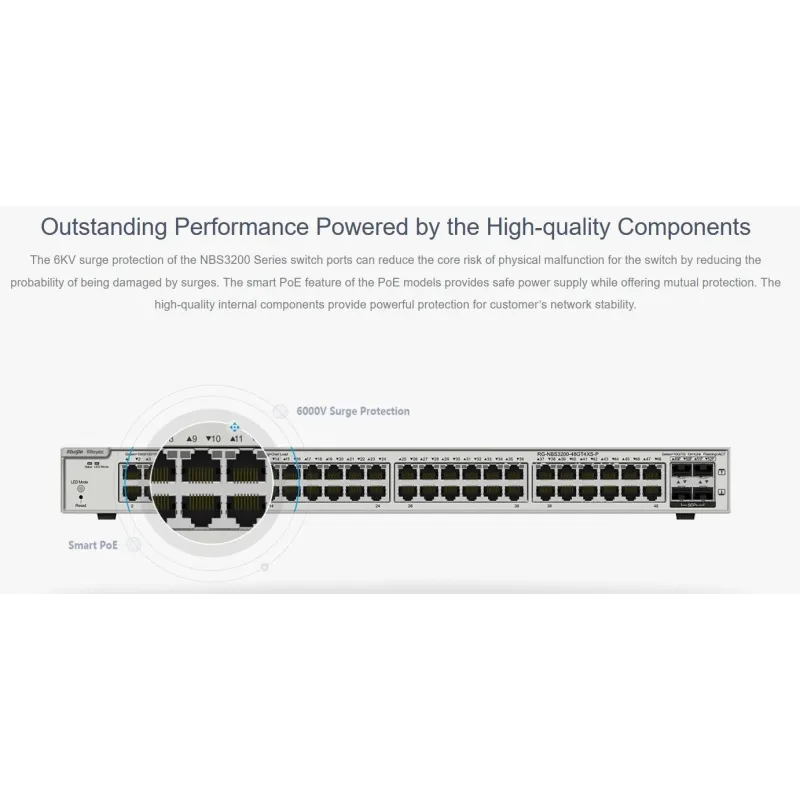

Port Surge

6 kV

ประกัน

5 ปี











รายละเอียดสินค้า
10 รายการ

ข้อมูลสินค้า

Layer Switch
L2 Managed
SFP Port Gigabit
1 Port
SFP+ Port 10-Gigabit
1 Port
