Reyee RG-NBS5200-24GT4XS L3 Cloud Managed Switch 24 Port Gigabit, 4 Port SFP+ Uplink
- 24-Port gigabit Layer 3 managed non-PoE switch, 4 SFP+ uplink
- Enterprise-class Quality Ensures High Performance
- 6KV surge protection reduces the possibility of port damage
- Multiple Security Policies Protect Your Network
- Lifetime management on Ruijie Cloud at anytime anywhere
| Product Specification |
|
Feature
|
Reyee RG-NBS5200-24GT4XS L3 Cloud Managed Switch 24 Port Gigabit, 4 Port SFP+ 10Gbps, รองรับ Dynamic/Static Routing, VLAN, IGMP Snooping, Static Link Aggregate, 802.1X
บริหารจัดการผ่าน Ruijie Cloud
|
|
10/100/1000Base-T ports
|
24 |
|
SFP ports
|
|
|
SFP+ ports
|
4 |
|
PoE++ ports (802.3bt)
|
- |
|
PoE/PoE+ ports (802.3af/at)
|
- |
|
Max. PoE budget
|
- |
|
Switching capacity
|
128 Gbps
|
|
Forwarding rate
|
96 Mpps
|
|
Packet Buffer
|
12 Mbit
|
|
MAC address table
|
16K |
|
Maximum VLAN Support
|
4094 |
|
Dimensions (W x D x H)
|
440 mm x 207.5 mm x 43.6 mm
|
|
Weight (With package)
|
3.97 kg
|
|
MTBF
|
> 200,000
|
|
Layer 2 Features
|
|
Jumbo Frame
|
9216
|
|
Flow Control
|
Support |
|
STP (IEEE 802.1d)
RSTP (IEEE 802.1w)
MSTP (IEEE 802.1s)
|
Support |
|
Port Fast
|
Support |
|
BPDU Guard
|
Support |
|
Max. Aggregation Group
|
16 |
|
Max. Member per Group
|
8 |
|
Many-to-One Mirroring
|
Support |
|
VLAN Range
|
1-4094
|
|
VLAN
|
Port-based VLAN
MAC-based VLAN
IP-based VLAN
Voice VLAN
|
|
RLDP/ LLDP / LLDP-MED
|
Support |
|
Cable Testing
|
Support |
|
IGMP Snooping v1/v2/v3
|
Support |
|
Software Features
|
|
Ping
|
Support |
|
Traceroute
|
Support |
|
ACL Entries
|
1900 |
|
Static Routing
|
Support |
| ACL |
IP Standard ACL
MAC-based Extended ACL
IP-based Extended ACL
|
|
Port-based Rate Limit (Ingress/Egress)
|
Support |
|
SNMP v1/v2c/v3
|
Support |
|
OSPF
|
Support |
|
RIP
|
Support |
|
802.1X
|
Support |
|
IPV6
|
Support |
|
DHCP Server
|
Support |
|
Management
|
Web Management
Management IP 10.44.77.200
HTTP/HTTPS
Cloud Management
SON (Self-Organizing Network) with IP
|
|
Camera Recognition
|
Support |
| Protection |
Loop Prevention
Loop Notification
PoE Usage Alarm
Protection Port
IP Source Guard
Anti-ARP Spoofing
DHCP Snooping
|
|
DHCP Client
|
Support |
|
Flash Memory
|
256MB
|
|
Power Supply Slot
|
Single, fixed power supply
|
|
Power Supplies
|
100 - 240V AC, 1.5A
|
|
Power Consumption
|
28 |
|
Operating Temperature
|
0°C to 50°C (32°F to 122°F)
|
|
Storage Temperature
|
-40°C to 70°C (-40°F to 158°F)
|
|
Operating Humidity
|
10% to 90%RH
|
|
Storage Humidity
|
5% to 95%RH
|
|
Port Surge
|
6 kV
|
|
Certificate
|
CE, RoHS
|
| ประกัน |
ทางร้านเป็นตัวแทนจำหน่ายอย่างเป็นทางการ ประกันศูนย์ Ruijie Thailand 5 ปี |
Reyee RG-NBS5200-24GT4XS L3 Managed Switch 24 Port Gigabit, 4 Port SFP+
Enterprise-class Quality Ensures High Performance

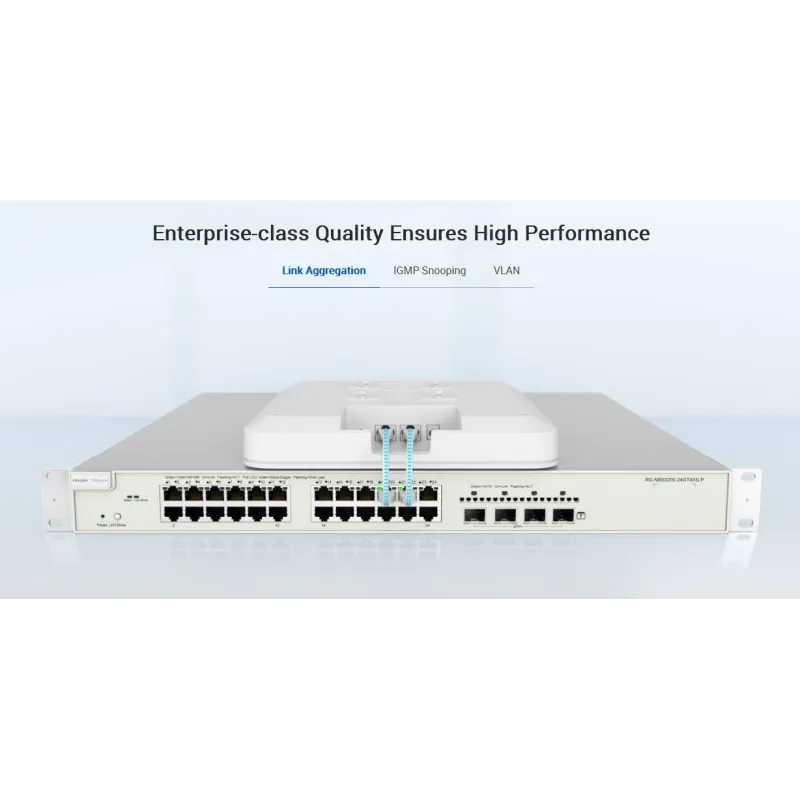

Link Aggregation

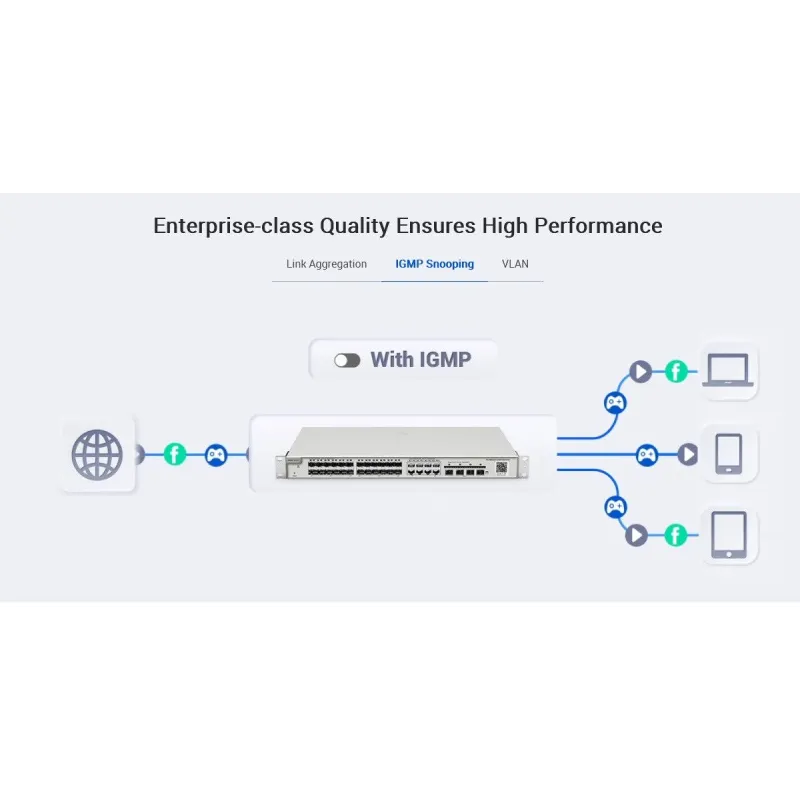

IGMP Snooping

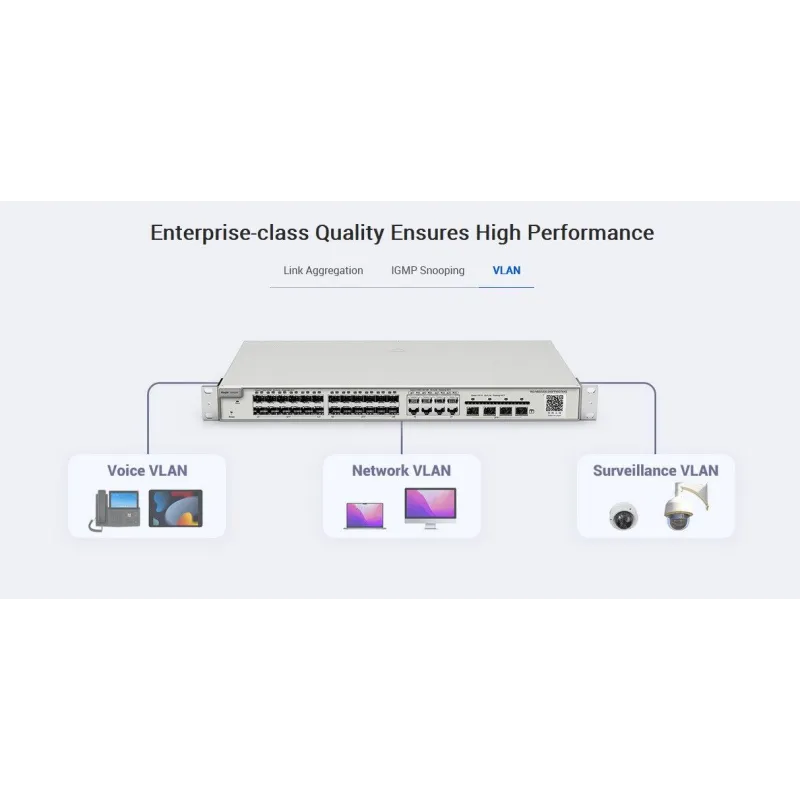

VLAN
Multiple Security Policies Protect Your Network

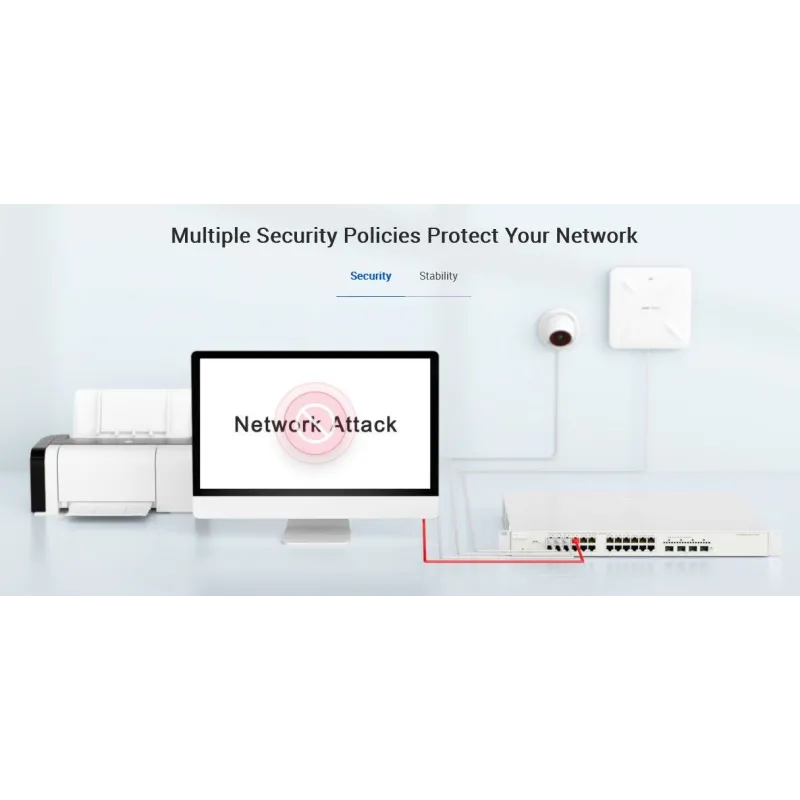

Security

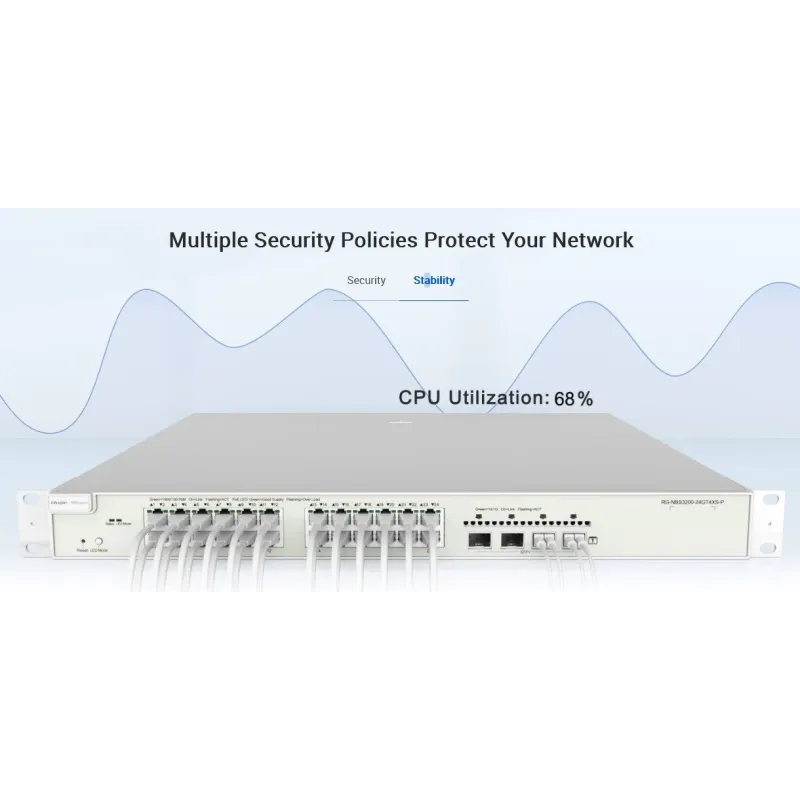

Stability

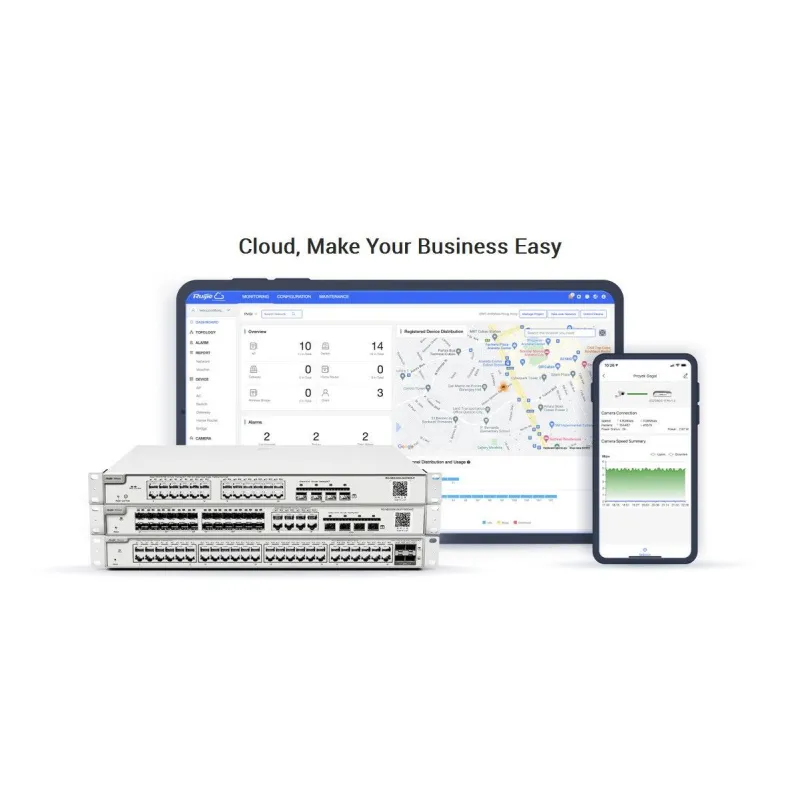

Cloud, Make Your Business Easy
- SON, zero touch provisioning to Cloud
- Monitor switch statistics at anytime anywhere
- Configure VLANs on Ruijie Cloud APP
- Easy maintainance, save onsite time and cost
รายละเอียดสินค้า
10 รายการ
ข้อมูลสินค้า
- ประเภท Switch
- L2/L3 Managed
- ความเร็ว Port Lan
- 1Gbps (Gigabit)
- จำนวน Port Lan
- 24 Port
- SFP+ Port 10-Gigabit
- 2 Port
