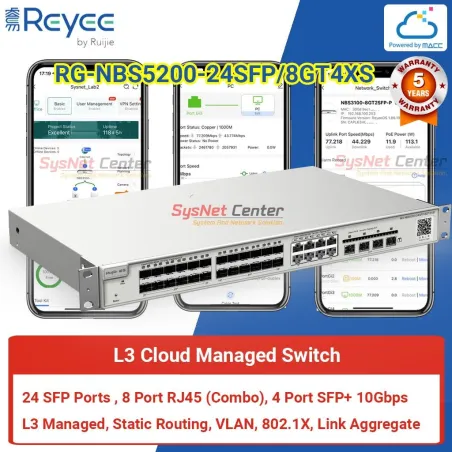

RG-NBS5200-24SFP/8GT4XS Reyee L3 Managed Switch 24 Port SFP, 4 Port SFP+

Feature

Reyee RG-NBS5200-24SFP/8GT4XS L3 Cloud Managed Switch 24 Port SFP Gigabit, 8 Combo RJ45/4 Port SFP+ 10Gbps
รองรับ Dynamic/Static Routing, VLAN, IGMP Snooping, Link Aggregate, 802.1X

บริหารจัดการผ่าน Ruijie Cloud

10/100/1000Base-T ports

SFP ports

SFP+ ports

PoE++ ports (802.3bt)

PoE/PoE+ ports (802.3af/at)

Max. PoE budget

Switching capacity

128Gbps

Forwarding rate

96Mpps

Packet Buffer

12 Mbit

MAC address table

Maximum VLAN Support

Dimensions (W x D x H)

440 mm x 267.5 mm x 43.6 mm

Weight (With package)

4.9 kg

MTBF

> 200,000

Layer 2 Features

Jumbo Frame

9216

Flow Control

STP (IEEE 802.1d)
RSTP (IEEE 802.1w)
MSTP (IEEE 802.1s)

Port Fast

BPDU Guard

Max. Aggregation Group

Max. Member per Group

Many-to-One Mirroring

VLAN Range

1-4094

VLAN

Port-based VLAN
MAC-based VLAN
IP-based VLAN
Voice VLAN

RLDP/ LLDP / LLDP-MED

Cable Testing

IGMP Snooping v1/v2/v3

Software Features

Ping

Traceroute

ACL Entries

Static Routing

IP Standard ACL
MAC-based Extended ACL
IP-based Extended ACL

Port-based Rate Limit (Ingress/Egress)

SNMP v1/v2c/v3

OSPF

RIP

802.1X

IPV6

DHCP Server

Management

Web Management
Management IP 10.44.77.200
HTTP/HTTPS
Cloud Management
SON (Self-Organizing Network) with IP

Camera Recognition

Loop Prevention
Loop Notification
PoE Usage Alarm
Protection Port
IP Source Guard
Anti-ARP Spoofing
DHCP Snooping

DHCP Client

Flash Memory

256MB

Power Supply Slot

Single, fixed power supply

Power Supplies

100 - 240V AC, 2A

Power Consumption

≤ 41.8W

Operating Temperature

0°C to 50°C (32°F to 122°F)

Storage Temperature

-40°C to 70°C (-40°F to 158°F)

Operating Humidity

10% to 90%RH

Storage Humidity

5% to 95%RH

Port Surge

6 kV

Certificate

CE, RoHS
