Reyee RG-NIS3100 Power Supply Datasheet
Reyee RG-NIS-PA120-48 Highlight Features
Universal 85- 264VAC or 120- 370VDC lnput voltage
Accepts AC or DC input (dualuse of same terminal)
Built-in active PFC function
150% peak load output for 3 seconds
Output short circuit , over-current , over-voltage,over-temperature protection
safety according to lEC/UL/BS EN 62368
Product Specification
Overview

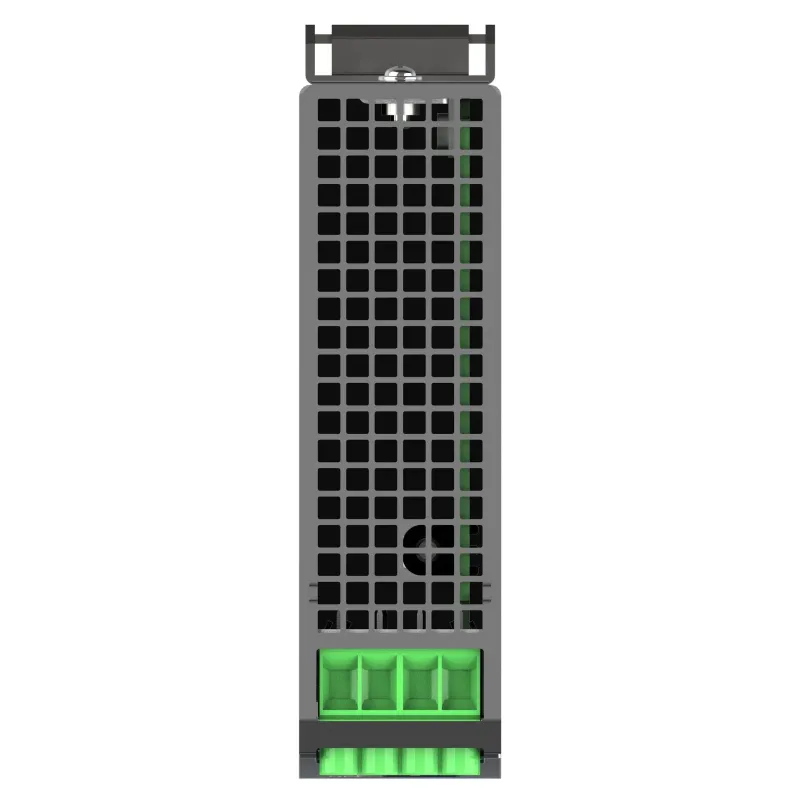

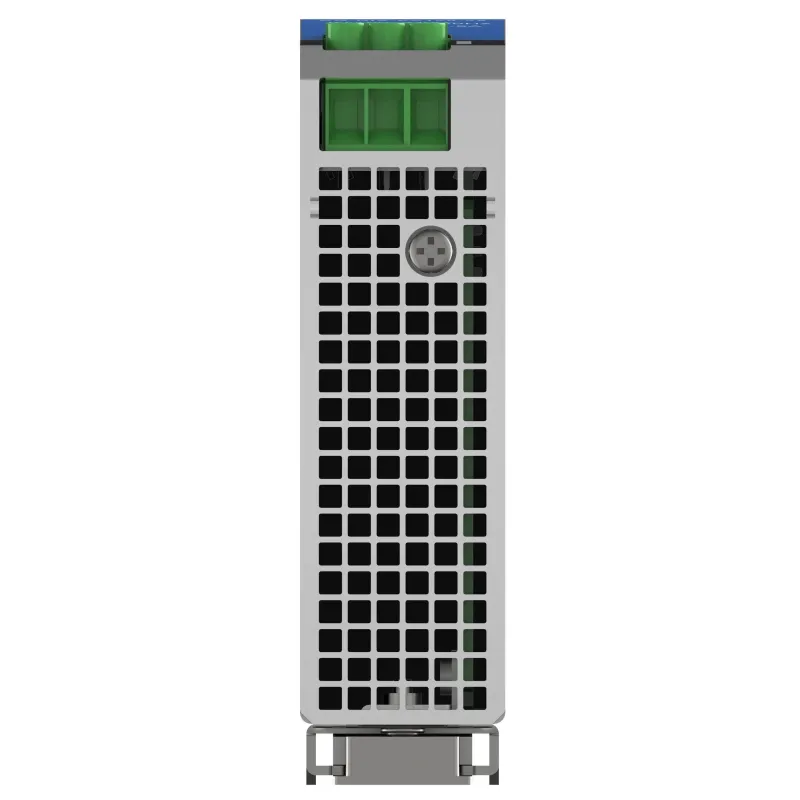

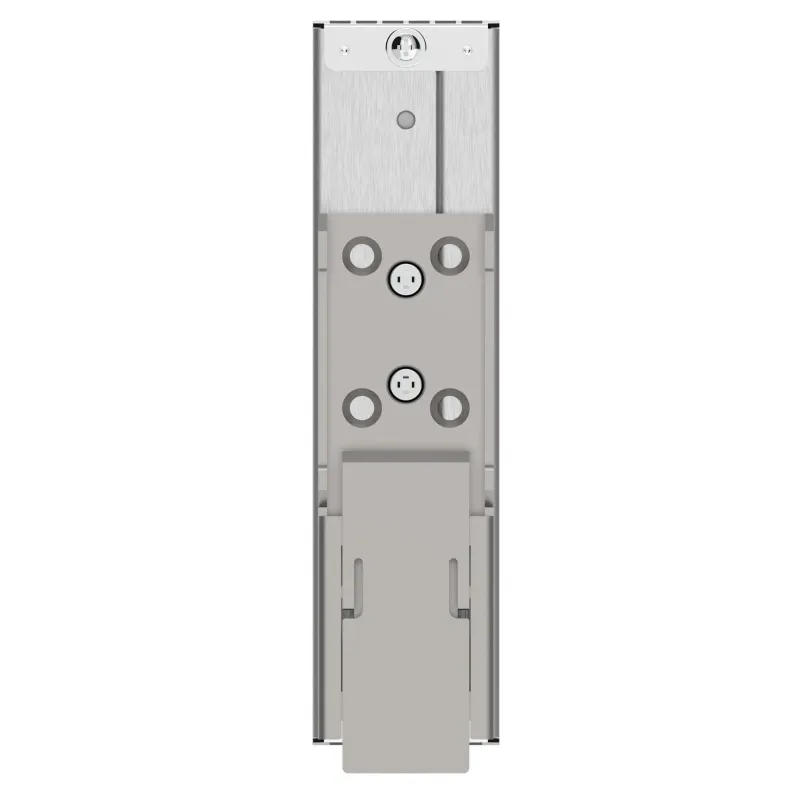

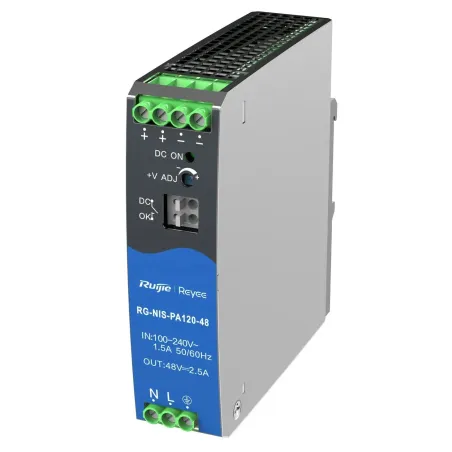

Reyee RG-NIS-PA120-48 AC/DC 120W DIN-Rail Power Supply สำหรับ Reyee RG-NIS3100 Industrial Switch L2-Managed POE Switch Series
Rated Voltage Range
100–240 V, 50/60 Hz
Max. Voltage Range
85–264 V, 47–63 Hz
Max. Output Power
120 W
Ground-Leakage Current
≤ 1 mA
Operating Temperature
–40ºC to +70ºC (–40°F to +158°F)
Storage Temperature
–40ºC to +85ºC (–40°F to +185°F)
Weight
0.49 kg (1.08 lbs.)
Short circuit protection
Hiccup mode:
Overcurrent protection
110%–200% Io, self-recovery
Overvoltage protection
≤ 60 V (hiccup, self-recovery after an exception is eliminated)
Overtemperature protection
80ºC (176°F)
ประกัน
1 ปี
