RG-RAP1201 Reyee Wi-Fi 5 1267Mbps Gigabit Wall-Mounted Access Point

Overview

Reyee RG-RAP1201 Dual-Band Gigabit Wall-Mounted Access Point มาตรฐาน Wi-Fi 5 ac Wave2 1267Mbps

2 Port Lan Gigabit

รองรับการ Managed แบบ Stanalone, Free Cloud Control, Hardware Control

Hardware specifications

Radio

Dual-stream dual-band

Protocol

Concurrent 802.11ac wave2, wave1, 802.11a/b/g/n

Operating Bands

802.11b/g/n : 2.4G-2.4835GHz
802.11a/n/ac : 5G : 5.150-5.350GHz, 5.725-5.850GHz

Antenna

PF antenna (2.4G: 2dBi, 5G: 2dBi)

Spatial Streams

2.4G 2x2MIMO
5G 2x2MIMO

Max Throughput

2.4G: up to 400Mbps
5G: up to 867Mbps
Access rate per AP: 1.267Gbps

Modulation

OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps
DSSS: DBPSK@1Mbps, DQPSK@2Mbps, and [email protected]/11Mbps
MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM and 256QAM

Receive Sensitivity

11b:-91dBm (1Mbps), -88dBm (5Mbps), -85dBm (11Mbps)
11a/g:-89dBm (6Mbps), -80dBm (24Mbps), -76dBm (36Mbps), -71dBm (54Mbps),
11n:-83dBm@MCS0, -65dBm@MCS7, -83dBm@MCS8, -65dBm@MCS15
11ac HT20:-83dBm (MCS0), -57dBm (MCS9)
11ac HT40:-79dBm (MCS0), -57dBm (MCS9)
11ac HT80:-76dBm (MCS0), -51dBm (MCS9)

Maximum Transmit Power

EIRP:
≤ 21.8 dBm (2.4 GHz)
≤ 22.1 dBm (5 GHz)

CE
≤ 20 dBm (2.4 GHz)
≤ 27 dBm (5 GHz)

Myamar:
2400 MHz - 2483.5 MHz ≤ 20 dBm
5150 MHz - 5350 MHz ≤ 23 dBm
5470 MHz - 5850 MHz ≤ 25 dBm

Thailand:
2400 MHz - 2483.5 MHz ≤ 20 dBm
5150 MHz - 5350 MHz ≤ 23 dBm
5470 MHz - 5725 MHz ≤ 25 dBm
5725 MHz - 5850 MHz ≤ 30 dBm

Note: The transmit power is subject to country-specific regulations.

Adjustable Power

1dBm

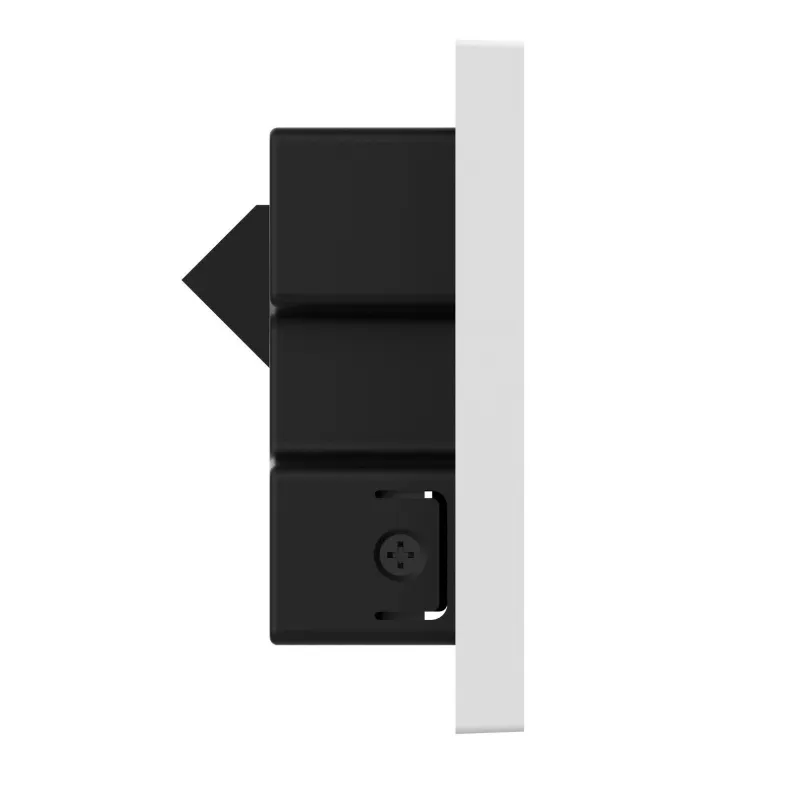

Dimensions

86 mm x 86 mm x 42.4 mm

Weight

0.14kg

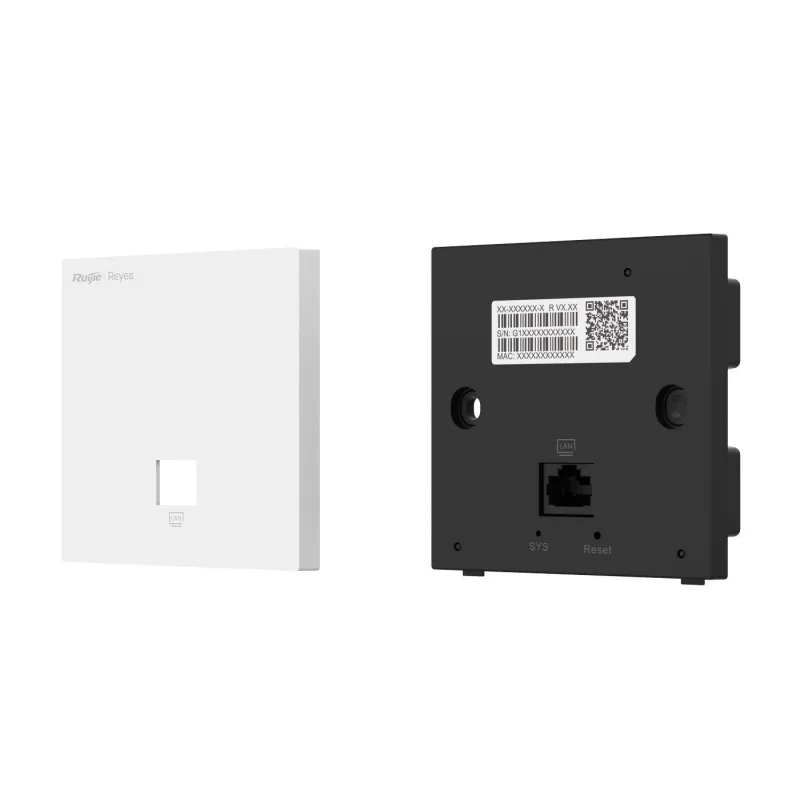

Service Ports

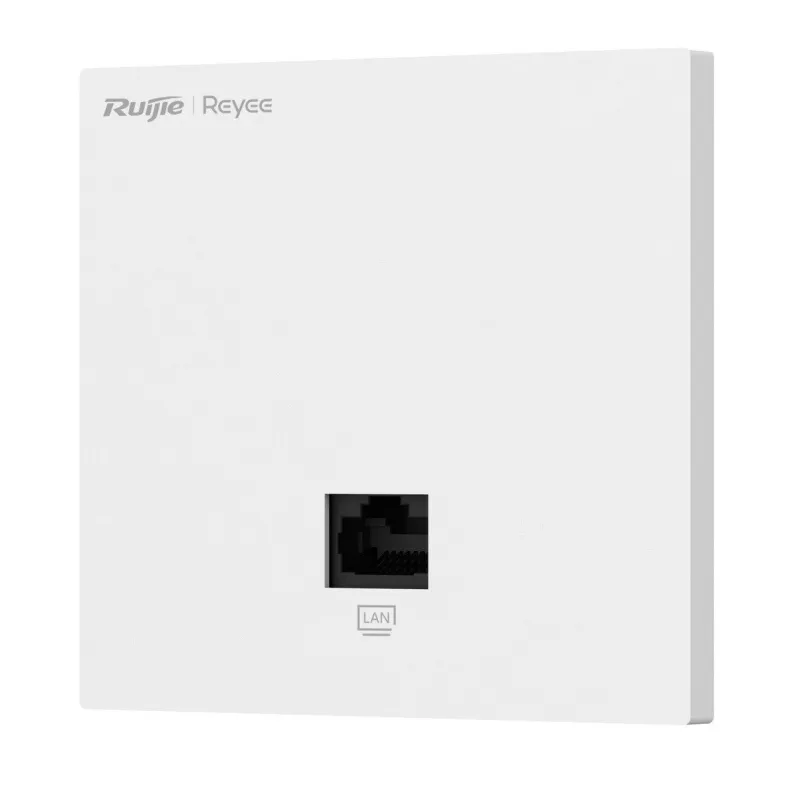

Front: 1 10/100/1000Base-T

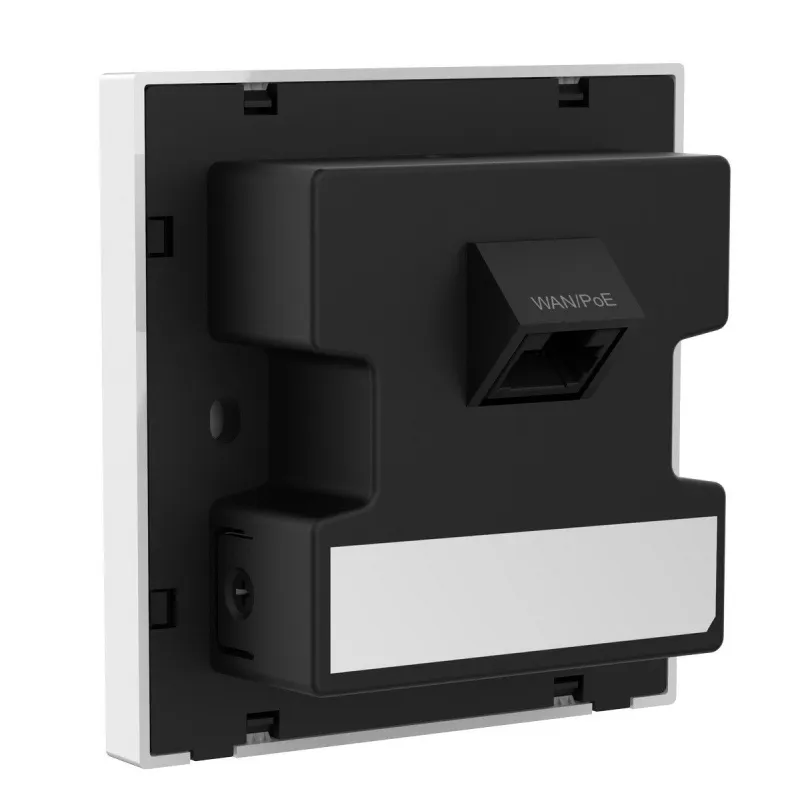

Rear: 1 10/100/1000Base-T

Management Port

N/A

LED Indicator

1 LED indicator

Power Supply

Support PoE (802.3af/at)

Power Consumption

≤ 9W

Environment

Operating temperature: -30°C~65°C
Storage temperature: -40°C~85°C
Operating humidity: 5%~95% (non-condensing)
Storage humidity: 5%~95% (non-condensing)

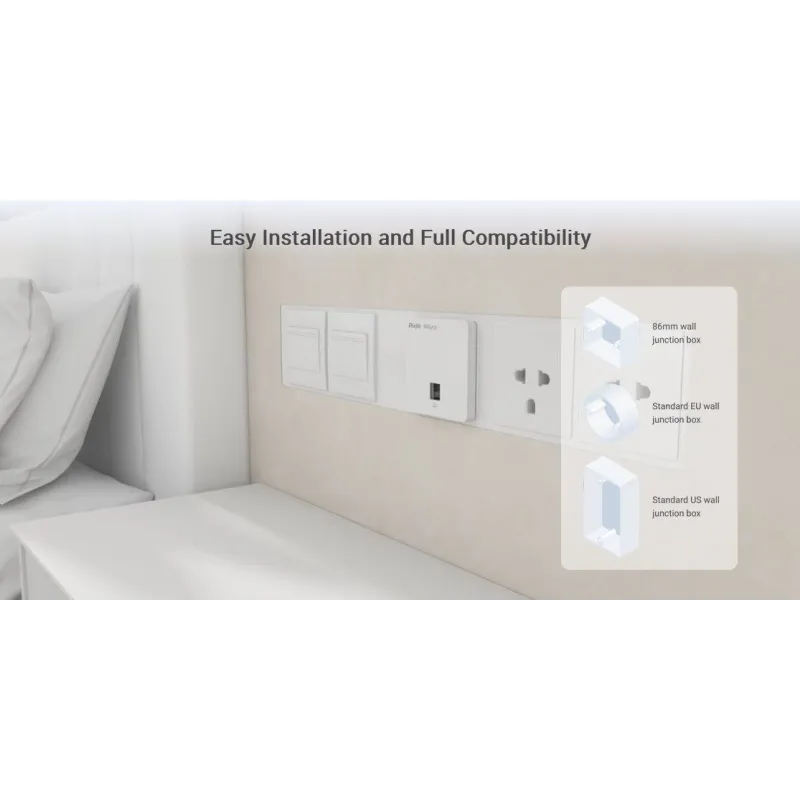

Installation

Wall plate installation

Safety Standard

GB4943, IEC 62368-1

EMC Standard

GB9254,EN301 489,EN50155,EN50121,EN55032,EN61000,EN55035

Vibration Standard

IEC61373

Radio Standard

SRRC certification, EN300 328, EN301 893

MTBF

>400000H

Software Features

Operating Mode

AP mode and routing mode

WLAN

Maximum number of clients: 110
Recommended number of clients: 80
Up to 8 SSIDs
Support SSID hiding
Configuring the authentication mode, encryption mechanism, and VLAN attributes for each SSID
SSID-based and radio-based STA limit
Support Layer 2 user isolation

Roaming

Support Layer 2 and Layer 3 roaming

Security

Support PSK authentication
Support static blacklist and whitelist
Support WPA (TKIP), WPA2 (AES), and WPA-PSK data encryption

Routing

Support static IP address, DHCP, PPPoE Dial Up

Management and maintenance

Support unified networking of all network equipment
Support local or remote management with Ruijie Cloud app
Support local management with web
Support remote management with Ruijie Cloud platform

รับประกัน

3 ปี
