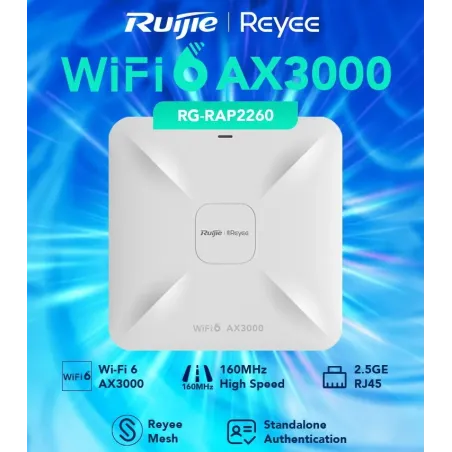

RG-RAP2260 Reyee Wi-Fi 6 AX3000 High Performance Multi-G Ceiling Access Point
Highlight Features
- Ultra-high performance Wi-Fi with 2.97 Gbps throughput.
- 500+ client connections, with better multi-user experience.
- Internet access with 2.5 Gbps uplink for the future.
- Easy installation of an extra AP with Reyee Mesh Technology.
- Standalone captive portal, easy to enable Wi-Fi authentication.
Product Specification
|
|
Overview
|
RG-RAP2260 Reyee AX3000 Multi-G Wireless Access Point 6 มาตรฐาน ax 2.97Gbps, Port Lan 2.5Gigabit, รองรับ POE, MESH WIFI, Manage ผ่าน Ruijie Cloud, Standalone
|
|
Wi-Fi Standards
|
Wi-Fi 6 (IEEE 802.11ax)
Wi-Fi 5 (IEEE 802.11ac Wave 2)
Wi-Fi 4 (IEEE 802.11n)
IEEE 802.11a
IEEE 802.11b/g
|
|
MIMO
|
2.4GHz, 2×2, MU-MIMO
5GHz, 2×2, MU-MIMO
|
|
Max. Wi-Fi Speed
|
2.4GHz: 574Mbps
5GHz: 2402Mbps
|
|

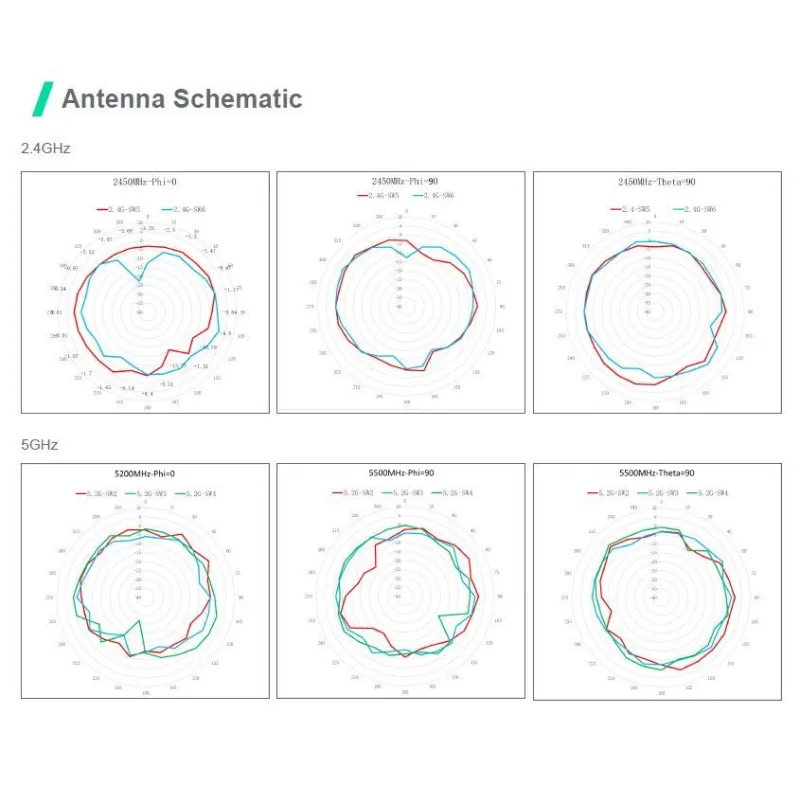

Antenna
|
5 |
|
Antenna Type
|
Built-In Omnidirectional
|
|
Antenna Gain
|
2.4 GHz: 3 dBi
5 GHz: 3 dBi
|
|
Transmit Power
|
EIRP:
≤31dBm (2.4GHz)
≤32.7dBm (5GHz)
country-specific restrictions apply
Thailand:
2400 MHz~2483.5 MHz ≤ 20 dBm
5150 MHz~5350 MHz ≤ 23 dBm
5470 MHz~5725 MHz ≤ 25 dBm
5725 MHz~5850 MHz ≤ 30 dBm
|
|
Fixed Ports
|
1 x 100/1000/2500 Base-T port
1 x 10/100/1000 Base-T port
1 x DC port
1 x Reset button
|
|
Max. Clients
|
512
|
|
Recommended Clients
|
110 |
|
Max. SSIDs
|
8 |
Basic Feature
|
|
Recommended Wi-Fi
Coverage Radius
|
2.4GHz: 40 meters
5GHz: 70 meters
The Wi-Fi coverage is related to the installation environment of the access point.
|
|
Max. Wi-Fi Coverage Radius
|
150 meters
|
|
Operation Frequency Bands
|
802.11b/g/n/ax: 2.400 GHz to 2.4835 GHz
802.11a/n/ac/ax: 5.150 GHz to 5.350 GHz, 5.470 GHz to 5.725 GHz , 5.725 GHz to 5.850 GHz
country-specific restrictions apply
|
Software Feature
|
|
Power Adjustment
|
Support |
|
Frequency Bandwidth
|
2.4 GHz: Auto/20/40 MHz
5 GHz: Auto/20/40/80/160 MHz
|
|
Roaming
|
Layer 2 roaming
Layer 3 roaming
|
|
OFDMA
|
Support |
|
Beamforming
|
Support |
|
WMM
|
Support |
|
Radar Signal Detection and Frequency Hopping (DFS)
|
Support |
|
Security Mode
|
WPA-PSK, WPA2-PSK, WPA/WPA2-PSK
|
|
Blacklist and Whitelist
|
Support |
|
Wi-Fi Optimization
|
Support |
|
STA Limit
|
Support |
|
Removing Low-RSSI STAs
|
Support |
|
Adjusting Sending Rate of Beacon and Probe Response
|
Support |
|
Syslog Recording Why Users Lose Connection
|
Support |
|
Auto Channel and Power Adjustment on Cloud
|
Support |
|
RSSI Threshold for STA Access
|
Support |
|
Load Balancing
|
Support |
|
Network Access Mode
|
PPPoE Client
DHCP Client
Static IP
|
|
VLAN
|
Support |
|
DHCP Server
|
Support |
|
Cloud Management
|
Support |
|
APP Management
|
Support |
|
APP Upgrade
|
Support |
|
APP Restart
|
Support |
|
Scheduled Restart
|
Support |
|
Default Access/Password
|
10.44.77.253 No Password Required by Default
|
| Upgrade |
Local Upgrade
Online Upgrade
|
|
Dual-bin Backup
|
Support |
|
Factory Reset
|
Support |
|
System Log
|
Support |
|
Diagnostics
|
Support |
|
Network Check
|
Support |
Physical
|
|
LED Indicator
|
1 × System LED indicator
|
|
Buttons
|
1 × Reset button
|
|
Dimensions (W × D × H)
|
194 mm x 194 mm x 45.1 mm (Without Mounting Bracket)
|
|
Weight
|
≤ 0.65 kg (Without Mounting Bracket)
|
|
Power Supplies
|
IEEE 802.3at PoE
DC 12V/2A
|
|
Power Consumption
|
≤ 18W
|
|
Operating Temperature
|
0°C to 40°C
|
|
Storage Temperature
|
-40°C to 70°C
|
|
Operating Humidity
|
5% to 95% Noncondensing
|
|
Storage Humidity
|
5% to 95% Noncondensing
|
|
Port Surge
|
4kV
|
|
ประกัน
|
ตัวแทนจำหน่ายอย่างเป็นทางการ ประกันศูนย์ Ruijie 3 ปี
|
RG-RAP2260 Build Faster Wi-Fi Network for The Future
Better Multi-User Experience in High-Density Scenarios
Performance upgraded, support client connections over 500.
Boost Your Internet Speed with 2.5Gbps Uplink
Build network for future, protect your investments
Easily Install Extra AP with Reyee Mesh
Less wiring, more relaxing.
More Flexiable Wi-Fi Authentication
Support standalone captive portal, easy to enable Wi-Fi authentication based on Ruijie Cloud only.*
Cloud, Make Your Business Easy
- Self-Organizing Network
- Centralized network management
- Scenario based configuration
- Cloud portal authentication
- Remote monitoring and maintenance
รายละเอียดสินค้า
10 รายการ
ข้อมูลสินค้า
- ลักษณะงาน Wireless
- กระจายสัญญาณ WIFI
- ความเร็ว มาตรฐาน WIFI
- WIFI-6 (ax) 1.7Gbps+
- ย่านความถี่
- Dual-Band 2.4/5GHz
- รองรับ Controller
- Cloud Controller
Hardware Controller
- Mode Repeate/WDS/MESH
- MESH
Repeater
- รองรับ POE
- Yes
