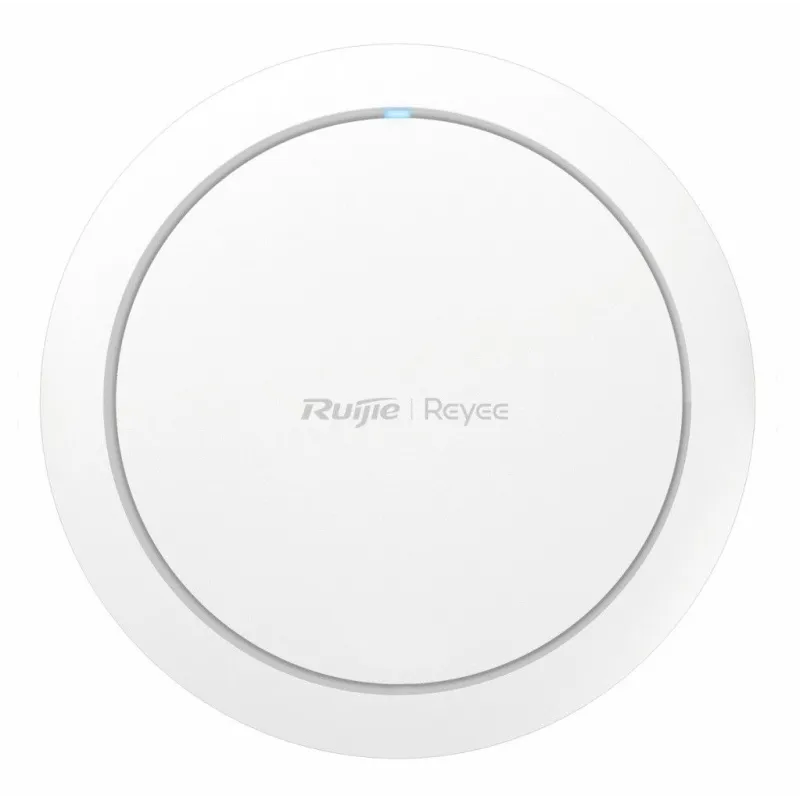

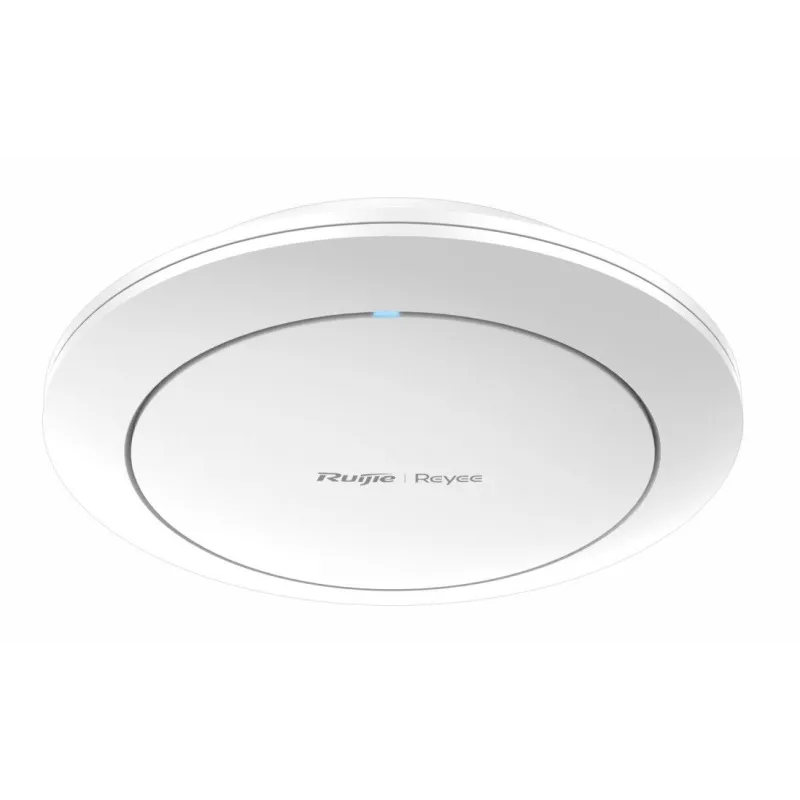

Ruijie Networks Reyee RG-RAP2266 Wi-Fi 6 AX3000 Indoor Ceiling-Mount Access Point
  • Ruijie Networks Reyee RG-RAP2266 Wi-Fi 6 AX3000 Indoor Ceiling-Mount Access Point
  • Ruijie Networks Reyee RG-RAP2266 Wi-Fi 6 AX3000 Indoor Ceiling-Mount Access Point
  • Ruijie Networks Reyee RG-RAP2266 Wi-Fi 6 AX3000 Indoor Ceiling-Mount Access Point
  • Ruijie Networks Reyee RG-RAP2266 Wi-Fi 6 AX3000 Indoor Ceiling-Mount Access Point

Reyee RG-RAP2266 Wi-Fi 6 AX3000 Indoor Ceiling-Mount Access Point

Reyee RG-RAP2266 AX600 Wi-Fi 6 AX3000 Ceiling Access Point, Dual-Band 2x2MIMO ความเร็ว 2.9Gbps, Manage ผ่าน Ruijie Cloud, Standalone
฿3,990.00
ยังไม่ได้รวมภาษี
จำนวน


ร้าน Sysnet เป็นตัวแทนจำหน่าย Ruijie/Reyee อย่างเป็นทางการ สอบถามราคาลดพิเศษทาง Line @sysnet  ได้เลยครับ


Line: @sysnet
Click โทรสอบถามข้อมูลเพิ่มเติม


รายละเอียด

Review Ruijie Cloud ระบบ Managed & Monitor อุปกรณ์ Ruijie ผ่าน Cloud ฟรี
แนะนำการเลือกใช้งาน Reyee Access-Point RAP Series

Reyee Series Implementation Cookbook V1.0
Ruijie Reyee RG-RAP and RG-EAP Series Access Points Web-based Configuration Guide

RG-RAP2266 Series Wi-Fi 6 Access Point Datasheet

Ruijie Reyee RG-RAP2266 Access Point User Manual (V1.0)

คู่มือการใช้งาน Ruijie Cloud App V7 บน Smartphone Android/iOS



Reyee RG-RAP2266

มาตรฐาน WIFI-6 4x4 MIMO ความเร็ว 2.9Gbps, Port Lan Gigabit , รูปทรงกลม ติดตั้งง่าย รองรับการเชื่อมต่อได้ถึง 512/110 Clients รองรับการทำ Standalone Captive Portal

Manage ผ่าน Ruijie Cloud License แบบ Lifetime

Highlight Features

  • Dual-radio performance, gigabit wireless Ceiling-mounted AP
  • Capable of Reyee Mesh and 802.11K/V
  • Easy installation, rotating and done
  • New circular aesthetics, more in line with the hotel decoration style
  • Powerful Standalone Portal via Ruijie Cloud

Product Specification

Wi-Fi Standards

Wi-Fi 6 (IEEE 802.11ax)
|Wi-Fi 5 (IEEE 802.11ac Wave 2)
Wi-Fi 4 (IEEE 802.11n)
IEEE 802.11a
IEEE 802.11b/g

MIMO

2.4GHz,2×2 ,MU-MIMO
5GHz,2×2 ,MU-MIMO

Max. Wi-Fi Speed

2.4GHz: 574Mbps
5GHz: 2402Mbps

Antenna

5

Antenna Type

Built-In Omnidirectional

Antenna Gain

2.4 GHz:3.53dBi
5 GHz:5.15dBi
Note The peak gain mentioned above refers to the gain of a single antenna.

Transmit Power

EIRP:
≤31dBm (2.4GHz)
≤32.7dBm (5GHz)
country-specific restrictions apply

Myamar:
2400 MHz~2483.5 MHz ≤ 20 dBm
5150 MHz~5350 MHz ≤ 23 dBm
5470 MHz~5850 MHz ≤ 25 dBm

Thailand:
2400 MHz~2483.5 MHz ≤ 20 dBm
5150 MHz~5350 MHz ≤ 23 dBm
5470 MHz~5725 MHz ≤ 25 dBm
5725 MHz~5850 MHz ≤ 30 dBm

Fixed Ports

1×10/100/1000 Base-T port
1xDC port
1×Reset button

Max. Clients

512

Recommended Clients

110

Max. SSIDs

8

Recommended Wi-Fi Coverage Radius

2.4GHz: 40 meters
5GHz: 70 meters
The Wi-Fi coverage is related to the installation environment of the access point.

Max. Wi-Fi Coverage Radius

150 meters

WLAN Basic Features

Power Adjustment

Support

Frequency Bandwidth

2.4 GHz: Auto/20/40 MHz
5 GHz: Auto/20/40/80/160 MHz

Roaming

Layer 2 roaming
Layer 3 roaming

OFDMA

Support

Beamforming

Support

WMM

Support

Radar Signal Detection and Frequency Hopping (DFS)

Support

WLAN Security

Support

Max Wi-Fi Password Length

16 Digits

Security Mode

WPA-PSK, WPA2-PSK, WPA/WPA2-PSK

Blacklist and Whitelist

Support

Wi-Fi Optimization

Support

STA Limit

Support

Removing Low-RSSI STAs

Support

Adjusting Sending Rate of Beacon and Probe Response

Support

Syslog Recording Why Users Lose Connection

Support

Auto Channel and Power Adjustment on Cloud

Support

RSSI Threshold for STA Access

Support

Load Balancing

Support

Networks

Network Access Mode

PPPoE Client
DHCP Client
Static IP

VLAN

Support

DHCP Server

Support

System

Support

Cloud Management

Support

APP Management

Support

APP Upgrade

Support

APP Restart

Support

Scheduled Restart

Support

Default Access/Password

10.44.77.253
No Password Required by Default

Physical

LED Indicator

1 × System LED indicator

Buttons

1 × Reset button

Dimensions (W × D × H)

220 mm x 220 mm x 52.6 mm (8.66 in. x 8.66 in. x 2.07 in., without the mounting bracket)

Weight

≤ 0.5kg (Without Mounting Bracket)

Installation

Ceiling-Mountable

Power Supplies

IEEE 802.3at PoE
DC 12V/2A

Power Consumption

≤ 18W

Operating Temperature

0°C to 40°C

Storage Temperature

-40°C to 70°C
Operating Humidity 5% to 95% Noncondensing

Storage Humidity

5% to 95% Noncondensing

Port Surge

+/-2kV

MTBF

>400000H

ประกัน

3 ปี



RG-RAP2266 Wi-Fi 6 AX3000 Dual-band Round Ceiling

Reyee RG-RAP2266 Wi-Fi 6 AX3000 Indoor Ceiling-Mount Access Point

Seamless Roaming, Ever Smart Like ThisSmart AI Roaming,

Based on Cloud Algorithm and Technology of 802.11k/v, Guaranteed Smooth and Lag-Free Internet

Reyee RG-RAP2266 Wi-Fi 6 AX3000 Indoor Ceiling-Mount Access Point

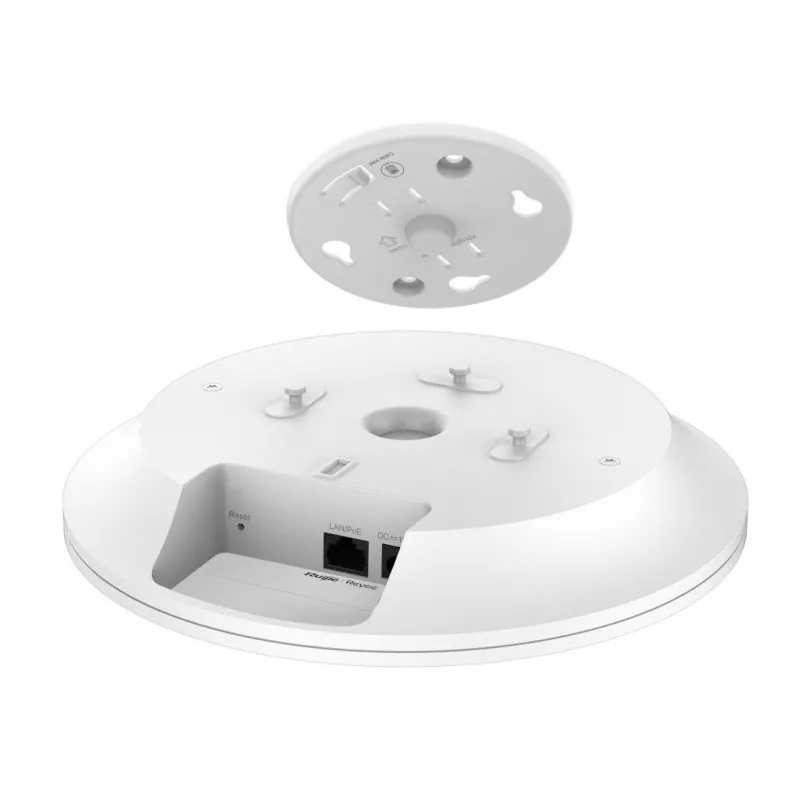

Installation With Rotating, Quick and Easy

Reyee RG-RAP2266 Wi-Fi 6 AX3000 Indoor Ceiling-Mount Access Point


Easily Install Extra AP with Reyee Mesh Less wiring, more relaxing.

Reyee RG-RAP2266 Wi-Fi 6 AX3000 Indoor Ceiling-Mount Access Point

Cloud, Make Your Business Easy
  • Reyee free DDNS
  • Cloud portal authentication
  • Remote monitoring and maintenance
  • Upgrade firmware via Cloud
  • APP library dynamic update

Reyee RG-RAP2266 Wi-Fi 6 AX3000 Indoor Ceiling-Mount Access Point

รายละเอียดสินค้า
100 รายการ

Data sheet

ลักษณะงาน Wireless
กระจายสัญญาณ WIFI
ความเร็ว มาตรฐาน WIFI
WIFI-6 (ax) 1.7Gbps+
ย่านความถี่
Dual-Band 2.4/5GHz
รองรับ Controller
Hardware Controller, Cloud Controller
Mode Repeate/WDS/MESH
MESH
รองรับ POE
Yes

ทดสอบ Performance 100 Concurents Video Streaming และ ประสิทธิภาพในการทำ Roaming

Ruijie Ultra-high density Wi-Fi project with 1000 unit Smart Phone

Ruijie Wi Fi 6 Killer AP820 LV2 Unbox & Speedtest 762/912 Mbps

Ruijie Cloud: Perfect Network Solution For SME

Ruijie Cloud Site Survey Planner (SSP) Overview

Ruijie AP Quick Provisioning

Ruijie Cloud Deployment Quick Start

ตารางเปรียบเทียบ ระหว่างอุปกรณ์ Ruijie VS Reyee

Feature

Ruijie Enterprise

Reyee

Ruijie Cloud

Support

Support

Mobile App
(รองรับ iOS และ Android)

Support

Support

Review Ruijie Cloud ระบบ Managed & Monitor อุปกรณ์ Ruijie ผ่าน Cloud

Presales Tools
(ระบบการขาย เช่น BOM, การคำนวนกำลังไฟ POE, Report)

Support

Support

Fast Provisioning
(การเพิ่มอุปกรณ์ขึ้น Cloud))

Scan QR-code Device
Cloud Config Sync

Self-organizing network (SON)
Scan QR-code Device

Monitoring & Alarm

Support

Support

Device Management

Additional:
RRM
Web CLI
Telnet/SSH
Configuration Mgmt (Backup/Restore)

Basic
Web Config
Cloud Config

Gateway Management

WAN Load Balance
Block Web
Block Bittorrent
App/Web Control L7 Filter
L7 DPI Analysis
App Cache
Sub-Interface VLAN (802.1Q)
VPN L2TP, PPTP, IPSecs
Bandwidth Management
ACL
EWeb Tunnel (Remote Config ผ่าน Cloud)

WAN Load Balance
Block Web
Block Bittorrent
Sub-Interface VLAN (802.1Q)
VPN L2TP, PPTP, IPSecs
Bandwidth Management
ACL
NO-IP, DDNS
EWeb Tunnel (Remote Config ผ่าน Cloud)

Gateway Authen

Local Authen (Captive Portal)
Sync with Cloud Auth (Captive Portal)
Web Audit (เก็บ Log การเข้า Website)

Local Authen (Captive Portal)
Sync with Cloud Auth (Captive Portal)
QR-Code Auth

Review Ruijie RG-EG3230/RG-EG3250 Loadbalance Gateway
Review Reyee Gateway RG-EG210G-E แบบ Full Test

Multi-tenant
รองรับการจัดการ Project จากหลาย Account

Support

Support

Scenario-based
Config Wizard

N/A

Support (App)

Wireless

Standard

WIFI 4 (n)
WIFI 5 (ac)
WIFI 5 Wave2 (ac)
WIFI 6 (ax)

WIFI 5 Wave2 (ac)
WIFI 6 (ax)

Capacity

Max Client 1024 (Wi-Fi 6)

Max Client 128

WLAN Auth

802.1x Auth
PPSK

Customized Captive Portal
Voucher, Account, Facebook, SMS OTP

PSK/WPA2
Basic Captive-Portal (ต้องใช้ร่วมกับ Ruijie/Reyee Gateway)

Review Ruijie Cloud WIFI Authentication ระบบ Login เข้าใช้งาน Internet

WLAN Features

L2/L3 Roaming
Adv CLI script configuration
WIDS(Rogue AP detection)
Wireless Radio Analytics (RRM)
Location tracking (LBS)
Bluetooth (BLE) support
Speed Limit Per Client
Speed Limit Per SSID

L2 Roaming
Wireless Load Balance
Basic Feature

WLAN Controller
(Appliances)

Yes
RG-WS6000 Series (upto 6400 AP)

Yes
RG-NBC Series (up to 500 AP)

Switches

Capacity

Chassis model option (upto 48 10GE)

Box Switches model (upto 24GE +10G uplink

L2

IGMP Snooping
MSTP
LACP VLAN
Link Aggregate (LACP)
SuperVlan
VoiceVlan
ACL
DHCP Snooping
Port Isolate

VLAN
Link Aggregate (Static)
ACL
DHCP Snnoping
Port Isolate

L3

IPv6, RIP, OSPF, PBR, VRRP

N/A<

Security / Availability

802.1x, CPP/NFPP, REUP, VSU

N/A

Management

Managed with Web & CLI (Console port), SSH, SNMP

Web Smart Managed & Unmanaged

Review Ruijie RG-ES200 Series Cloud Managed POE Switch

ตารางเปรียบเทียบข้อมูล Reyee RG-RAP Series Access Point



Model

RG-RAP1200(F)

RG-RAP1200(P)

RG-RAP2200(F)

RG-RAP2200(E)

RG-RAP2260(G)

RG-RAP2260(E)

สัญญาณครอบคลุม

20 เมตร

20 เมตร

30 เมตร

30 เมตร

30 เมตร

30 เมตร

จำนวน Clients ที่แนะนำ

40
8(2.4G) + 32(5G)

80
16(2.4G) + 64(5G)

48
16(2.4G) + 32(5G)

80
16(2.4G) + 64(5G)

100
16(2.4G) + 84(5G)

100
16(2.4G) + 84(5G)

มาตรฐาน WIFI

802.11b/g/n/ac

802.11b/g/n/ac

802.11ac wave2
802.11a/b/g/n

802.11ac wave2, wave1
802.11a/b/g/n

802.11ax
802.11ac wave2
802.11a/b/g/n

802.11ax
802.11ac wave2 802.11a/b/g/n

ความเร็วสูงสุด (2.4GHz)

400Mbps

400Mbps

400Mbps

400Mbps

574Mbps

800Mbps

ความเร็วสูงสุด
(5GHz)

867Mbps

867Mbps

867Mbps

867Mbps

1201Mbps

2402Mbps

กำลังส่งสูงสุด
(2.4G)

20dBm = 100mW

20dBm = 100mW

20dBm = 100mW

20dBm = 100mW

20dBm = 100mW

20dBm = 100mW

กำลังส่งสูงสุด
(5G)

20dBm = 100mW

20dBm = 100mW

20dBm = 100mW

20dBm = 100mW

20dBm = 100mW

20dBm = 100mW

จำนวน SSID

8

8

8

8

8

8

Spatial Streams

2.4G: 2x2 MIMO
5G: 2x2 MIMO

2.4G 2x2MIMO
5G 2x2MIMO

2.4G 2x2MIMO
5G 2x2MIMO

2.4G 2x2MIMO
5G 2x2MIMO

2.4G 2x2MIMO
5G 2x2MIMO

2.4G 4x4 MIMO
5G 4x4 MIMO

Antenna

PCB antenna

PF antenna
2.4G: 2dBi
5G: 2dBi

Array antennas 2.4G: 2dBi
5G: 2dBi

Array antennas
2.4G: 2dBi
5G: 2dBi

Internal antennas 2.4G: 3dBi
5G: 3dBi

Internal antennas 2.4G: 3dBi
5G: 3dBi

Service Ports

Front:
1 Port 10/100Mbps Ethernet port

Rear:
1 Port 10/100Mbps, Support PoE

Front:
4  Port 10/100/1000 Mbps
LAN1 port supports 802.3af PoE

Rear:
1 Port  10/100/1000Mbps

2 Port 10/100 Mbps PoE/LAN1 port supports PoE

2 Port 10/100/1000 Mbps
PoE/LAN1 port supports PoE

2 Port 10/100/1000 Mbps
PoE/LAN1 port supports PoE

1 Port 10/100/1000M/2.5G supports PoE;

1 Port 10/100/1000Mbps

SON Number

150

150

150

300

300

300

Power Supply

PoE 803.1af

PoE 803.1af

PoE 803.1af
DC 12V 1.5A

PoE 803.1af
DC 12V 1.5A

PoE 803.1at
DC 12V 1.5A

PoE 803.1at
DC 12V 1.5A

Port Aggregation

Not  Support

Not  Support

Not  Support

Not  Support

Not  Support

Not  Support

VLAN

Support

Support

Support

Support

Support

Support

Port Base VLAN

Support

Support

Not  Support

Not  Support

Not  Support

Not  Support

DHCP Snooping

Not  Support

Not  Support

Not  Support

Not  Support

Not  Support

Not  Support

ARP Check

Not  Support

Not  Support

Not  Support

Not  Support

Not  Support

Not  Support

IP Source Guard

Not  Support

Not  Support

Not  Support

Not  Support

Not  Support

Not  Support

LLDP

Not  Support

Not  Support

Not  Support

Not  Support

Not  Support

Not  Support

Static ARP Bind

Support

Support

Support

Support

Support

Support

ARP Proxy

Support

Support

Support

Support

Support

Support

Ping

Support

Support

Support

Support

Support

Support

Traceroute

Support

Support

Support

Support

Support

Support

NAT

Support

Support

Support

Support

Support

Support

Static Route

Not  Support

Not  Support

Not  Support

Not  Support

Not  Support

Not  Support

DHCP Server

Support

Support

Support

Support

Support

Support

Telnet

Not  Support

Not  Support

Not  Support

Not  Support

Not  Support

Not  Support

SSH

Not  Support

Not  Support

Not  Support

Not  Support

Not  Support

Not  Support

รองรับการจัดการผ่าน Ruijie Cloud

Support

Support

Support

Support

Support

Support

รองรับการจัดการผ่าน Ruijie Cloud APP

Support

Support

Support

Support

Support

Support

802.1x

Not  Support

Not  Support

Not  Support

Not  Support

Not  Support

Not  Support

PPPoE

Support

Support

Support

Support

Support

Support

Same SSID with differnet VLAN

Not  Support

Not  Support

Not  Support

Not  Support

Not  Support

Not  Support

Same VLAN with differnet SSID

Support

Support

Support

Support

Support

Support

L2 Roaming

Support

Support

Support

Support

Support

Support

L3 Roaming

Support

Support

Support

Support

Support

Support

Global whitelist/blacklist

Support

Support

Support

Support

Support

Support

SSID-based whitelist/blacklist

Support

Support

Support

Support

Support

Support

Wireless bridge

Not  Support

Not  Support

Not  Support

Not  Support

Not  Support

Not  Support

PoE Out

Not  Support

Support

Not  Support

Not  Support

Not  Support

Not  Support



Follow us on Facebook
