RG-RAP52-OD Reyee Wi-Fi 5 AC1300 Dual-Band Outdoor Access Point

Product Specification

Overview

Reyee RG-RAP52-OD Wi-Fi 5 AC1300 Dual-Band Outdoor Access Point, มาตรฐาน WIFI-5 Wave2 1.3Gbps, 1 Port Lan รองรับ POE (ไม่มีในชุด), กันน้ำ กันฝุ่นมาตรฐาน IP65, รองรับ WIFI-Mesh , WIFI Roaming, Manage ผ่าน Ruijie Cloud, Standalone

พร้อม Ruijie Cloud License แบบ Lifetime

Wi-Fi Standards

Wi-Fi 5 (IEEE 802.11ac Wave 2)
Wi-Fi 4 (IEEE 802.11n)
IEEE 802.11a
IEEE 802.11b/g

MIMO

2.4 GHz, 2×2 MIMO
5 GHz, 2×2 MIMO

Max. Wi-Fi Speed

2.4 GHz: 400 Mbps
5 GHz: 867 Mbps

Transmit Power

CE EIRP:
2.4 GHz to 2.4835 GHz ≤ 20 dBm
5.150 GHz to 5.350 GHz ≤ 23 dBm
5.470 GHz to 5.725 GHz ≤ 30 dBm
Note: Country specific restrictions apply

Myanmar:
2400 MHz - 2483.5 MHz ≤ 20 dBm
5150 MHz - 5350 MHz ≤ 23 dBm
5470 MHz - 5850 MHz ≤ 25 dBm

Thailand:
2.4 GHz to 2.4835 GHz: 20 dBm
5.150 GHz to 5.350 GHz: 23 dBm
5.470 GHz to 5.725 GHz: 30 dBm
5.725 GHz to 5.825 GHz: 30 dBm

Max Throughput

Up to 400 Mbps at 2.4 GHz
Up to 867 Mbps at 5 GHz
1.267 Gbps per AP

Dimensions

220 mm × 50 mm × 35.7 mm (8.66 in. × 1.97 in. × 1.41 in.) (excluding mounting bracket and antenna)
antenna size: 185mm (7.24 in.)

Weight

Main Unit: ≤ 0.4 kg

Fixed Ports

1 × 10/100/1000 Base-T port

LEDs

1 × system LED

Power Supply

IEEE 802.3af standard PoE power supply
24 V passive PoE power supply
(ไม่มี POE และ DC Adapter ในชุดอุปกรณ์)

Max. Power Consumption

≤ 14 W

Operating Temperature

-30°C to +70°C

Installation

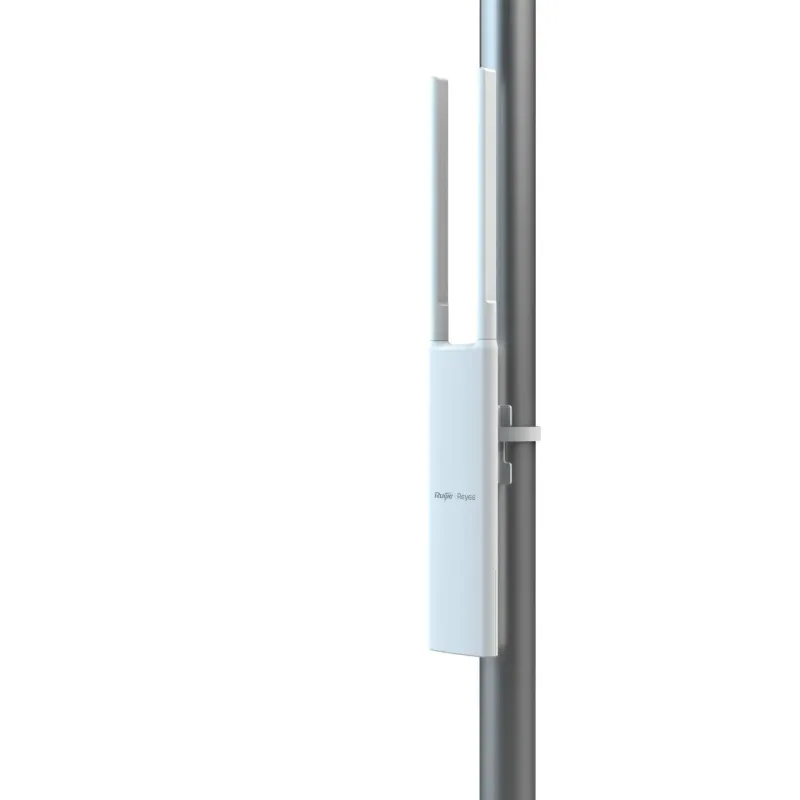

Wall mounting and pole mounting

Software Features

Operating Mode

AP mode and routing mode

WLAN

Maximum number of clients: 110
Recommended number of clients: 96
Up to 8 SSIDs
Support SSID hiding Configuring the authentication mode encryption mechanism
VLAN attributes for each SSID
SSID-based and radio-based STA limit
Support Layer 2 user isolation

Roaming

KV Roaming
Layer 2 Roaming
Layer 3 Roaming

Security

Support PSK authentication
Support Black List / White List:
Maximum 256 rules per SSID
Maximum 1024 rules per AP
Support WPA (TKIP), WPA2 (AES), and WPA-PSK data encryption
Standalone Portal

Routing

Support static IP address, DHCP, PPPoE Dial Up

Management and maintenance

Support unified networking of all network equipment
Support local or remote management with Ruijie Cloud app
Support local management with web
Support remote management with Ruijie Cloud platform

AP Mesh

Mesh management
Reyee Mesh

ประกัน

ประกันศูนย์ Ruijie Thailand 3 ปี
