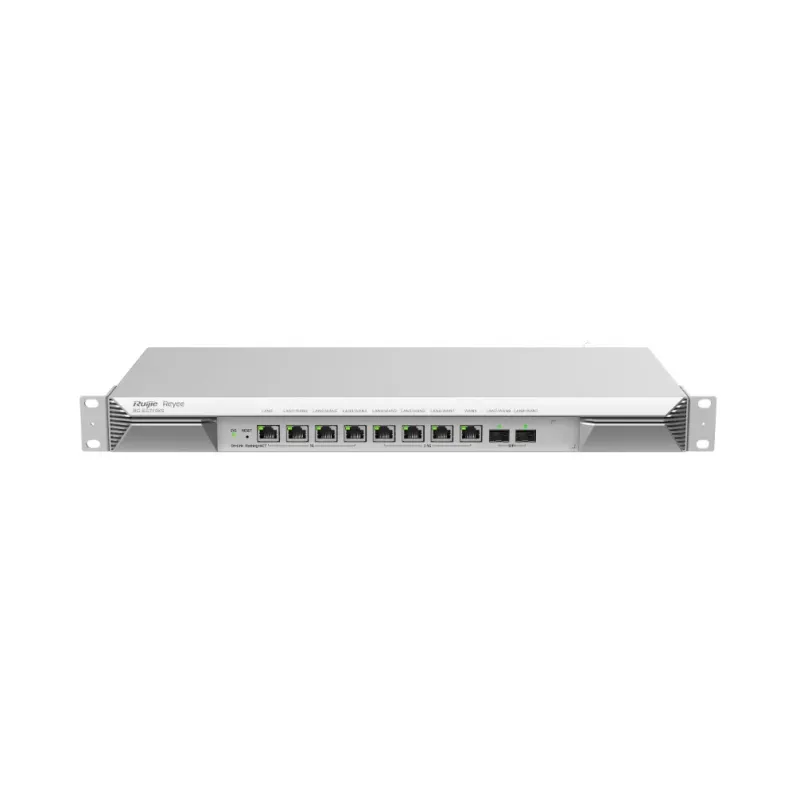

RG-EG710XS Loadbalance Router Product Specification |
Fixed WAN Port | 1×10/100/1000/2500 Base-T |
Fixed LAN Port(s) | 1×10/100/1000 Base-T (Port Management) |

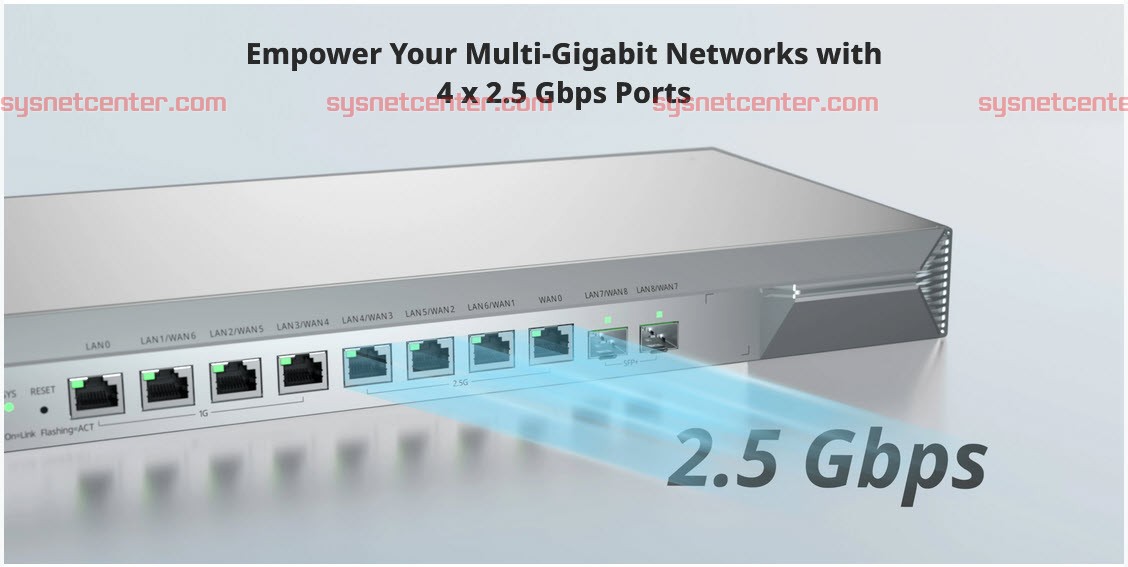

LAN/WAN Switchable Port(s) | 3 Port 1Gbps
3 Port Multi-Gig 1/2.5Gbps
2 Port SFP+ 10Gbps
LAN7/ WAN8 รองรับความเร็ว 2.5G |
Throughput | 3 Gbps (1518 Byte, NAT+Flow Audit)3 Gbps (1518 Byte, NAT+Authentication, Application Identification,Flow Audit and Flow Control) |
Recommended Concurrent Clients | 700 |
Software Specifications |
Network Access Mode | PPPoE Client, DHCP Client, Static IP, All Support IPv4 & IPv6 |
Work Mode | Router Mode or AC Mode |
VLAN | Support 128 VLANs (ReyeeOS 2.280) |
IPTV | Support, via VLAN and via IGMP |
VLAN Priority (802.1p) | Support |
Learning PPPoE Account & Password | Support |

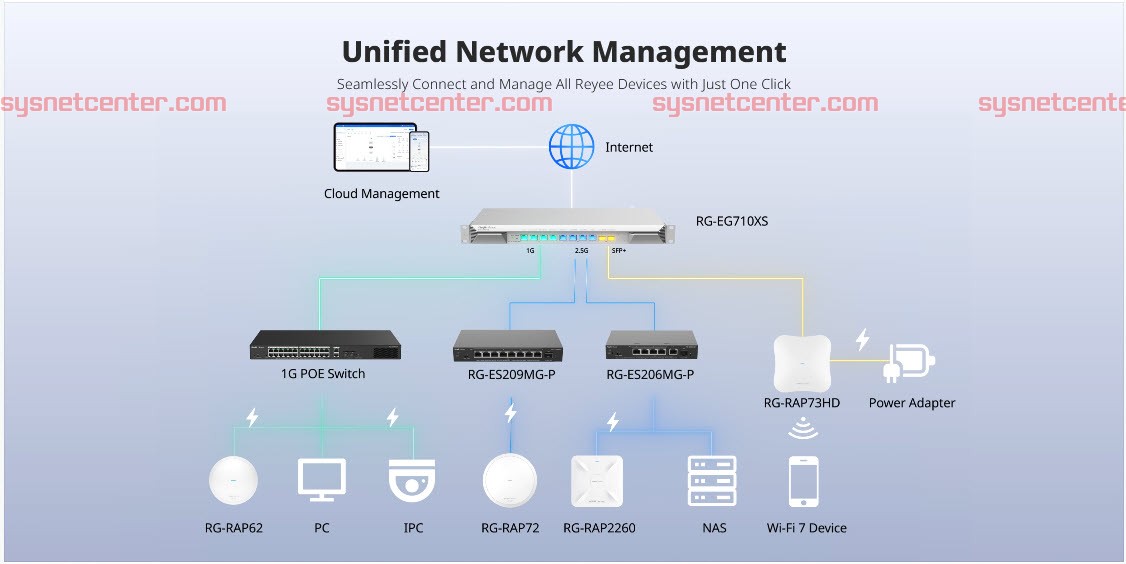

Network Management |
Self-Organizing Network (SON) | Support |
No. of Devices Managed in Router Mode | 1000 (APs/NBS Switches) +128 (ES Switches) |
No. of Devices Managed in AC Mode | 1000 (APs/NBS Switches) +128 (ES Switches) |
Application Identifying ( L7 DPI ) | Identify 300 + Applications, including Communication, Video, Shopping, Play, Databank, P2PSoftware and Payment |
Behavior Management(L7 Filter) | App Block (Time-based/IP-based/User-based Policy)Website Filtering(Time-based/IP-based/User-based Policy) |
URL Auditing | Support |
Traffic Auditing | Support |
Anti Network Sharing | Support, TTL Rule |
Network Terminal Management | Terminal Detect, Identification, Position Detect |
SNMP v1/v2/v3 | Support |
Log Auditing | NAT Log, URL Log, DHCP Log, Auth Log, (Thailand & Turkey Syslog) |

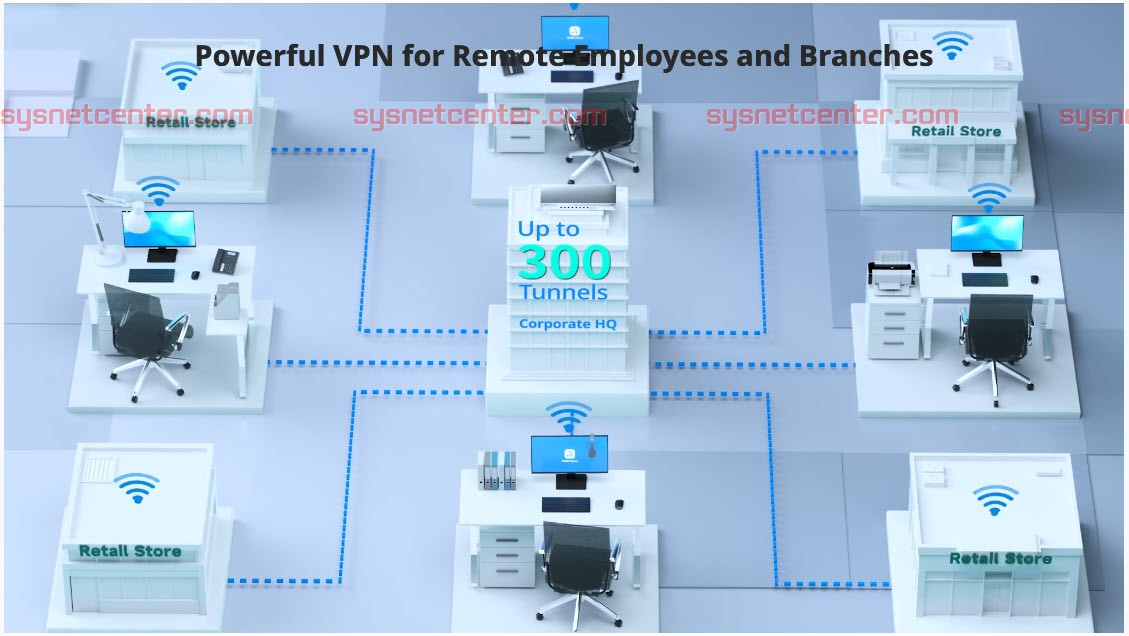

VPN |
VPN Sever | Support, IPsec, L2TP, PPTP, OpenVPN |
VPN Client | Support, IPsec, L2TP, PPTP, OpenVPN |
Only Enable IPsec VPN Overall Performance | 900 Mbps |
Only Enable L2TP VPN Overall Performance | 1.4 Gbps |
IPsec VPN + L2TP/PPTP VPN + OpenVPN Overall Tunnels Number | 1000 |
SD-WAN |
SD-WAN performance | 1100Mbps |
Number of SD-WAN Tunnels | 300 |
Routing |
Static Routing | Support, IPv4 & IPv6 |
RIP/RIPng | Support, IPv4 & IPv6 |
Policy-Based Routing (PBR) | Support, IPv4 & IPv6 |
OSPF v2/v3 | Support, IPv4 & IPv6 |
WAN Port Failover | Support, Active/Standby Interface Mode |
WAN Load Balancing | Support, Source IP-based Load Balance, Session-based Load Balancing, Realtimeload-based Load Balance |
Network Service |
PPPoE Server | Support, 400 Concurrent Clients |
DDNS | DynDns, NO-IP, Ruijie DDNS |

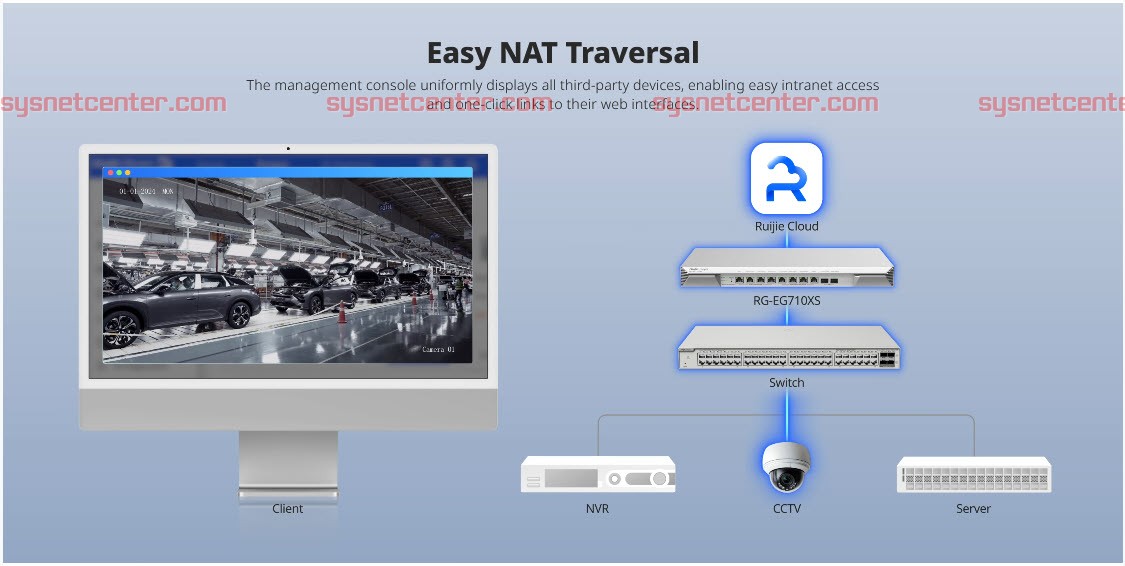

NAT | Support |
Port Mapping/DMZ | Support |
Security |
ACL(Firewall) | Support, Time-based ACL (IPv4 & IPv6), Stateful Firewall |
Self-Security | Ping forbidden in LAN/WAN,WEB access forbidden in LAN, Local ICMP access forbiden |
IP-MAC Binding | Support |
MAC Address Filtering | MAC Address Allowlist & Blocklist |
Session Number Limit | Support |
ARP | Support, ARP Bind |
Attack Defense | Anti Flood AttackAnti Suspicious Packet AttackICMP Packet ManagementAnti Session Attack |
Authentication |
Radius Client | Support |
Radius Proxy | Support |
Cloud Authentication | Account, SMS, One-Click, Voucher, Customized Portal |
Local Authentication | Account, QR Code, SMS, One-Click, Voucher, Customized Portal |
3rd-Party Portal Integrate Interface | WiFiDog, WISPr |
Hardware Feature |
CPU | 4 Cores, 1.8 GHz |
SDRAM/RAM | 2 GB |
Flash Memory | 256MB NAND FLASH |
Storage | 2.5" HDD bay Supports 2.5-inch SATA 3.0 hard drive (Not Include) |
Power Consumption | ≤ 20 W |
Power Supplies | 100V~240V AC, 50/60Hz |
Indicator | 1×system LED indicator1×SATA LED indicator |
Buttons | 1×Reset button |
Dimensions(W×D×H) | 440 mm x 210 mm x 43.6 mm(17.32 in. x 8.27 in. x 1.72 in. ) |
Weight | 3 kg (packages not included) |
Installation | Rack-mounted |
Fan | Fansless |
Operating Temperature | 0°C to 40°C (32℉ to 104℉) |
Storage Temperature | -40°C to 75°C (-40℉ to 167℉) |
ประกัน | ประกันศูนย์ Ruijie Thailand 3 ปี |
