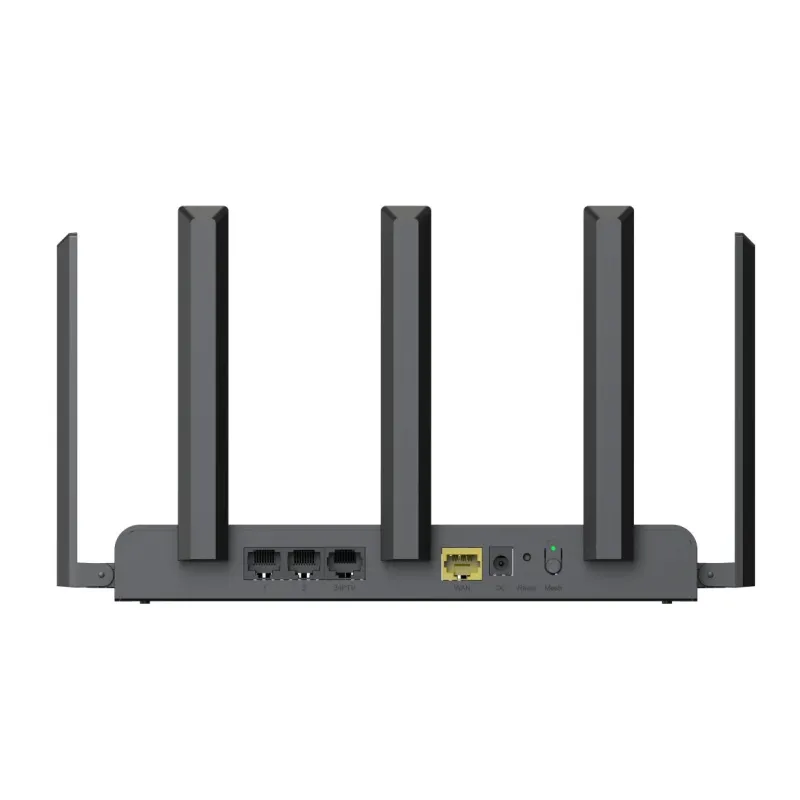

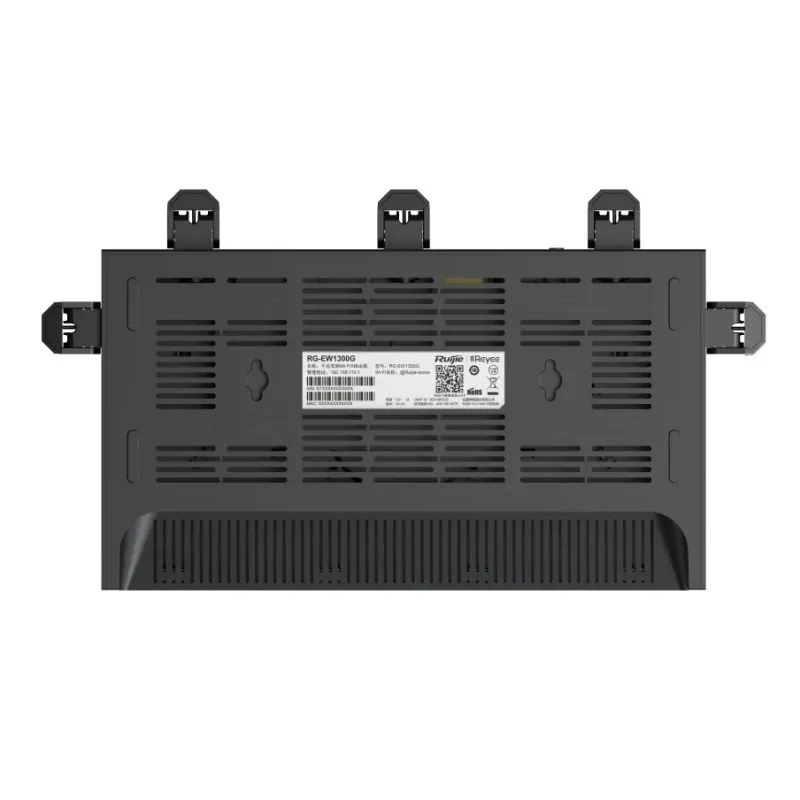

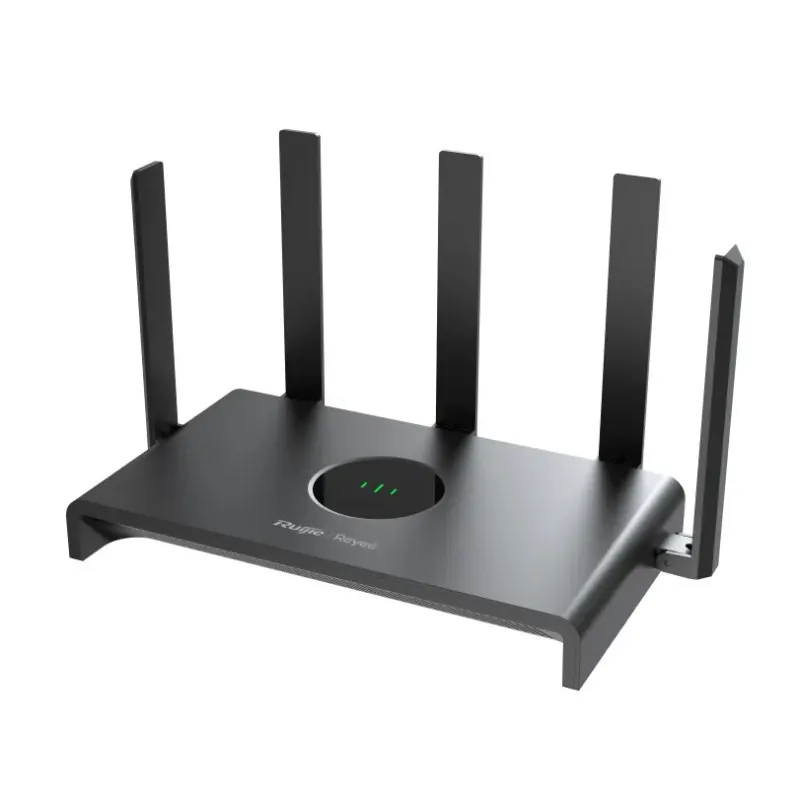

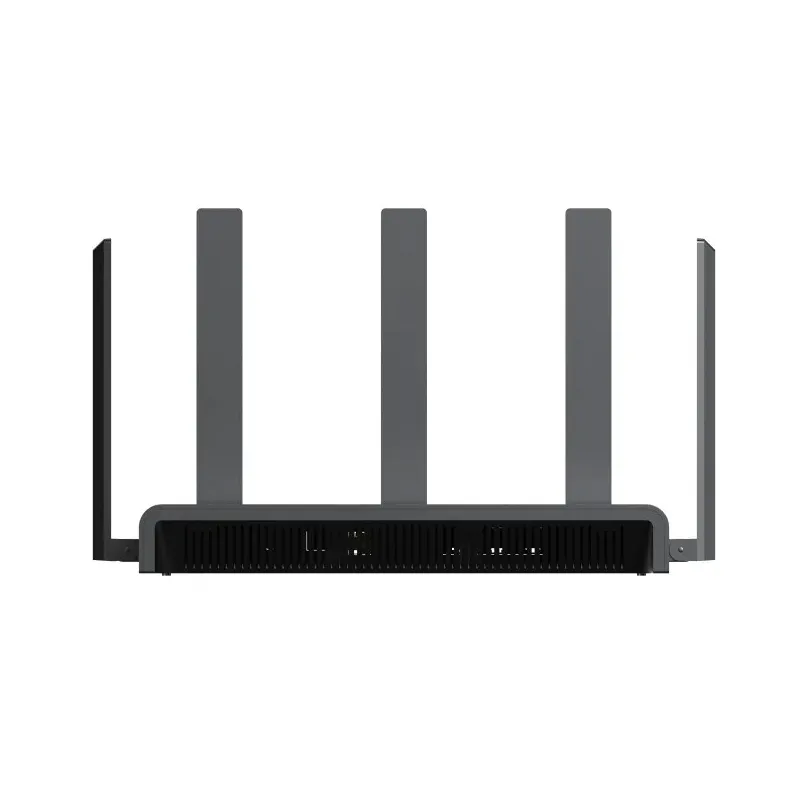

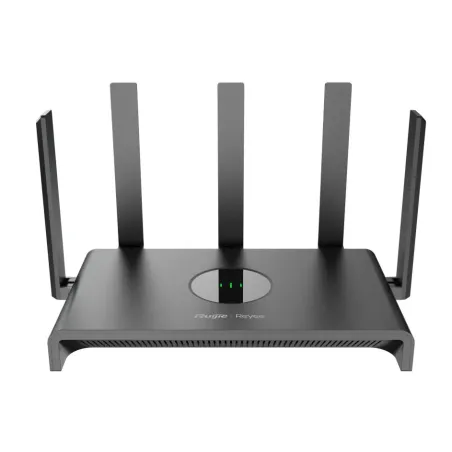

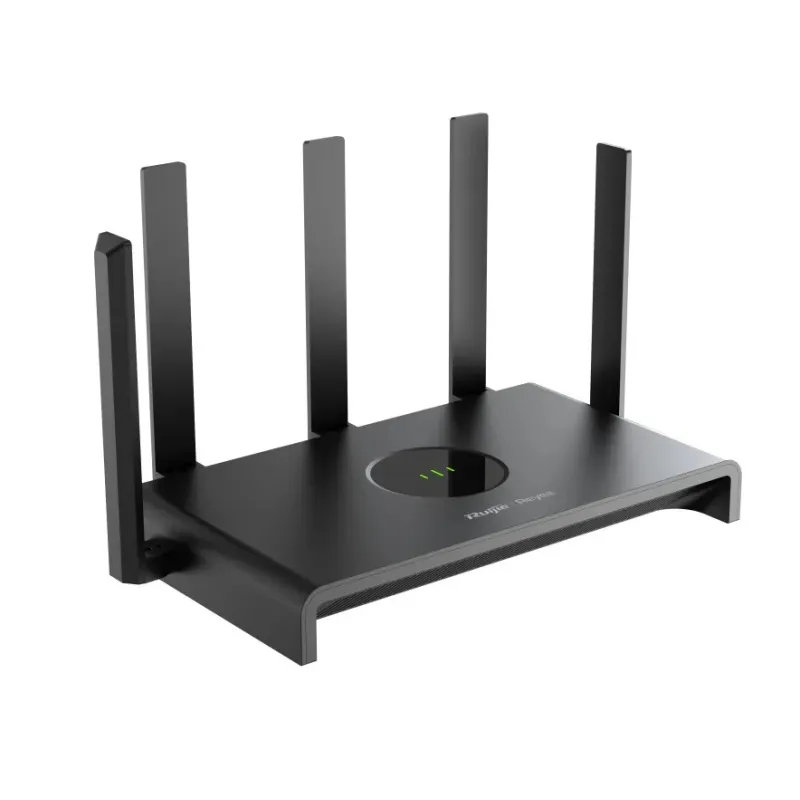

RG-EW1300G 1300M Dual-band Gigabit Wireless Router
Home scenarios (e.g. Villa, Large-sized apartment, Bungalow), SOHO office, small shop, etc.
Highlight Features
- WIFI-5 802.11ac wave2
- Full coverage, easy setup, and seamless roaming
- 96 concurrent connections
- Project-based cloud management with Ruijie Cloud App
- Device-based cloud management with Reyee Router App
Product Specification
|
|
Overview
|
Reyee RG-EW1300G 1300M Dual-band Gigabit Wireless Mesh Router มาตรฐาน WIFI5 802.11ac wave2 Port LAN Ggiabit เสา 5x5.5dBi รองรับ Mode Router, Access Point, WIFI Mesh
รองรับการทำ WIFI Mesh ง่ายเพียงกดปุ่มที่อุปกรณ์
Managed และ Monitor by Ruijie Cloud มาพร้อม Cloud License ตลอดชีพ
|
Basic
|
|
Dimensions (W×D×H)
|
230 mm × 130 mm × 30 mm
(9.06 in. × 5.12 in. × 1.18 in. antennas not included)
|
|
Weight
|
0.29 kg (packages not included)
|
|
Wi-Fi Standards
|
Wi-Fi 5 (802.11ac)
|
|
MIMO
|
2.4 GHz, 2×2, MU-MIMO
5 GHz, 2×2, MU-MIMO
|
|
Max. Wi-Fi Speed
|
2.4 GHz: 400 Mbps
5 GHz: 867 Mbps
|
|
Channel Width
|
2.4 GHz: Auto/20/40 MHz
5 GHz: Auto/20/40/80MHz
|
|
Antennas
|
5 |
|
Antennas Type
|
External Omnidirectional
|
|
Antenna Gain
|
2.4 GHz: 4.5 dBi
5 GHz: 5.5 dBi
|
|
WAN Port
|
1×10/100/1000 Base-T
|
|
LAN Ports
|
3×10/100/1000 Base-T
|
|
Recommended Users
|
32 |
|
Power Supply
|
DC 12V/1.0A
|
|
Operation Frequency Bands
|
802.11b/g/n: 2.400 GHz to 2.483 GHz
802.11a/n/ac: 5.150 GHz to 5.350 GHz
802.11a/n/ac: 5.470 GHz to 5.725 GHz , 5.725 GHz to 5.850 GHz
country-specific restrictions apply
|
|
Transmit Power
|
General:
CE EIRP: ≤20dBm (2.4GHz)
≤27dBm (5GHz)
≤20dBm 2400~2483.5MHz(Bluetooth)
|Myanmar:
2400~2483.5MHz ≤ 20dBm(EIRP) ;
5150~5350MHz ≤ 23dBm(EIRP) ;
5470~5725MHz ≤ 30dBm(EIRP) ;
5725~5850MHz ≤ 30dBm(EIRP) ;
|
|
Receive Sensitivity
|
2.4 GHz:20MHz
802.11b: -91.5 dBm(1 Mbps)
802.11g: -88.5 dBm(6 Mbps), -71 dBm(54 Mbps)
802.11n: -88dBm(MCS0), -69 dBm(MCS7)
5 GHz:20MHz
802.11n: -92 dBm(MCS0), -71 dBm(MCS7)
802.11a: -89 dBm(6 Mbps), -74 dBm(54 Mbps)
802.11ac: -89dBm(MCS0), -65dBm(MCS8)
|
|
Operating Temperature
|
-10 °C to +40 °C (14 °F to 113 °F)
|
Wireless
|
|
OFDMA
|
Support |
|
MU-MIMO
|
Support |
|
Maximum Number of SSIDs
|
6 |
|
SSID Hiding
|
Support |
|
Band Steering
|
Support |
|
Guest Wi-Fi
|
Support |
|
WPA/WPA2/WPA3
|
Support |
|
Roaming
|
Support |
|
Blacklist
|
Support |
|
Reyee Mesh
|
Mesh Pairing by Hardware
Mesh Pairing by Mesh Button
Mesh Pairing by Eweb
|
|
Wi-Fi Optimization
|
Support |
Hardware
|
|
CPU
|
MT7621DA
|
|
Flash
|
16 MB
|
|
RAM/SDRAM
|
128 MByte
|
Features
|
| Mode |
Router
Access Point
WISP
Repeater/MESH |
|
Port Mapping
|
Support |
|
Cloud Management
|
Support |
|
ประกัน
|
3 ปี, Adapter 1 ปี
|
RG-EW1300G Superior Wi-Fi Performance for Entry-level Gigabit Network
It’s our mission to provide you high-quality online moment.
AC1300 Dual Band Wi-Fi Meets Your Smooth Networks Needs
You can effortlessly connect multiple devices and enjoy seamless streaming using the dual 2.4GHz and 5GHz bands.
Concurrently Support Multiple Devices Connection
Dual-Band integration together with the MU-MIMO technology offer low interference and fast speed internet to up to
96 terminals simultaneously.
Gigabit Upgrade！10 × Faster！
Boosting Gigabit Ethernet ports, including 1 WAN and 4 LAN, this powerhouse router accelerates your internet up to a
staggering 10 times faster than regular Ethernet connections.
Full Coverage, Easy Setup, Seamless Roaming Amazed by Reyee Mesh
Advanced Functions Make Your Network
Take Control of Your Home Network at Fingertips
Set up your home network in Reyee Router App in two minutes. More Life-time Free functions are waiting for you to Explore, Experience, Expect.
