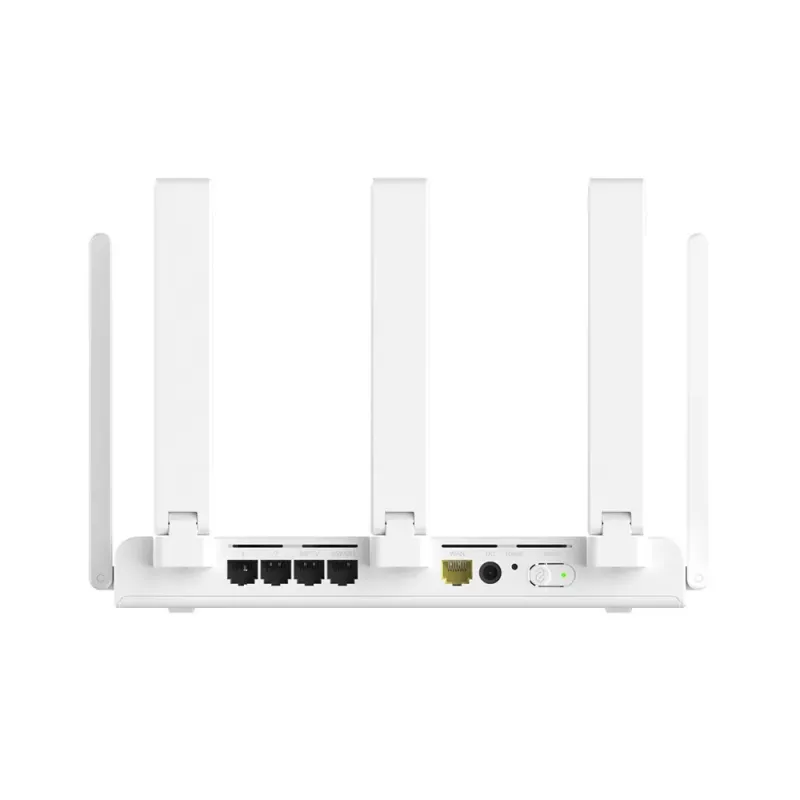

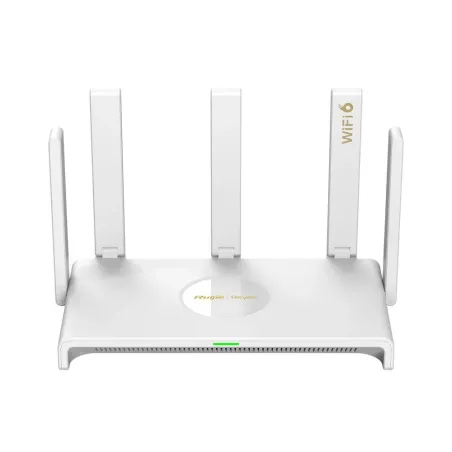

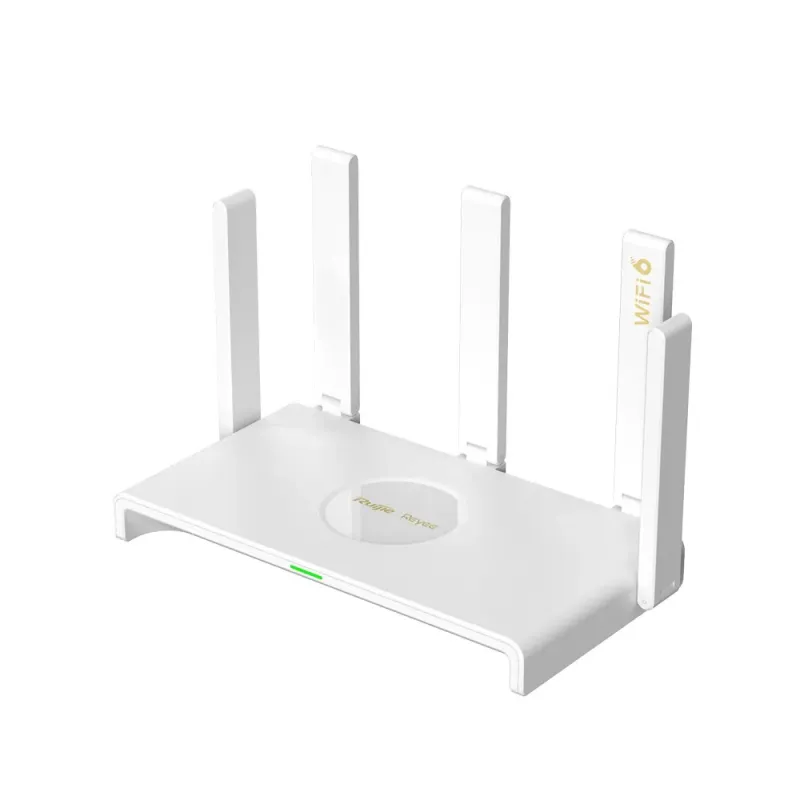

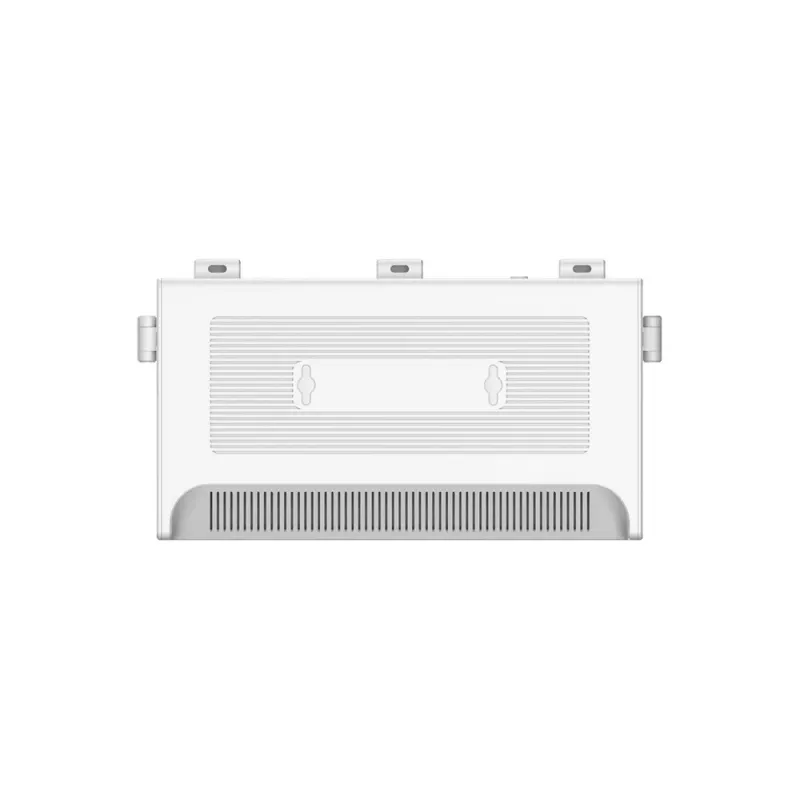

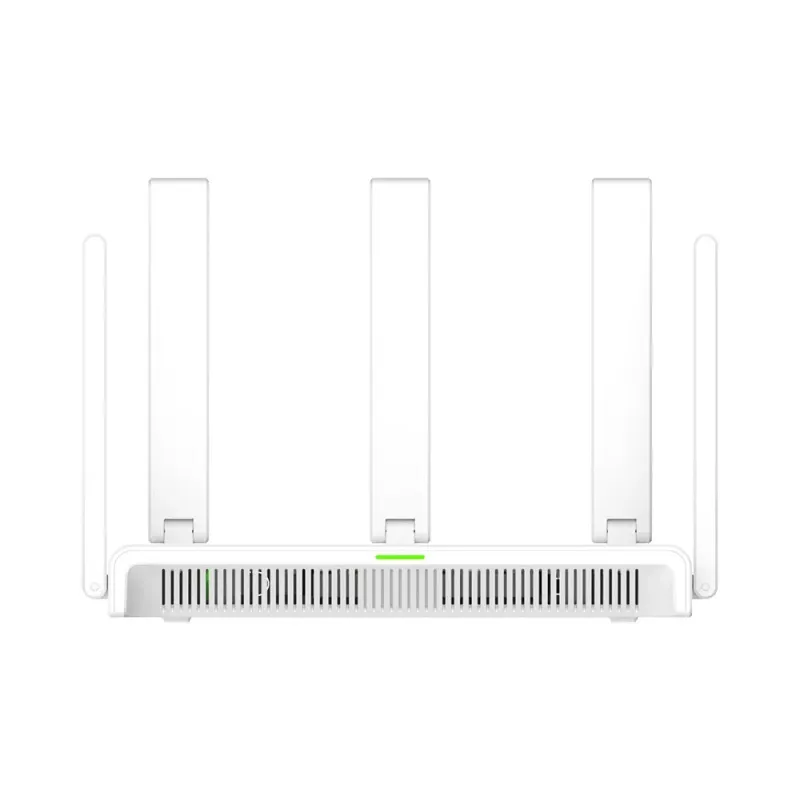

RG-EW3000GX 3000M Wi-Fi 6 Dual-WAN Gigabit Router
Home scenarios (e.g. Villa, Large-sized apartment, Bungalow), SOHO office, small shop, etc
Highlight Features
- Next-generation gigabit Wi-Fi 6 standard
- Dual-WAN aggregation
- 160 MHz bandwidth
- Exclusive Reyee mesh providing full-space-coverage Wi-Fi solution
- Ruijie Reyee App, manage your home network at your fingertips
Reyee RG-EW3000GX 3000M Wi-Fi 6 Dual-WAN Gigabit Router WIFI6 802.11ax MU-MIMO, 2 WAN รองรับความเร็วสูงสุด 1.6Gbps, เสาขนาดใหญ่ รับ-ส่ง WIFI ได้ระยะไกล 5x5dBi รองรับการทำ WIFI Mesh , Managed และ Monitor by Ruijie Cloud มาพร้อม Cloud License ตลอดชีพ
|
Basic |
Dimensions (W×D×H) | 240 mm ×130 mm ×32 mm(9.45 in. ×5.11 in. ×1.25 in. antennas not included) |
Weight | 0.50 kg (packages not included) |
Wi-Fi Standards | Wi-Fi 6 (802.11ax) |
MIMO | 2.4 GHz, 2×2, MU-MIMO5 GHz, 2×2, MU-MIMO |
Max. Wi-Fi Speed | 2.4 GHz: 574 Mbps5 GHz: 2402 Mbps |
Channel Width | 2.4 GHz: Auto/20/40 MHz5 GHz: Auto/20/40/80/160 MHz |
Anttena |
Antennas | 5 |
Antennas Type | External Omnidirectional |
Antenna Gain | 2.4 GHz: 5 dBi 5 GHz: 5 dBi |
Ports | 1×10/100/1000 Base-T WAN/LAN port
1×10/100/1000 Base-T WAN port
3×10/100/1000 Base-T LAN ports |
Recommended Users | 60 |
Max. Users | 192 |
Power Supply | DC 12V/1A |
Power Consumption | < 12 W |
Frequency |
Operation Frequency Bands | 802.11b/g/n/ax: 2.400 GHz to 2.483 GHz
802.11a/n/ac/ax: 5.150 GHz to 5.350 GHz
802.11a/n/ac/ax: 5.470 GHz to 5.725 GHz , 5.725 GHz to 5.850 GHz
country-specific restrictions apply |
Transmit Power | General：
CE EIRP: ≤20dBm (2.4GHz)
≤27dBm (5GHz) |
Receive Sensitivity | 2.4 GHz: 20MHz
802.11b: -91 dBm(1 Mbps)
802.11g: -91 dBm(6 Mbps), -72 dBm(54 Mbps)
802.11n: -90dBm(MCS0), -70 dBm(MCS7)
5 GHz:20MHz
802.11n: -85 dBm(MCS0), -67 dBm(MCS7)
802.11a: -89 dBm(6 Mbps), -72 dBm(54 Mbps)
802.11ac: -90dBm(MCS0), -63dBm(MCS8)
802.11ax: -88dBm(MCS0), -62dBm(MCS8), -58dBm(MCS11) |
Operating Temperature | -10 °C to +40 °C (14 °F to 104 °F) |
Wireless Feature |
Wireless | OFDMA
MU-MIMO
BSS Coloring
Maximum Number of SSIDs 6
SSID Hiding
Band Steering
Guest Wi-Fi
WPA/WPA2/WPA3
Roaming Layer 2 Roaming
Blacklist |
Reyee Mesh | Mesh Pairing by Hardware
Mesh Pairing by Mesh Button
Mesh Pairing by Eweb
Recommended Hop Count <5 |
Wireless | Wi-Fi Optimization QoS (WMM)
Transmission Power Adjustment |
Hardware | CPU MT7981
Flash 128 MB
RAM/SDRAM 256 MB
System LED Indicator
Reyee Mesh LED Indicator
Reyee Mesh Button Reset Button |
WAN | Static IP
DHCP
PPPoE
Learning PPPoE Account & Password
VLAN Tagging |
LAN | DHCP Server
Client List
Static IP Assignment
Port-Based Flow Control |
Features | IPv6
DDNS
IPTV
Alarm Diagnosis
UPnP
ARP Binding
Port Mapping
DMZ
Host Rate Limitation of Terminals
Hardware Acceleration
MAC Address Cloning
Cloud Management
Repeater Mode
WISP Mode |
Security | PPTP
VPN Server
PPTP
VPN Client |
System | Parental Control Time Schedule
Protect TCP Flood Attacks |
System | Default Access/Password 192.168.110.1
No Password Required by Default
URL Access
Local Upgrade Online
Upgrade APP
Upgrade Syslog
Backup
Factory Reset |
ประกัน | 3 ปี |
RG-EW3000GX Experience Feel the Leap in Speed
Leveraging the advanced Wi-Fi 6 technology, RG-EW3000GX supports up to 4x more device capacity and delivers a 3x faster speed than Wi-Fi 5.
Achieving Ultra-High Speed with 160MHz Bandwidth
Surpassing expectations, RG-EW3000GX supports 160MHz bandwidth. Your network can effortlessly achieve a stable 900+ Mbps ultra-high-speed transmission.
Double WAN Ports, Double the Speed
With support for dual-gigabit access and the ability to aggregate bandwidth for a total throughput of over 1.6 Gbps.
Cover More, Connect More
Equipped with 5 high-gain antennas, RG-EW3000GX provides full Wi-Fi signal coverage across a
spacious apartment without any coverage hole.
Reyee Mesh, Easy Network Expansion
With Reyee Mesh, you do not need to worry about coverage holes anymore. Reyee Mesh supports the interconnection of all Reyee Wi-Fi 5 and Wi-Fi 6 home routers to set up a network that enables seamless roaming and unified management.
Manage Your Home Network at Fingertips
Ruijie Reyee APP provides incredible advanced features, allowing you to remotely manage your network at any time.
