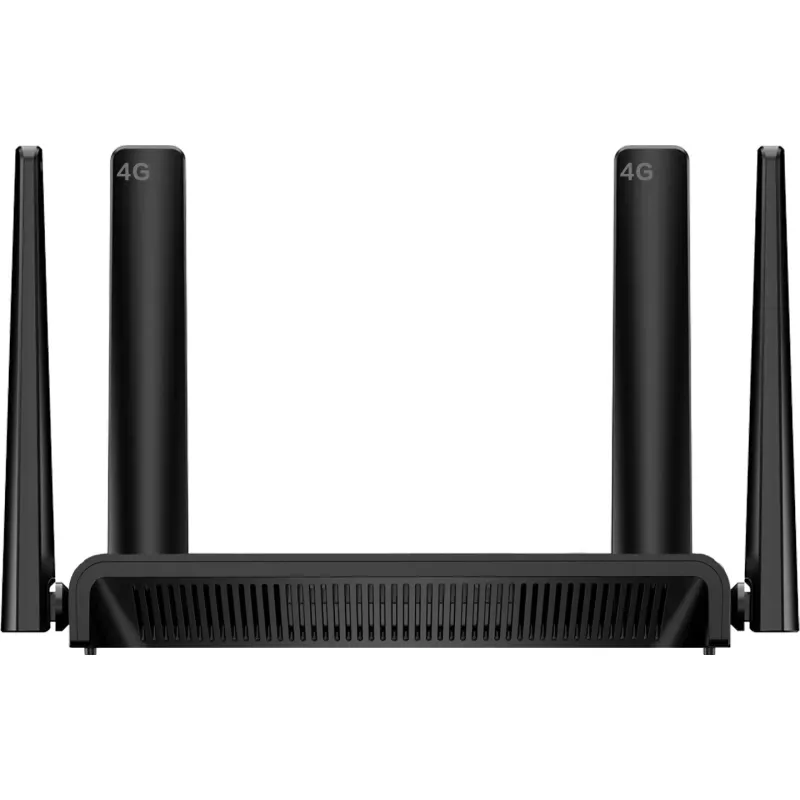

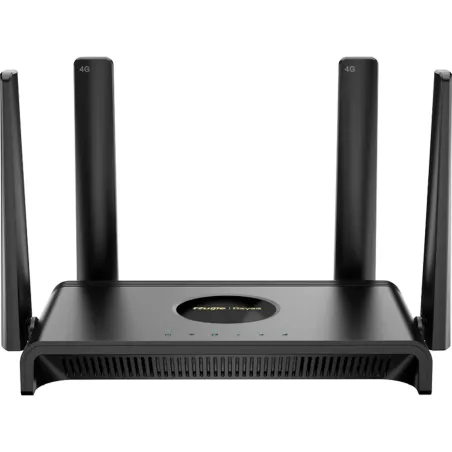

RG-EW300T Wireless 4G LTE Router 150Mbps
Highlight Features
- WIFI-N 2.4Ghz 150Mbps
- Cloud-managed
- 4 External Antennas
- Plug and Play
- Up to 150Mbps Download Speed
Product Specification
|
|
Overview
|
Reyee RG-EW300T N300 Wireless 4G LTE Router SIM 150Mbps 4-Port LAN,1-Port LAN 100Mbps เสา 4 ต้น รองรับ Mode Router, Repeater, WISP, บริหารจัดการผ่าน Ruijie Cloud
Managed และ Monitor by Ruijie Cloud มาพร้อม Cloud License ตลอดชีพ
|
|
Dimensions (W×D×H)
|
175mm×100mm×25mm
(6.89 in. ×4.72 in. ×1.06 in. antennas not included)
|
|
Weight
|
0.25kg (packages not included)
|
WIFI
|
|
Wi-Fi Standards
|
Wi-Fi 4 (IEEE 802.11n)
|
|
MIMO
|
2.4 GHz, 2×2, MIMO
|
|
Max. Wi-Fi Speed
|
2.4 GHz: 300 Mbps
|
|
4G Cartgory
|
Downlink: 150Mbps Uplink: 50Mbps
|
|
Channel Width
|
2.4 GHz: Auto/20/40 MHz
|
|
Antennas
|
2 Detachable External 4G LTE Antennas
2 Fixed External Wi-Fi Antennas
|
|
Antennas Type
|
External Omnidirectional
|
|
Antennas Gain
|
2.4 GHz: 4dBi
4G LTE: 3dBi
|
|

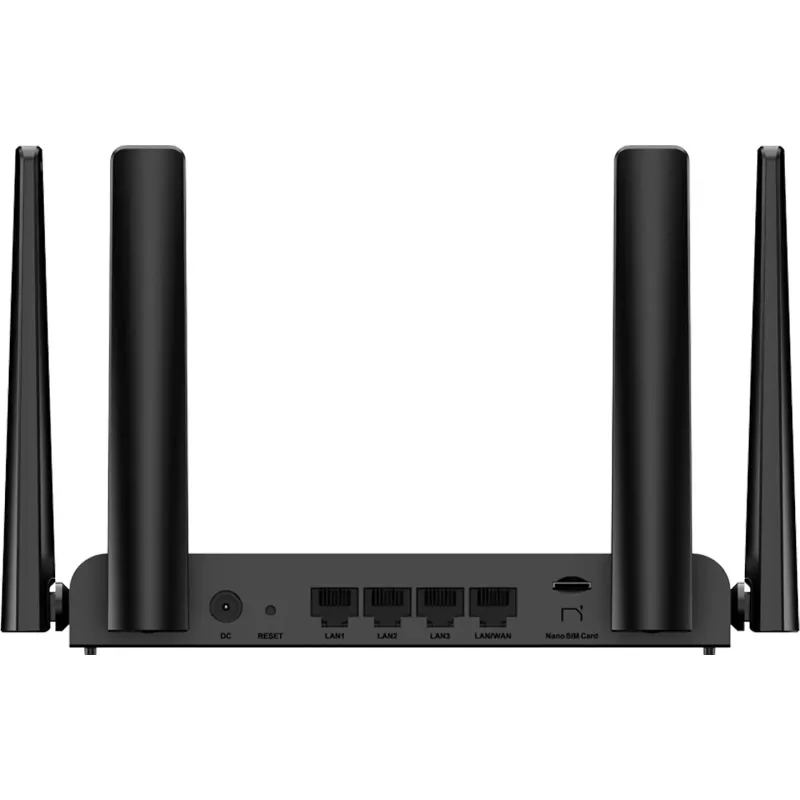

Port
|
1×10/100Base-T WAN/LAN
3×10/100Base-T LAN
|
|
Card Slot
|
1× Micro SIM Card Slot
|
|
Recommended Users
|
8 |
|
Power Supply
|
DC 12V/1.0A
|
|
Power Consumption
|
< 12 W
|
|
Wi-Fi Operation Frequency Bands
|
802.11b/g/n: 2.400 GHz to 2.483 GHz
country-specific restrictions apply
|
|
Network Type
|
WCDMA B1/B5/B8 (2100/850/900 MHz)
FDD-LTE B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz)
TDD-LTE B38/B40 (2300/2500 MHz)
|
|
Transmit Power
|
2.4GHz Wi-Fi: 2400~2483.5MHz ≤ 20dBm(EIRP)
WCDMA B1/B5/B8 ≤ 24dBm
FDD-LTE B1/B3/B5/B7/B8/B20/B28≤ 23dBm
TDD-LTE B38/B40/B41≤ 23dBm
|
|
Receive Sensitivity
|
2.4GHz Wi-Fi:20MHz
802.11b: -79 dBm(1 Mbps) ,802.11g: -81dBm(6 Mbps), -64 dBm(54 Mbps)
802.11n: -81dBm(MCS0), -63 dBm(MCS7)
WCDMA B1/B5: –109 dbm (primary set)
WCDMA B8:-108.3 dbm (primary set)
LTE-FDD B1: –97.3 dbm (primary set), –98.4 dbm (diversity), –100.2 dbm (primary set + diversity)
LTE-FDD B3: –96.4 dbm (primary set), –96.4 dbm (diversity), –99.4 dbm (primary set + diversity)
LTE-FDD B5:-96.3 dbm (primary set),-99.1 dbm (diversity),-101.95 dbm (primary set + diversity)
LTE-FDD B7:-96.06 dbm (primary set),-96.36 dbm (diversity),-97.6 dbm (primary set + diversity)
LTE-FDD B8:-97.4 dbm (main set), -98.2 dbm (diversity), -102.05 dbm (main set + diversity)
LTE-FDD B20: –96.2 dbm (primary set), –97.5 dbm (diversity), –100.75 dbm (primary set + diversity)
LTE-FDD B28: –96.7 dbm (primary set), –97.9 dbm (diversity), –97.55 dbm (primary set + diversity)
LTE-TDD B38:-98.26 dbm (primary set),-97 dbm (diversity),-99.3 dbm (primary set + diversity)
|
|
Operating Temperature
|
-10 °C to +40 °C (14 °F to 104 °F)
|
|
Operating Humidity
|
5% to 95% RH (non-condensing)
|
|
Certifications
|
CE, RoHS
|
Wireless
|
|
Maximum Number of SSIDs
|
3 |
|
SSID Hiding
|
Support |
|
Guest Wi-Fi
|
Support |
|
WPA/WPA2
|
Support |
|
WPA3
|
Support |
|
Roaming
|
Layer 2 Roaming
|
|
Wi-Fi Optimization
|
Support
|
|
QoS (WMM)
|
Support
|
|
Transmission Power Adjustment
|
Support
|
Hardware
|
|
CPU
|
MT7628DAN
|
|
Flash
|
16 MB
|
|
RAM/SDRAM
|
64 MB
|
|
System LED Indicator
|
Support
|
WAN
|
| WAN Connect |
3G/4G Router
Static IP
DHCP
PPPoE
Learning PPPoE Account & Password
|
|
VLAN Tagging
|
Support
|
LAN
|
|
DHCP Server
|
Support
|
|
Client List
|
Support
|
|
Static IP Assignment
|
Support
|
Features
|
|
TR069
|
Support
|
|
IPv6
|
Support
|
|
DDNS
|
Support
|
|
IPTV
|
Support
|
|
Diagnosis
|
Support
|
|
UPnP
|
Support
|
|
ARP Binding
|
Support
|
|
Port Mapping
|
Support
|
|
DMZ Host
|
Support
|
|
MAC Address Cloning
|
Support
|
|
Cloud Management
|
Support
|
|
Repeater Mode
|
Support
|
|
WISP Mode
|
Support
|
Security
|
|
VPN
|
PPTP VPN Server
PPTP VPN Client
L2TP VPN Client
|
|
L2TP VPN Client
|
Time Schedule
|
System
|
|
Default Access/Password
|
192.168.110.1 Check the label on the bottom of the device for the default password.
|
|
URL Access
|
Support
|
|
Upgrade
|
Local Upgrade
Online Upgrade
APP Upgrade
|
|
Syslog
|
Support
|
|
Backup
|
Support
|
System
|
|
Factory Reset
|
Support
|
|
Language
|
Chinese
English
Vietanmese
Turkish
Indonesian
Thai
traditioanl Chinese
Spanish
Russian
Arabic
Ukrainian
Czech
Italian
|
|
ประกัน
|
3 ปี, Adapter 1 ปี
|
รายละเอียดสินค้า
50 รายการ
ข้อมูลสินค้า
- ความเร็ว มาตรฐาน WIFI
- WIFI-4 (n) 300Mbps
- จำนวน WAN/ Internet
- 1 Wan/Internet
- พร้อม WIFI
- Yes
- รองรับ 3G/ 4G LTE
- 3G/4G SIM Slot
