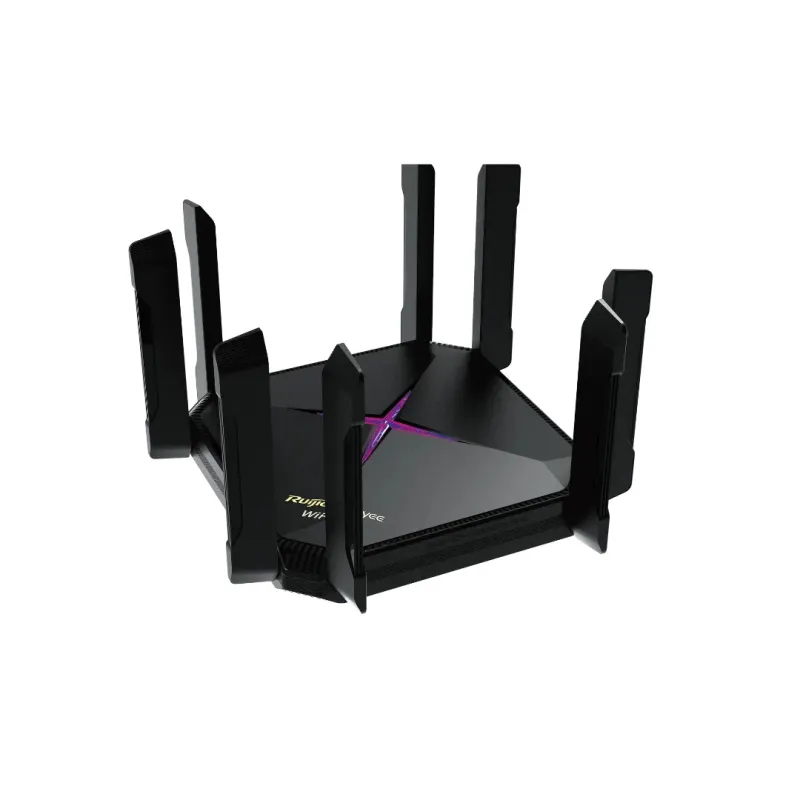

RG-EW6000GX 6000M Wi-Fi 6 Mesh Router with 2.5G Port
Home Scenarios (Including Villa, Large-sized Apartment, Bungalow), SOHO Office, Small Shop, etc.
Highlight Features
- Ultra-high-speed with Wi-Fi 6 standard (160MHz)
- Quad-core enterprise level chipset
- Max clients up to 384
- Gaming port
- Strong signals received
- Cloud-based Management
- Exclusive Reyee mesh providing full-space-coverage Wi-Fi solution
Reyee RG-EW6000GX 6000M Wi-Fi 6 Dual-WAN Gigabit Router WIFI6 802.11ax, 4x4 MU-MIMO, 2 WAN รองรับความเร็วสูงสุด 5.9Gbps, เสาขนาดใหญ่ รับ-ส่ง WIFI ได้ระยะไกล 8x5dBi รองรับการทำ WIFI Mesh , Managed และ Monitor by Ruijie Cloud มาพร้อม Cloud License ตลอดชีพ
|
|
Basic
|
|
Wi-Fi standard
|
Wi-Fi 6 (IEEE 802.11ax) standard, compatible with IEEE 802.11a/b/g/n/ac standards
|
|
Max. Wi-Fi Speed
|
2.4 GHz, 1147 Mbps
5 GHz, 4804 Mbps
|
|
FEM
|
iPA
|
|
Antenna
|
8 x external antennas
Antenna gain (2.4 GHz) x 5.85 dBi
Antenna gain (5 GHz) x 5.66 dBi
|
|
LAN ports
|
4x 10/100/1000BASE-T ports
|
|
WAN ports
|
1x 10/100/1000/2500BASE-T port
|
|
Ruijie Cloud management
|
Yes
|
Software Specifications
|
|
Maximum number of concurrent clients
|
128 (2.4 GHz)
256 (5 GHz)
|
|
Recommended number of concurrent clients
|
16 (2.4 GHz)
64 (5 GHz)
|
|
1024-QAM
|
Yes
|
|
802.11k/v roaming
|
Yes
|
|
SSID hiding
|
Yes
|
|
DFS
|
Yes
|
|
Guest Wi-Fi
|
Yes
|
|
Encryption mode
|
WPA-PSK, WPA2-PSK, WPA/WPA2-PSK, WPA3-SAE,WPA2-PSK/WPA3-SAE
|
|
Wi-Fi blocklist capacity
|
64
|
|
Working mode
|
Wired repeater mode
Wireless repeater mode
WISP mode
AP mode
|
|
Internet access mode
|
PPPoE, DHCP, Static IP, L2TP, WISP
|
|
IGMP snooping
|
Yes
Note: Not supported by wired connections when IPTV is turned on
|
|
WAN aggregation
|
Yes
|
|
LAN aggregation
|
Yes
|
VPN
|
|
PPTP VPN server
|
Yes
|
|
OpenVPN server
|
Yes
|
Hardware Specifications
|
|
MIMO
|
2.4 GHz, 4 x 4
5 GHz, 4 x 4
|
|
Certification
|
CE, CB
|
|
LEDs
|
4 x system status LEDs
1 x Mesh LED
|
|
RAM
|
512 MB
|
|
Power supply
|
DC 12 V 2.5 A
|
|
Product dimensions (W x D x H)
|
200 mm x 200 mm x 43.8 mm (7.87 in. x 7.87 in. x 1.72in.)
(excluding antennas)
|
|
Weight
|
0.95 kg (2.09 lbs) (without packaging materials)
1.68 kg (3.7 lbs) (with packaging materials)
|
|
Operating temperature
|
0 °C to +40 °C (32 °F to 104 °F)
|
|
Maximum transmit power
|
2.4 GHz:
802.11b:23dBm
802.11g:6M 23dBm; 54M 20dBm
802.11n:MCS0 23dBm MCS7:19dBm
802.11ac:MCS0 23dBm MCS7:19dBm;MCS8
18.5dBm;MCS9 18.5dBm
802.11ax:MCS0 23dBm MCS7:19dBm;MCS11 16.5dBm
5 GHz:
802.11a:6M 23dBm; 54M 19dBm
802.11n:MCS0 23dBm MCS7:19dBm
802.11ac:MCS0 23dBm;MCS9 17dBm (20M/40M/80M)
802.11ax:MCS0 23dBm; MCS9 17dBm (20M/40M/80M)，MCS9 16dBm (160M);MCS11 16dBm (20M/40M/80M)
MCS11 15dBm (160M）
|
|
Operating band
|
IEEE 802.11b/g/n/ax，2.400GHz~2.4835GHz
IEEE 802.11a/n/ac/ax，5.150GHz～5.350GHz
IEEE 802.11a/n/ac/ax，5.470GHz～5.725GHz
IEEE 802.11a/n/ac/ax，5.725GHz～5.850GHz
|
Wireless Feature
|
|
Wireless
|
OFDMA
MU-MIMO
BSS Coloring
Maximum Number of SSIDs 6
SSID Hiding
Band Steering
Guest Wi-Fi
WPA/WPA2/WPA3
Roaming Layer 2 Roaming
Blacklist
|
|
Reyee Mesh
|
Mesh Pairing by Hardware
Mesh Pairing by Mesh Button
Mesh Pairing by Eweb
Recommended Hop Count <5
|
|
Wireless
|
Wi-Fi Optimization QoS (WMM)
Transmission Power Adjustment
|
|
Hardware
|
CPU MT7981
Flash 128 MB
RAM/SDRAM 256 MB
System LED Indicator
Reyee Mesh LED Indicator
Reyee Mesh Button Reset Button
|
|
WAN
|
Static IP
DHCP
PPPoE
Learning PPPoE Account & Password
VLAN Tagging
|
|
LAN
|
DHCP Server
Client List
Static IP Assignment
Port-Based Flow Control
|
|
Features
|
IPv6
DDNS
IPTV
Alarm Diagnosis
UPnP
ARP Binding
Port Mapping
DMZ
Host Rate Limitation of Terminals
Hardware Acceleration
MAC Address Cloning
Cloud Management
Repeater Mode
WISP Mode
|
|
Security
|
PPTP
VPN Server
PPTP
VPN Client
|
|
System
|
Parental Control Time Schedule
Protect TCP Flood Attacks
|
|
System
|
Default Access/Password 192.168.110.1
No Password Required by Default
URL Access
Local Upgrade Online
Upgrade APP
Upgrade Syslog
Backup
Factory Reset
|
ประกัน
|
3 ปี
|
RG-EW6000GX Full-Power, Steady as Dune, Fast as Wind
RG-EW6000GX with 160 MHz Channel Bandwidth & 6000 Mbps Network Speed. Unleash Full-Power Wi-Fi 6 for Accelerated Digital Life.

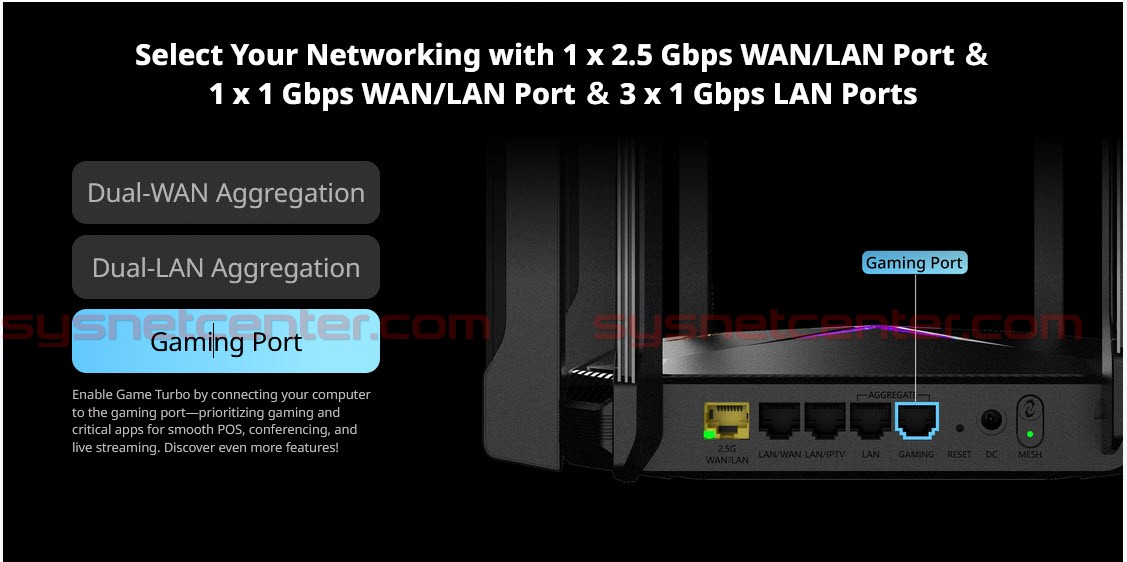

Select Your Networking with 1 x 2.5 Gbps WAN/LAN Port and 1 x 1 Gbps WAN/LAN Port ＆ 3 x 1 Gbps LAN Ports

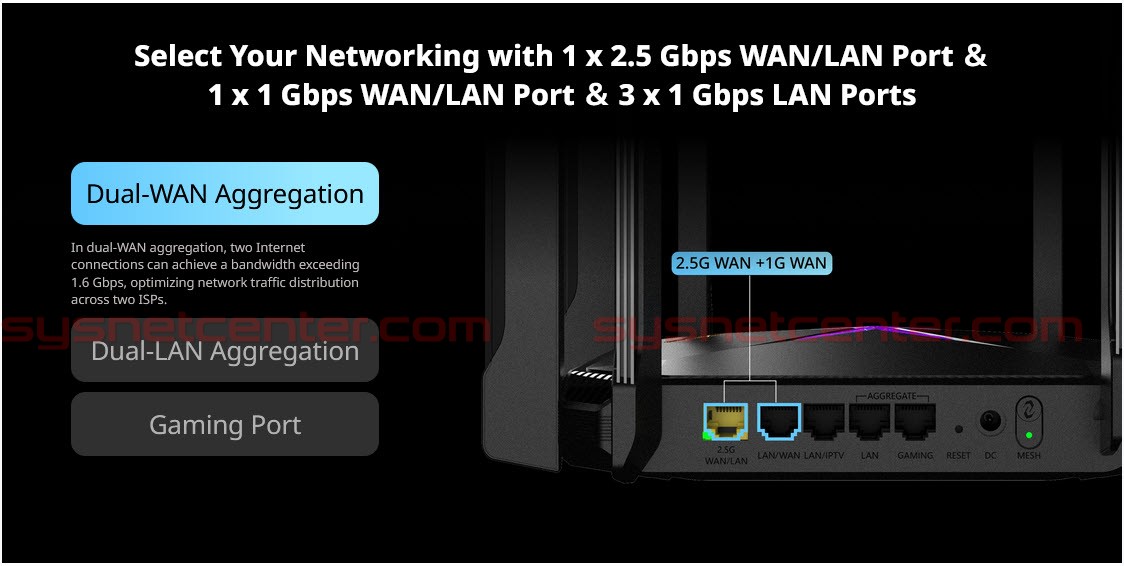

Dual-WAN Aggregation
In dual-WAN aggregation, two Internet connections can achieve a bandwidth exceeding 1.6 Gbps, optimizing network traffic distribution across two ISPs.

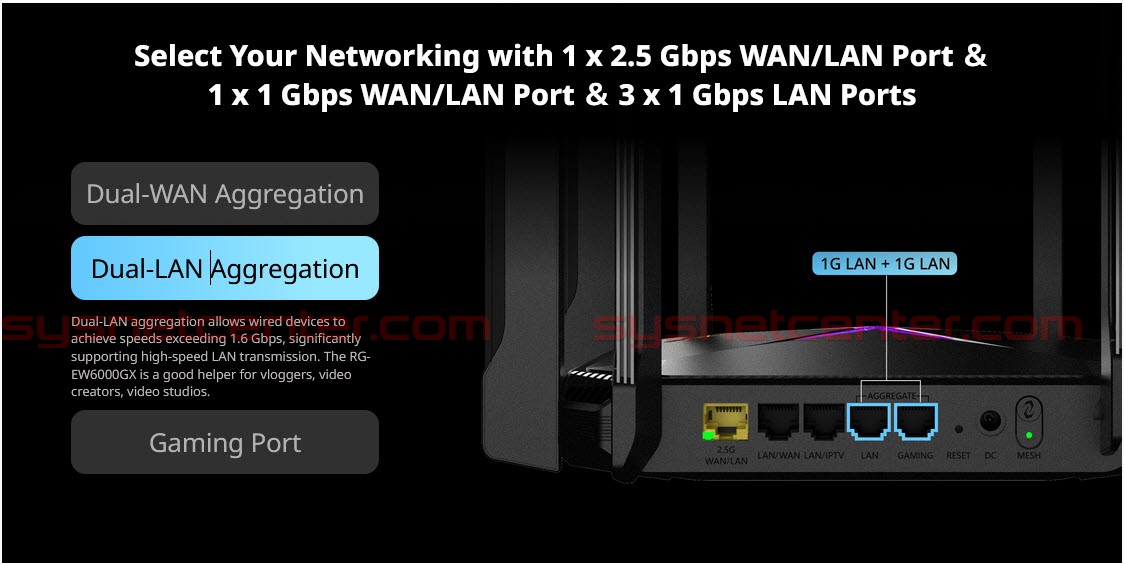

Dual-LAN Aggregation
Dual-LAN aggregation allows wired devices to achieve speeds exceeding 1.6 Gbps, significantly supporting high-speed LAN transmission. The RG-EW6000GX is a good helper for vloggers, video creators, video studios.
Gaming Port
Enable Game Turbo by connecting your computer to the gaming port—prioritizing gaming and critical apps for smooth POS, conferencing, and live streaming. Discover even more features!
Supported by Enterprise-Level 2.0 GHz Quad-Core CPU Chipset
Enjoy better stability under heavy load.
The RG-EW6000GX demonstrates more stable network performance with multiple connections.
Support for Concurrent Connections of Multiple Clients
With MU-MIMO technology, the EW6000GX features 8 spatial streams (2.4 GHz: 4x4,
5 GHz: 4x4), doubles device capacity, and allows for fast and simultaneous connections of different clients without delays.
Deliver Powerful Signals, Experience “Wall-less” Freedom
8 antennas Eliminating coverage holes with strong wall-penetration. Two walls can be penetrated effortlessly.*
Wi-Fi Solutions, Ensuring Seamless Roaming and Full Coverage
Amazed by Reyee Mesh
Manage Your Home Network at Fingertips
Ruijie Reyee App provides incredible advanced features, allowing you to remotely manage your network at any time.
