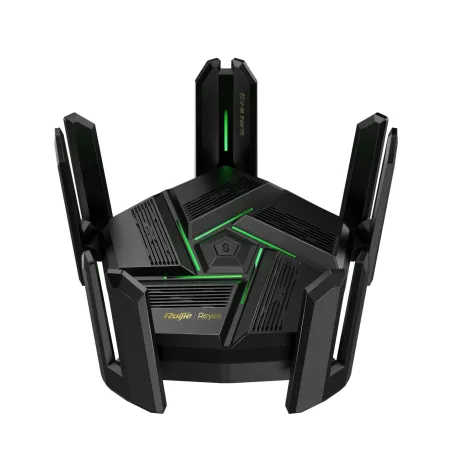

RG-EW7200BE PRO Product Specification |
Wi-Fi Radio |
Operating band | IEEE 802.11b/g/n/ac/ax/be，2.400GHz~2.4835GHz；IEEE 802.11a/n/ac/ax/be，5.150GHz～5.350GHz；IEEE 802.11a/n/ac/ax/be，5.470GHz～5.725GHz；IEEE 802.11a/n/ac/ax/be，5.725GHz～5.850GHz |
FEM | 2.4GHz: iPA 5GHz: EPA |
Max. Wi-Fi Speed | 2.4 GHz, 1377 Mbps 5 GHz, 5765 Mbps |
Maximum transmit power | 2.4 GHz:
802.11b: 22 dBm
802.11g: 6 Mbps 22 dBm; 54 Mbps 20 dBm
802.11n: MCS0 22 dBm; MCS7 19 dBm 802.11ac: MCS0 22 dBm; MCS9 18 dBm
802.11ax: MCS0 22 dBm; MCS11 16.5 dBm
802.11be: MCS0 25 dBm; MCS13 15.5 dBm 5 GHz:
802.11a: 6 Mbps 26 dBm; 54 Mbps 22 dBm
802.11n: MCS0 26 dBm; MCS7 21.5 dBm
802.11ac: MCS0 26 dBm; MCS9 21 dBm
802.11ax: MCS0 26 dBm; MCS11 19 dBm
802.11ax: MCS0 26 dBm; MCS13 17 dBm Note: The transmit power varies according to regulations in different countries and regions. |
Maximum transmit power(EIRP) | Frequency bands using and the max EIRP: Note: Country specific restrictions apply Thailand: 2400-2483.5 MHz, EIRP ≤ 20 dBm 5150-5350 MHz, EIRP ≤ 23 dBm 5470-5725 MHz, EIRP ≤ 30 dBm 5725-5825 MHz, EIRP ≤ 30 dBm |
MIMO | 2.4 GHz, 4 x 4
5 GHz, 4 x 4 |
Wi-Fi standard | Wi-Fi 7 (IEEE 802.11be) |
Antenna |
Antenna | 9 x external antennas |
Antenna gain (2.4 GHz) | 4 dBi |
Antenna gain (5 GHz) | 5 dBi |
Dimensions and Weight |
Product dimensions (W x D x H) | 259 mm x 248 mm x 153 mm (10.2 in. x 9.76 in. x 6.02 in.) |
Weight | 0.739 kg (1.63 lbs) (without packaging materials) 1.44 kg (3.17 lbs) (with packaging materials) |
Port Specifications | |
LEDs | 5 x atmosphere LEDs 1 x system status LED |

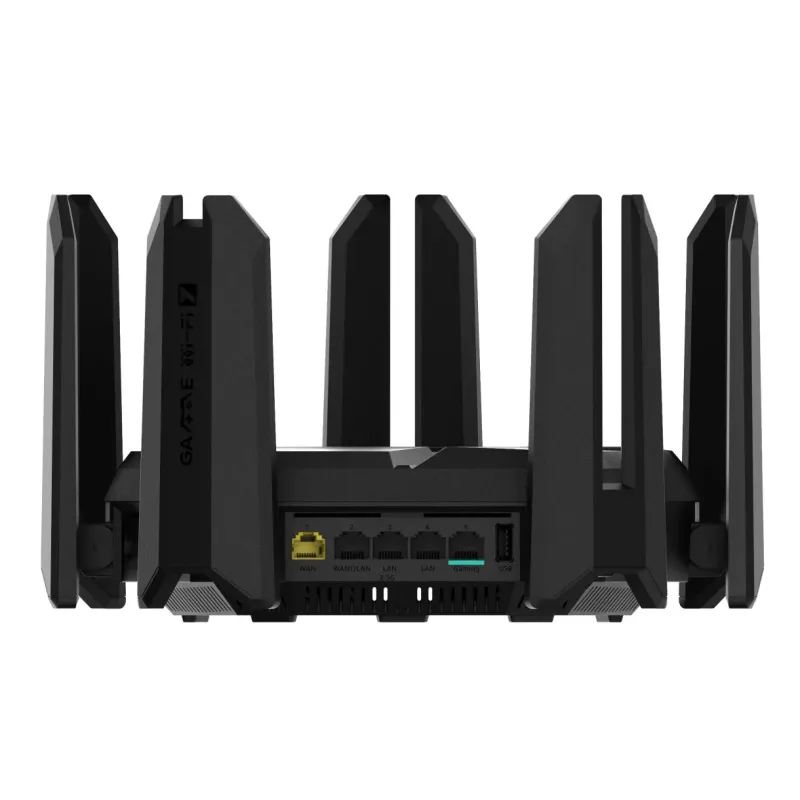

LAN ports | 4 x 10/100/1000/2500BASE-T ports
4 x 10/100/1000BASE-T ports |
Number of LAN/WAN ports | 1 x 10/100/1000/2500BASE-T port |
WAN ports | 1 x 10/100/1000/2500BASE-T port |
Power Supply and Consumption |
Power supply | DC 12 V 3 A |
System Specifications |
RAM | 1GB |
Ethernet Switching |
WAN port aggregation | Yes |
LAN port aggregation | Yes |
Specifying the VLAN tag | Yes |
IP Service |
Port mapping | Yes |
ARP binding | Yes |
Ruijie DDNS | Yes |
Behavior Management | Yes |
Parental control | Yes |
Client access control | Yes |
Rate Limiting |
Client-based rate limiting | Yes |
Reyee Mesh 3.0 | Yes |
Maximum number of clients | 192 |
Maximum number of devices | 32 |
| รับประกัน | ศูนย์ Ruijie Thailand 3 ปี |
