Product Specification
|
|
Feature
|

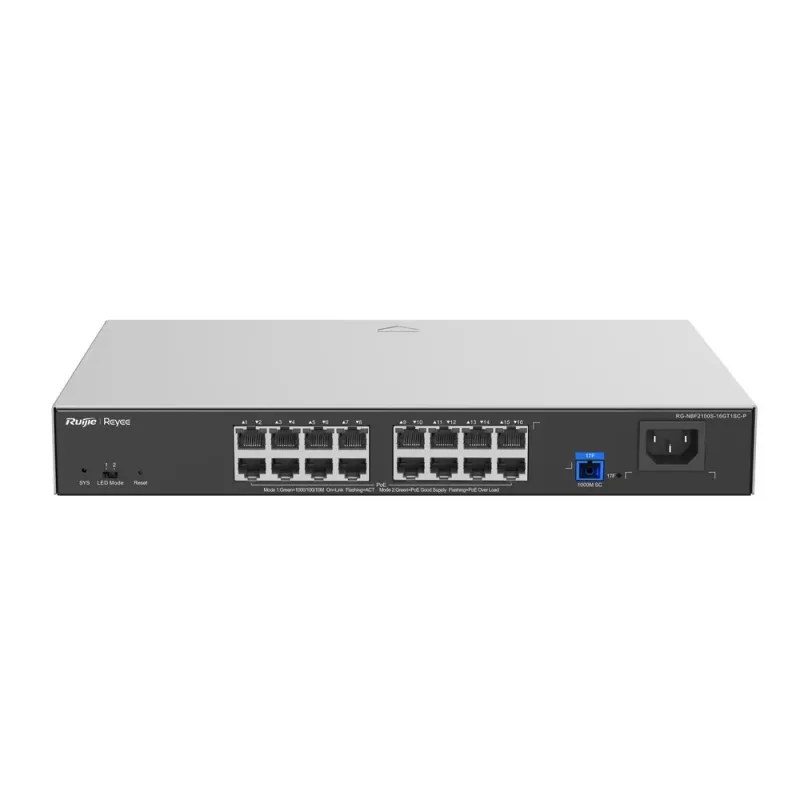

Reyee RG-NBF2100S-16GT1SC-P e-Lighten L2 Cloud Managed POE Switch 16 Port Gigabit, 1G Optical SC Ports รองรับ VLAN, IGMP Snooping, Remote Reboot, POE+ 240W บริหารจัดการผ่าน Ruijie Cloud
|
| Model |
RG-NBF2100S-16GT1SC-P |
Hardware Specifications
|
|
| Number of Line Card Slots |
0 |
| Number of 1000BASE-T Ports |
16 |
| Number of 1G SC Ports |
1 |
| Total Number of Optical Ports |
1 |
| Total Number of Ethernet Ports |
16 |
| Number of Management Ports |
N |
| Recommended Client Limits |
100 |
| Recommended Camera Limits |
2MP H265:504MP H265:25 |
| PoE Support |
Y |
| PoE Standards |
IEEE802.af, EEE802.3at |
| Max. PoE Output Power per Device |
240 W |
| Max. PoE Output Power per Port |
30 W |
| Max. Power Consumption |
≤ 290 W |
| Device Dimensions (W x D x H) |
330 mm x 229 mm x 44 mm(12.99 in. x 9.02 in. x 1.73 in.) |
| Switching Capacity |
34 Gbps |
| Forwarding Rate |
25.296 Mpps |
| Power Supply Surge Protection |
Common: 6 kV/ Differential: 6 kV |
| Port Surge Protection |
Common: 6 kV |
| Operating Temperature |
0°C to 45°C (32°F to 113°F) |
| EMC |
GB9254 class AEN 55032:2015+AC:2016EN 61000-3-2:2014EN 61000-3-3:2013EN 55035:2017ETSI EN 300 386 V2.1.1 (2016-07) |
| Casing |
Iron |
| Mounting |
Desktop/rack |
| Power Supply Options |
Fxied power supply module |
| DIP Switch |
Y |
| Gross Weight |
3.73 kg (8.22 lbs.) |
| Net Weight |
2.95 kg (6.50 lbs.) |
| Reset Button |
Y |
| LEDs |
SystemSystem LED: greenLINK/ACT:RJ45 port LED: greenLINK/ACT:SFP port LED: green |
| Storage Temperature |
-40°C to +70°C(-40°F to 158°F) |
| Operating Humidity |
10% to 90% RH |
| Storage Humidity |
5% to 95% RH |
| IP Rating |
IP20 |
| Number of and Length of Power Cords |
Quantity: 1Length: 1.5 m (4.92 ft) |
| Flash Memory |
8 MB |
| IP-based Standard ACL |
N |
| Bi-directional Optical Sub Assembly (BOSA) Receiver Sensitivity |
-8 dB to -28 dB |
| Bi-directional Optical Sub Assembly (BOSA) Transmit Power |
0 dB to 3 dB |
| Number of RJ11 Phone Ports |
0 |
Digital Diagnostic Monitoring (DDM)
(Temperature/Voltage/Current/Rx Power/Tx Power) |
Y |
| Max. Uplink Bandwidth Supported by a 1G ONU |
>=900 Mbps |
| Max. Downlink Bandwidth Supported by a 1G ONU |
997 Mbps |
| Min. Uplink Bandwidth Supported by a 1G ONU |
10 Mbps |
| Optical Splitting/All-Optical Ethernet Mode Auto Switching |
N |
| Dynamic Bandwidth Allocation (DBA) |
Y |
| Static Bandwidth Allocation (SBA) |
Y |
Dynamic Bandwidth Allocation (DBA)
Maximum Bandwidth for ONUs |
Y |
| Unknown Unicast Rate Limiting |
Y |
| Disabling MAC Address Migration of the ONU Port (disabled by default) |
Y |
| Type B Dual-homing Protection |
N |
| Type C Dual-homing Protection |
N |
Software Features
|
|
| VLAN |
Y |
| N:1 mirroring |
Y |
| MAC-based Extended ACL |
N |
| IP-based Extended ACL |
N |
| Ingress ACL on Layer 2 Physical or Logical Interfaces |
N |
| Virtual Cluster Switching (VCS) |
N |
| MAC Address Table Size |
8K |
| Static MAC Address |
Y |
| Port-Level Rate Limiting (Ingress/Egress) |
Y |
| Hardware-based CPU Protection Policy (CPP) |
Y |
| Ruijie Rapid Link Detection Protocol (RLDP) |
N |
| IPv6 |
N |
| IGMP Snooping |
N |
| ประกัน |
ทางร้านเป็นตัวแทนจำหน่ายอย่างเป็นทางการ ประกันศูนย์ Ruijie Thailand 5 ปี |
