Ruijie Reyee RG-NBF5200M-8FS16GT4XS Datasheet
Ruijie Reyee RG-NBF5200M-8FS16GT4XS e-Lighten Core Switch Installation Guide (V1.0)
Ruijie Reyee RG-NBF5200M-8FS16GT4XS Quick Start Guide(V1.0)
Ruijie Reyee RG-NBF Series Switches Implementation Cookbook(V1.0)
Ruijie Reyee RG-NBF Series Switches ReyeeOS 2.290 Configuration Guide (V1.0)
Product Specification |
|
Feature |

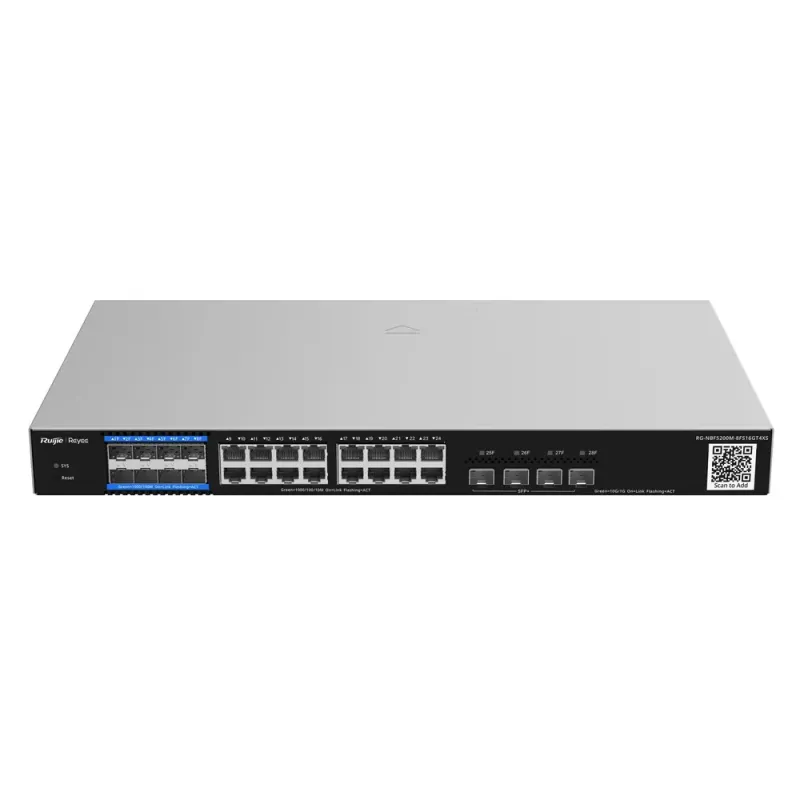

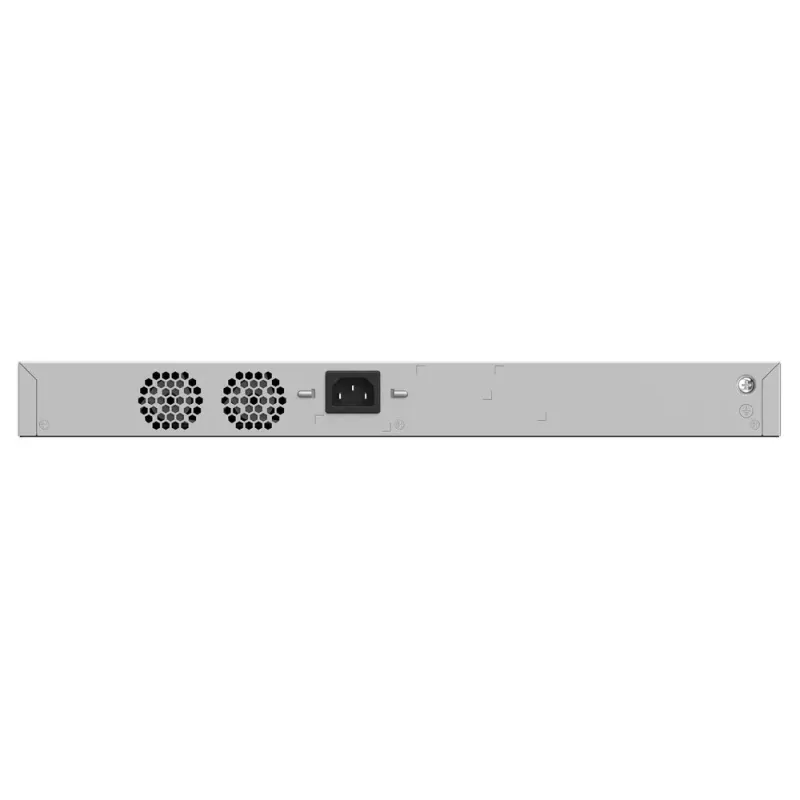

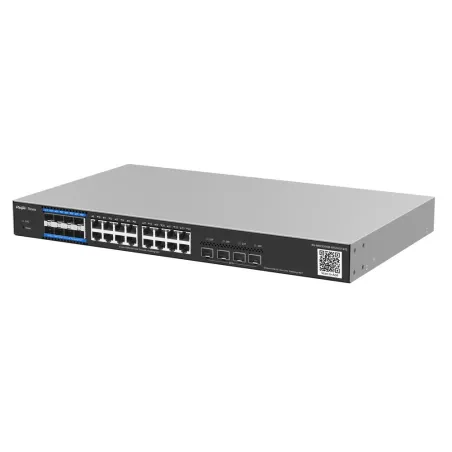

Reyee RG-NBF5200M-8FS16GT4XS e-Lighten L3-Managed Switch 16 Port Gigabit, 4 Port SFP+, 4 Port PON รองรับ Static Routing, VLAN, IGMP Snooping, Static Link Aggregate, 802.1x บริหารจัดการผ่าน Ruijie Cloud |
Model | RG-NBF5200M-8FS16GT4XS |
Basic |
|
Number of 1000BASE-T Ports | 16 |
Number of 1G PON/SFP Ports | 8 |
Number of 10G SFP+ Ports | 4 |
Total Number of Optical Ports | 12 |
Total Number of Ethernet Ports | 16 |
Number of Management Ports | N |
Recommended Client Limits | 1200 |
Recommended Camera Limits | 2 MP H265:4004 MP H265:2008 MP H265:100 |
PoE Support | N |
Max. Power Consumption | 41.8 W |
Device Dimensions (W x D x H) | 440 mm x 260 mm x 43.6 mm (17.32 in. x 10.24 in. x 1.7173 in.) |
Switching Capacity | 216Gbps |
Forwarding Rate | 96Mpps |
Power Supply Surge Protection | Common 6 kVDifferential 6 kV |
Port Surge Protection | Common 6 kV |
Temperature Alarm | Y |
Operating Temperature | 0°C to 50°C (32°F to 122°F) |
EMC | GB/T 9254.1-2021 |
Casing | Iron |
Mounting | Rack-mount |
Power Supply Options | Fixed power module |
Buttons (Reset Button Excluded) | 0 |
Gross Weight | 4.02 kg (8.86 lbs.) |
Net Weight | 2.9 kg (6.39 lbs.) |
Software Features |
|
VLAN | Y |
N:1 Mirroring | Y |
DHCP Server | Y |
MAC-based Extended ACL | Y |
IP-based Extended ACL | Y |
Ingress ACL on Layer 2 Physical or Logical Interfaces | Y |
Virtual Cluster Switching (VCS) | Y |
Layer 3 Support | Y |
MAC Address Table Size | 16000 |
Static MAC Address | Y |
MAC Address Filtering | 256 |
Max. Number of SVIs | 32 |
Port-Level Rate Limiting (Ingress/Egress) | Y |
Max. Number of Layer 3 Aggregate Interfaces | 15 |
Hardware-based CPU Protection Policy (CPP) | Y |
Ruijie Rapid Link Detection Protocol (RLDP) | Y |
IPv6 | Y |
IGMP Snooping | Y |
Hardware Specifications |
|
Number of and Length of Power Cords | 1.5m |
Max. Number of ONUs (APs and Access Switches) | 300 |
IP-based Standard ACL | Y |
PON/Ethernet Optical Transceiver Auto-Sensing | Y |
1G PON Optical Transceivers | Y |
2.5G PON Optical Transceivers | N |
10G PON Optical Transceivers | N |
Alerting of Non-Ruijie PON Optical Transceivers | N |
Number of ONUs per 1G PON Port | 32 |
Number of ONUs of All 1G PON Ports per Device | 256 |
Number of 1G PON Ports | 8 |
Total Number of PON Ports | 8 |
Max. Number of PON Ports per Device | 8 |
RTT-based Distance Measurement | Y |
Accuracy of Ranging Between OLT and ONU | 100 m (328.08 ft.) |
Layer 2 Isolation for ONUs Connected to the Same OLT Port (disabled by default) | Y |
Max. Registration Distance for Eligible ONUs (Default: 5 km, Maximum: 20 km) | Y |
Static Bandwidth Allocation (SBA): Fixed Bandwidth for ONUs | Y |
Dynamic Bandwidth Allocation (DBA): Maximum Bandwidth for ONUs | Y |
OLT Displaying OLT Optical Transceiver Info (Temperature/Voltage/Current/Tx Power/Rx Power/Port Mode) | Y |
OLT Displaying ONU Optical Transceiver Info (Temperature/Voltage/Current/Tx Power/Rx Power/Port Mode) | Y |
ONU Optical Transceiver Exception Reporting on OLT (Abnormal Temperature, Voltage, Current, and Tx/Rx Power) | Y |
OLT Automatically Connecting ONUs | Y |
Type B Dual-homing Protection | N |
Type D Dual-homing Protection | N |
Reset Button | Y |
Automatic Resolution of Management Port IP Address Conflict | N |
Storage Temperature | -40°C to +70°C (-40°F to +158°F) |
Operating Humidity | 10% to 90% RH |
Storage Humidity | 5% to 95% RH |
IP Rating | IP20 |
ประกัน | ทางร้านเป็นตัวแทนจำหน่ายอย่างเป็นทางการ ประกันศูนย์ Ruijie Thailand 5 ปี |
e-Lighten 10G Layer 3 Managed Switch 8 x 1G e-Lighten Optical Ports + 16 x 1G Ethernet Ports + 4 x 10G SFP+ Ports
Integrating Excellence, Minimizing Expense
Customize the Network that Works Best for You
