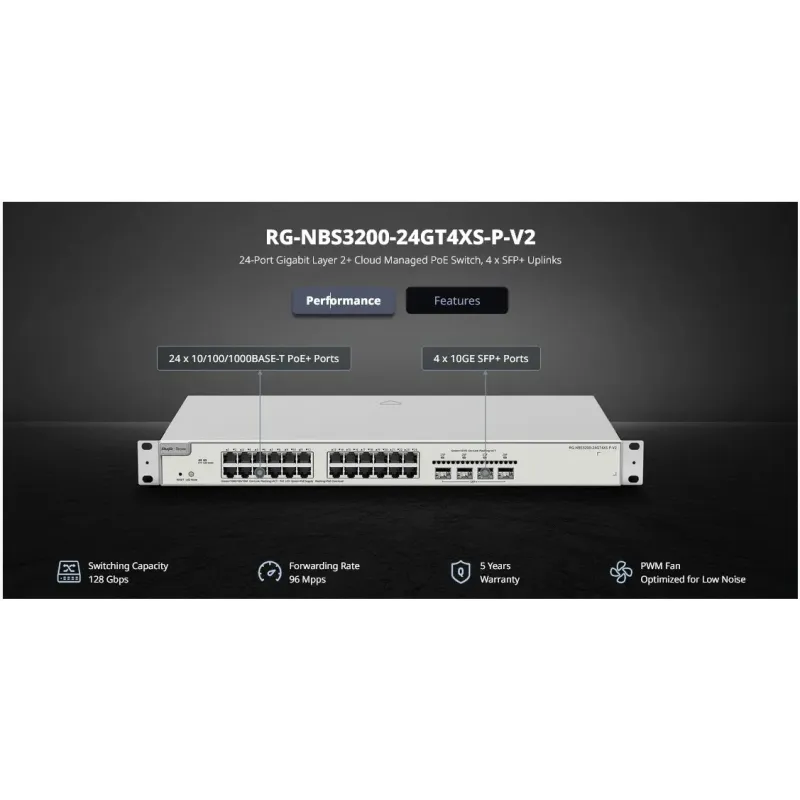

RG-NBS3200-24GT4XS-P-V2 Reyee L2 Cloud Managed POE Switch 24 Port Gigabit 370W

RG-NBS3200-24GT4SFP-P-V2 Product Specification

System Specifications

CPU

MAC chip, singlecore processor, 800 MHz clock frequency

Flash memory

256MB

RAM

512MB

Forwarding rate

96Mpps

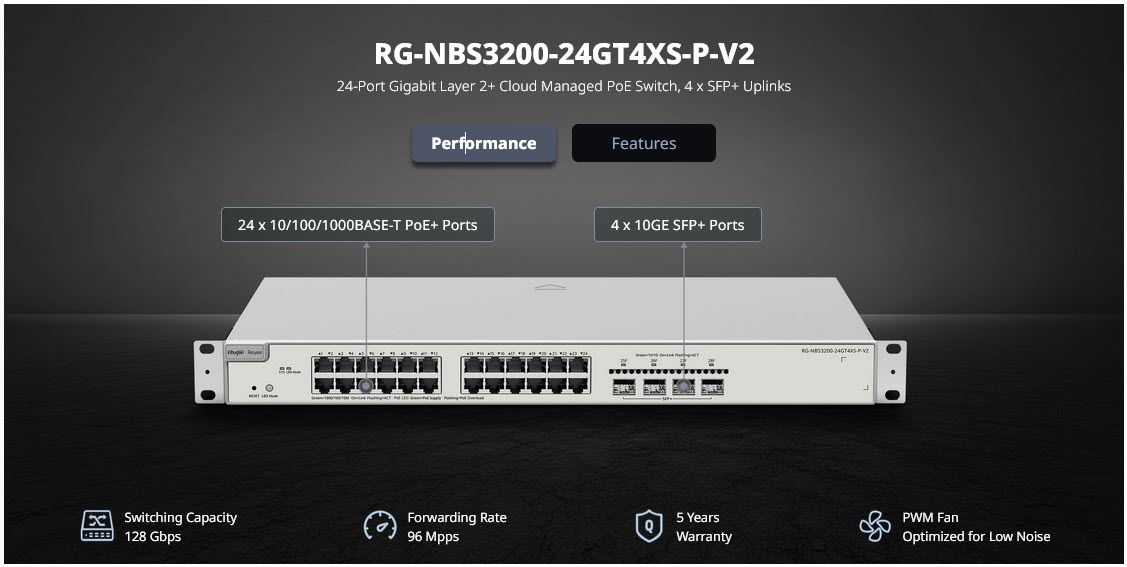

Switching capacity

128 Gbps(bit/s)

Power Supply and Consumption

Power input

220 V AC power supply:
Rated input voltage: 100 V AC to 240 V AC, 50/60 Hz
Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz
Maximum input current: 6 A

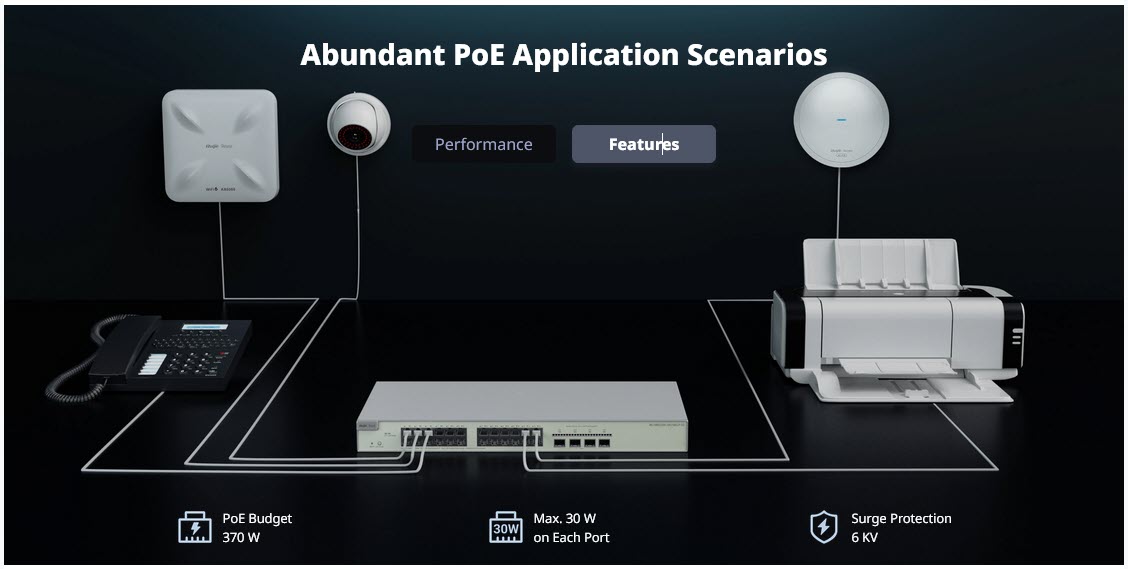

Maximum PoE output power of the device

370W

Maximum power consumption

30 W (with no PoE load)
430 W (with full PoE load)

Number of PoE Out ports (802.3af)

Number of PoE/PoE+ out ports (802.3at)

Number of PoE/PoE+/PoE++ Out ports (802.3bt)

Dimensions and Weight

Dimensions (W x D x H)

440 mm x 222.6 mm x 44 mm
(17.32 in. x 8.76 in. x 1.73 in.)

Weight

2.88 kg (6.35 lbs) (without packaging materials)

Environment and Reliability

Mounting options

Rack

Operating temperature

0°C to +50°C (32°F to 122°F)

Storage temperature

–40°C to +70°C
(–40°F to +158°F)

Fan

2 x fixed fans

MTBF

400,000 hours

ESD protection

Contact discharge: 6 kV
Air discharge: 8 kV

Surge protection

Service port: ±6kV for common mode Power connector: ±6 kV

Certification and Regulatory Compliance

Safety compliance

IEC 62368-1

EMC

EN 55032: 2015+A1:2020
EN 61000-3-3:
2013+A1: 2019+A2:2021
EN IEC 61000-3-
2: 2019+A1:2021
EN 55035: 2017+A11:2020
EN 300386
V2.2.1

Software Specifications

Network Management

HTTP login
HTTPS login
SON

Monitoring

Camera detection
Syslog
Client autodiscovery
eWeb management

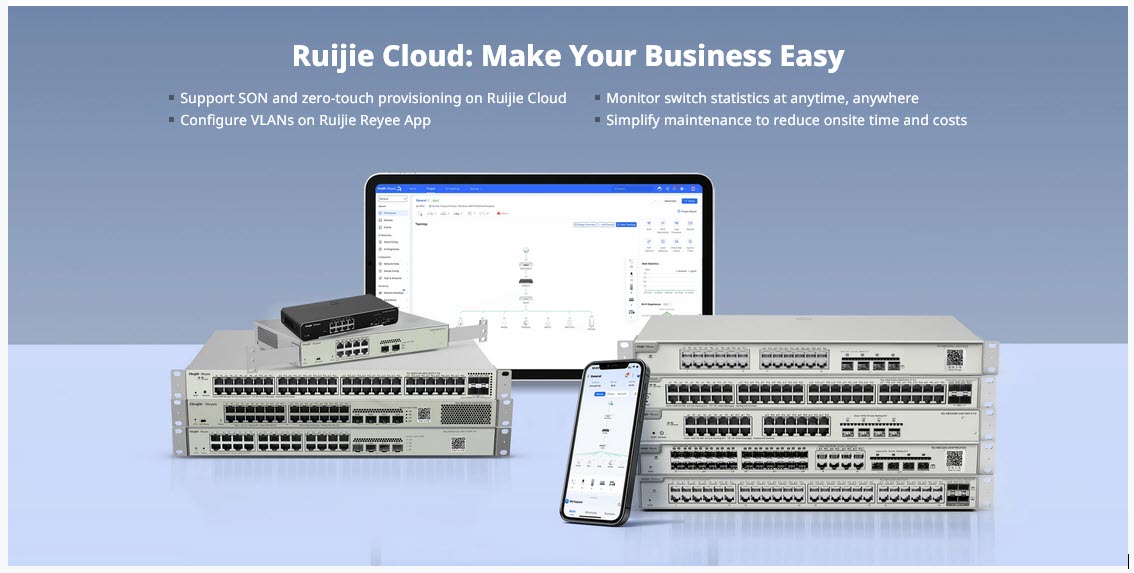

Ruijie Cloud management
Ruijie Reyee App management
Loop alarm
MAC address entries
IP address pool conflicts
PoE service
failure
PoE power overload
SNMPv1, v2c, and v3
RLOG
Port mirroring
Mirroring

Ethernet Switching

Interface flow control

MAC address filtering

Static MAC address

Maximum number of MAC address entries

Interfacebased VLAN

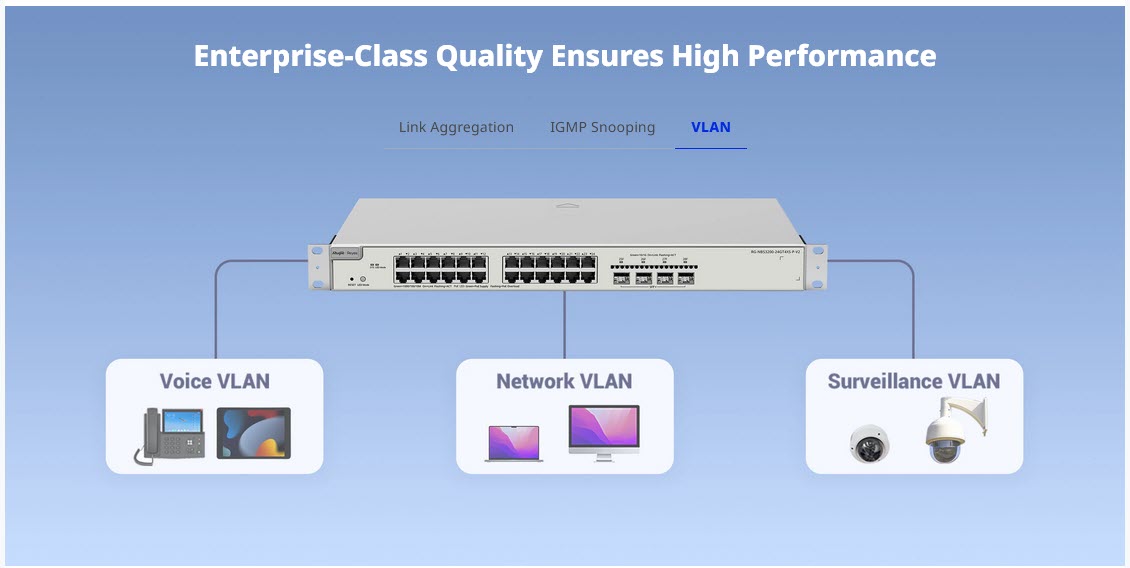

Voice VLAN

Maximum number of VLANs

STP (IEEE 802.1d)

RSTP (IEEE 802.1w)

MSTP (IEEE 802.1s)

LLDP

LLDP-MED

IEEE 802.1Q VLAN

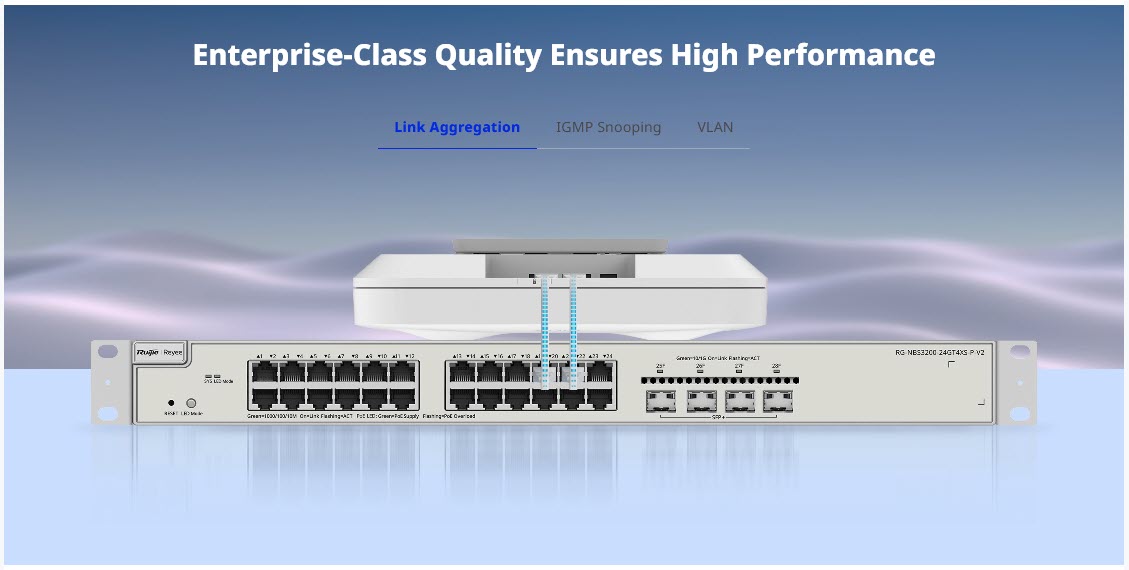

Static aggregation

LACP

Basic Configurations

Online upgrade
PoE watchdog

Security

IP-MAC-port binding
DHCP snooping
Broadcast storm control
Multicast storm control
Standard ACL
Extended MAC ACL
Extended Ip ACL
IPv6 ACL
Port isolation
CPU Protection Policy
IP source guard
ARP antispoofing

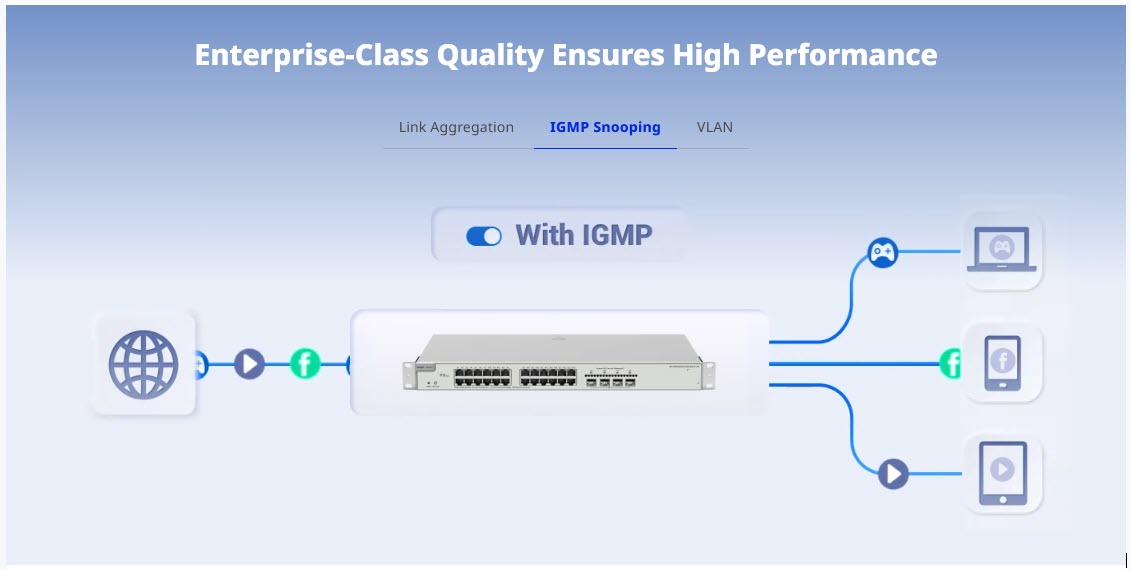

Multicast

IGMPv1 snooping
IGMPv2 snooping
IGMPv1, v2, and v3

Authentication

802.1X authentication
Interfacebased 802.1X authentication
MAC addressbased 802.1X authentication
Guest VLAN
RADIUS

System Perform

200 W H265: 280
400 W H265: 140

ประกัน

5 ปี
