System Specifications |
CPU | MAC chip, dualcore processor, 1GHz clock frequency per core |
Flash memory | 256MB |
RAM | 1G |
Number of 10/100/1000BASE-T ports | 48 |
Number of 10GE SFP+ ports | 4 |
Forwarding rate | 132Mpps |
Switching capacity | 216 Gbps(bit/s) |
Power Supply and Consumption |
Power input | 220 V AC power supply:
Rated input voltage: 100 V AC to 240 V AC, 50/60 Hz
Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz
Maximum input current: 6 A |

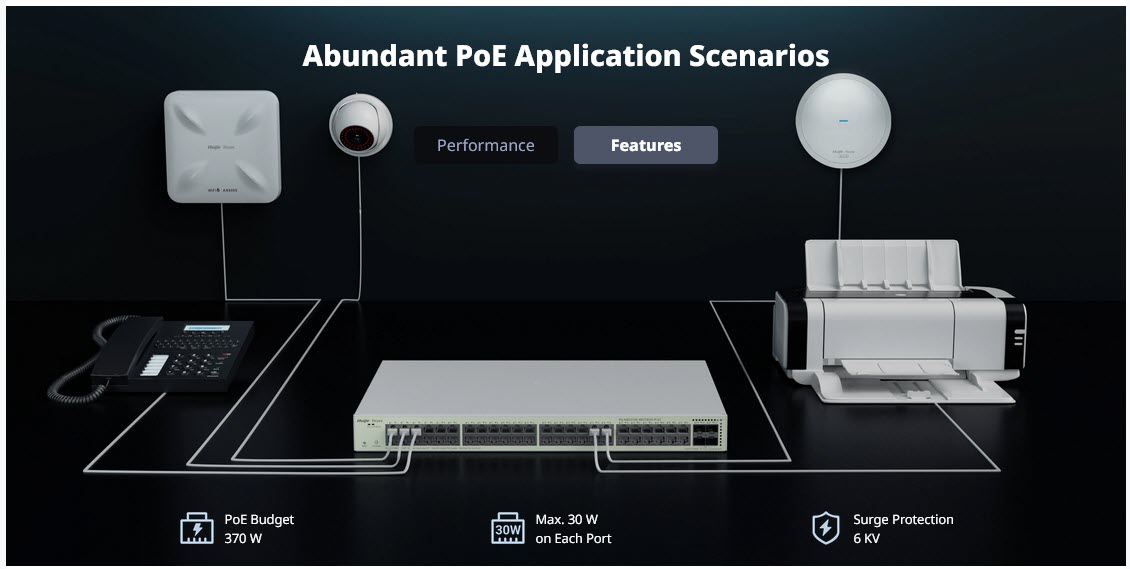

Maximum PoE output power of the device | 370W |
Maximum power consumption | 46 W (with no PoE load)
450 W (with full PoE load) |
Number of PoE Out ports (802.3af) | 48 |
Number of PoE/PoE+ out ports (802.3at) | 48 |
Number of PoE/PoE+/PoE++ Out ports (802.3bt) | - |
Dimensions and Weight |
Dimensions (W x D x H) | 440 mm x 300.6 mm x 44 mm
(17.32 in. x 11.83 in. x 1.73 in.) |
Weight | 4.32 kg (9.52 lbs) (without packaging materials) |
Environment and Reliability |
Mounting options | Rack |
Operating temperature | 0°C to +50°C (32°F to 122°F) |
Storage temperature | –40°C to +70°C
(–40°F to +158°F) |
Fan | 2 x fixed fans |
MTBF | 400,000 hours |
ESD protection | Contact discharge: 6 kV
Air discharge: 8 kV |
Surge protection | Service port: ±6kV for common mode Power connector: ±6 kV |
Certification and Regulatory Compliance |
Safety compliance | IEC 62368-1 |
EMC | EN 55032: 2015+A1:2020
EN 61000-3-3:
2013+A1: 2019+A2:2021
EN IEC 61000-3-
2: 2019+A1:2021
EN 55035: 2017+A11:2020
EN 300386
V2.2.1 |
Software Specifications |
Network Management | HTTP login
HTTPS login
SON |
Monitoring | Camera detection
Syslog
Client autodiscovery
eWeb management
Ruijie Cloud management
Ruijie Reyee App management
Loop alarm
MAC address entries
IP address pool conflicts
PoE service
failure
PoE power overload
SNMPv1, v2c, and v3
RLOG
Port mirroring
Mirroring |
Ethernet Switching |
Interface flow control | Support |
MAC address filtering | Support |
Static MAC address | Support |
Maximum number of MAC address entries | 16000 |
Interfacebased VLAN | Support |

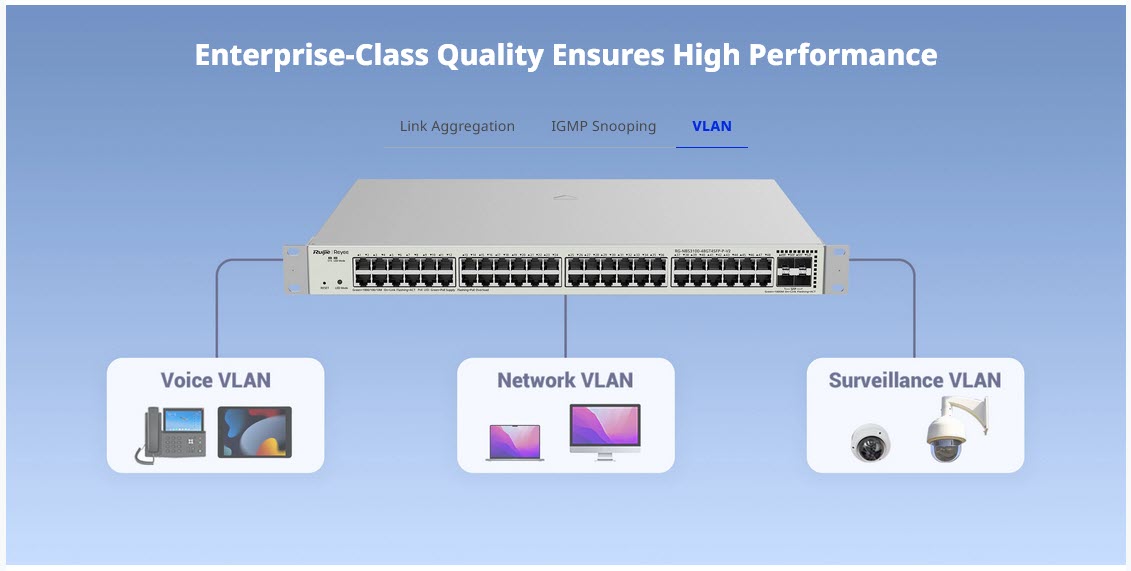

Voice VLAN | Support |
Maximum number of VLANs | 4094 |
STP (IEEE 802.1d) | Support |
RSTP (IEEE 802.1w) | Support |
MSTP (IEEE 802.1s) | Support |
LLDP | Support |
LLDP-MED | Support |
IEEE 802.1Q VLAN | Support |

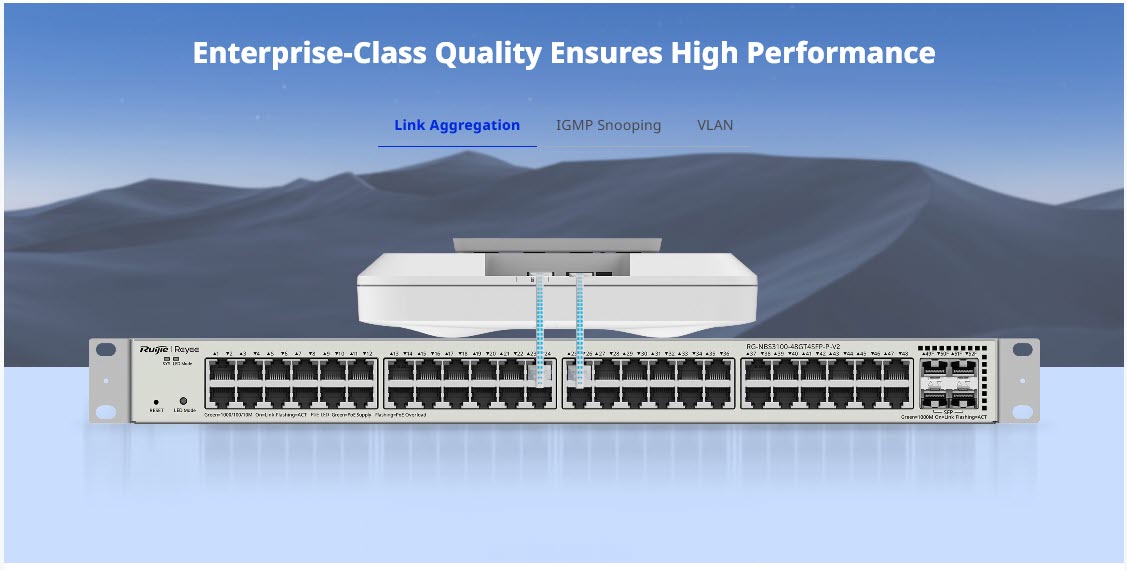

Static aggregation | Support |
LACP | Support |
Basic Configurations | Online upgrade
PoE watchdog |
Security | IP-MAC-port binding
DHCP snooping
Broadcast storm control
Multicast storm control
Standard ACL
Extended MAC ACL
Extended Ip ACL
IPv6 ACL
Port isolation

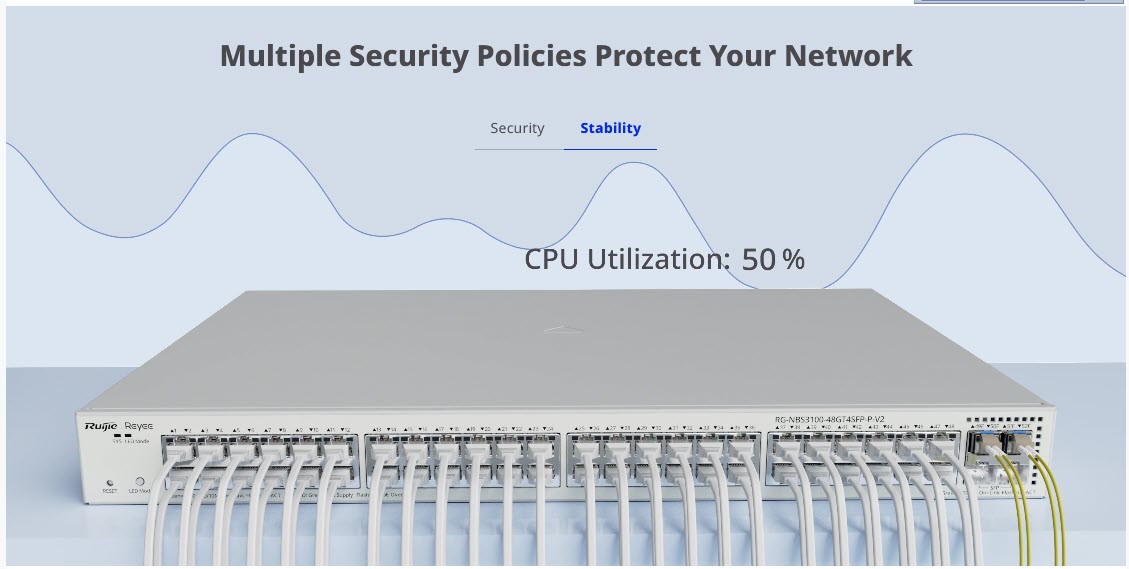

CPU Protection Policy
IP source guard
ARP antispoofing |

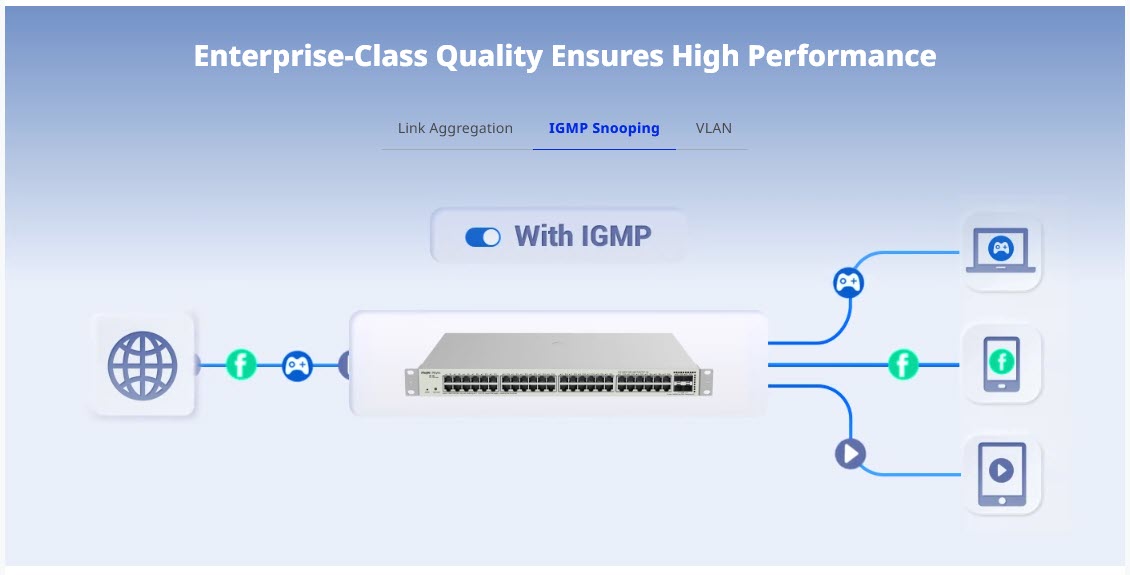

Multicast | IGMPv1 snooping
IGMPv2 snooping
IGMPv1, v2, and v3 |
Authentication | 802.1X authentication
Interfacebased 802.1X authentication
MAC addressbased 802.1X authentication
Guest VLAN
RADIUS |
System Perform | 200 W H265: 200
400 W H265: 100 |
ประกัน | 5 ปี |
