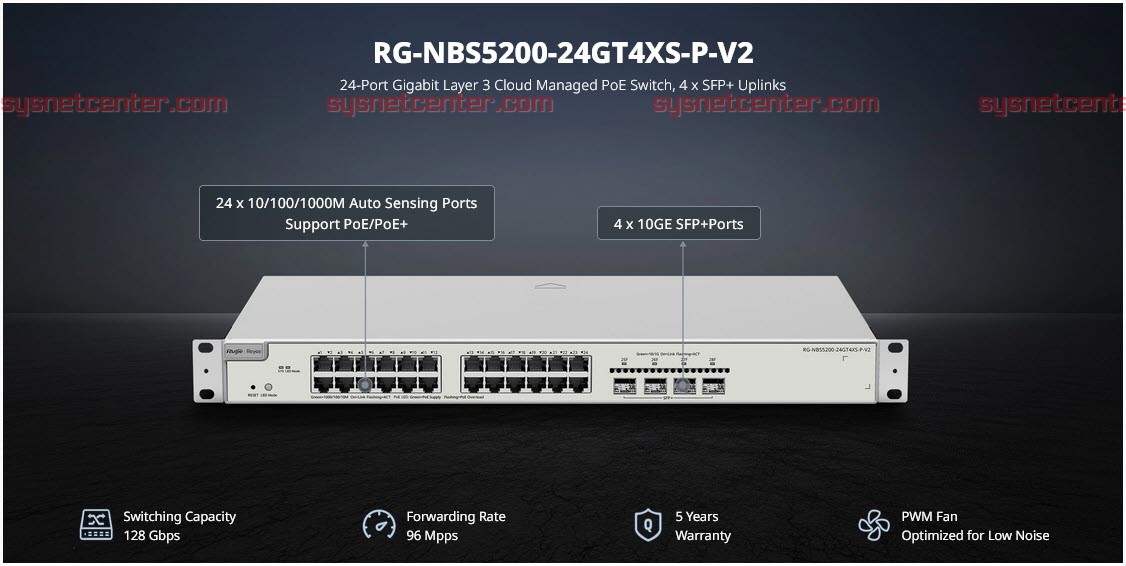

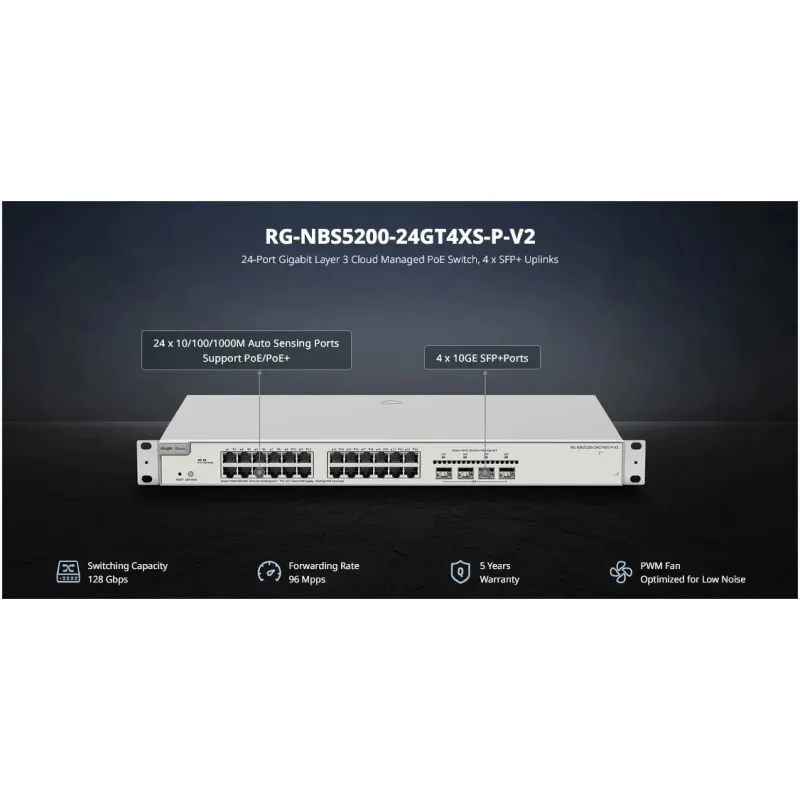

RG-NBS5200-24GT4XS-P-V2 Reyee L3-Managed POE Switch 24 Port Gigabit, 4 SFP+

RG-NBS5200-24GT4XS-P-V2 Product Specification

Feature

Reyee RG-NBS5200-24GT4XS-P-V2 L3-Managed POE Switch 24 Port Gigabit, 4 Port SFP+ 10Gbps รองรับ Static/Dynamic Routing, 802.1Q VLAN, ACL, IGMP Snooping, LACP, 802.1x จ่ายไฟ POE มาตรฐาน 802.3af/at 24 Port สูงสุด 370W บริหารจัดการผ่าน Ruijie Cloud Controller

Hardware Specifications

Number of 10/100/1000BASE-T ports

Number of 10GE SFP+ ports

CPU

MAC chip, single-core processor, 800 MHz clock frequency

Flash memory

256 MB

RAM

512 MB

Power supply

Fixed power supply

Number of PoE Out ports

Number of PoE/PoE+ Out ports

PoE budget

370 W

Maximum power consumption

30 W (with no PoEload)
430 W (with full PoEload)

Dimensions (W x D x H)

440 mm x 222.6 mm x 44 mm (17.32 in. x 8.76 in. x 1.73 in.)

Weight

2.88 kg (6.35 lbs) (without packaging materials)

Mounting options

Rack

Operating temperature

0°C to +50°C (32°F to 122°F)

Storage temperature

–40°C to +70°C (–40°F to +158°F)

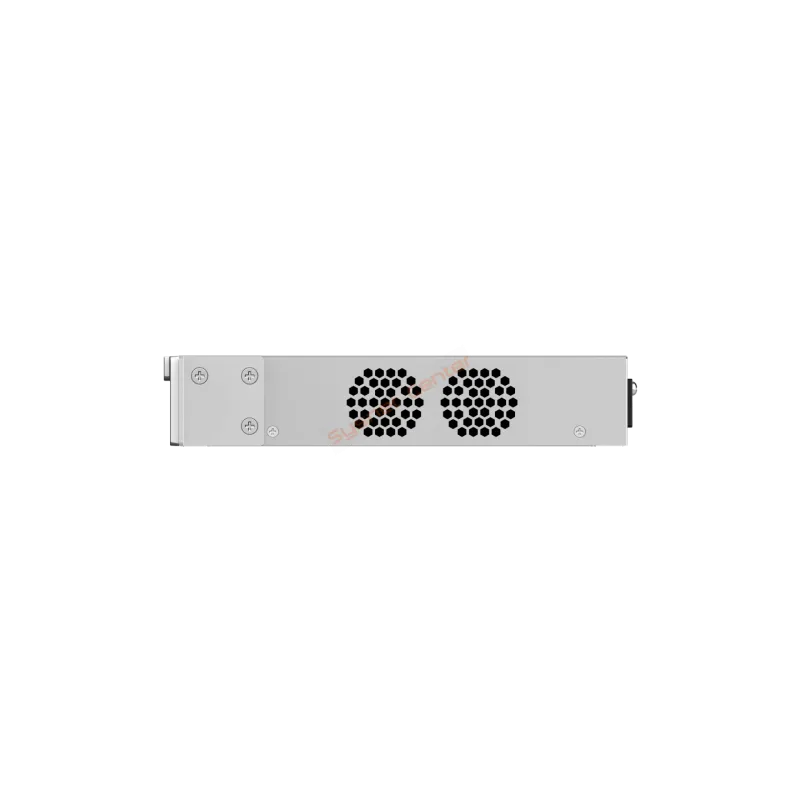

Fan

2 x fixed fans

ESD protection

Contact discharge: 6 kV
Air discharge: 8 kV

Surge protection

Service port: ±6 kV for common mode
Power connector: ±6 kV for both common mode and differential mode

Forwarding rate

96 Mpps

Switching capacity

128 Gbps(bit/s)

Software Specifications

Authentication

802.1X authentication
Interface-based 802.1X authentication
MAC address-based 802.1X authentication
Guest VLAN
RADIUS

Ethernet Switching

Interface flow control
MAC address filtering
Static MAC address
Maximum number of MAC address entries 16000

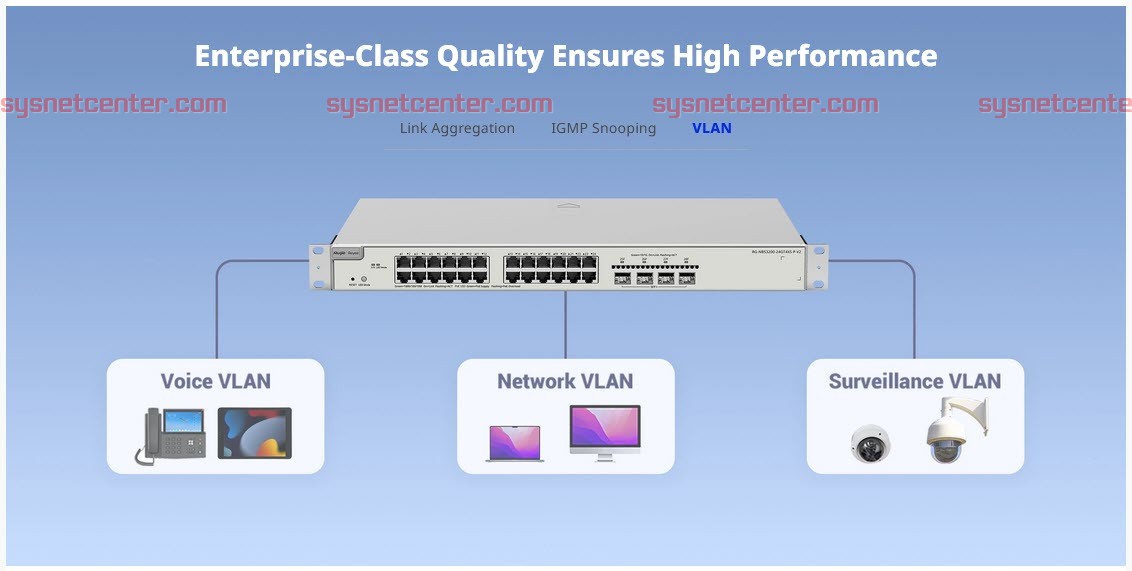

Interface-based VLAN
Voice VLAN
Maximum number of VLANs4094
STP (IEEE 802.1d)
RSTP (IEEE 802.1w)
MSTP (IEEE 802.1s)
LLDP
LLDP-MED
Inbound or outbound rate limiting based on interface traffic
IEEE 802.1Q VLAN
Static aggregation

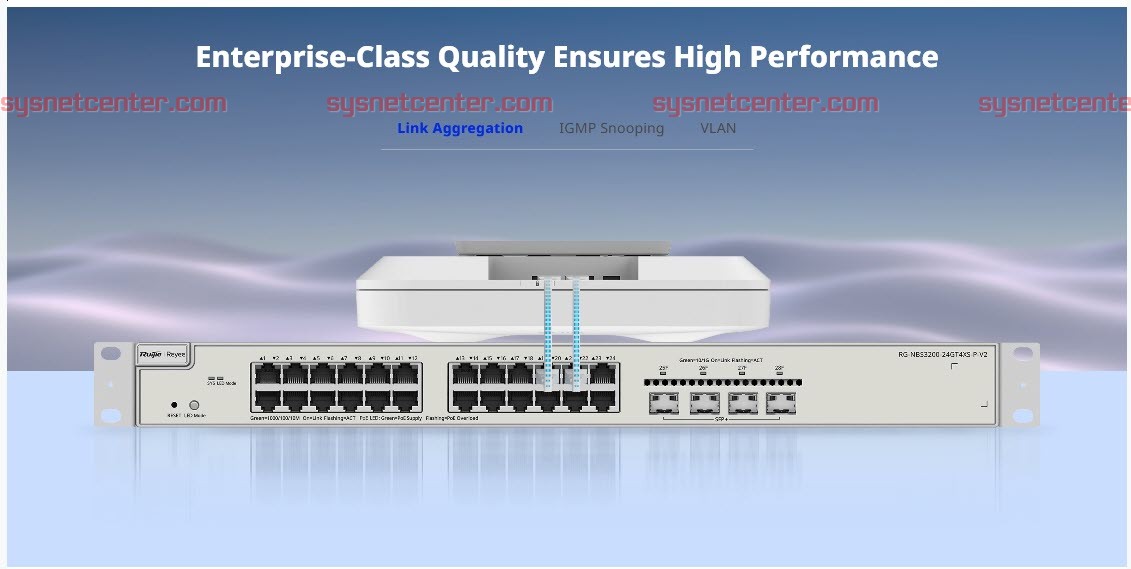

LACP

IP Routing

IPv4 static route
Maximum number of IPv4 static routes 500
IPv6 static route
Maximum number of IPv6 static routes 128
OSPFv2
OSPFv3
IPv6 routing table size (network route) 128

IP Service

ARP
Maximum number of ARP entries 2000
IPv4 ping
IPv4 traceroute
ICMPv6
IPv6 ping
IPv6 traceroute
DNS client
DNSv6 client
DHCP server
DHCP relay
DHCP client
IPv4 routing table size (host route) 6000

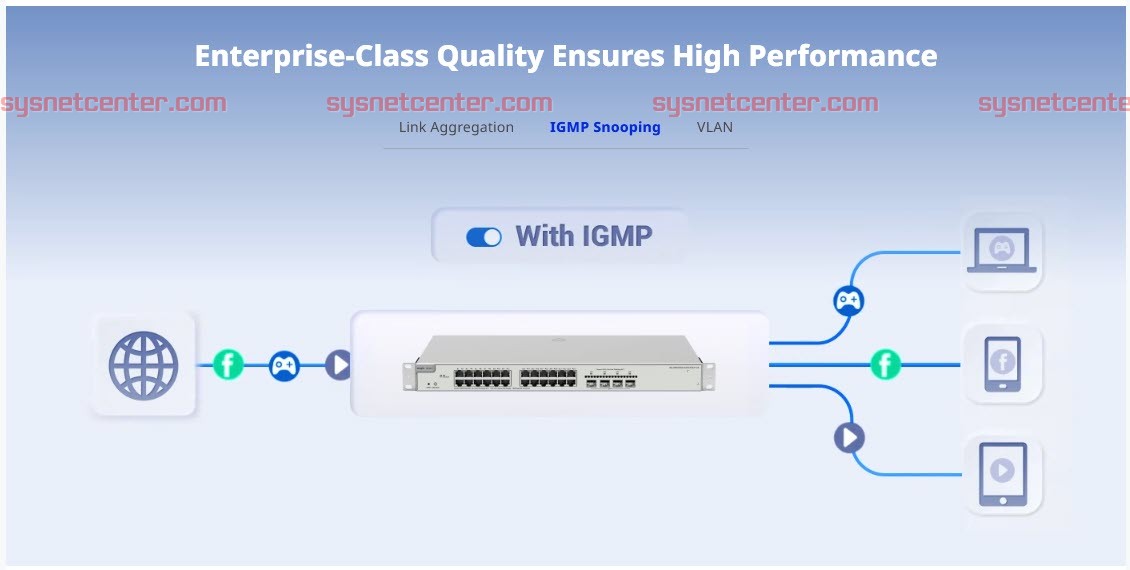

Multicast

IGMPv1 snooping
IGMPv2 snooping
Basic IGMPv3 snooping
Full IGMPv3 snooping
IGMP filtering
IGMPv1, v2, and v3

Network Management and Monitoring

Fan speed adjustment
Intelligent speed adjustment
HTTP login
HTTPS login
SON
Camera detection
Syslog
Client auto-discovery
eWeb management
Ruijie Cloud management
Ruijie Reyee App management
Loop alarm
MAC address entries
IP address pool conflicts
Full ARP table
PoE service failure
PoE power overload
SNMPv1, v2c, and v3
RLOG
Port mirroring
Mirroring

Reliability

Number of VCS members 2
System dual backup
Ubootpartition dual backup

Security

IP-MAC-port binding
DHCP snooping
Broadcast storm control
Multicast storm control
Unknown unicast storm control
Standard ACL
Extended MAC ACL
Extended IP ACL
IPv6 ACL
Port isolation
CPU Protection Policy
IP source guard
ARP anti-spoofing
Maximum number of ACEs:
Number of ACEs in the inbound direction of an interface: 1900Number of ACEs in the outbound direction of an interface: 0

System Performance Capacity

Recommended camera limit
200 W H265: 350400 W H265: 170
