ทางร้านเป็นตัวแทนจำหน่ายอย่างเป็นทางการ ผ่านการสอบ Certificate จากทาง Ruijie Networks

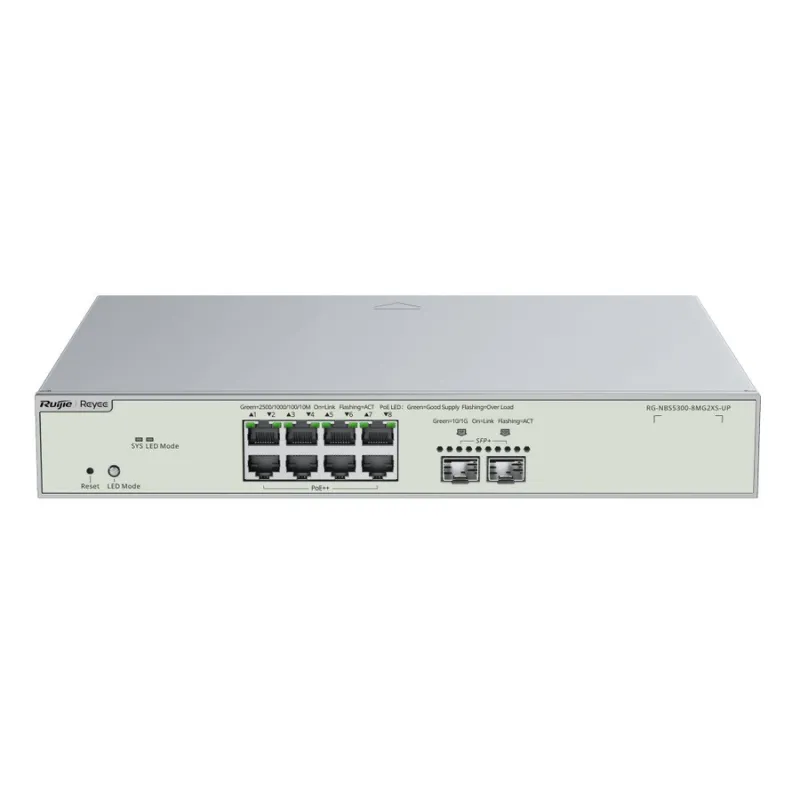

RG-NBS5300-8MG2XS-UP Reyee 10 Ports Muti-Gigabit L3 Managed Switch 8 Port PoE++, 2 SFP+
Highlight Features
- 2.5 Gbps ports smash the gigabit barrier and unlock the full potential of WiFi 6 APs.
- 802.3bt/at/af-compliant PoE++ ports with a total power supply of 370W.
- IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm Control, DHCP Snooping, 802.1X, Radius Authentication.
- Lifetime management on Ruijie Cloud at anytime anywhere.
Product Specification
|
|
Feature
|
RG-NBS5300-8MG2XS-UP Reyee L3 Managed Muti-Gigabit POE Switch 8 Port 2.5Gbps, 2 Port SFP+, จ่ายไฟ POE 8 Port มาตรฐาน 802.3bt 60W สูงสุด 370W
บริหารจัดการผ่าน Ruijie Cloud Controller
รองรับ IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm Control, DHCP Snooping, 802.1X, Radius Authentication
|
|
10/100/1000/2500Base-T copper ports
|
8 |
|
SFP ports
|
- |
|
SFP+ ports
|
2 |
|
PoE/PoE+/PoE++ ports (802.3af/at/bt)
|
8 |
|
Max. PoE budget
|
370W |
|
Layer Type
|
Layer 3
|
|
Switching capacity
|
80Gbps
|
|
Forwarding rate
|
58.72Mpps
|
|
Switching Cache
|
12Mbit
|
|
MAC address table
|
16,000
|
|
Maximum VLAN Support
|
4094
|
|
Dimensions (W x D x H)
|
300mm x 230mm x 43.6mm (The depth excludes the front panel)
300mm x 233mm x 43.6mm (The depth includes the front panel)
|
|
Weight (With package)
|
3.25kg
|
|
MTBF
|
400000H
|
Layer 2 Features
|
|
Jumbo Frame
|
9216
|
|
STP (IEEE 802.1d)
|
Support |
|
RSTP (IEEE 802.1w)
|
Support |
|
Port Fast
|
Support |
|
BPDU Guard
|
Support |
|
Max. Aggregation Group
|
16 |
|
Multicast / Broadcast Storm Suppression
|
Support |
|
Many-to-One Mirroring
|
Support |
|
VLAN Range
|
1~4094
|
|
Port-based VLAN
|
Support |
|
Voice VLAN
|
Support |
|
RLDP
|
Support |
|
LLDP / LLDP-MED
|
Support |
|
Cable Testing
|
Support |
|
IGMP Snooping v1/v2/v3
|
Y/Y/N
|
|
Software Features
|
Support |
|
Ping
|
Support |
|
Traceroute
|
Support |
|
ACL
|
IP Standard ACL
MAC-based Extended ACL
IP-based Extended ACL
|
|
Static Routing
|
Support |
|
Port-based Rate Limit (Ingress/Egress)
|
Support |
|
SNMP v1/v2c/v3
|
Support |
|
DHCP Server
|
Support |
|
Management
|
Management IP 10.44.77.200
Web Management
HTTP/HTTPS
Cloud Management
SON (Self-Organizing Network) with IP
|
|
Camera Recognition
|
Support |
|
Loop Prevention
|
Support |
|
Loop Notification
|
Support |
|
DHCP Snooping
|
Support |
Physical Features
|
|
Flash Memory
|
256MB
|
|
Reset Button
|
front
|
|
front
|
100 - 240V AC, 10A
|
|
Power Consumption (220VAC)
|
No PoE load: 42.48W;
Full PoE load: 431.86W
|
|
Operating Temperature
|
0°C to 50°C (32°F to 122°F)
|
|
Storage Temperature
|
-40°C to 70°C (-40°F to 158°F)
|
|
Port Surge
|
6 kV
|
| ประกัน |
ทางร้านเป็นตัวแทนจำหน่ายอย่างเป็นทางการ ประกันศูนย์ Ruijie Thailand 5 ปี |
RG-NBS5300-8MG2XS-UP 8-Port Multi-Gigabit Layer 3 Cloud Managed Switch, 2-SFP+ Uplink
Integration with Wi-Fi 6 AP, Boosting Network Performance and Efficiency
90W PoE Power Delivery Meet High-Power Device Demands
Enterprise-class Quality Ensures High Performance
Link Aggregation
IGMP Snooping
VLAN
Multiple Security Policies Protect Your Network
Security
Stability
Cloud, Make Your Business Easy
Monitor switch statistics at anytime anywhere
Configure VLANs on Ruijie Cloud APP
Easy maintainance, save onsite time and cost
รายละเอียดสินค้า
20 รายการ
ข้อมูลสินค้า
- ประเภท Switch
- L2/L3 Managed
- ความเร็ว Port Lan
- 2.5Gbps (Multi-Gigabit)
- จำนวน Port Lan
- 8 Port
- มาตรฐานจ่ายไฟ POE
- 802.3bt (60W)
- จำนวน Port POE
- 8 Port
- SFP+ Port 10-Gigabit
- 1 Port
