Product Specification |

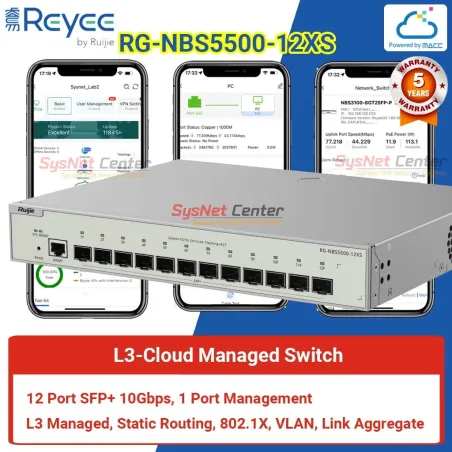

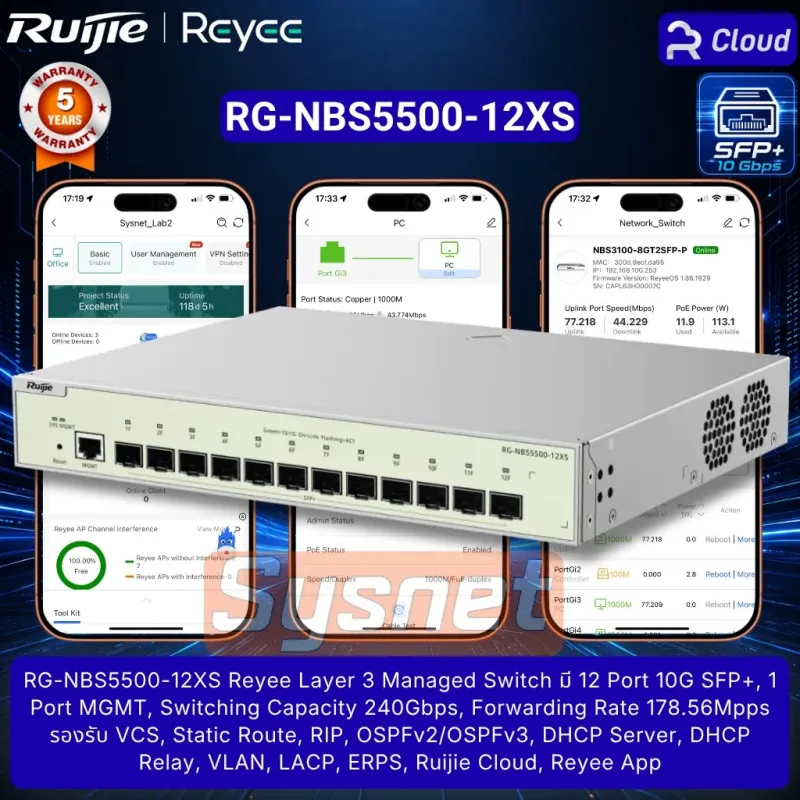

Feature | RG-NBS5500-12XS Reyee L3 Managed SFP+ 10Gbps Switch 12 Port บริหารจัดการผ่าน Ruijie Cloud Controller, IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm Control, DHCP Snooping, 802.1X, Radius Authentication บริหารจัดการผ่าน Ruijie Cloud Controller รองรับ IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm Control, DHCP Snooping, 802.1X, Radius Authentication |
Hardware Specifications |
Number of 10 GbpsOptical Ports (SFP+) | 8 |
Number of Fans | 2 |
SFP+ ports | 2 |
Power Supply Options | Single fixed power supply |
MGMT port | 1 x 10/100/1000BASE-T MGMT port |
Layer Type | Layer 3 |
Switching capacity | 240Gbps |
Forwarding rate | 178.56Mpps |
MAC address table | 32,000 |
ARP Table Size | 2000 |
IPv4 Hardware Routing Table Capacity (Host Routing) | 12000 |
Static IPv4 Route Capacity | 500 |
IPv6 Hardware Routing Table Capacity (Required to Learn All Under the Full Mesh Testing Model) | 500 |
Static IPv6 Routing Capacity | 500 |
Number of ACEs | In-1900Out-0 |
Number of VCS Members | 2 |
Dimensions (W x D x H) | 300mm x 232mm x 44mm |
Net Weight | 2.26kg |
Gross Weight | 3.04kg (packages included) |
Power Supply | Rated voltage range: 100-240VAC
Maximum voltage range: 90-264VAC
Frequency: 50/60Hz
Rated current: 2A |
Power Consumption | 44W |
Output Power | 12V/5.83A,P=70W |
Operating Temperature | 0 to 50°C |
Storage Temperature | -40 to 70ºC |
Operating Humidity | 10% to 90% RH(non-condensing) |
Storage Humidity | 5% to 95% RH(non-condensing) |
Port Surge Protection | Common Mode 6 kV |
Power Supply Surge Protection | Common Mode 6kV
Differential Mode 6kV |
Certification | CE;FCC;IC;cTUVus |
Software Specifications |
Jumbo Frame | 9216 Bytes(Per-port MTU) |
VLAN | 802.1Q VLAN
Port-based VLAN
Voice VLAN |
STP | STP (IEEE 802.1d)
RSTP (IEEE 802.1w) |
LLDP | LLDP
LLDP-MED |
DHCP | DHCP Relay
DHCP Snooping
DHCP Server
DHCP Client |
IP Routing | Static routing, RIP, OSPFv2(Open Shortest Path First Version 2), OSPFv3 |
Multicast IGMP/PIM | Protocol Snooping)
IGMP Snooping v1
IGMP Snooping v2
IGMP Snooping v3(Basic)
MVR mode (The user port can only be configured as an access port.)
IGMP Filtering
IGMP Fast Leave
PIM-SM |
ACL | IP Standard ACL
MAC Extended ACL
IP Extended ACL
IPv6 ACL |
QoS | Port-Level Rate Limiting (Ingress/Egress) |
802.1X | IEEE 802.1X Authentication
Port-based Authentication
MAC-based Authentication
Global IEEE 802.1X Authentication Control
Port Mandatory Authentication
Port Optional Authentication
Port-based Single-host Mode
Supports PEAP Authentication Modes for Windows 7/8/10/11 Clients
Supports PEAP Authentication Modes for macOSClients
Supports PEAP Authentication Modes for Linux OS Clients |
Web Management | Web Authentication
HTTP
HTTPS |
Security | IP+MAC Port Binding
Anti-ARP Spoofing
IP Source Guard
CPU Protection Policy (CPP) |
Virtual Cluster Switching (VCS) | Support Inter-Chassis Hot Standby
Configuring 10G Ports as VCLs
Dual host inspection based on DAD
Cross-device Link Aggregated Load Balancing |
SNMP | SNMP v1, SNMP v2c, SNMP v3 |
| | MQTT, Self-Organizing Network |
MACC | Ruijie Cloud Management
View Device Details on Ruijie Cloud |
ประกัน | ทางร้านเป็นตัวแทนจำหน่ายอย่างเป็นทางการ ประกันศูนย์ Ruijie Thailand 5 ปี |
