Product Specification
|
|
Overview
|

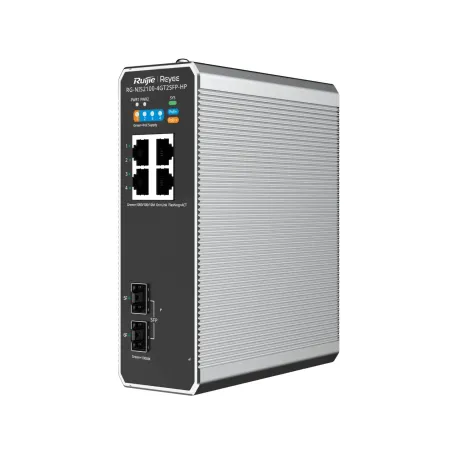

Reyee RG-NIS2100-4GT2SFP-HP 6-Port Cloud Managed Industrial Switch 4 Port POE, 2 Port SFP จ่ายไฟ 1 Port POE++ (30W), 3 Port POE+ (15.4W) สูงสุด 90W ทนอุณหภูมิสูงสุด 75C, กันน้ำกันฝุ่นมาตรฐาน IP40, Managed ผ่าน Ruijie Cloud
รองรับ VLAN, Port Isolate, POE Watchdog, Loop Prevention
รองรับการ Managed และ Monitor by Ruijie Cloud มาพร้อม Cloud License ตลอดชีพ
|
Basic
|
|
RJ45 Ports
|
4 10/100/1000BASE-T Ports
|
|
Optical Ports
|
2 Port SFP 1Gbps
|
|
PoE/PoE+ Ports
|
4 |
|
Max. PoE Power Budget
|
default：108W web reserved adjustable interface MAX:180W
|
|
Extend Mode (Long-Range Transmission)
|
support(port 3-4)
|
|
Switching Capacity
|
12Gbps
|
|
Forwarding Rate
|
8.9Mpps
|
|
Buffer Size
|
4.1Mbits
|
|
Flash Memory
|
8MB
|
|
MAC Address Table Size
|
8K
|
|
Max. Number of VLANs
|
8K
|
|
Dimensions (W x D x H)
|
50*155*130mm
|
|
Net Weight
|
0.77KG
|
Layer2 feature
|
|
Jumbo Frame Length (MTU)
|
10000 Bytes
|
|
Flow Control
|
Support |
|
Port Isolation / Protected Port
|
Support |
|
Broadcast Storm Control
|
Support |
|
Multicast Storm Control
|
Support |
|
SPAN
|
Support |
|
VLAN Range
|
Support |
|
Port-based VLAN
|
Support |
|
Cable Test
|
Support |
|
Port-Level Rate Limiting (Ingress/Egress)
|
Support |
|
Web Management
|
Support |
|
Ruijie Cloud Management
|
Support |
|
Ruijie Reyee App Management
|
Support |
|
IP-based Self-Organizing Network (SON)
|
Support |
|
Camera Detection
|
Support |
|
Loop Prevention
|
Support |
|
PoE Power Usage Alarm
|
Support |
|
DHCP Snooping
|
Support |
|
PoE Watchdog
|
Support |
|
G.8032 (ERPS)
|
Support |
Hardware Specifications
|
|
Reset Button
|
Support |
|
DIP Switch
|
ERPS mode：Enable ERPS ring network
Isolation mode：Upper port and lower port isolation
Extend mode: The rate of Ports 5 to 8 is reduced to 10 Mbps, but the maximum transmission distance can be up to 200 meters (Cate5e cables required)
Alarm mode：Turn on power in-position detection alarm
|
|
Cable Hot-Swappable
|
Support |
|
Power Supply
|
DC input Rated voltage range: 46-57V DC Rated current range: 4.2A
|
|
Power Consumption
|
Less than 12W with no PoE load
Less than 192W with PoE full load
|
|
Port Surge Protection
|
Common Mode 6kV
|
|
Power Supply Surge Protection
|
Common Mode：4kV
Differential mode 2kV
|
|
Acoustic Noise Level
|
Fanless
|
|
Operating Temperature
|
-40-75℃
|
|
Storage Temperature
|
-40~85ºC
|
|
Operating Humidity
|
10% to 90% RH(non-condensing)
|
|
Storage Humidity
|
5% to 95% RH(non-condensing)
|
|
Electrostatic Discharge (ESD) Protection
|
Air Discharge: 15kV
Contact Discharge: 8kV
|
|
Casing
|
Metal
|
|
Corrosion Protection
|
Salt Tolerance
|
|

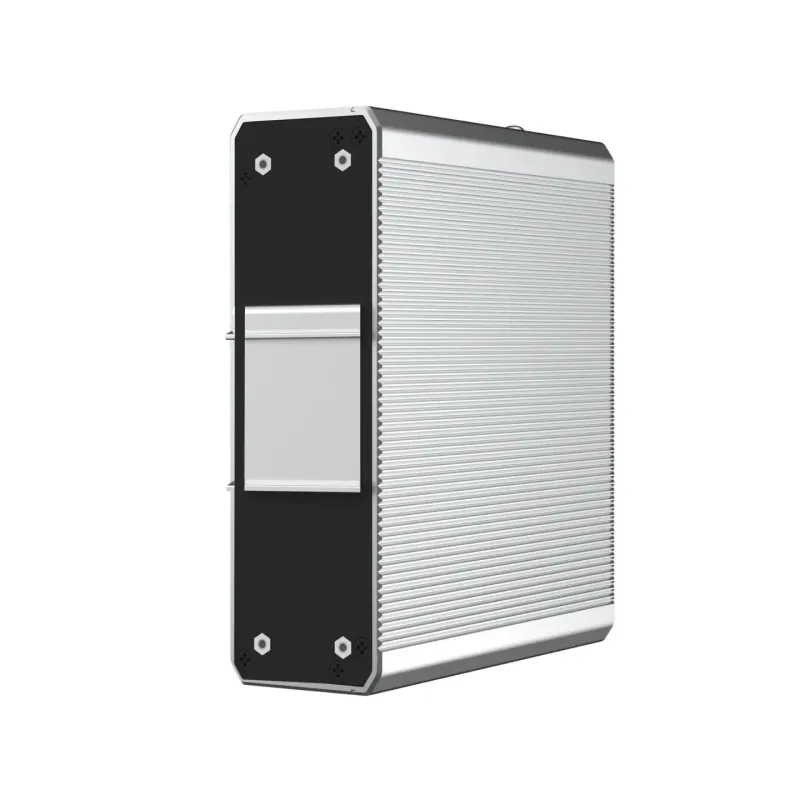

Mounting
|
DIN-rail Mounting Wall-mount
|
|

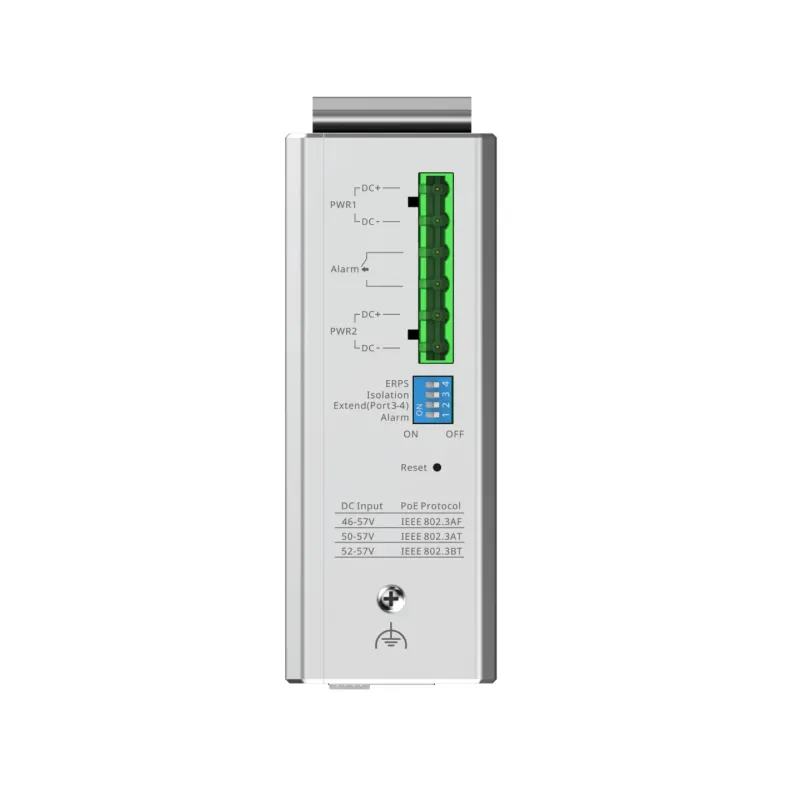

Terminal Block
|
pin 12&56:Power1 and Power2 input pin 34:Alarm
|
|

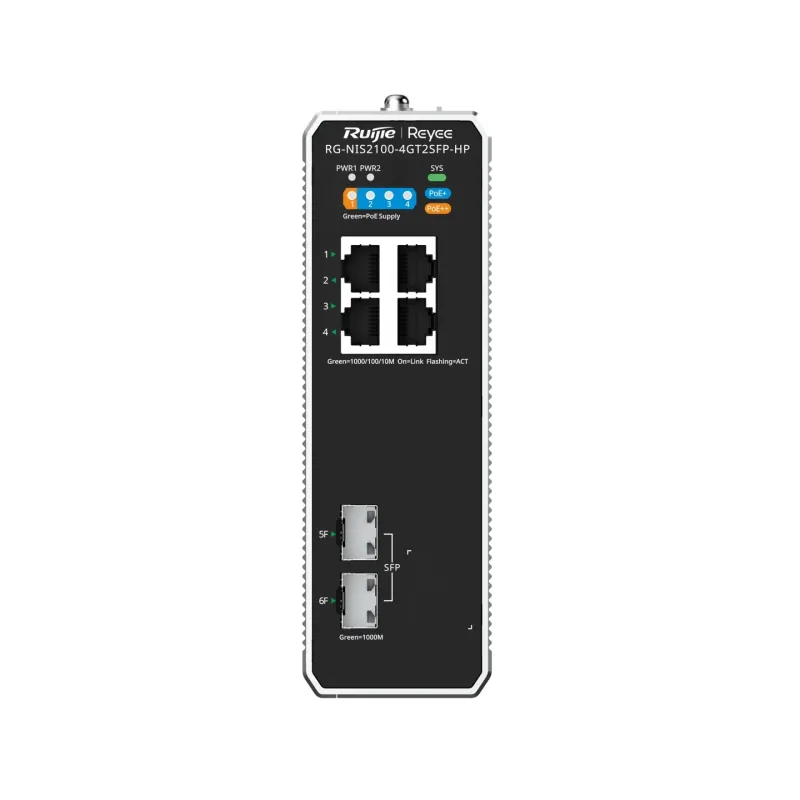

LEDs
|
System:
Power 1(Green)
Power 2(Green)
SYS(Green)
Per RJ45 Ports:
LINK/ACT(Green)
Per SFP Interface:
LINK/ACT(Green)
Per PoE Interface:
SUPPLY/Over Load（Green)
|
|
Certification
|
CE
|
|
ประกัน
|
5 ปี
|
