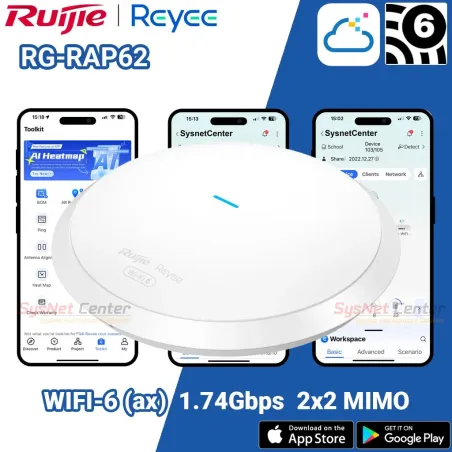

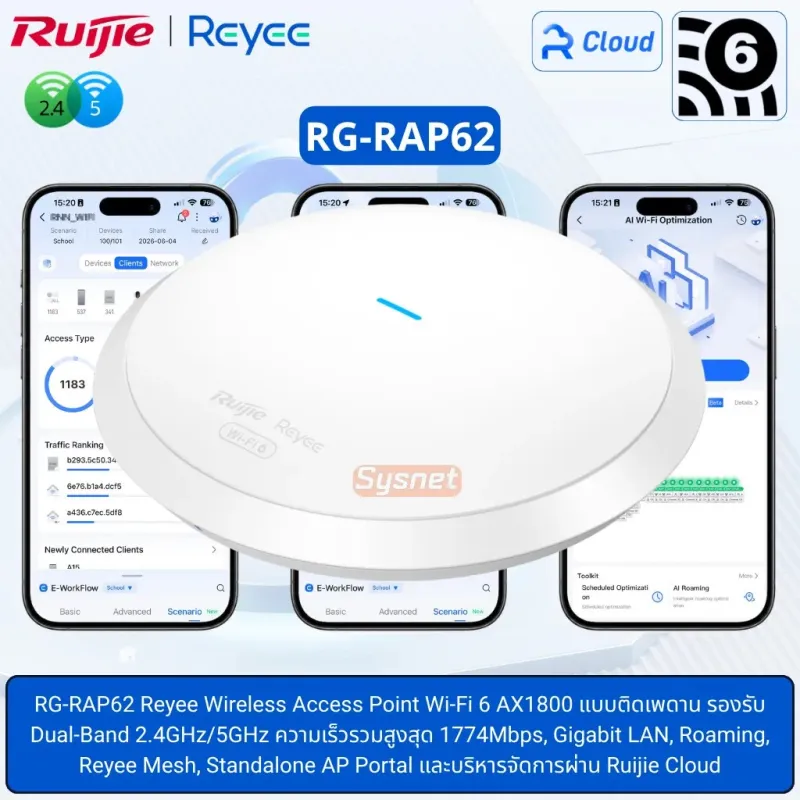

RG-RAP62 Reyee Wi-Fi 6 AX1800 Ceiling-Mount Access Point

Ruijie Networks

Reyee RG-RAP62 Wi-Fi 6 AX1800 Ceiling Access Point, 2x2 MU-MIMO ความเร็ว1.74Gbps, Manage ผ่าน Ruijie Cloud, Standalone

฿0.00
ยังไม่ได้รวมภาษี
จำนวน
Out-of-Stock


ตัวแทนจำหน่าย Ruijie อย่างเป็นทางการ พร้อมราคาส่วนลดพิเศษ


Support / ติดตั้งด้วยทีมงาน
Certificate


สอบถามข้อมูลสินค้าเพิ่มเติม

LINE ID: @sysnet  โทร: 02 102 4284

Click ต้องการใบเสนอราคา

close

แบบฟอร์มขอใบเสนอราคา



Rating:
(0)
รายละเอียด

Review Ruijie Cloud ระบบ Managed & Monitor

อุปกรณ์ Ruijie ผ่าน Cloud ฟรี

การเลือกใช้งาน Reyee Access-Point RAP Series

คู่มือการใช้งาน Ruijie Cloud App V7 บน Smartphone Android/iOS

Ruijie Reyee RG-RAP62 Access Point Quick Start Guide (V1.0)

Ruijie Reyee RG-RAP62 Access Point Installation Guide (V1.0)

Ruijie Reyee RG-RAP62 Access Point ReyeeOS 2.289 Configuration Guide (V1.0)

Ruijie Reyee RG-RAP62 Access Point Implementation Cookbook (V1.0)

ทางร้านเป็นตัวแทนจำหน่ายอย่างเป็นทางการ ผ่านการสอบ Certificate จากทาง Ruijie Networks



RG-RAP62

Reyee RG-RAP62 Wi-Fi 6 AX1800 Ceiling Access Point, 2x2 MU-MIMO ความเร็ว1.74Gbps กระจายสัญญาณรอบทิศทาง รูปทรงกลมติดตั้งง่าย, รองรับ POE 802.3af, Manage ผ่าน Ruijie Cloud, Standalone

Highlight Features

  • AP ติดผนังไร้สายความเร็วระดับกิกะบิตที่มีการทำงานแบบ 2 คลื่นความถี่วิทยุ
  • รองรับ Mesh ของ Reyee และมาตรฐาน 802.11K/V
  • ติดตั้งง่าย เพียงแค่หมุนก็เสร็จเรียบร้อย
  • การออกแบบใหม่เป็นรูปแบบวงกลมที่เข้ากันได้ดีกับสไตล์การออกแบบของโรงแรมมากขึ้น
  • พอร์ทัลสแตนด์อโลนประสิทธิภาพสูงที่สามารถใช้งานผ่าน Ruijie Cloud ได้



RG-RAP62 Product Specification

Wi-Fi Standards

Wi-Fi 6 (IEEE 802.11ax)|Wi-Fi 5 (IEEE 802.11ac Wave 2)Wi-Fi 4 (IEEE 802.11n)IEEE 802.11aIEEE 802.11b/g

MIMO

2.4GHz,2×2 ,MU-MIMO5GHz,2×2 ,MU-MIMO

Max. Wi-Fi Speed

2.4GHz: 574Mbps5GHz: 1774Mbps

Antenna

Omnidirectional 2.4 GHz: 3.13 dBi, 5 GHz: 4.58 dBi

Antenna Type

Built-In Omnidirectional

Transmit Power

2.4 GHz: 21 dBm,
5 GHz: 21 dBm

Fixed Ports

1×10/100/1000 Base-T port1xDC port1×Reset button

Max. Clients

256

Recommended Clients

100

Max. SSIDs

8

Recommended Wi-Fi Coverage Radius

2.4GHz: 40 meters5GHz: 70 metersThe Wi-Fi coverage is related to the installation environment of the access point.

Max. Wi-Fi Coverage Radius

125 sqm. (1345.49 square ft.)

WLAN Basic Features

Power Adjustment

Support

Frequency Bandwidth

2.4 GHz: Auto/20/40 MHz5 GHz: Auto/20/40/80/160 MHz

Roaming

Layer 2 roamingLayer 3 roaming

OFDMA

Support

Beamforming

Support

WMM

Support

Radar Signal Detection and Frequency Hopping (DFS)

Support

WLAN Security

Support

Max Wi-Fi Password Length

16 Digits

Security Mode

WPA-PSK, WPA2-PSK, WPA/WPA2-PSK

Blacklist and Whitelist

Support

Wi-Fi Optimization

Support

STA Limit

Support

Removing Low-RSSI STAs

Support

Adjusting Sending Rate of Beacon and Probe Response

Support

Syslog Recording Why Users Lose Connection

Support

Auto Channel and Power Adjustment on Cloud

Support

RSSI Threshold for STA Access

Support

Load Balancing

Support

Networks

Network Access Mode

PPPoE ClientDHCP ClientStatic IP

VLAN

Support

DHCP Server

Support

System

Support

Cloud Management

Support

APP Management

Support

APP Upgrade

Support

APP Restart

Support

Scheduled Restart

Support

Default Access/Password

10.44.77.253No Password Required by Default

Physical

LED Indicator

1 × System LED indicator

Buttons

1 × Reset button

Dimensions (W × D × H)

175 mm x 39 mm (6.89 in. x 1.5 4 in. excluding the mounting bracket)

Weight

Weight of the access point: ≤ 0.4 kg (0.88 lbs.)
Weight of the mounting bracket: ≤ 0.06 kg (0.13 lbs.)

Installation

Ceiling-Mountable

Power Supplies

IEEE 802.3af PoEDC 12V/2A

Power Consumption

≤ 12.95 W

Operating Temperature

0°C to 40°C

Storage Temperature

Operating temperature: 0°C to 40°C (32°F to 104°F)
Storage temperature: 40°C to 70°C ( 40°F to +158°F)

Storage Humidity

Storage humidity: 5% to 95% RH (non condensing)

MTBF

>400000H

ประกัน

3 ปี

RG-RAP62 Redefine Your Business Wi-Fi 6 Network

AX1800 Wi-Fi 6 Ceiling Mount Access Point

 RG-RAP62 Reyee Wi-Fi 6 AX1800 Ceiling-Mount Access Point



Right Moment To Upgrade Your Network

 RG-RAP62 Reyee Wi-Fi 6 AX1800 Ceiling-Mount Access Point



Ideal AP for Small and Medium Size Business

 RG-RAP62 Reyee Wi-Fi 6 AX1800 Ceiling-Mount Access Point

 RG-RAP62 Reyee Wi-Fi 6 AX1800 Ceiling-Mount Access Point

 RG-RAP62 Reyee Wi-Fi 6 AX1800 Ceiling-Mount Access Point

Optimized Features for Small & Medium Businesss

Reyee Mesh

 RG-RAP62 Reyee Wi-Fi 6 AX1800 Ceiling-Mount Access Point

AP Portal

 RG-RAP62 Reyee Wi-Fi 6 AX1800 Ceiling-Mount Access Point

Roaming

     RG-RAP62 Reyee Wi-Fi 6 AX1800 Ceiling-Mount Access Point

    Cloud, Make Your Business Easy

     RG-RAP62 Reyee Wi-Fi 6 AX1800 Ceiling-Mount Access Point



    รายละเอียดสินค้า

    ข้อมูลสินค้า

    ลักษณะงาน Wireless
    กระจายสัญญาณ WIFI
    ความเร็ว มาตรฐาน WIFI
    WIFI-6 (ax) 1.7Gbps+
    ย่านความถี่
    Dual-Band 2.4/5GHz
    รองรับ Controller
    Cloud Controller
    Mode Repeate/WDS/MESH
    MESH
    รองรับ POE
    Yes
