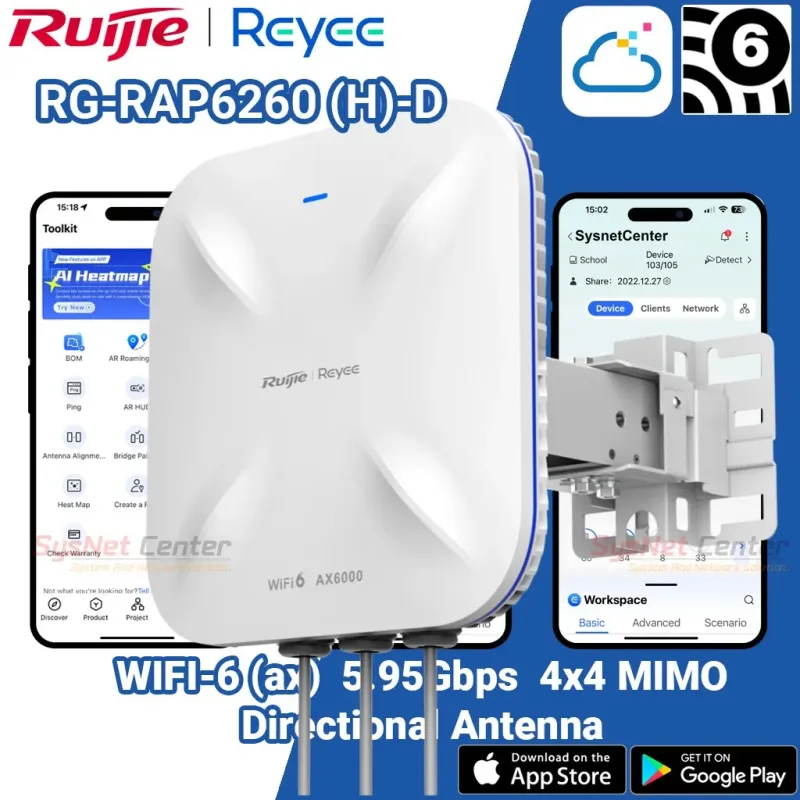

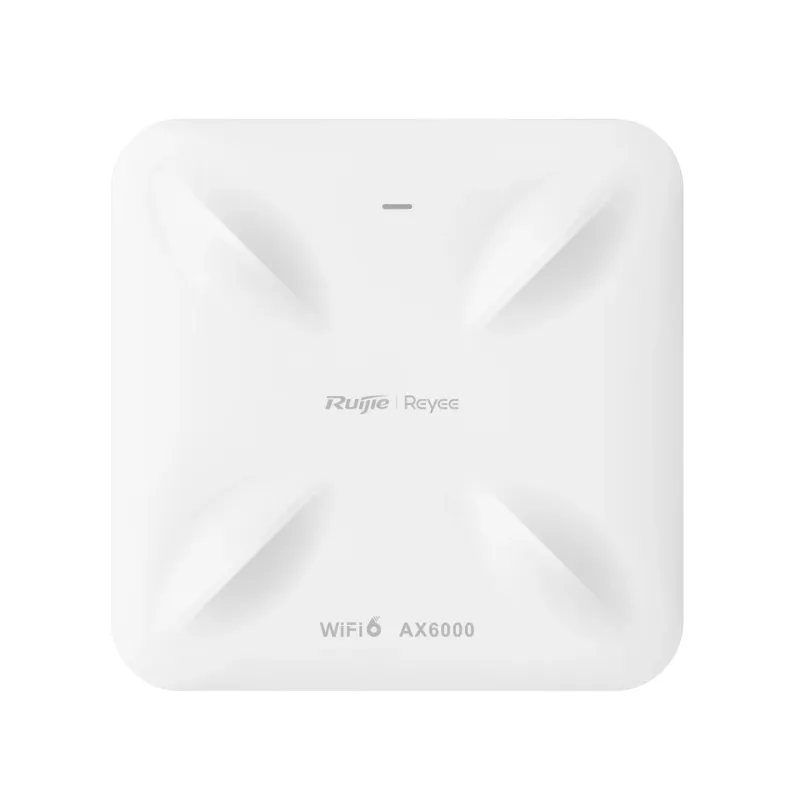

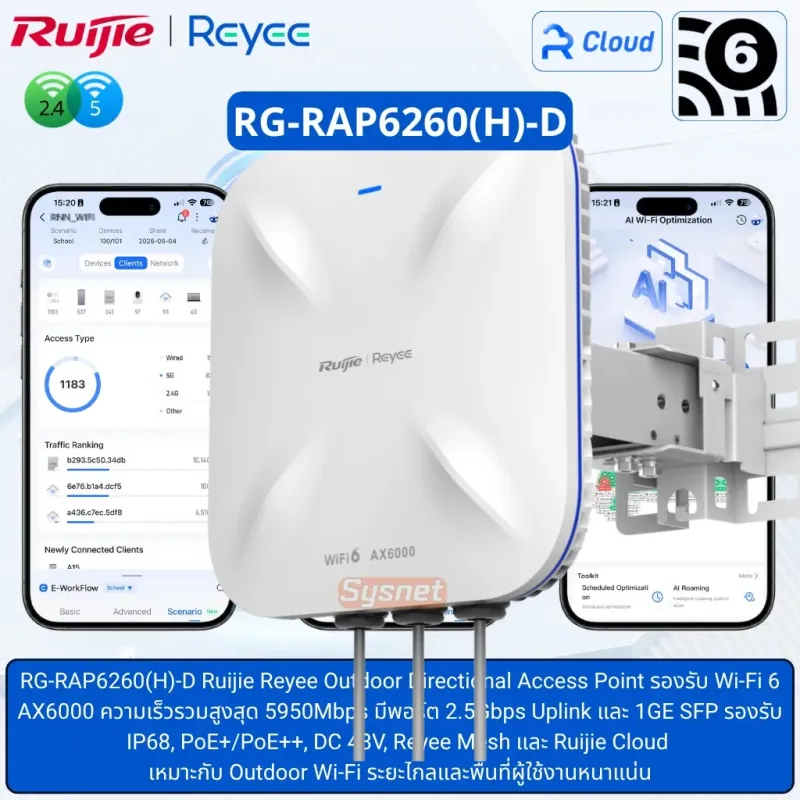

RG-RAP6260(H)-D Reyee AX6000 High-density Outdoor Directional Access Point

RG-RAP6260(H)-D Product Specification

Overview

Reyee RG-RAP6260(H)-D AX6000 Wi-Fi 6 High-Density Multi-G Outdoor Directional Access Point, มาตรฐาน WIFI-6 4x4 MIMO ความเร็ว 5.95Gbps, 1 Port Lan 2.5Gbps และ 1 Port SFP, Manage ผ่าน Ruijie Cloud รองรับ MESH WIFI, ทำงานได้ในอุณหภูมิติดลบ 40 องศา สูงสุด 65 องศา

กระจายสัญญาณ 5GHz V30/H60, 2.4GHz V30/H50

Manage ผ่าน Ruijie Cloud License แบบ Lifetime,

Wi-Fi Standards

Wi-Fi 6 (IEEE 802.11ax)|Wi-Fi 5 (IEEE 802.11ac Wave 2)Wi-Fi 4 (IEEE 802.11n)IEEE 802.11aIEEE 802.11b/g

MIMO

2.4GHz, 4×4, MU-MIMO
5GHz, 4×4, MU-MIMO

Max. Wi-Fi Speed

2.4GHz: 1148Mbps5GHz: 4804Mbps

Antenna

Antenna Type

Built-In Directional Antenna

Antenna Gain

2.4GHz: 10dBi
5 GHz: 9dBi

Transmit Power

EIRP:≤35dBm (2.4GHz)≤36dBm (5GHz)

Thailand:2400 MHz~2483.5 MHz ≤ 20 dBm5150 MHz~5350 MHz ≤ 23 dBm5470 MHz~5725 MHz ≤ 25 dBm5725 MHz~5850 MHz ≤ 30 dBm

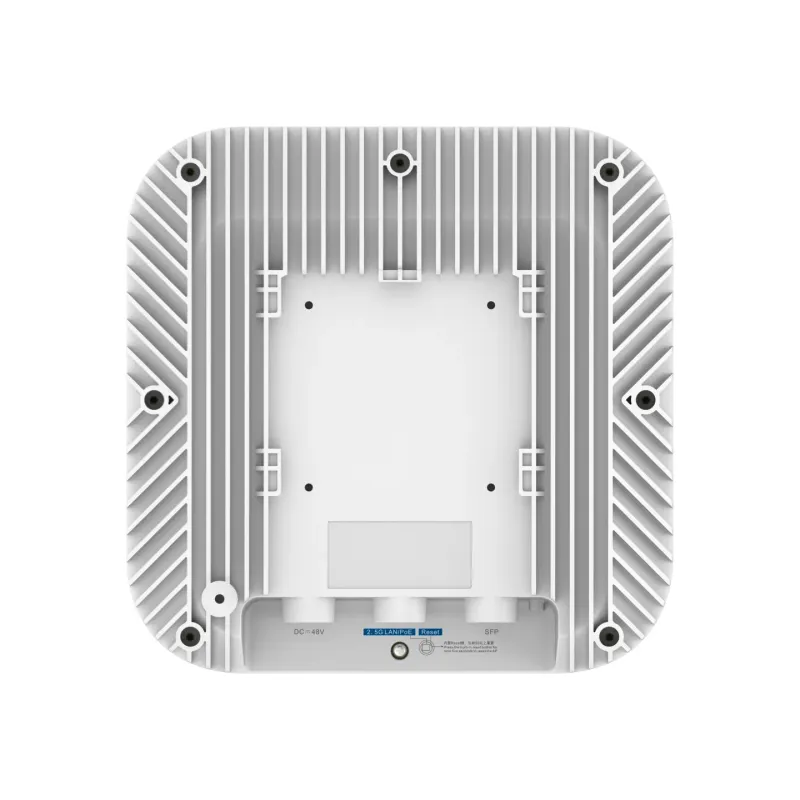

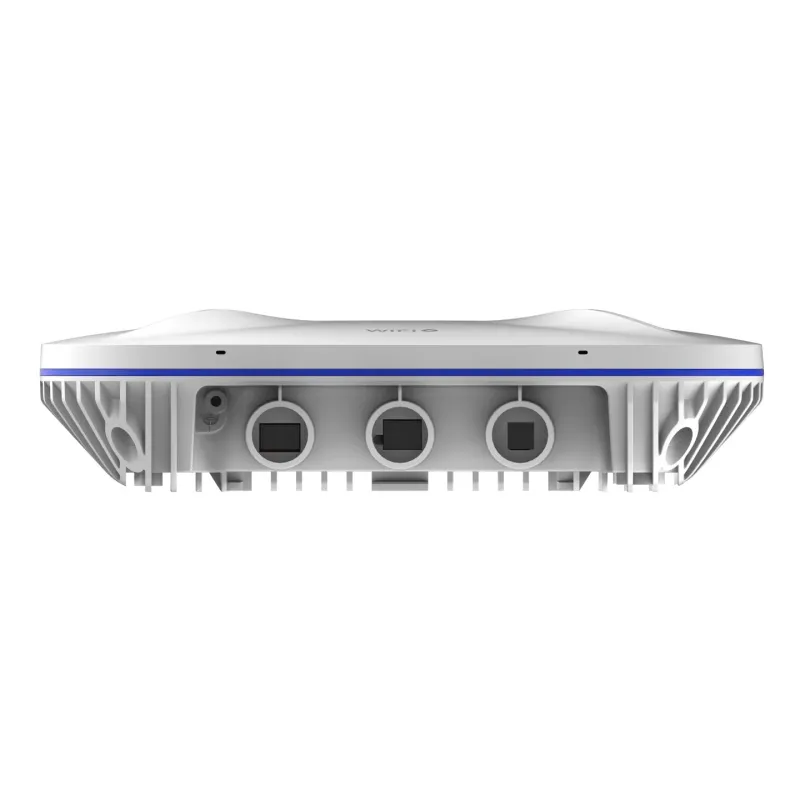

Fixed Ports

1 x 100/1000/2500 Base-T port
1 x 1GBase-X SFP port
1 x DC port
1 × Reset button

Max. Clients

512

Recommended Clients

Max. SSIDs

Recommended Wi-Fi Coverage Radius

2.4GHz: 50 meters
5GHz: 150 meters
The Wi-Fi coverage is related to the installation environment of the access point.

Max. Wi-Fi Coverage Radius

300 meters

Operation Frequency Bands

802.11b/g/n/ax: 2.400 GHz to 2.483
5 GHz802.11a/n/ac/ax: 5.150 GHz to 5.350 GHz, 5.470 GHz to 5.725 GHz,5.725 GHz to 5.850
GHzcountry-specific restrictions apply

WLAN Basic Features

Power Adjustment

Frequency Bandwidth

2.4 GHz: Auto/20/40 MHz5 GHz: Auto/20/40/80/160 MHz

Roaming

Layer 2 roamingLayer 3 roaming

OFDMA

Beamforming

WMM

Radar Signal Detection and Frequency Hopping (DFS)

WLAN Security

Max Wi-Fi Password Length

16 Digits

Security Mode

WPA-PSK, WPA2-PSK, WPA/WPA2-PSK

Blacklist and Whitelist

Wi-Fi Optimization

STA Limit

Removing Low-RSSI STAs

Adjusting Sending Rate of Beacon and Probe Response

Syslog Recording Why Users Lose Connection

Auto Channel and Power Adjustment on Cloud

RSSI Threshold for STA Access

Load Balancing

Networks

Network Access Mode

PPPoE ClientDHCP ClientStatic IP

VLAN

DHCP Server

System

Cloud Management

APP Management

APP Upgrade

APP Restart

Scheduled Restart

Default Access/Password

10.44.77.253No Password Required by Default

Physical

LED Indicator

1 × System LED indicator

Buttons

1 × Reset button

Dimensions (W × D × H)

298 mm x 298 mm x 65 mm (11.73 in. x 11.73 in. x 2.56 in.)

Weight

≤ 3.5 kg (7.72 lbs.)

DC Port Dimensions

Outer Diameter: 5.5 mmInner Diameter: 2.1 mmLength: 10 mm

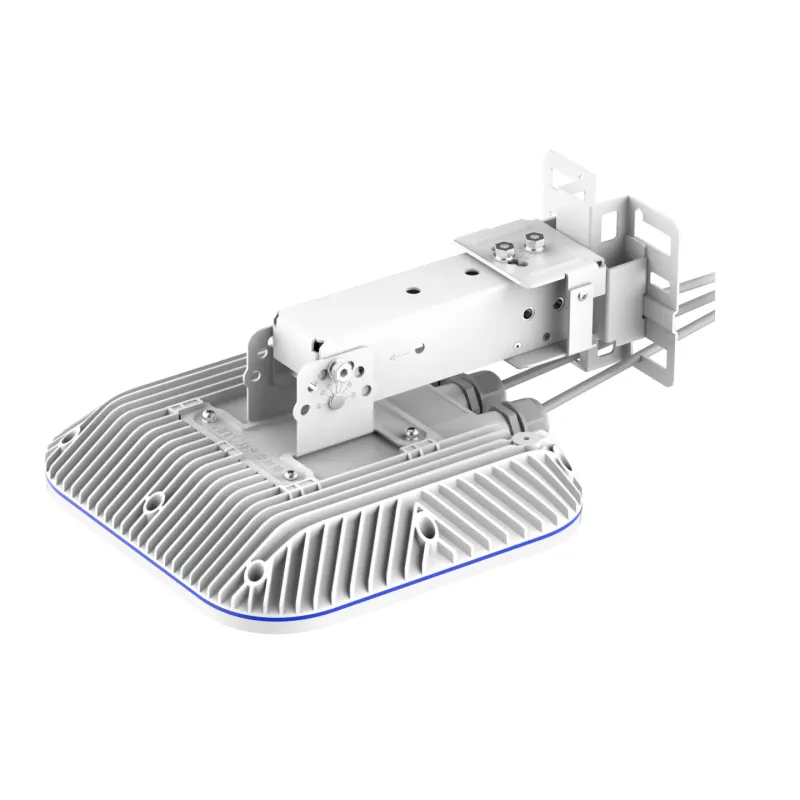

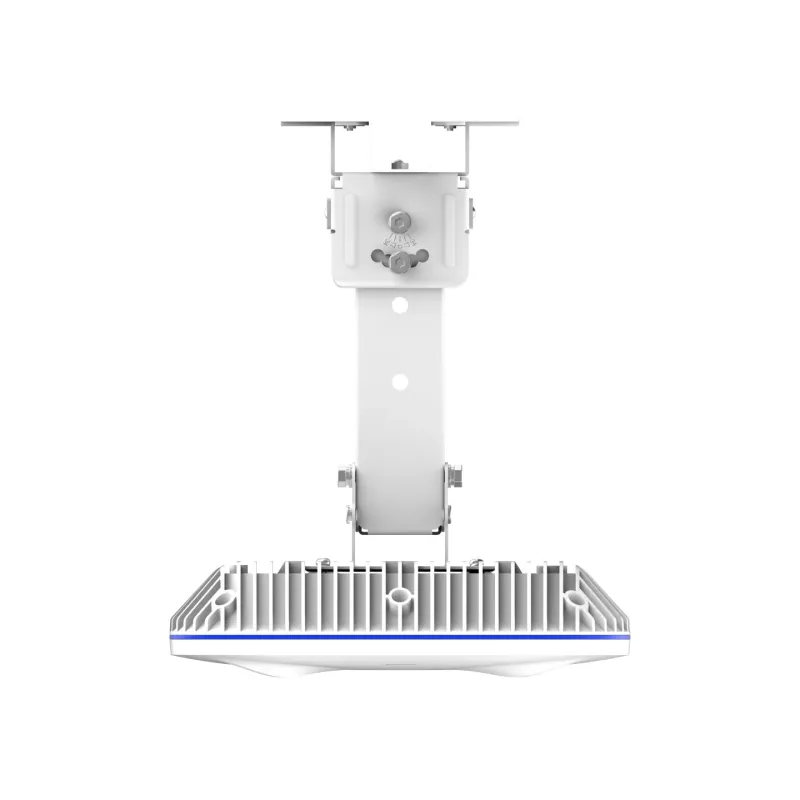

Installation

Wall-Mountable/Pole-Mountable

Mounting Bracket Dimensions (W × D × H)

124 mm x 120 mm x 35 mm

Mounting Hole Pattern

65 mm x 105 mm

Mounting Hole Diameter

9 mm

Pole Diameter

70 mm to 140 mm

Power Supplies

IEEE 802.3bt PoE
DC 48V/1A

Power Consumption

≤ 40W

Operating Temperature

0°C to 65°C

Storage Temperature

-40°C to 80°COperating Humidity 5% to 95% Noncondensing

Storage Humidity

5% to 95% Noncondensing

IP(Ingress Protection)

IP68

Port Surge

4kV

MTBF

>400000H

ประกัน

3 ปี
