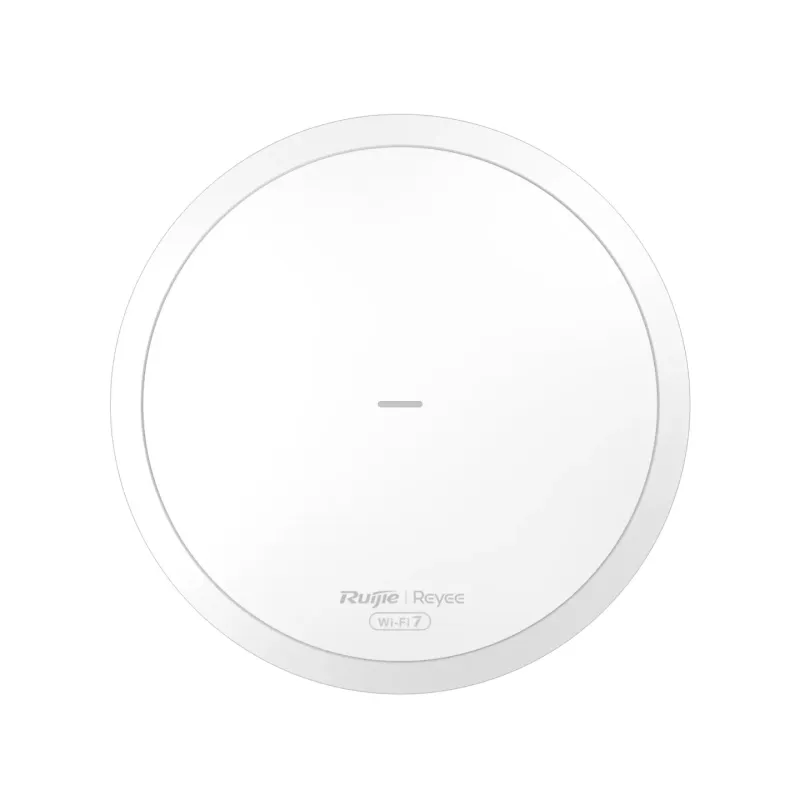

RG-RAP72 Reyee Wi-Fi 7 BE3570 Ceiling-Mount Access Point

RG-RAP72 Product Specification

Wi-Fi Standards

IEEE 802.11be, 3570 Mbps

MIMO

2.4GHz 2×2 ,MU-MIMO
5GHz 2×2 ,MU-MIMO

Max Throughput

3570 Mbps

Antenna

Antenna Type

Built-In Omnidirectional

Transmit Power

Fixed Ports

1 x 10/100/1000/2500BASE-T port

Max. Clients

Recommended Clients

Max. SSIDs

Recommended Wi-Fi Coverage Radius

2.4GHz: 40 meters5GHz: 70 metersThe Wi-Fi coverage is related to the installation environment of the access point.

Max. Wi-Fi Coverage Radius

140 ㎡ (1506.95 square ft.)

WLAN Basic Features

Power Adjustment

Frequency Bandwidth

2.4 GHz: Auto/20/40 MHz5 GHz: Auto/20/40/80/160 MHz

Roaming

Layer 2 roamingLayer 3 roaming

OFDMA

Beamforming

WMM

Radar Signal Detection and Frequency Hopping (DFS)

WLAN Security

Max Wi-Fi Password Length

16 Digits

Security Mode

WPA-PSK, WPA2-PSK, WPA/WPA2-PSK

Blacklist and Whitelist

Wi-Fi Optimization

STA Limit

Removing Low-RSSI STAs

Adjusting Sending Rate of Beacon and Probe Response

Syslog Recording Why Users Lose Connection

Auto Channel and Power Adjustment on Cloud

RSSI Threshold for STA Access

Load Balancing

Networks

Network Access Mode

PPPoE ClientDHCP ClientStatic IP

VLAN

DHCP Server

System

Cloud Management

APP Management

APP Upgrade

APP Restart

Scheduled Restart

Default Access/Password

10.44.77.253No Password Required by Default

Physical

LED Indicator

1 × System LED indicator

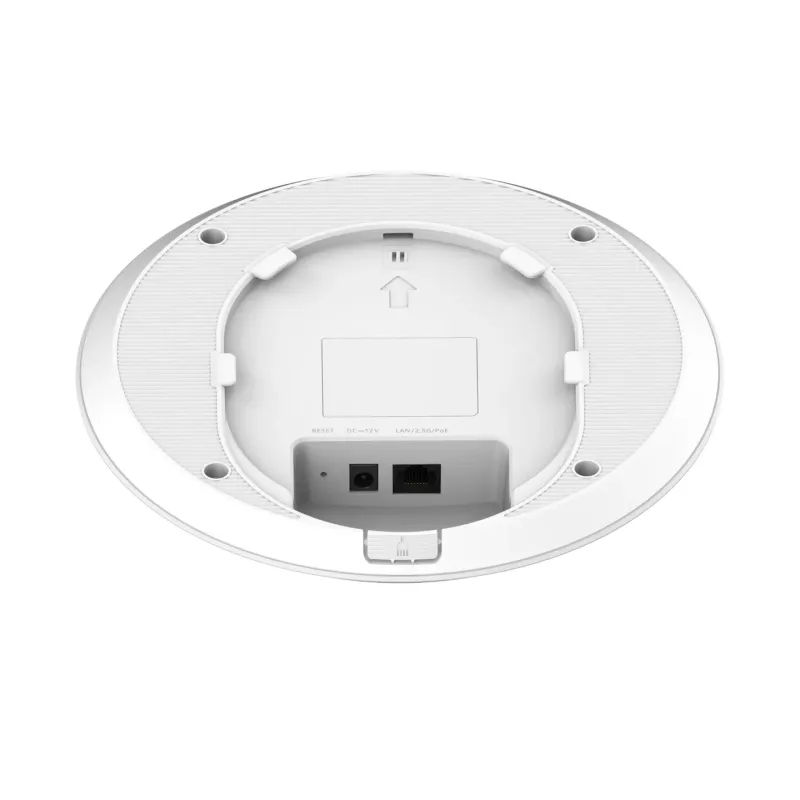

Ports

1 x 2.5 Gbps RJ45 (PoE In)

Buttons

1 × Reset button

Dimensions (W × D × H)

Weight

≤ 0.7 kg (1.54 lbs.)

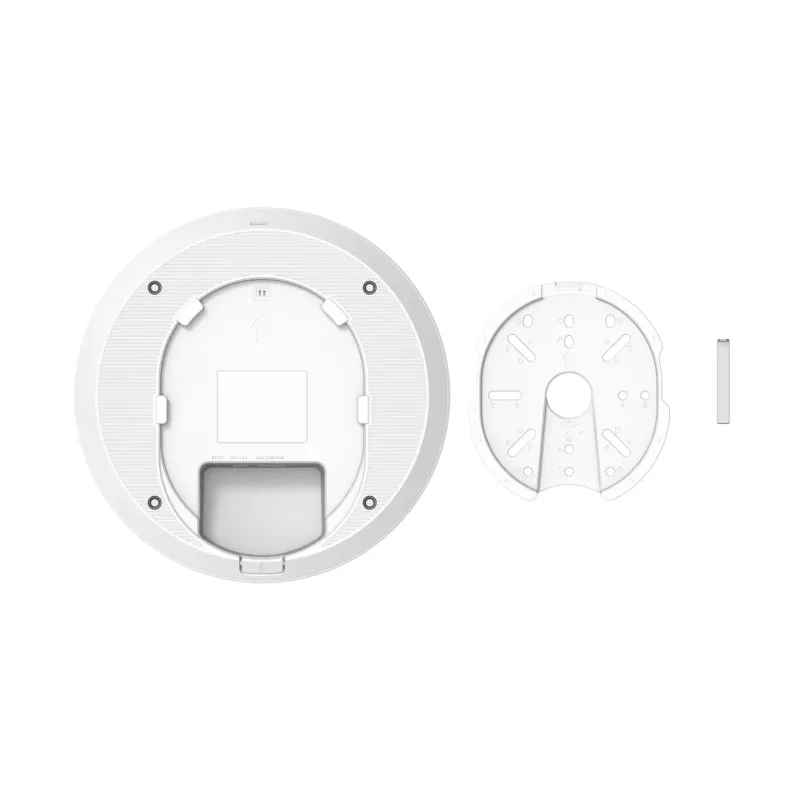

Installation

Ceiling-Mountable

Power Supplies

IEEE 802.3at/af PoE

Power Consumption

≤ 14 W

Operating Temperature

0°C to 40°C

Storage Temperature

Operating temperature: 0°C to 40°C (32°F to 104°F)
Storage temperature: 40°C to 70°C ( 40°F to +158°F)

Storage Humidity

Storage humidity: 5% to 95% RH (non condensing)

MTBF

>400000H
