RG-RAP72Pro-OD Product Specification |

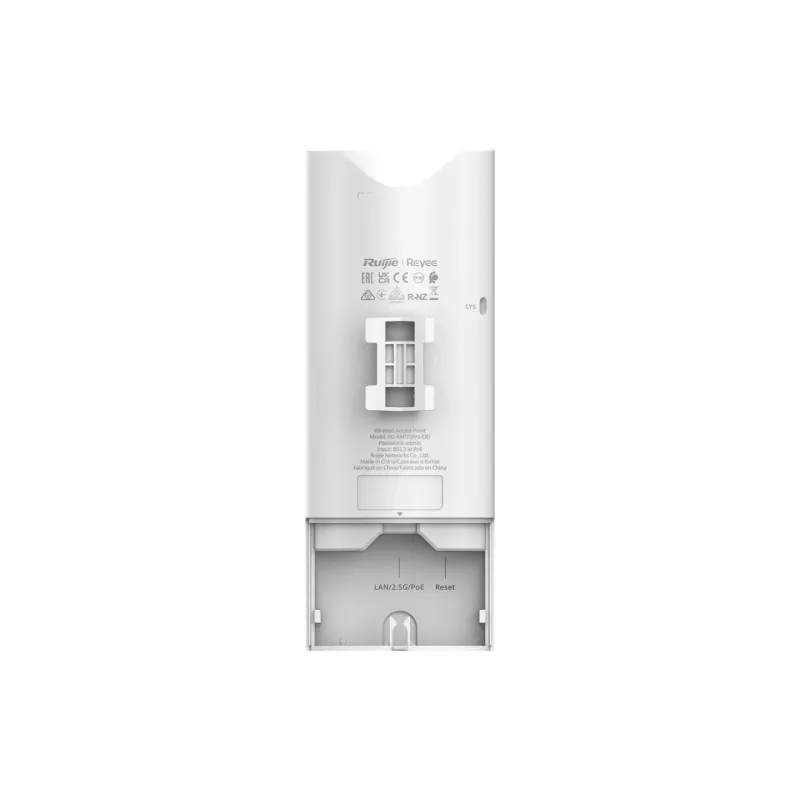

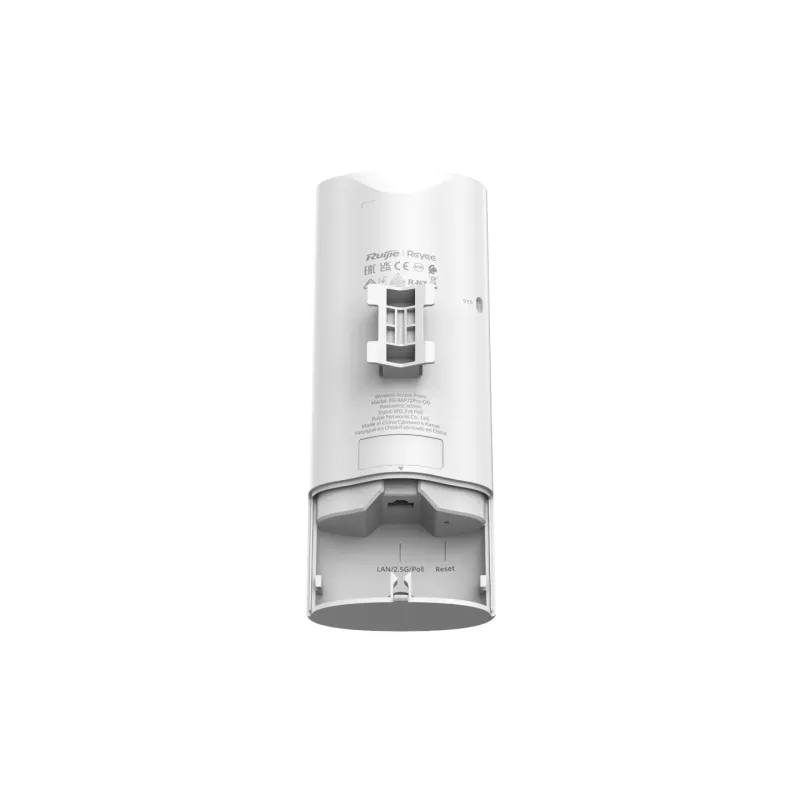

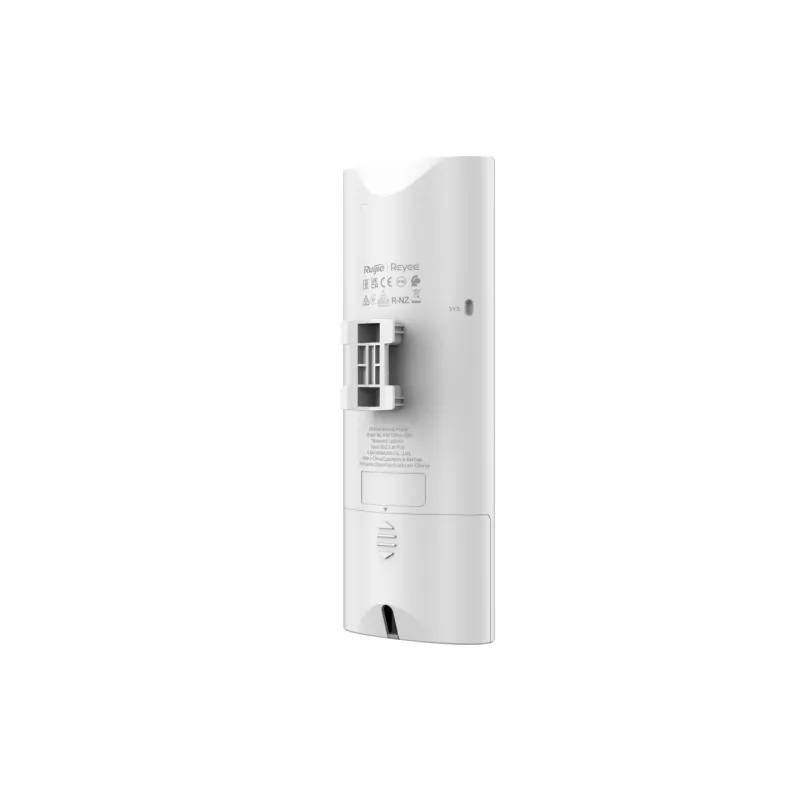

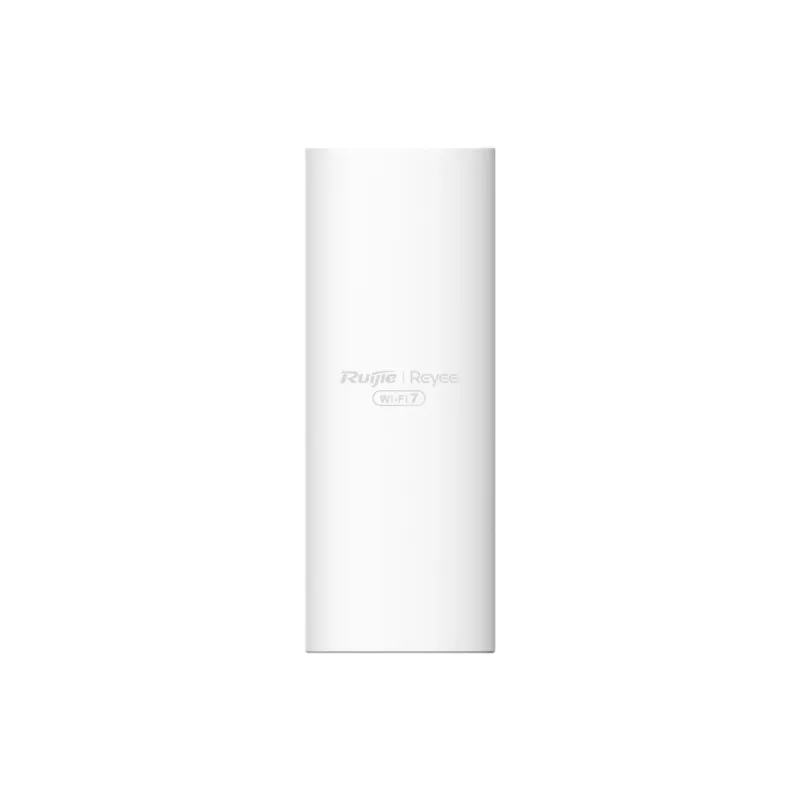

Overview | Reyee by Ruijie RG-RAP72Pro-OD BE5040 Wi-Fi 7 Indoor/Outdoor Versatile Access Point, มาตรฐาน BE 3x3MIMO, 1 Port Lan 1/2.5Gigabit, กันน้ำ กันฝุ่นมาตรฐาน IP65 รองรับ WIFI-Mesh ,Manage ผ่าน Ruijie Cloud, Standalone |
Hardware Specifications |
5 GHz Wi-Fi Protocols | Wi-Fi 4: IEEE 802.11a/n
Wi-Fi 5: IEEE 802.11ac Wave2
Wi-Fi 6: IEEE 802.11ax
Wi-Fi 7: IEEE 802.11be |
2.4 GHz Wi-Fi Protocols | Wi-Fi 4: IEEE 802.11b/g/n
Wi-Fi 6: IEEE 802.11ax
Wi-Fi 7: IEEE 802.11be |
5 GHz Operating Frequency Bands | 5.150 GHz to 5.350 GHz,
5.470 GHz to 5.725 GHz,
5.725 GHz to 5.850 GHz |
2.4 GHz Operating Frequency Bands | 2.400 GHz to 2.4835 GHz |
Spatial Streams | 2.4 GHz, 3 spatial streams, 3x3 MIMO
5 GHz, 2 spatial streams, 2x2 MIMO |
Antenna Gain | 5GHz: 6.28Bi
2.4Ghz: 3.62dBi |
Max. Wi-Fi Speed | 5 GHz: 4323Mbps
2.4 GHz: 688Mbps |
5 GHz Channel Width | Auto/20/40/80/160 MHz |
2.4 GHz Channel Width | Auto/20/40 MHz |
Transmit Power | ≤200mW(23dBm) |
Modulation | OFDM: BPSK @ 6/9 Mbps, QPSK @ 12/18 Mbps, 16-QAM @ 24 Mbps, and 64-QAM @ 48/54 Mbps DSSS: DBPSK @ 1 Mbps, DQPSK @ 2 Mbps, and CCK @ 5.5/11 MbpsMIMO-OFDM: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM, and 4096-QAMOFDMA |
Receiver Sensitivity | 11b: -91dBm(1Mbps)，-88dBm(5.5Mbps)，-85dBm(11Mbps)11a/g: -89dBm(6Mbps)，-80dBm(24Mbps)，-76dBm(36Mbps)，-71dBm(54Mbps)11n: -83dBm(MCS0)，-65dBm(MCS7)，-83dBm(MCS8)，-65dBm(MCS15)11ac: 20MHz: -83dBm(MCS0), -57dBm(MCS9)11ac: 40MHz: -79dBm(MCS0), -57dBm(MCS9)11ac: 80MHz: -76dBm(MCS0), -51dBm(MCS9)11ac: 160MHz: -76dBm(MCS0), -50dBm(MCS9)11ax: 20MHz: -85dBm(MCS0), -58dBm(MCS11)11ax: 40MHz: -82dBm(MCS0), -54dBm(MCS11)11ax: 80MHz: -79dBm(MCS0), -52dBm(MCS11)11ax: 160MHz: -76dBm(MCS0), -49dBm(MCS11)11be: 20MHz: –85dBm(MCS0), –52dBm(MCS13)11be: 40MHz: –82dBm(MCS0), –49dBm(MCS13)11be: 80MHz: –82dBm(MCS0), –46dBm(MCS13)11be: 160MHz: –79dBm(MCS0), –44dBm(MCS13) |
Dimensions | 90 mm x 46 mm x239 mm (3.54 in. x 1.81 in.x9.41 in.) |
Weight | ≤ 0.7 kg (1.54 lbs.) |
Fixed Ports | 1 × 10/100/1000/2500 Base-T port |
LEDs | 1 × system LED |
Power Supply | IEEE 802.3at standard PoE power supply
(ไม่มี POE และ DC Adapter ในชุดอุปกรณ์) |
Max. Power Consumption | ≤ 21 W |
Operating Temperature | –30°C to +65°C (–22°F to +149°F) |
Installation | Wall mounting and pole mounting |
Software Features |
Operating Mode | AP mode and routing mode |
Recommended Number of Clients | BW160 11be/ax: 16 (2.4 GHz) + 94 (5 GHz) = 110
BW80 11ax: 16 (2.4 GHz) + 64 (5 GHz) = 80
11ac: 8 (2.4 GHz) + 32 (5 GHz) = 40 |
WLAN | Up to 8 SSIDs
Support SSID hiding Configuring the authentication mode encryption mechanism
VLAN attributes for each SSID
SSID-based and radio-based STA limit
Support Layer 2 user isolation |
Roaming | KV Roaming
Layer 2 Roaming
Layer 3 Roaming |
Security | Support PSK authentication
Support Black List / White List:
Maximum 256 rules per SSID
Maximum 1024 rules per AP
Support WPA (TKIP), WPA2 (AES), and WPA-PSK data encryption
Standalone Portal |
Routing | Support static IP address, DHCP, PPPoE Dial Up |
Management and maintenance | Support unified networking of all network equipment
Support local or remote management with Ruijie Cloud app
Support local management with web
Support remote management with Ruijie Cloud platform |
AP Mesh | Mesh management
Reyee Mesh |
ประกัน | ประกันศูนย์ Ruijie Thailand 3 ปี |
