RG-RAP73Pro Product Specification |
Overview | Reyee RG-RAP73Pro Wireless Access Point มาตรฐาน WIFI-7(be) Tri-Radio 2.4/5/6GHz MIMO 3x3 ความเร็วสูงสุด 14Gbps, Port Lan 2.5Gigabit, Port SFP+ 10Gbps รองรับ POE 802.3at (30W) รองรับ MESH WIFI, Manage ผ่าน Ruijie Cloud, Standalone |
Wi-Fi Standards | Wi-Fi 4: IEEE 802.11a/b/g/n
Wi-Fi 5: IEEE 802.11ac Wave 2
Wi-Fi 6: IEEE 802.11ax
Wi-Fi 7: IEEE 802.11be |
MIMO | 2.4 GHz, 2x2 MIMO
5 GHz, 3x3 MIMO
6GHz, 3x3 MU-MIMO |
Max. Wi-Fi Speed | Max. throughput: 5011 Mbps
2.4 GHz: 688 Mbps
5 GHz: 4323 Mbps
6 GHz: 8646 Mbps |
Antenna | Built-in Antenna gain:
2.4GHz x 3.6 dBi
5 GHz, 5.9 dBi
6 GHz, 5.2 dBi |

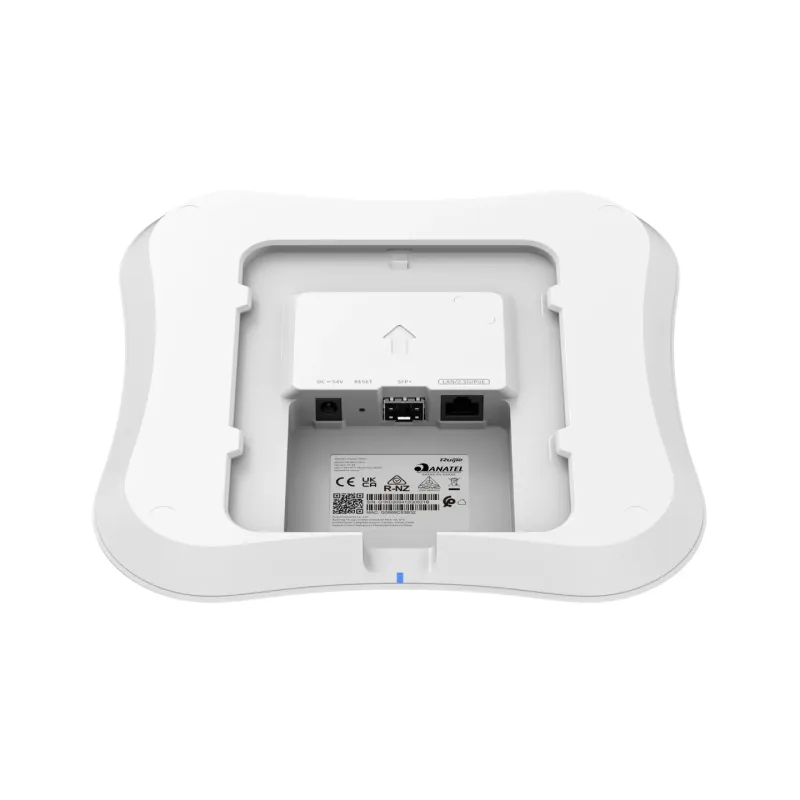

Service Port | 1 x 10 Gbps SFP+ port
1 x 10/100/1000/2500BASE-T port |
Max. Transmit Power | Frequency bands and the maximum Effective Isotropic Radiated Power (EIRP):
Thailand:
2400–2483.5 MHz, EIRP ≤20 dBm
5150–5350 MHz, EIRP ≤23 dBm
5470–5725 MHz, EIRP ≤30 dBm
5725–5825 MHz, EIRP ≤30 dBm
5945–6425 MHz, EIRP ≤23 dBm |
Max/Recommended Clients | 600/200 |
IP Rating | IP41 |
Software Feature |
Roaming | AI roaming
Layer 2 roaming
Layer 3 roaming
802.11 k/v/r roaming |
Routing | Static IP, DHCP, PPPoE, NAT |
OFDMA Subcarrier, OFDMA, Multiple Access | Support |
Target wake time (TWT)* | Support |
WMM | Support |
AP Mesh | Mesh management Reyee Mesh |
Radar Signal Detection and Frequency Hopping (DFS) | Support |
WLAN Security |
Wi-Fi Password | 16 |
Security Mode | Wireless client isolation
Blocklists and allowlists
802.1X
WPA-PSK, WPA2-PSK, WPA/WPA2-PSK, WPA-Enterprise, WPA2-Enterprise, WPA/WPA2-Enterprise, OWE, WPA3-SAE, WPA2-PSK/WPA3-SAE |
Static Whitelist | Support |
Static Blacklist | Support |
Wi-Fi Optimization | Support |
STA Limit | SSID-based STA limit , radio-based STA limit |
Removing Low-RSSI STAs | Support |
Adjusting Sending Rate of Beacon and Probe Response | Support |
Auto Channel and Power Adjustment on Cloud | Support |
RSSI Threshold for STA Access | Support |
Network Access Mode | Static IP, DHCP, PPPoE, NAT |
Avoidance of WAN IPAddress Conflicts | Support |
VLAN | Port-based VLAN802.1Q VLAN |
Management | Cloud Management
APP Management
APP Upgrade
APP Restart
Scheduled Restart
Default Access/Password : 192.168.110.1 Password: admin
Local Upgrade
Online Upgrade
Backup
Factory Reset |
Standalone Portal | Support |
Management and Maintenance | Support 300 APs on a self-organizing network
Support unified networking across all network devices
Support local or remote management via Ruijie Reyee App
Support local management via the web interface
Support remote management via Ruijie Cloud |
Platform Management Features | Optimization of channel, transmit power, and management frame power settings
Display of pre- and post-optimization settings
Unified configuration via Ruijie Cloud
Unified monitoring via Ruijie Cloud |
System | System Log
Diagnostics
Network Check |
Physical |
Status LED | 1 x system LED (blue) |
Buttons | 1×Reset button |
Dimensions (W x D x H) | 220 mm x 220 mm x 45 mm (8.66 in. x 8.66 in. x 1.77 in.) |
Weight | 1.1 kg (2.43 lbs.) |
DC (Local Power) | 54 V/0.55 A |
Installation | Ceiling-Mountable |
Power Supplies | IEEE 802.3at PoEDC 48V/1.25A |
Max. Power Consumption | 30 W |
Environmental |
Temperature | Operating Temperature 0°C to +40°C (32°F to +104°F)
Storage Temperature –40°C to +70°C (–40°F to +158°F) |
Operating Humidity | 5% to 95% RH (non-condensing) |
Storage Humidity | 5% to 95% RH (non-condensing) |
IP(Ingress Protection | IP41 |
Port Surge | Common mode:2 kV
differential mode: 1kV |
MTBF | >400000HCertification |
Certification | CE, RoHS, FCC, ISED, cTUVus |
ประกัน | 3 ปี |
