Product Specification |
|
Overview |

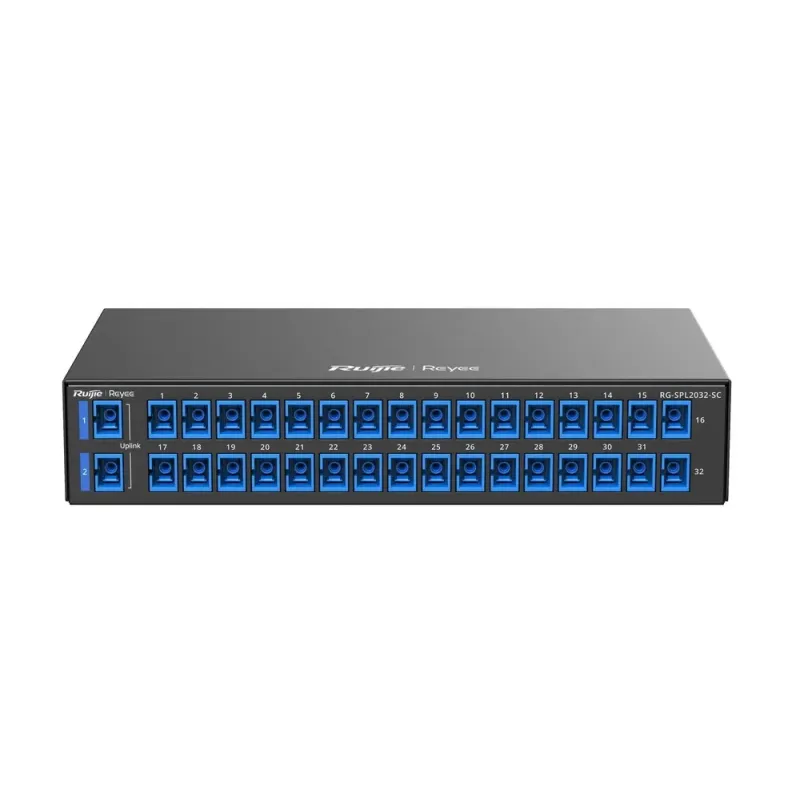

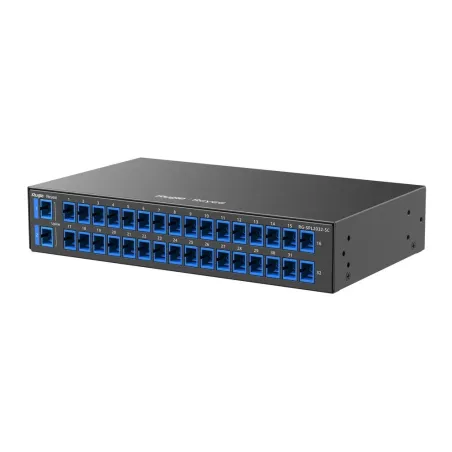

Reyee RG-SPL2032-SC 2-In 32-Out Uniform Optical Splitter Rack-Mounted อุปกรณ์ Passive Optical Splitter เข้า 2 ออก 32 |
Operating Wavelength |
1260 nm to 1650nm |
Weight |
0.98kg (2.16 lbs.) |
Operating Temperature |
–40°C to +85°C (–40°F to +185°F) |
Dimensions (W x D x H) |
220 mm x 130 mm x 42 mm (8.66 in. x 5.12 in. x 1.65 in.) |
Temperature-Dependent Loss (dB) |
≤ 0.3 |
Wavelength-Dependent Loss (dB) |
0.4 (1310 + 40) 0.4 (1550 + 40) |
Insertion Loss (dB) |
≤ 17.7 |
Port Insertion Loss Uniformity (dB) |
≤ 1.5 |
Return Loss (dB) |
≥ 50 |
Polarization-Dependent Loss (dB) |
≤ 0.3 |
Maximum Input Power (mW) |
500 |
ประกัน |
ประกันศูนย์ Ruijie Thailand 3 ปี |
Passive Optical Splitter

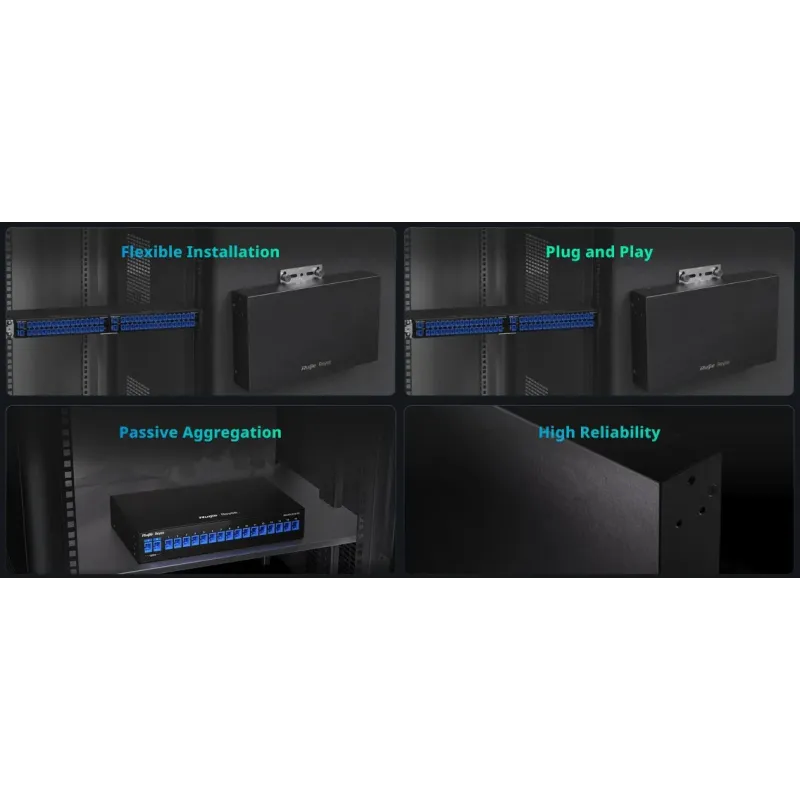

Robust Metal Enclosure, Versatile Mounting Options
Easy installation, saving space by 30%
