    Ruijie RG-ES109G-LP-L UnManaged Gigabit POE Switch 8 Port, POE 54W

    Ruijie Networks
    Rating

    Ruijie RG-ES109G-LP-L UnManaged Gigabit POE Switch 8 Port ,1 Port Lan Uplink Gigabit จ่ายไฟ POE มาตรฐาน 802.3af/at 8 Port กำลังไฟสูงสุด 54W

    ฿3,900.00
    ยังไม่ได้รวมภาษี
    จำนวน


    ทักทาง Line@ สอบถามราคาพิเศษได้เลยครับ


    Line: @sysnet

    Click โทรสอบถามข้อมูลเพิ่มเติม
    รายละเอียด

    Review ระบบ Controller Managed & Monitor อุปกรณ์ Ruijie ผ่าน Cloud

    Ruijie RG-ES100 series datasheet

    Ruijie RG-ES100 Series Switches Hardware Installation and Reference Guide

    Product Specification

    Overview

    Ruijie RG-ES109G-LP-L UnManaged Gigabit POE Switch 8 Port ,1 Port Lan Uplink Gigabit

    จ่ายไฟ POE มาตรฐาน 802.3af/at จำนวน 8 Port กำลังไฟสูงสุด 54W

    Ports

    9 x 10/100/1000BASE-T

    Power over Ethernet
    PoE/PoE+
    enabled Ports

    8

    PoE power budget

    54W

    Switching capacity

    18Gbps

    Forwarding rate

    13.5Mpps

    Dimensions(WxDxH)

    206.5x 108.5 x28

    Unit weight

    1.1kg

    Surge protection

    4KV

    Power supply

    Power Adaptor

    Input frequency

    50/60Hz

    Input voltage

    AC 100~240V

    Cooling

    Fanless

    Safety

    EN 60950-1

    EMC

    EN 300 386

    Emissions

    EN 55032, EN 55035

    Immunity generic

    EN 55024

    ESD

    EN 61000-4-2

    Radiated

    EN 61000-4-3

    EFT/Burst

    EN 61000-4-4

    Surge

    EN 61000-4-5

    Conducted

    EN 61000-4-6

    Power frequency magnetic field

    EN 61000-4-8

    Voltage dips and interruptions

    EN 61000-4-11

    Harmonics

    EN 61000-3-2

    Flicker

    EN 61000-3-3

    RoHS



    Operating temperature

    0 ℃ ~ 40 ℃

    Storage temperature

    -40 ℃ ~ 70 ℃

    Operating humidity

    5%~90% RH

    Storage humidity

    5%~95% RH

    Package contents

    Ruijie RG-ES100 Series Switch
    Power Cord
    Power Adaptor
    Rubber Feet
    Quick Start Guide

    ประกัน

    3 ปี

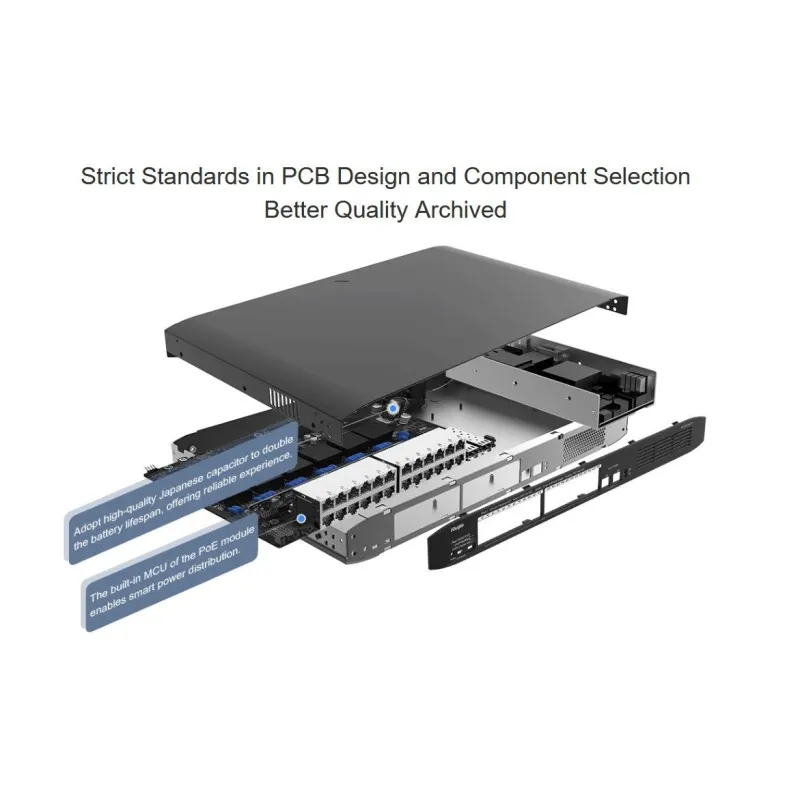

    Strict Standards in PCB Design and Component Selection
    Better Quality Archived

    reyee es100 series

    RG-ES100 Series Unmanaged PoE Switches
    Professional Even Unmanaged

    RG-ES100 Series Unmanaged PoE Switches

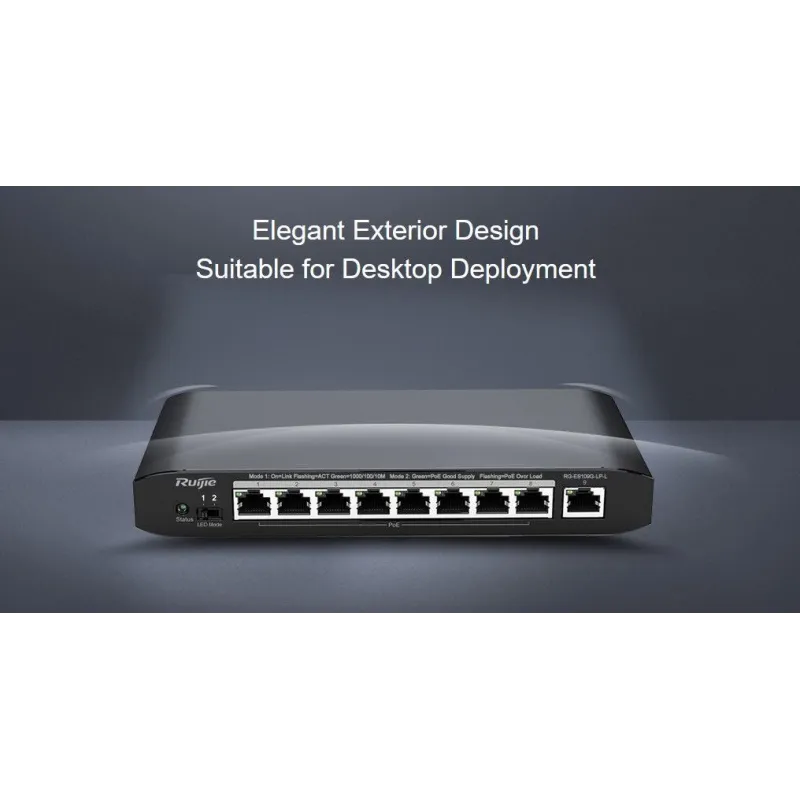

    Elegant Exterior Design Suitable for Desktop Deployment

    RG-ES100 Series Unmanaged PoE Switches

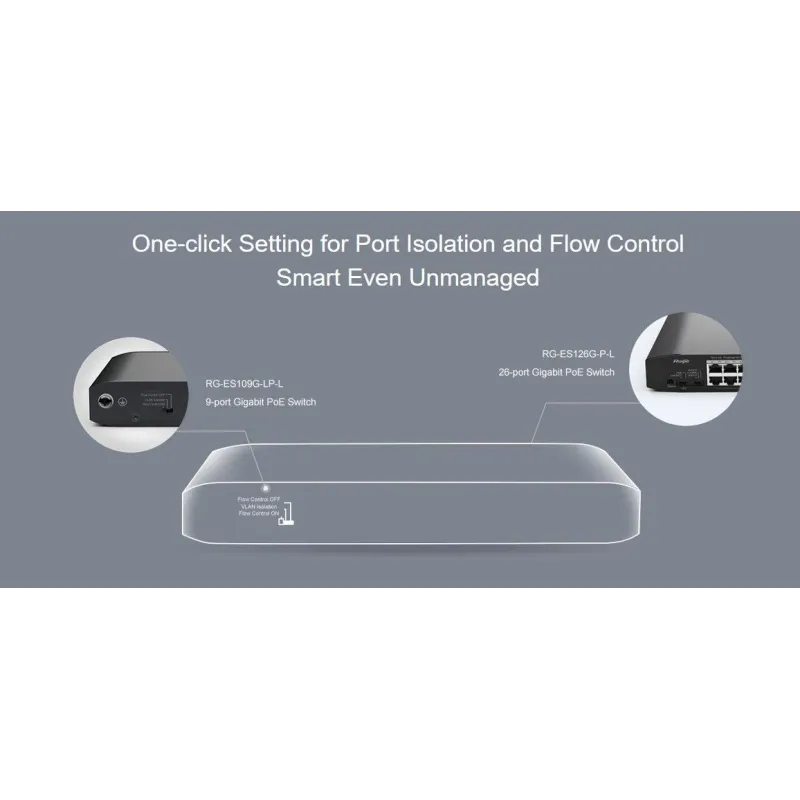

    One-click Setting for Port Isolation and Flow Control
    Smart Even Unmanaged

    RG-ES100 Series Unmanaged PoE Switches

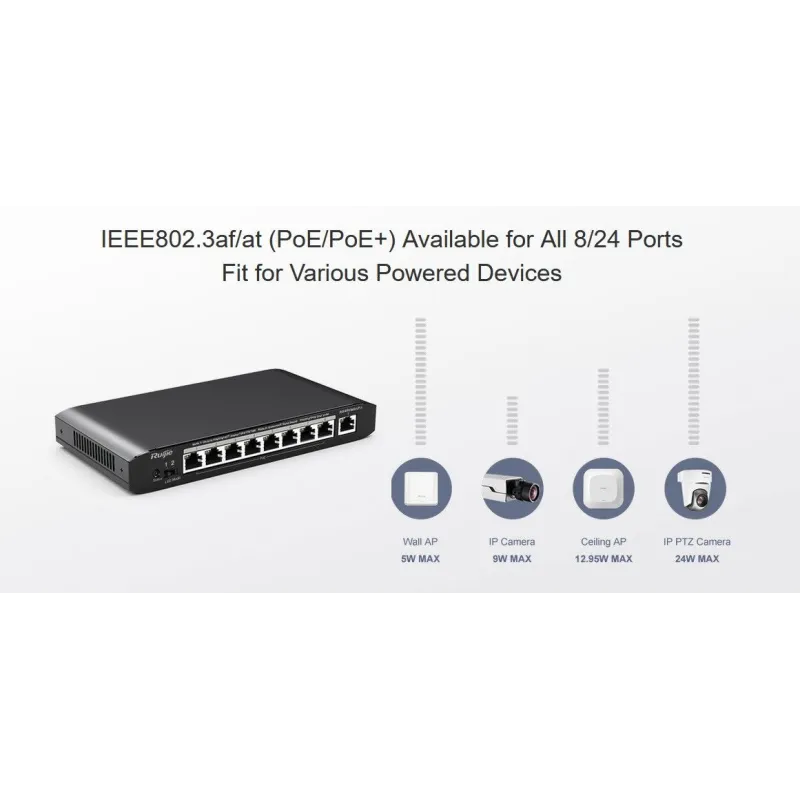

    IEEE802.3af/at (PoE/PoE+) Available for All 8/24 Ports
    Fit for Various Powered Devices

    RG-ES100 Series Unmanaged PoE Switches

    รายละเอียดสินค้า
    20 รายการ

    Data sheet

    ประเภท Switch
    UnManaged
    ความเร็ว Port Lan
    1000Mbps (1Gbps)
    จำนวน Port Lan
    8 Port
    มาตรฐานจ่ายไฟ POE
    802.3af/at (30W)
    จำนวน Port POE
    8 Port
    มี Uplink Port Lan Gigabit
    Yes

    ทดสอบ Performance 100 Concurents Video Streaming และ ประสิทธิภาพในการทำ Roaming

    Ruijie Ultra-high density Wi-Fi project with 1000 unit Smart Phone

    Ruijie Wi Fi 6 Killer AP820 LV2 Unbox & Speedtest 762/912 Mbps

    Ruijie Cloud: Perfect Network Solution For SME

    Ruijie Cloud Site Survey Planner (SSP) Overview

    Ruijie AP Quick Provisioning

    Ruijie Cloud Deployment Quick Start

    ตารางเปรียบเทียบ ระหว่างอุปกรณ์ Ruijie vs Reyee

    Feature

    Ruijie Enterprise

    Reyee

    Ruijie Cloud

    Support

    Support

    Mobile App

    Support

    Support

    Presales Tools

    Support

    Support

    Fast Provisioning

    QR-code Device Scan/ Cloud Config Sync

    Self-organizing network (SON)

    Monitoring & Alarm

    Support

    Support

    Device Management

    Additional:
    RRM, Web CLI, Configuration Mgmt (Backup/Restore)

    Basic

    Gateway Management

    Additional:
    L7 DPI Analysis
    WAN Load Balancing
    App Cache

    Basic

    Multi-tenant

    Support

    Support

    Scenario-based

    Config Wizard

    N/A

    Support (App)

    WLAN

    Standard

    Wi-Fi4 /5 /5 Wave2 / 6

    Wi-Fi 5 Wave2 , 6 (Roadmap)

    Capacity

    Max Client 1024 (Wi-Fi 6)

    Max Client 128

    WLAN Auth

    802.1x Auth
    CustomizedPortal
    PPSK, Voucher, Account, Facebook, SMS OTP

    PSK/WPA2
    BasicPortal (Reyee Gateway)

    WLAN Features

    Adv CLI script configuration
    WIDS(Rogue AP detection)
    WirelessRadio Analytics (RRM)
    Location tracking (LBS)
    Bluetooth (BLE) support
    Speed Limit Per Client
    Speed Limit Per SSID

    Basic

    WLAN Controller

    (Appliances)

    Yes
    RG-WS6000 Series (upto 6400 AP)

    Yes
    RG-NBC Series (up to 500 AP)

    Switches

    Capacity

    Chassis model option (upto 48 10GE)

    Box Switches model (upto 24GE +10G uplink)

    L2

    IGMP Snooping, MSTP, LACP VLAN, Link Aggregate, SuperVlan, VoiceVlan, ACL

    VLAN
    Link Aggregate
    ACL

    L3

    IPv6, RIP, OSPF, PBR, VRRP

    N/A

    Security / Availability

    802.1x, CPP/NFPP, REUP, VSU

    N/A

    Management

    Managed with Web & CLI (Console port), SSH, SNMP

    Web Smart Managed & Unmanaged
