Ruijie RG-RAP1200(P) Datasheet
Ruijie Reyee Series Products Web-Based Configuration Guide
Product Specification | |

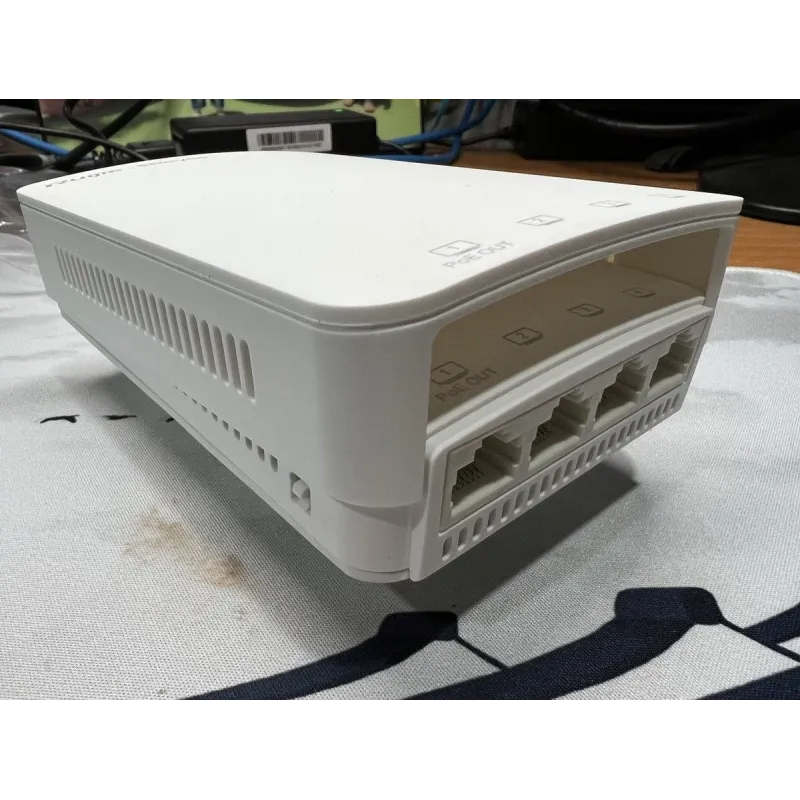

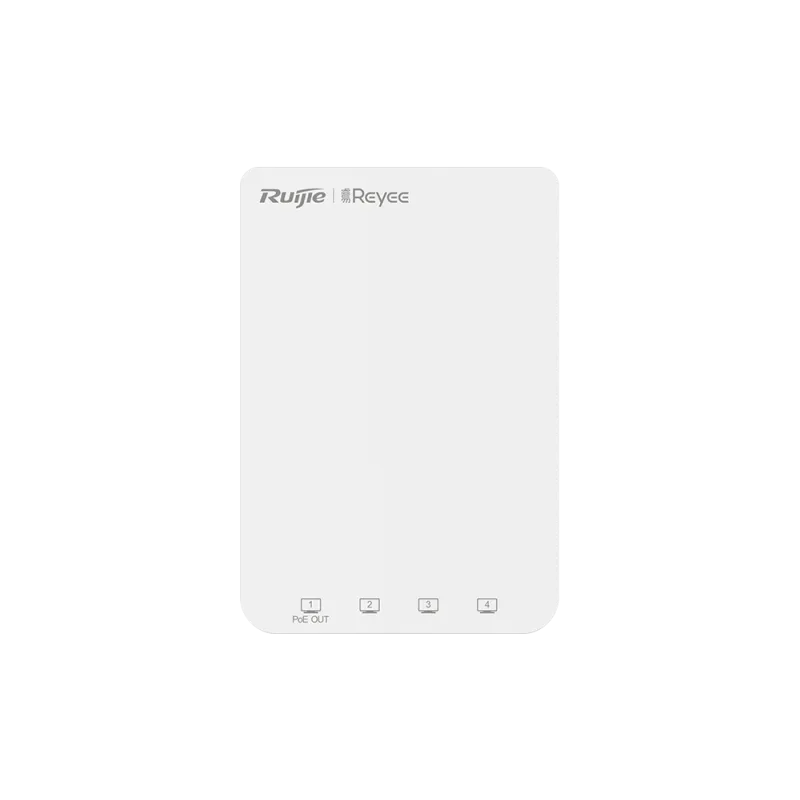

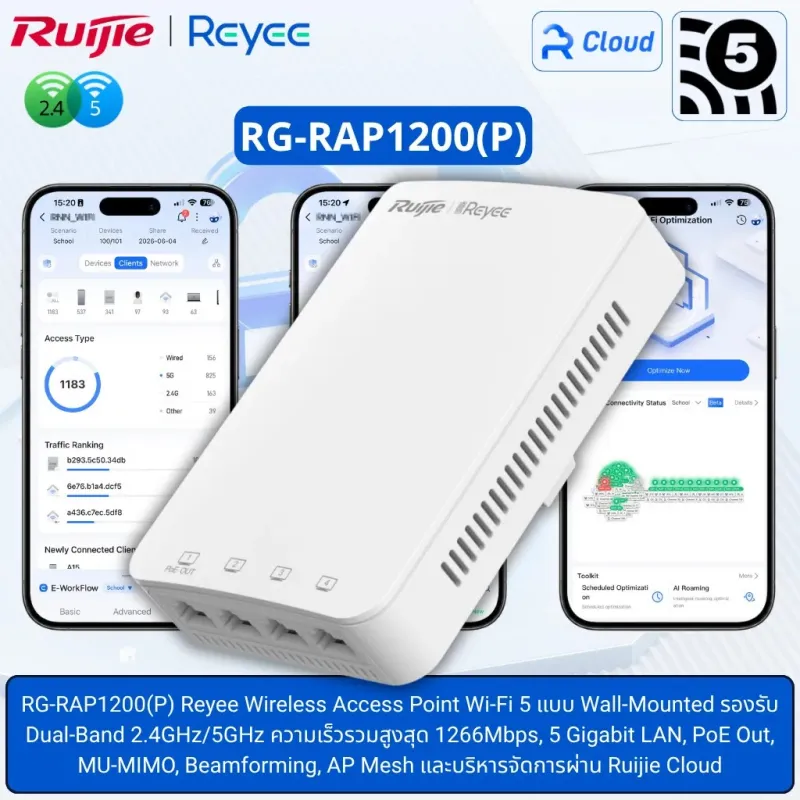

Overview | Ruijie Reyee RG-RAP1200(P) Dual-Band Gigabit Wall Plate Access Point 802.11ac 1200 4 Port Lan Gigabit รองรับการ Managed แบบ Stanalone, Free Cloud Control, Hardware Control |
Hardware specifications | |
Radio | Dual-stream dual-band |
Protocol | Concurrent 802.11ac wave2, wave1, 802.11a/b/g/n |
Operating Bands | 802.11b/g/n : 2.4G-2.4835GHz |
Antenna | PF antenna (2.4G: 2dBi, 5G: 2dBi) |
Spatial Streams | 2.4G 2x2MIMO |
Max Throughput | 2.4G: up to 400Mbps |
Modulation | OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps DSSS: DBPSK@1Mbps, DQPSK@2Mbps, and CCK@5.5/11Mbps MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM and 256QAM |
Receive Sensitivity | 11b:-91dBm (1Mbps), -88dBm (5Mbps), -85dBm (11Mbps) 11a/g:-89dBm (6Mbps), -80dBm (24Mbps), -76dBm (36Mbps), -71dBm (54Mbps), 11n:-83dBm@MCS0, -65dBm@MCS7, -83dBm@MCS8, -65dBm@MCS15 11ac HT20:-83dBm (MCS0), -57dBm (MCS9) |
Maximum Transmit Power | 5.725~5.850GHz:≤18dBm (EIRP) |
Adjustable Power | 1dBm |
Dimensions | 126mm×86mm×50mm |
Weight | 0.24kg |

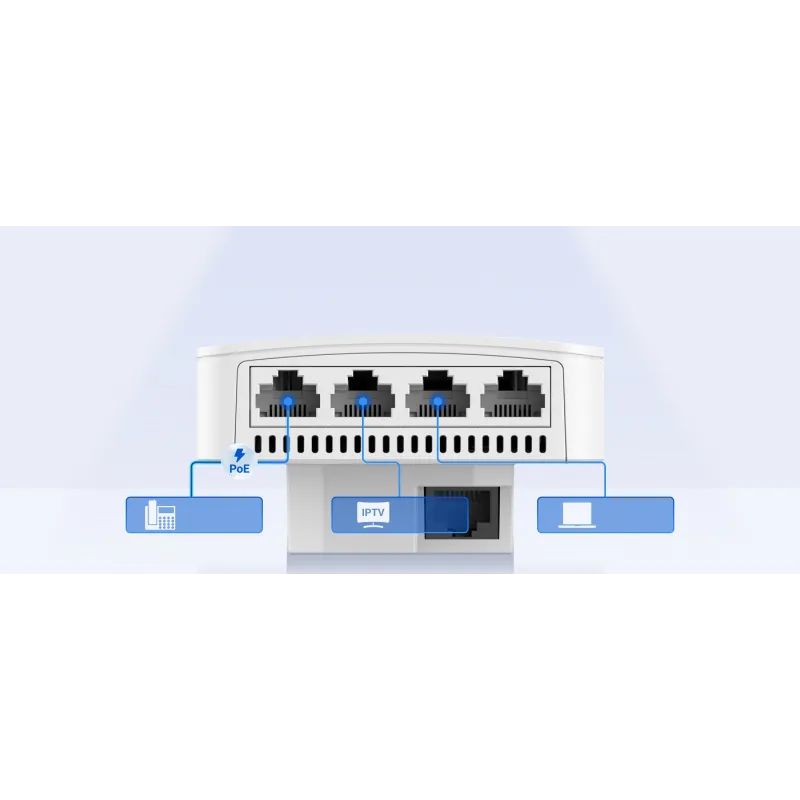

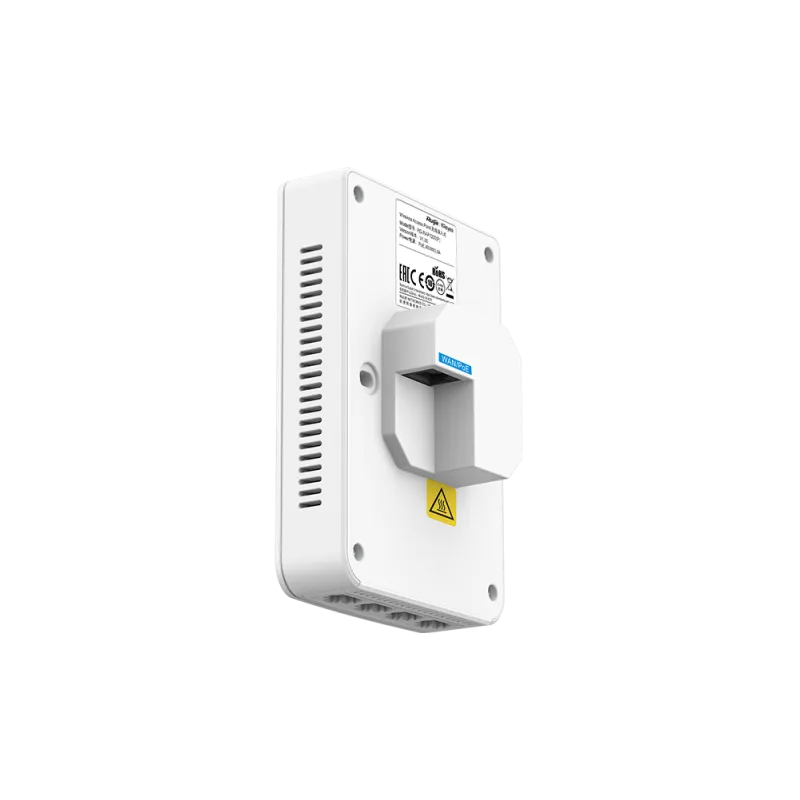

Service Ports | Front: LAN1 port supports IEEE.802.3af PoE OUT Rear: |
Management Port | N/A |
LED Indicator | 1 LED indicator |
Power Supply | Support PoE (802.3af/at) |
Power Consumption | ≤ 8W |
Environment | Operating temperature: -30°C~65°C |
Installation | Wall plate installation |
Safety Standard | GB4943, IEC 62368-1 |
EMC Standard | GB9254,EN301 489,EN50155,EN50121,EN55032,EN61000,EN55035 |
Vibration Standard | IEC61373 |
Radio Standard | SRRC certification, EN300 328, EN301 893 |
MTBF | >250000H |
Software Features | |
Operating Mode | AP mode and routing mode |
WLAN | Maximum number of clients: 110 |
Roaming | Support Layer 2 and Layer 3 roaming |
Security | Support PSK authentication |
Routing | Support static IP address, DHCP, PPPoE Dial Up |

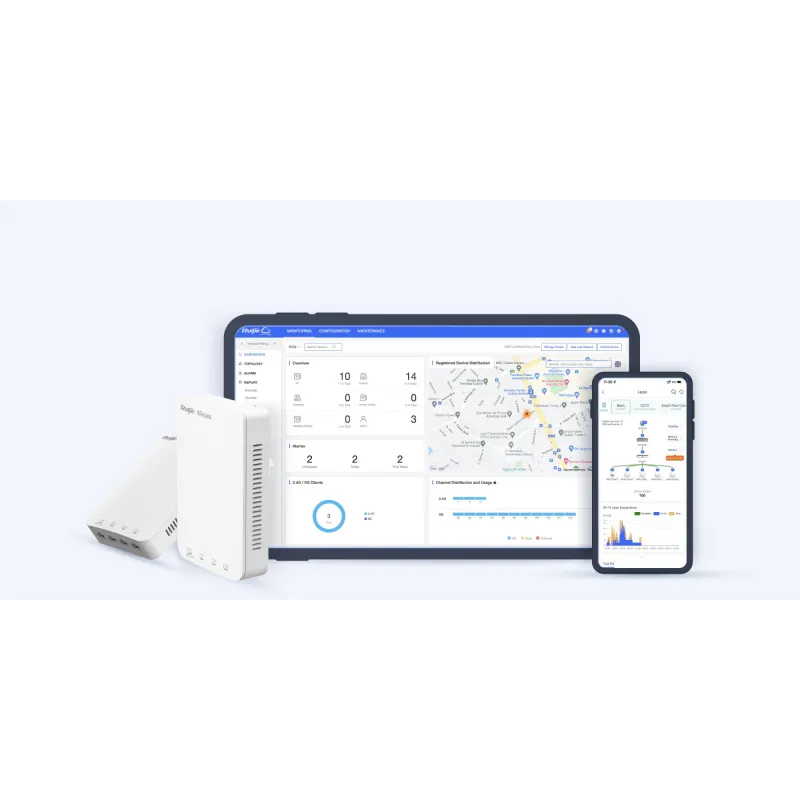

Management and maintenance | Support unified networking of all network equipment |
รับประกัน | 3 ปี |
