Product Specification | |

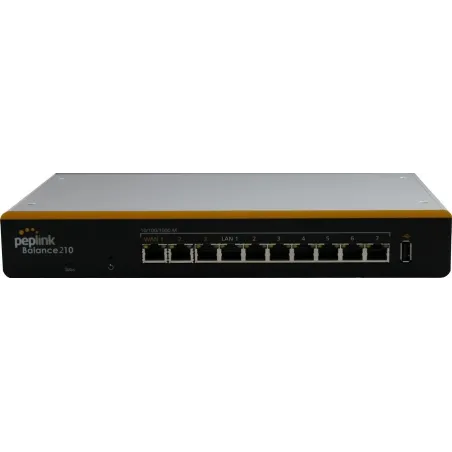

Overview | Peplink Balance 210 (BPL-210) อุปกรณ์ Load Balance 2 Wan VPN Router รองรับการทำ Load Balance ได้ถึง 4 Mode, ทำ VPN 2 Tunnels การ Config ง่ายด้วย Function PepVPN รองรับ Users ได้ถึง 150 Concurrents ผลิตภัณฑ์จากอเมริกา เหมาะสำหรับเครือข่ายที่ต้องการความเสถียรสูงมาก |
WAN Interface | 2 Port ความเร็ว Gigabit 10/100/1000Mbps Ethernet Ports
1 x USB Interface รองรับ 3G Modem |
LAN Interface | 7 Port ความเร็ว Gigabit 10/100/1000Mbps |
Wi-Fi Interface | - |
Wi-Fi AP Operating Frequency | - |
Router Throughput | 350Mbps |
Recommended Users | 150 Users
|
802.1Q VLANs Supports | 16 |
Port-Based VLAN | รองรับ VLAN Port Base |
Number of VPN/SpeedFusion Peers | 2 |
PepVPN/SpeedFusion Throughput | 30Mbps |
Power Input | Device: 12V – 24V DC
AC Adapter: AC Input 100V – 240V, DC Output 12V |
Power Consumption | 15W (max.) |
Dimension | 44 x 293 x 273 mm (H x W x D) |
Weight | 3.5 Kg. |
Operating Temperature | -0? – 40?C |
Humidity | 15% – 95% (non-condensing) |
Certifications | FCC, CE, RoHS |
Features |
WAN | USB 4G/3G Modem Support
Support for PPPoE, Static IP, DHCP
Support for Dynamic DNS services
WAN Link Health Check
Intelligent Failover
Bandwidth Allowance Monitor |
LAN | DHCP Server for LAN Clients
Extended DHCP Options
DHCP Reservation
DNS Proxy for LAN Clients
Per-Port VLAN |
Security | Stateful Firewall
DoS Prevention |
AP Controller | AP Controller Support
Wi-Fi Usage Statistics |

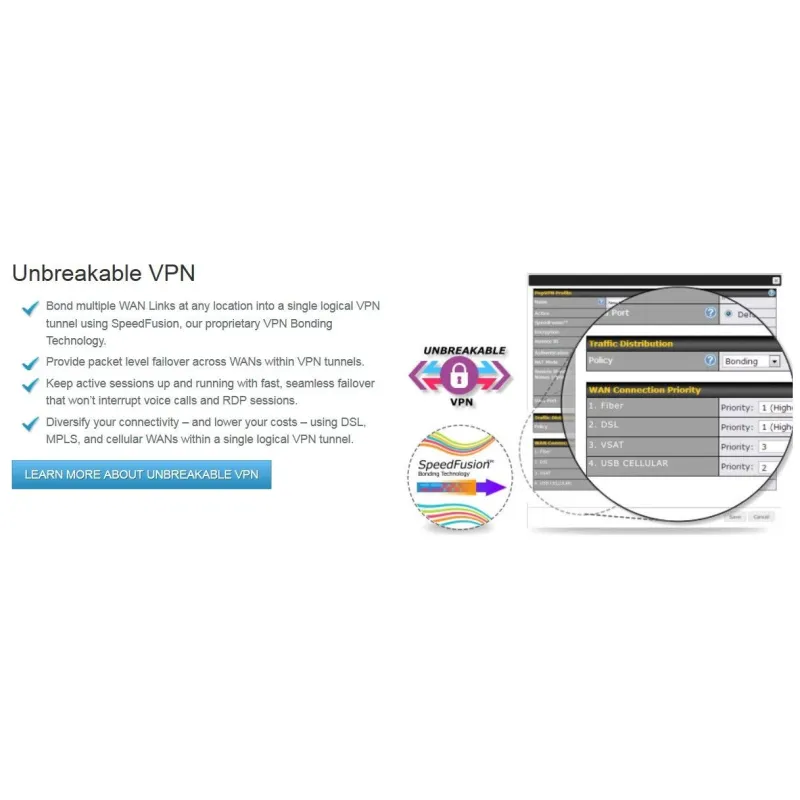

Complete VPN Solution | PepVPN/SpeedFusion ^
Site-to-Site VPN
Bandwidth Aggregation ^
Hot Failover ^
256-bit AES Encryption
Pre-shared Key Authentication
Dynamic Routing
L2TP with IPsec VPN Server
PPTP VPN Server
RADIUS, LDAP Authentication
IPsec VPN (Network-to-Network) |
Load Balancing | Intelligent Failover
Session Persistence
Per-Service Load Distribution
Multiple Algorithms |
Networking | NAT and IP Forwarding
Static Routes
Port Forwarding
Many to One, One to One NAT
NAT Pool
SIP ALG, H.323 ALG
UPnP, NAT-PMP
WINS Server |
Advanced QoS | User Groups
Bandwidth Reservation
Individual Bandwidth Limit
Application Prioritization
By User Groups
SIP, HTTPS, VPN QoS
Custom Application QoS
Web Blocking Blacklist |
Captive Portal Support | Support for Wired and Wireless LAN Clients
Support RADIUS Authentication
Time and Usage Quotas on Open
Access Mode
Built-in Customizable Splash Page |
Device Management | Web Administrative Interface
Command Line Interface
InControl Cloud Management
Email Notification
Active Client & Session Lists
Bandwidth Usage Statistics
Syslog Service
SNMP v1, v2c and v3 |
Package Content | Balance One/Balance One Core
12V Power Supply |
รับประกัน | รับประกัน 1 ปี มีอุปกรณ์สำรองใช้ระหว่างประกัน (สามารถต่ออายุประกันด้วย PepLink Smart Care) |
