Product Specification
|
|
|
Overview
|

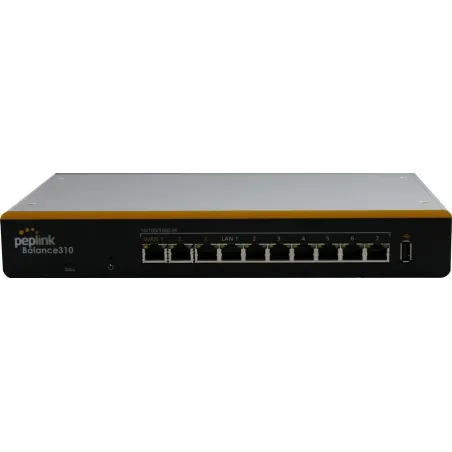

Peplink Balance 310 (BPL-310) อุปกรณ์ Load Balance 3 Wan VPN Router รองรับการทำ Load Balance ได้ถึง 4 Mode, ทำ VPN 2 Tunnels การ Config ง่ายด้วย Function PepVPN รองรับ Users ได้ถึง 150 Concurrents ผลิตภัณฑ์จากอเมริกา เหมาะสำหรับเครือข่ายที่ต้องการความเสถียรสูงมาก
|
|
WAN Interface
|
3 Port ความเร็ว Gigabit 10/100/1000Mbps Ethernet Ports
1 x USB Interface รองรับ 3G Modem
|
|
LAN Interface
|
7 Port ความเร็ว Gigabit 10/100/1000Mbps
|
|
Wi-Fi Interface
|
-
|
|
Wi-Fi AP Operating Frequency
|
-
|
|
Router Throughput
|
350Mbps
|
|
Recommended Users
|
150 Users
|
|
802.1Q VLANs Supports
|
16
|
|
Port-Based VLAN
|
รองรับ VLAN Port Base
|
|
Number of VPN/SpeedFusion Peers
|
2
|
|
PepVPN/SpeedFusion Throughput
|
30Mbps
|
|
Power Input
|
Device: 12V – 24V DC
AC Adapter: AC Input 100V – 240V, DC Output 12V
|
|
Power Consumption
|
15W (max.)
|
|
Dimension
|
44 x 293 x 273 mm (H x W x D)
|
|
Weight
|
3.5 Kg.
|
|
Operating Temperature
|
-0? – 40?C
|
|
Humidity
|
15% – 95% (non-condensing)
|
|
Certifications
|
FCC, CE, RoHS
|
|
Features
|
|
WAN
|
USB 4G/3G Modem Support
Support for PPPoE, Static IP, DHCP
Support for Dynamic DNS services
WAN Link Health Check
Intelligent Failover
Bandwidth Allowance Monitor
|
|
LAN
|
DHCP Server for LAN Clients
Extended DHCP Options
DHCP Reservation
DNS Proxy for LAN Clients
Per-Port VLAN
|
|
Security
|
Stateful Firewall
DoS Prevention
|
|
AP Controller
|
AP Controller Support
Wi-Fi Usage Statistics
|
|
Complete VPN Solution
|
PepVPN/SpeedFusion ^
Site-to-Site VPN
Bandwidth Aggregation ^
Hot Failover ^
256-bit AES Encryption
Pre-shared Key Authentication
Dynamic Routing
L2TP with IPsec VPN Server
PPTP VPN Server
RADIUS, LDAP Authentication
IPsec VPN (Network-to-Network)
|
|
Load Balancing
|
Intelligent Failover
Session Persistence
Per-Service Load Distribution
Multiple Algorithms
|
|
Networking
|
NAT and IP Forwarding
Static Routes
Port Forwarding
Many to One, One to One NAT
NAT Pool
SIP ALG, H.323 ALG
UPnP, NAT-PMP
WINS Server
|
|
Advanced QoS
|
User Groups
Bandwidth Reservation
Individual Bandwidth Limit
Application Prioritization
By User Groups
SIP, HTTPS, VPN QoS
Custom Application QoS
Web Blocking Blacklist
|
|
Captive Portal Support
|
Support for Wired and Wireless LAN Clients
Support RADIUS Authentication
Time and Usage Quotas on Open
Access Mode
Built-in Customizable Splash Page
|
|
Device Management
|
Web Administrative Interface
Command Line Interface
InControl Cloud Management
Email Notification
Active Client & Session Lists
Bandwidth Usage Statistics
Syslog Service
SNMP v1, v2c and v3
|
|
Package Content
|
Balance One/Balance One Core
12V Power Supply
|
|
รับประกัน
|
รับประกัน 1 ปี มีอุปกรณ์สำรองใช้ระหว่างประกัน (สามารถต่ออายุประกันด้วย PepLink Smart Care)
|
