Product Specification

Physical Specifications

Dimensions (W × D × H)

220mm x 220mm x 49mm

Weight

Device : 0.6kg
Mounting Kit : 0.2kg

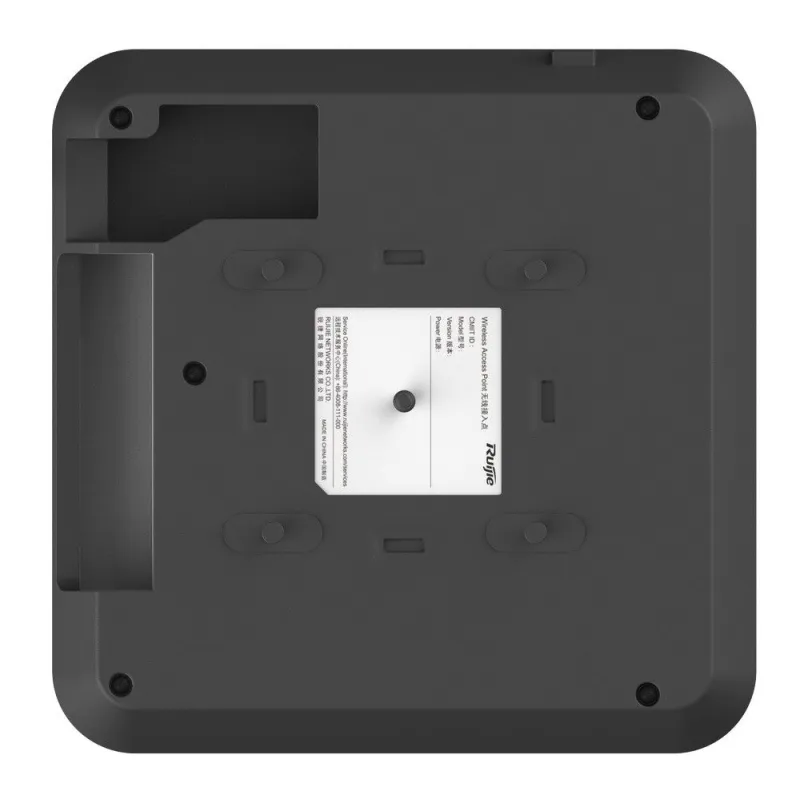

Installation

Ceiling / Wall

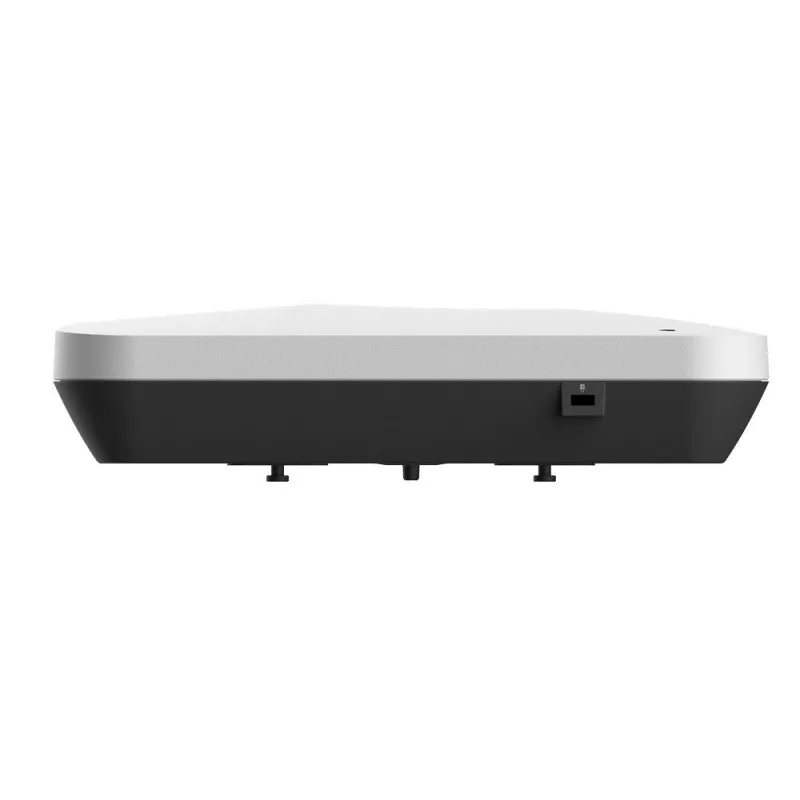

Anti-theft Lock

Support

Radio Specifications

Radio

Dual-radio dual-band:
Radio1 : 2.4GHz 11ax, 2x2 MIMO
Radio2 : 5GHz 11ax, 2x2 MIMO

Operating Band

Radio1:
802.11b/g/n/ax, 2.4GHz～2.483GHz, HE40

Radio2 :
802.11a/n/ac/ax, 5.150GHz～5.350GHz, HE80
802.11a/n/ac, 5.470GHz～5.725GHz, 5.725GHz～5.850GHz, HE80

Note: vary depending on different countries

Max Throughput

Radio1：2.4GHz，0.574Gbps
Radio2：5GHz，1.201Gbps
Maximum throughput per AP:
2.4GHz+5GHz，1.775Gbps

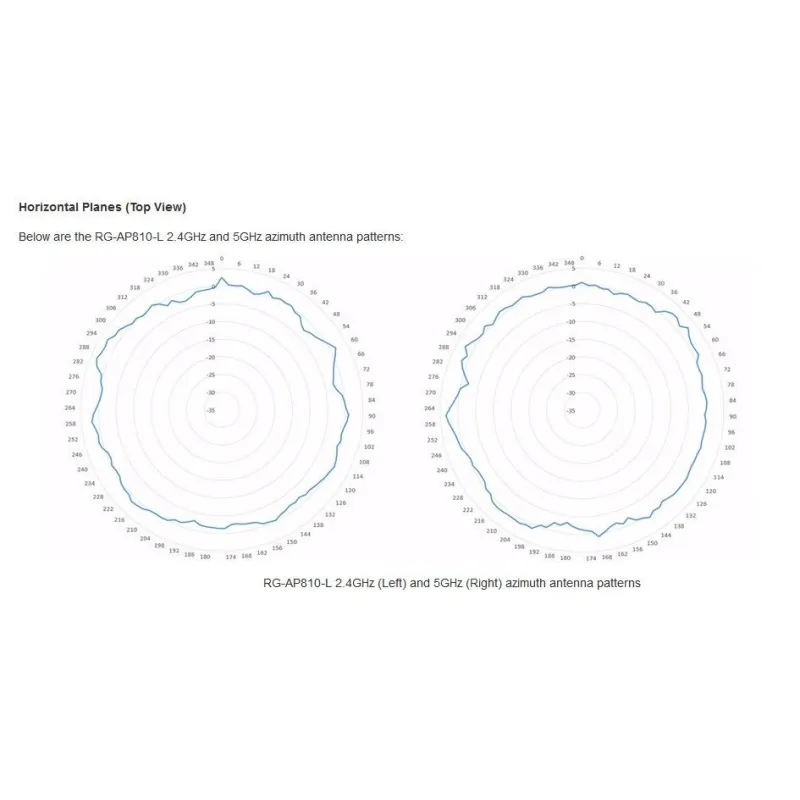

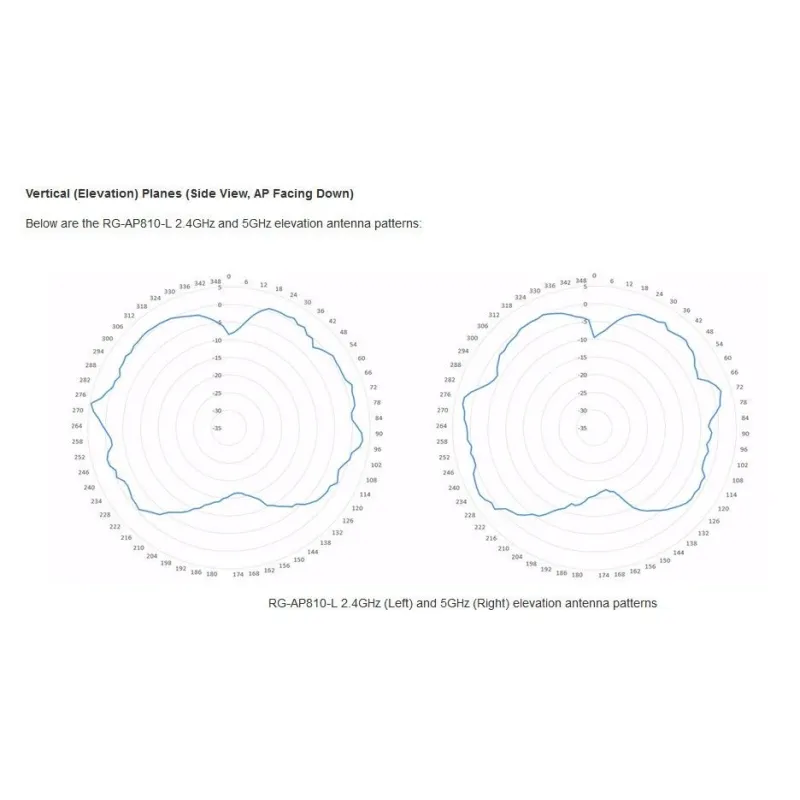

Antenna Type

Integrated Omnidirectional

Antenna Gain

2.4GHz： 3dBi
5GHz： 3dBi

Transmit Power

20dBm
Note: vary depending on different countries

Adjustable Power

1dBm

Modulation

OFDM：BPSK@6/9Mbps，QPSK@12/18Mbps，16-QAM@24Mbps，64-QAM@48/54Mbps
DSSS：DBPSK@1Mbps，DQPSK@2Mbps，and CCK@5.5/11Mbps
MIMO-OFDM：BPSK，QPSK，16QAM 、64QAM 、256QAM and1024QAM
OFDMA

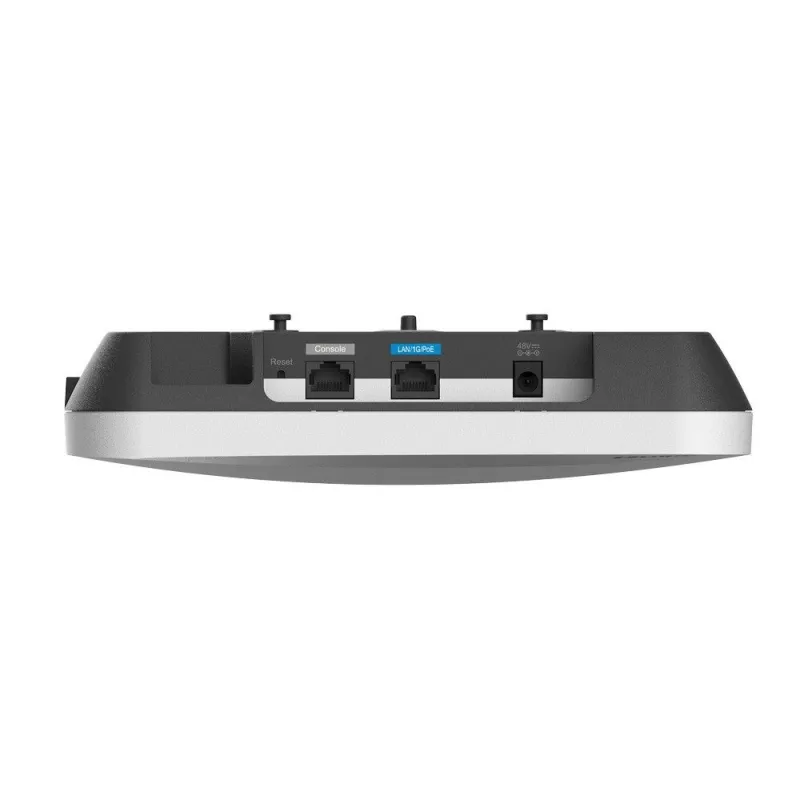

Interfaces

Interfaces

1 10/100/1000M BASE-T Ethernet Port, PoE In (Support IEEE 802.3af)
Full Spectrum Operation in IEEE 802.3af Mode

Bluetooth

BT 5.1

Management Port

1 RJ45 Console Port

LED Indicator

1 LED Indicator

Reset Button

Support

Power

Power Supply

Local Power Supply (DC 48V/0.6A)
Note: DC power adapters should be purchased separately from third-party vendors if needed.
PoE（IEEE 802.3af Standard）- Full Spectrum Operation

ไม่มี POE Injector และ Adapter ในชุดอุปกรณ์

Power Consumption

12.95W

Environment

Temperature

Operating Temperature: -10°C～50°C
Storage Temperature: -40°C～70°C

Humidity

Operating Humidity: 5%~95% (non-condensing)
Storage Temperature: 5%~95% (non-condensing)

IP Rating

IP41

Safety Standard

GB 4943.1-2011，IEC 62368-1

EMC Standard

EN 300386,GB/T 19286-2015,GB/T 17618-2015

Software Specifications

WLAN

Maximum Clients: 512
Recommended Client: 120
SSID Hiding: Support
5G Priority (Band Steering): Support
Configuring the authentication mode, encryption mechanism and VLAN attributes for each SSID: Support
Remote Intelligent Perception Technology (RIPT): Support
Intelligent Device Recognition Technology: Support
Intelligent Load Balancing Based on the Number of Users or Traffic: Support
STA Limit Control: SSID/Radio based
Bandwidth Control: STA/SSID/AP-based

Security

Support PSK and Web authentication
Data Encryption: WPA (TKIP), WPA-PSK, WPA2 (AES), WPA3, WEP (64/128bits)
PPSK authentication: Support
802.1X authentication: Support
PEAP authentication: Support
Data Frame Filtering: Allow list, Static/Dynamic Block list
User Isolation: Support
Rogue AP Detection and Countermeasure: Support
Dynamic ACL Assignment: Support
RADIUS: Support
CPU Protection Policy (CPP) Support
Network Foundation Protection Policy (NFPP): Support

IP

IPv4: Support Static and DHCP IP Address
Support Multicast to Unicast Conversion
DHCP Service: Support DHCP Snooping, Option 82, Server, Client

Operation & Management

Support Wireless LAN Controllers:
Ruijie RG-WS Series Wireless Controller
Ruijie Cloud (Public Cloud)
Ruijie Private Cloud
Management Protocol: Telnet, SSH, TFTP, FTP, Web
Wireless Intelligent AI Optimization Service (WIS): Support
SNMP: Support V1, V2c, V3
Syslog / Debug: Support
FAT/FIT/Cloud Managed Mode Firmware: Support FAT (Standalone) or FIT (WS Controller) or Cloud Managed (Ruijie Public/Private Cloud) Management

ประกัน

ทางร้านเป็นตัวแทนจำหน่ายอย่างเป็นทางการ ประกันศูนย์ Ruijie Thailand 3 ปี
