Product Specification
|
|
Overview
|

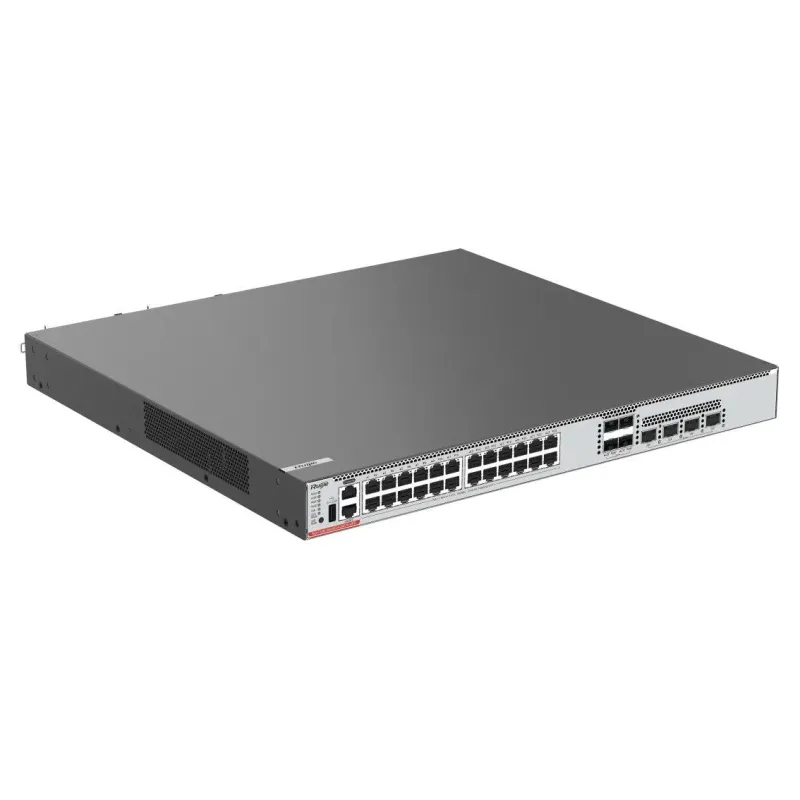

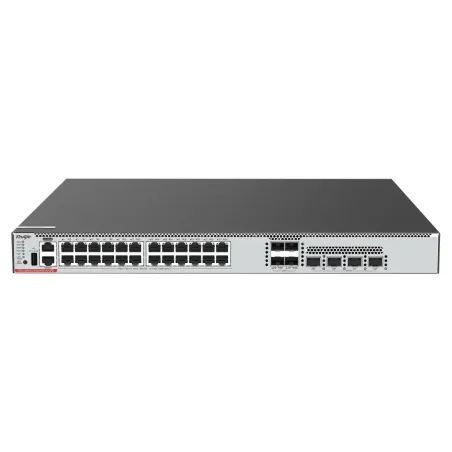

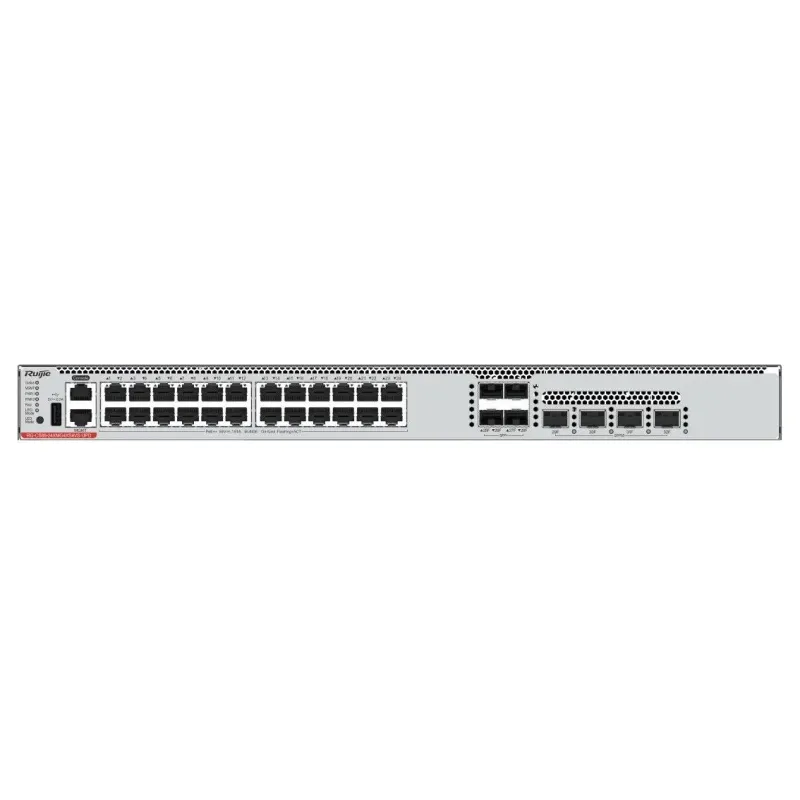

RG-CS86-24MG4VS2QXS-UPD L3 Managed POE Multi-GE Switch 24-Port ความเร็ว 5/2.5/1Gbps, 4 Port SFP+ ความเร็ว 10Gbps, 4 Port SFP28 ความเร็ว 10/25Gbps
รองรับ Dynamic Routing OSPF, BGP
Surge protection 6kV
POE มาตรฐาน BT สูงสุด 90W/Port
รองรับการ Managed ผ่าน Ruijie Cloud
|
|
Interface Specifications
|
|
Fixed Service Port
|
24 x 100M/1000M/2.5GE/5GE/10GE electrical ports with auto-negotiation
4 x 1G/10GE SFP+ ports
4 x 10G/25G SFP28 ports
|
|
Fan modules
|
3 modular fans
|
|

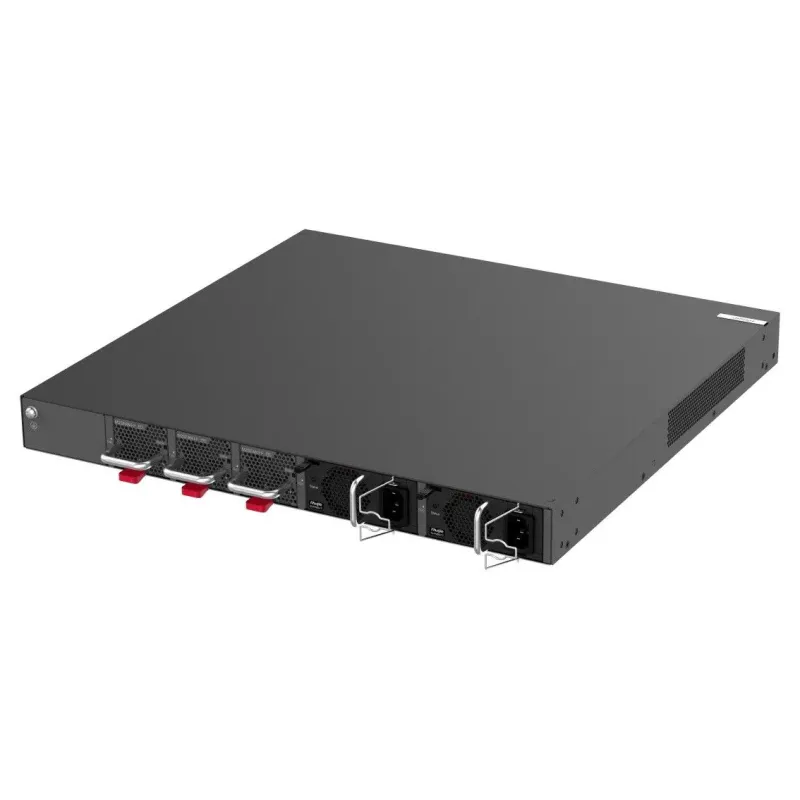

Power modules
|
2 replaceable hot-swappable power supply slots
|
|
Fixed Management Port
|
1 x MGMT port
1 x console port
1 x USB port
|
|
System Specifications
|
|
Switching Capacity
|
760Gbps/2.56Tbps
|
|
Packet Forwarding Rate (Actual)
|
565 Mpps
|
|
MAC Table Capacity
|
32,768
|
|
ARP table
|
16,000
|
|
IPv4 Unicast Routes
|
16,000
|
|
IPv4 Multicast Routes
|
4,000
|
|
IPv6 Unicast Routes
|
16,000
|
|
IPv6 Multicast Routes
|
2,000
|
|
ACL entries
|
In: 2,500
Out:1,000
|
|
Dimensions and Weight
|
|
Dimensions (W x D x H)
|
442 × 220 × 43.6 mm (17.40 × 29.92 × 6.89 in.) , 1 RU
|
|
Weight
|
6.11 kg (13.47 lbs)
|
|
Power Supply and Consumption
|
|
Typical Power Consumption
|
Without PoE: < 150 W (Total power consumption of all modules)
Full PoE load: < 1650 W (Total power consumption of all modules)
|
|
Power Module Model
|
RG-PA600I-P-F
RG-PA1000P-F
|
|
Rated Input Voltage
|
Available model: RG-PA600I-P-F
AC Input
Rated voltage range: 100 V AC to 240 V AC
Maximum voltage range: 90 V AC to 264 V AC
Frequency: 50/60 Hz
Rated current per circuit: 8 A
Available model: RG-PA1000I-P-F
AC Input
Rated voltage range: 100 V AC to 240 V AC
Maximum voltage range: 90 V AC to 264 V AC
Frequency: 50/60 Hz
Rated current per circuit: 8 A
|
|
PoE-capable Port
|
Ports 1 to 24 support PoE/PoE+ and HPoE power supply
Maximum output power of a HPoE-capable port: 90 W
|
|
Environment and Reliability
|
|
Surge Protection
|
6 kV
|
|
Temperature Monitoring
|
Temperature alarm
|
|
Operating Temperature
|
0°C to 45°C (32°F to 113°F)
|
|
Storage Temperature
|
–40°C to +70°C (–40°F to +158°F)
|
|
Operating Humidity
|
10% RH to 90% RH (non-condensing)
|
|
Storage Humidity
|
5% RH to 95% RH (non-condensing)
|
Software Specifications
|
|
Ethernet Switching
|
Jumbo frame (maximum length: 9216 bytes)
|
|
IEEE 802.1Q (supporting 4K VLANs)
|
|
Voice VLAN
|
|
Super VLAN, Private VLAN
|
|
MAC VLAN, Port based VLAN, Protocol based VLAN, IP-Subnet based VLAN
|
|
GVRP
|
|
Basic QinQ
Flexible QinQ
|
|
STP, RSTP, and MSTP
|
|
ERPS (G.8032)
|
|
LLDP/LLDP-MED
|
|
LACP (IEEE 802.3ad)
|
|
IP Service
|
ARP
|
|
DHCP client, DHCP relay, and DHCP server
|
|
DHCP snooping
|
|
DNS
|
|
DHCPv6 client and DHCPv6 relay
|
|
DHCPv6 snooping
|
|
Neighbor Discovery (ND) and ND snooping
|
|
IP Routing
|
Static routing
|
|
RIP and RIPng
|
|
OSPFv2, OSPFv3, IS-ISv4, ISv4, and IS-ISv6
|
|
BGP4 and BGP4+
|
|
IPv4 and IPv6 PBR
|
|
ECMP
|
|
Multicast
|
IGMP v1/v2/v3, and IGMP proxy
|
|
IGMP v1/v2/v3 snooping
|
|
PIM-DM, PIM-SM, and PIM-SSM
|
|
MSDP
|
|
MLD v1/v2
|
|
MLD snooping v1/v2
|
|
PIM-SMv6 and PIM-SSM v6
|
|
ACL and QoS
|
Standard IP ACLs
Extended IP ACLs
Extended MAC ACLs
Time-based ACLs
Expert-level ACLs
ACL80
IPv6 ACL
|
|
Port traffic rate limiting
|
|
Congestion management: RR, SP, WRR, DRR, WFQ, SP+WRR, SP+DRR, and SP+WFQ
|
|
Congestion avoidance: tail drop, RED, and WRED
|
|
802.1p/DSCP/ToS traffic classification
Eight priority queues per port
|
|
Security
|
Multiple AAA modes
|
|
RADIUS and TACAS+
|
|
Port-based and MAC-based 802.1x authentication
|
|
Web authentication
|
|
HTTPS
|
|
SSHv1, SSHv2
|
|
Global IP-MAC binding
|
|
IP source guard
|
|
SAVI
|
|
CPP and NFPP
|
|
Strict and loose RPF
uRPF ignoring default routes
|
|
Reliability
|
REUP, RLDP, DLDP
|
|
IPv4 VRRP v2/v3 and IPv6 VRRP
|
|
BFD
|
|
GR for RIP, OSPF, BGP
|
|
1+1 power redundancy
|
|
Hot swapping of power and fan modules
|
|
Device virtualization
|
Virtual Switching Unit (VSU)
|
|
NMS and maintenance
|
SPAN, RSPAN, and ERSPAN
|
|
sFLOW
|
|
NTP and SNTP
|
|
FTP and TFTP
|
|
SNMP v1/v2/v3
|
|
RMON (1, 2, 3, 9)
|
|
NETCONF
|
|
CWMP (TR-069) standard protocol
|
|
gRPC
|
|
Cloud and SON
|
|
PoE
|
IEEE 802.3af, 802.3at and 802.3bt
Uninterruptible power supply upon hot start
Port priority
|
|
ประกัน
|
3 ปี
|
