Ruijie 3 RG-S5300-24GT4XS-E L3-Managed Switch 24 Port, 4 Port SFP+
  • Ruijie 3 RG-S5300-24GT4XS-E L3-Managed Switch 24 Port, 4 Port SFP+
  • Ruijie 3 RG-S5300-24GT4XS-E L3-Managed Switch 24 Port, 4 Port SFP+

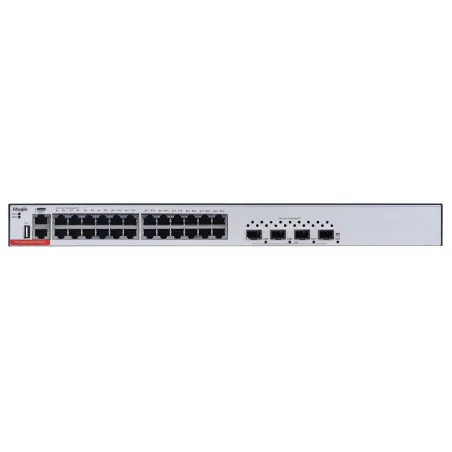

Ruijie 3 RG-S5300-24GT4XS-E L3-Managed Switch 24 Port, 4 Port SFP+

Ruijie Networks
Ruijie 3 RG-S5300-24GT4XS-E L3-Managed  Switch 24 Port, 4 Port SFP+ ,รองรับ VSU, IPv4/IPv6 Dual-stack Multi-layer Switching, Dynamic Routing RIP, OSPF, IS-IS, BGP
฿0.00
ยังไม่ได้รวมภาษี
จำนวน
10 รายการ

Rating:
(0)


ตัวแทนจำหน่าย Ruijie อย่างเป็นทางการ สอบถามราคาส่วนลดพิเศษ


Support / ติดตั้งด้วยทีมงาน
Certificate


สอบถามรายละเอียดสินค้าเพิ่มเติม LINE: @sysnet

Click ขอใบเสนอราคา

close

แบบฟอร์มขอใบเสนอราคา



รายละเอียด

Ruijie RG-S5300 Switch Series Datasheet

Product Specification

Overview

Ruijie RG-S5300-24GT4XS-E L3-Managed  Switch 24 Port, 4 Port SFP+ ,รองรับ VSU, IPv4/IPv6 Dual-stack Multi-layer Switching, Dynamic Routing RIP, OSPF, IS-IS, BGP
ICT Spec อุปกรณ์กระจายสัญญาณ (L2 Switch) ขนาด 24 ช่อง แบบที 2
ICT Spec อุปกรณ์กระจายสัญญาณ (L3 Switch) ขนาด 24 ช่อง

Fixed Ports

24 x 10/100/1000Mbps
adaptive electrical
ports, 4 x 1G/10G SFP+ ports

Switching Capacity

336 Gbps/3.36 Tbps

Packet Forwarding Rate

108 Mpps/126 Mpps

MAC Address

32K

ARP Table

4K

Routing Table Size (IPv4/IPv6)

8K (IPv4/IPv6)

ACL Entries

In: 3,500
Out: 1,500

802.1Q VLAN

The following are supported:
4K 802.1Q VLAN
Port-based VLAN
MAC-based VLAN
Private VLAN
Voice VLAN
GVRP

QinQ

Basic QinQ
Flexible QinQ

ACL

The following are supported:
Standard IP ACLs (IP-based hardware ACLs)
Extended IP ACLs (hardware ACLs based on IP addresses or TCP/UDP port IDs)
MAC-based extended ACLs (hardware ACLs based on source MAC addresses, destination MAC addresses, and optional Ethernet type)
Time-based ACLs
Expert-level ACLs (hardware ACLs based on flexible combinations of the VLAN ID, Ethernet type, MAC address, IP address, TCP/UDP port ID, protocol type, and time)
ACL 80
IPv6 ACLs
Global ACLs
ACL redirection

QoS

The following are supported:
Port traffic identification
Port traffic rate limiting
802.1p/DSCP/ToS traffic classification
Eight priority queues per port
SP, WRR, SP+WRR, RED/WRED queue scheduling mechanisms

Mirror

One-to-one mirroring, many-to-one mirroring, and one-to-many mirroring
RSPAN
Flow-based local and remote mirroring

DHCP

The following are supported:
DHCP server
DHCP client
DHCP snooping
DHCP relay
IPv6 DHCP snooping
IPv6 DHCP client
IPv6 DHCP relay

Multiple Spanning Tree Protocol (MSTP) Instances

65

Maximum Aggregation Port (AP)

128

Security Features

The following are supported:
3-tuple binding (IP address, MAC address, and port)
3-tuple binding (IPv6 address, MAC address, and port)
Filtering of invalid MAC addresses
Port- and MAC-based 802.1x authentication
MAB authentication
Portal authentication and Portal 2.0 authentication
ARP-check
DAI
ARP packet rate limiting

Security

Features

Gateway ARP spoofing prevention
Broadcast storm suppression
Hierarchical management of administrators and password protection
RADIUS and TACACS+
AAA (IPv4/IPv6) for device login management
SSH and SSH V2.0
BPDU guard
IP source guard
CPP, and NFPP
Port protection

ERPS

G.8032 v1/v2, Sing-ring, Tangent-ring, Intersecting-ring, Load balancing, compatible with products of this protocol.

PoE

The following are supported:
IEEE 802.3af and 802.3at power supply standards
Automatic and energy saving power supply management mode
Uninterrupted power supply in hot start mode
Scheduled powering on /off PoE ports on the basis of time policy
Port priority
Note: Only RG-S5300-24GT2SFP2XS-P-E and RG-S5300-24GT4XS-P-E support the PoE function.

IP Routing

The following are supported:
IPv4/IPv6 static routing
RIP, RIPng, OSPFv2, OSPFv3, BGP, and ISIS
Routing policy

IPv6 Basic Protocol

IPv6 addressing, Neighbor Discovery (ND), ICMPv6, IPv6 ping, IPv6 Tracert, and IPv6 multicast

VSU Features

The following are supported:
VSU technology
Local stacking and remote stacking
Inter-chassis link binding in a stack
Virtualization via standard service interfaces

Zero Configuration

CPE WAN Management Protocol (CWMP(TR069))

Management Features

SNMPv1/v2c/v3, CLI(Telnet/Console), RMON(1, 2, 3, 9), SSH, Syslog, NTP/SNTP, Web, CLI(Telnet/Console), RMON, SSH, Syslog/Debug, NTP/SNTP, FTP, TFTP, Web, and sFLOW

Dimensions (W × D × H)

442 mm × 220 mm × 43.6 mm

Rack Height

1RU

MTBF (hours)

>200K

Power Supply

AC input:
Rated voltage range: 100 V to 240 V
Maximum voltage range: 90 V to 264 V
Frequency: 50/60 Hz

Fan

Fan speed regulating and alarm function

Power Consumption

Non PoE: ≤40 W
PoE: <410 W (PoE full load)

Temperature

Operating temperature: 0oC to 45oC
Storage temperature: -40oC to 70oC

Relative Humidity

Operating humidity: 10% to 90%RH
Storage humidity: 5% to 95%RH

Operating Altitude

0m to 5,000m

Lightening Protection on Communication Port

10kV (Common Mode)

Lightning Protection on Power Port

Common Mode 6KV/Differential Mode 6KV

ประกัน

3 ปี



รายละเอียดสินค้า
10 รายการ

ข้อมูลสินค้า

Layer Switch
L2/L3 Managed
ความเร็ว Port Lan
1Gbps (Gigabit)
จำนวน Port Lan
24 Port
SFP+ Port 10-Gigabit
2 Port
