Product Specification
|
|
Overview
|
Ruijie RG-AP110-L Wall-Mountable Wireless AP N 2.4GHz 300Mbps, 2 Port Lan เหมาะสำหรับงานติดตั้ง WIFI Hotspot ในห้องพัก
รองรับการทำ Authenticate แบบ Captive Portal, Social Login
Manage และ Monitor ผ่าน Cloud, Standalone และ Hardware Control
พร้อม Ruijie Cloud License แบบ Lifetime
|
|
Target Deployments
|
For wireless deployment in hotels, offices, residential buildings
|
|
Radio
|
Single band
|
|
Protocol
|
802.11b/g/n
|
|
Operating Bands
|
2.4GHz
|
|
Antenna
|
Built-in omnidirectional antenna
2x2 |
|
Max Throughput
|
300Mbps
|
|
Spatial Streams
|
2 |
|
IP Rating
|
IP41
|
|
Service Port
|
Front:
1 10/100M Ethernet LAN ports
Rear:
1 10/100M Uplink port
Supports 802.3af PoE
|
|
Power Supply
|
Not Include
PoE (802.3af)
|
|
Power Consumption
|
<5W
|
|
Maximum clients per AP
|
32 |
|
BSSID capacity
|
8 |
|
SSID hiding
|
Support
|
|
Configuring the authentication mode. Encryption mechanism and VLAN attributes for each SSID
|
Support
|
|
Remote Intelligent Perception Technology (RIPT)
|
Support
|
|
Intelligent load balancing based on the number of users or traffic
|
Support
|
|
STA control
|
SSID/radio-based
|
|
Bandwidth control
|
STA/SSID/AP-based speed control
|
|
Dynamic Frequency Selection(DFS)
|
Future release support
|
|
Web portal authentication (by Ruijie Cloud integration)
|
Support (Ruijie EG Security Gateway Required)
|
|
Data encryption
|
WPA (TKIP), WPA2 (AES), WPA-PSK, and WEP (64 or 128 bits)
|
|
PEAP authentication
|
Support
|
|
Data frame filtering
|
Whitelist, static/dynamic blacklist
|
|
User isolation
|
Support
|
|
Rogue AP detection and countermeasure
|
Support
|
|
Standard & Extended IP & MAC ACL
|
Support
|
|
Wireless Intrusion Detection System(WIDS)
|
Support
|
|
IPv4 address
|
Static IP address or DHCP reservation
|
|
Network management
|
SNMP v1/v2C/v3, Telnet, TFTP, FTP and Web management
|
|
LED Indicators
|
1 LED status indicator
|
|
Wi-Fi Alliance Certification
|
Support
|
|
Safety Standard
|
GB4943, EN/IEC 60950-1
|
|
EMC Standard
|
GB9254, EN301 489
|
|
Health Standard
|
EN 62311
|
|
Radio Standard
|
EN300 328, EN301 893
|
|
Vibration Standard
|
IEC60068－2-31, ETSI EN300 019, NEBS GR-63-CORE
|
|
Dimensions (W x D x H) (mm)
|

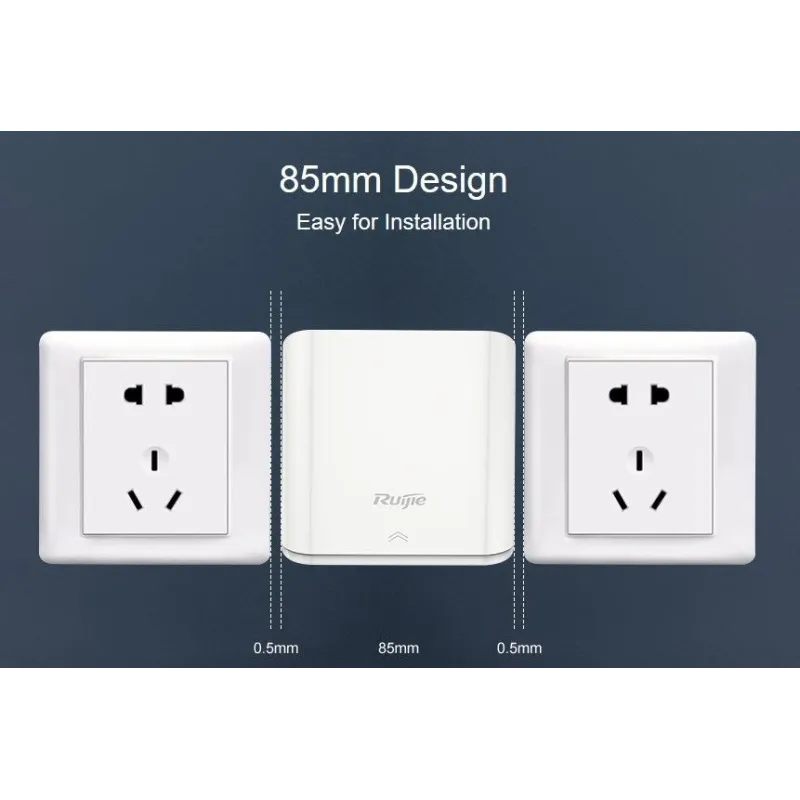

86 x 85 x 34
|
|
Weight
|
0.1KG
|
|
emperature
|
Operating Temperature: 0°C to 40°C
Storage Temperature: -40°C to 70°C
|
|
Humidity
|
Operating Humidity: 5% to 95% (non-condensing)
Storage Humidity: 5% to 95% (non-condensing)
|
|
Installation Mode
|
Compatible with UK/US/EU

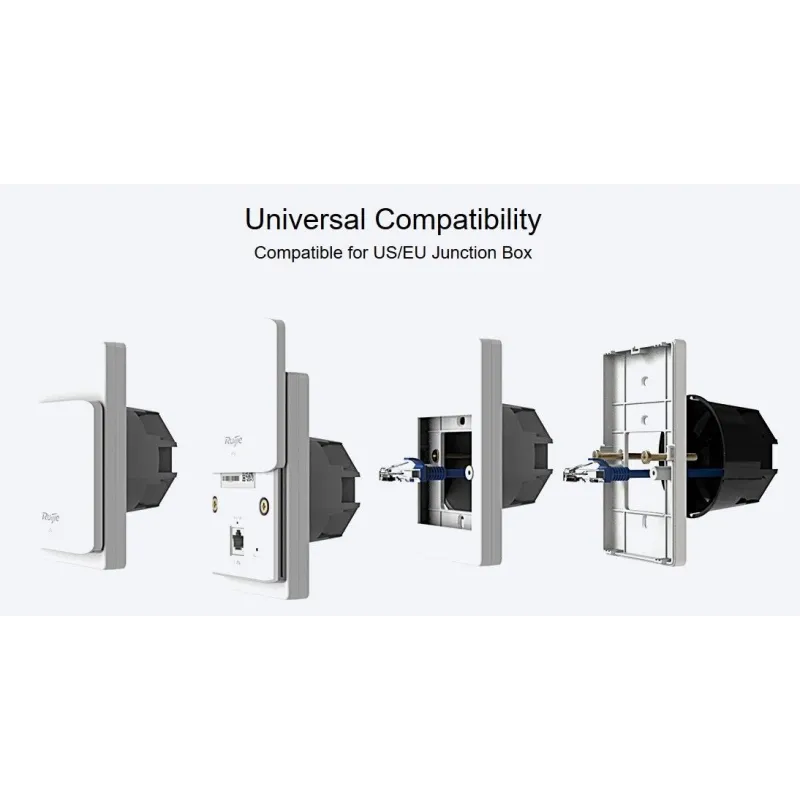

Junction box
*Universal Mount Kit need to purchase separately for US/EU junction box
|
|
ประกัน
|
3 ปี
|
รายละเอียดสินค้า
20 รายการ
ข้อมูลสินค้า
- ลักษณะงาน Wireless
- กระจายสัญญาณ WIFI
- ความเร็ว มาตรฐาน WIFI
- WIFI-4 (n) 300Mbps
- ย่านความถี่
- 2.4GHz
- รองรับ Controller
- Cloud Controller
Hardware Controller
- รองรับ POE
- Yes
