Product Specification |

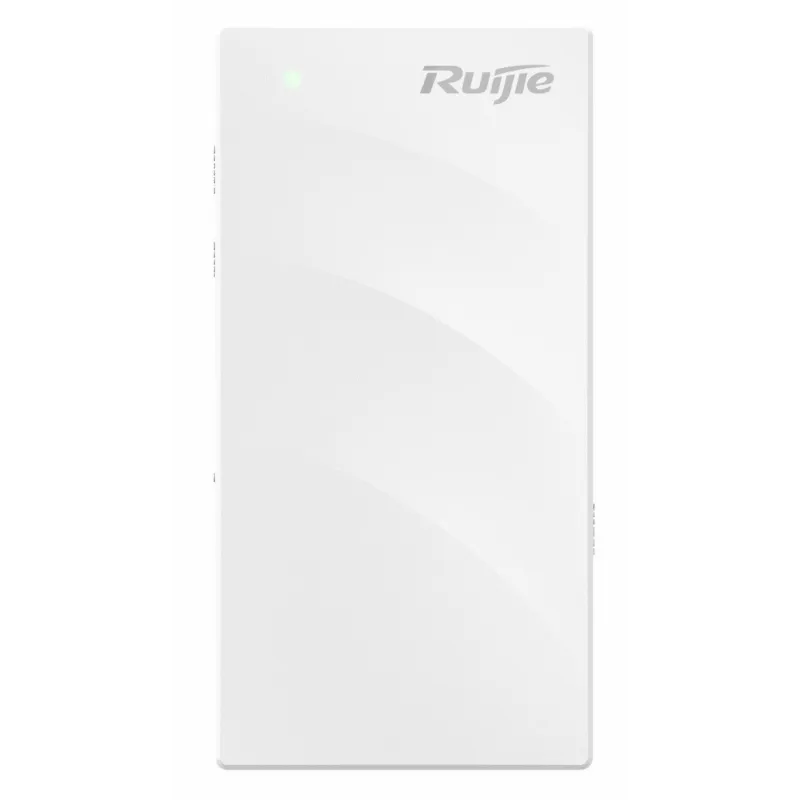

| Overview | Ruijie RG-AP180P-L Wall-Plate Wireless AP AX Wi-Fi 6 ความเร็วสูงสุด 1.975Gbps, 5 Port Lan Gigabit, PoE Passthrough รองรับ POE มาตรฐาน 802.3at
รองรับการทำ Authenticate แบบ Captive Portal, Social Login
Manage และ Monitor ผ่าน Cloud, Standalone และ Hardware Control
พร้อม Ruijie Cloud License แบบ Lifetime |
Wi-Fi Radio |
| Radio design | Dual-radio and up to four spatial streams:
Radio 1: 2.4 GHz, two spatial streams, 2x2 MU-MIMO
Radio 2: 5 GHz, two spatial streams, 2x2 MU-MIMO |
| Operating frequencies | Radio 1, 802.11b/g/n/ax:
2.400 GHz to 2.4835 GHz (HE20/HE40), ISM, channels 1 to 13 Radio 2, 802.11a/n/ac/ax:
5.150 GHz to 5.250 GHz, U-NII-1, channels 36, 40, 44, and 48
5.250 GHz to 5.350 GHz, U-NII-2A, channels 52, 56, 60, and 64
5.470 GHz to 5.725 GHz, U-NII-2C, channels 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, and 140
5.725 GHz to 5.850 GHz (HE80), U-NII-3/ISM, channels 149, 153, 157, 161, and 165
Note: Country-specific restrictions apply. |
| Data rates | Combined peak data rate: 2.975 Gbps
Radio 1: 2.4 GHz, 574 Mbps
Two spatial stream Single User (SU) MIMO for up to 574 Mbps wireless data rate to individual 2SS HE40 802.11ax client devices (max.)
Two spatial stream Single User (SU) MIMO for up to 287 Mbps wireless data rate to individual 2SS HE20 802.11ax client devices (typical) Radio 2: 5 GHz, 2.4 Gbps
Two spatial stream Single User (SU) MIMO for up to 2.4 Gbps wireless data rate to individual 2SS HE160 802.11ax client devices (max.)
Two spatial stream Single User (SU) MIMO for up to 1.2 Gbps wireless data rate to individual 2SS HE80 802.11ax client devices (typical) |
| Data rate set | The following 802.11-compliant data rates in Mbps are supported: 2.4 GHz radio
802.11b: 1, 2, 5.5, 11
802.11g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54
802.11n: 6.5 to 300 (MCS0 to MCS15, HT20 to HT40)
802.11ax: 8.6 to 574 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE40) 5 GHz radio
802.11a: 6, 9, 12, 18, 24, 36, 48, 54
802.11n: 6.5 to 300 (MCS0 to MCS15, HT20 to HT40)
802.11ac: 6.5 to 1,732 (MCS0 to MCS9, NSS = 1 to 2, VHT20 to VHT160)
802.11ax: 8.6 to 2,402 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE160) |
| Packet aggregation | 802.11n/ac/ax: A-MPDU and A-MSDU |
| Antenna type | Built-in omnidirectional antenna
2 x 2.4 GHz antennas
2 x 5 GHz antennas |
| Max. antenna gain | 2.4 GHz radio: 3 dBi
5 GHz radio: 3 dBi |
| Max. transmit power | 2.4 GHz radio: 20 dBm (17 dBm per chain)
5 GHz radio: 20 dBm (17 dBm per chain)
Note: The transmit power is limited by local regulatory requirements. |
| Power increment | Configurable in increments of 1 dBm |
| Radio technologies | 802.11b: Direct-Sequence Spread-Spectrum (DSSS)
802.11a/g/n/ac: Orthogonal Frequency-Division Multiplexing (OFDM)
802.11ax: Orthogonal Frequency Division Multiple Access (OFDMA) |
| Modulation types | 802.11b: BPSK, QPSK, CCK
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM |
Bluetooth Radio |
| Bluetooth | Bluetooth 5.1 |
| Antenna type | Onboard omnidirectional antenna |
| Max. antenna gain | 2.4 dBi, with a downtilt angle of roughly 30 degrees |
| Max. transmit power | 10 dBm |
| Receive sensitivity | –88 dBm (@BLE) |
| Ports | RG-AP180P-L |

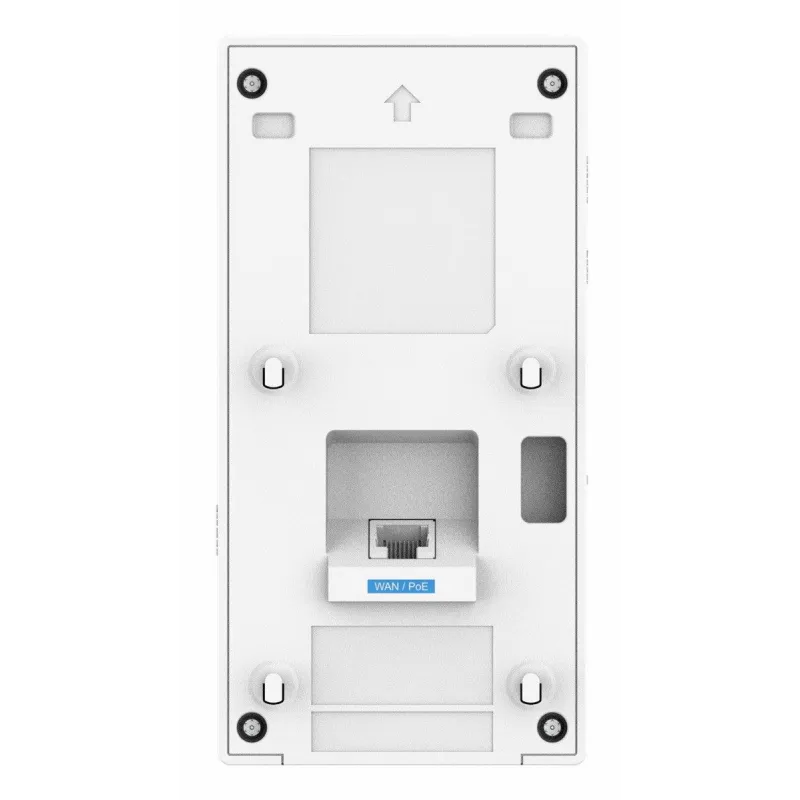

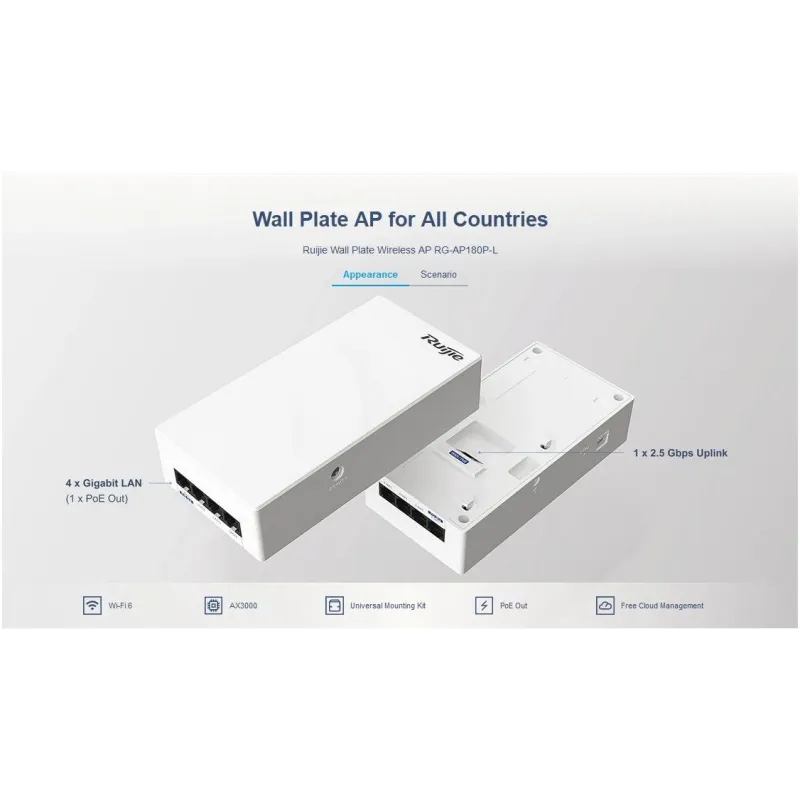

| Fixed service port | Uplink:
1 x 100/1000/2500Base-T Ethernet port with auto-negotiation, compliant-with IEEE 802.3af/802.3at standard (PoE/PoE+). When powered by 802.3af PoE, LAN 1 cannot supply power to an attached device. Downlink:
4 x 10/100/1000Base-T Ethernet ports with auto-negotiation. LAN 1 supports 48 V/10 W power supply to an attached device. |

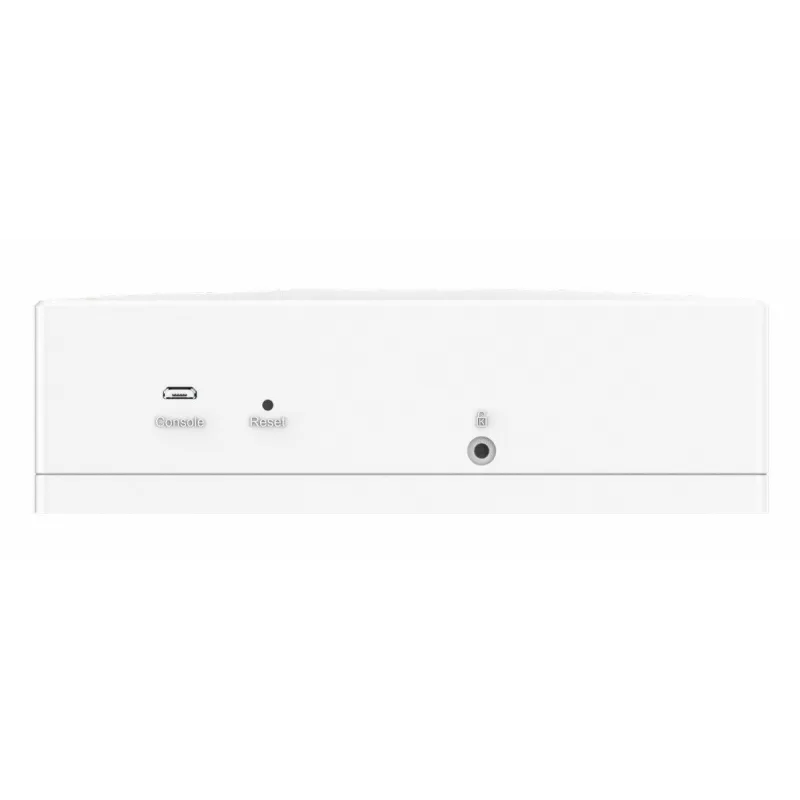

| Fixed management port | 1 x Micro USB console port |
| Status LED | 1 x multi-color system status LED |
| Button | 1 x Reset button
Press the button for shorter than 2 seconds. Then the device restarts.
Press the button for longer than 5 seconds. Then the device restores to factory settings. |
Power Supply and Consumption |
| Input power supply | The AP supports the following two power supply modes:
48 V DC/0.6 A power input over DC connector: The DC connector accepts 2.1 mm/5.5 mm center-positive circular plug. A DC power adapter needs to be purchased separately.
PoE input over PoE-in port: The power source equipment (PSE) complies with IEEE 802.3af/at standard (PoE/PoE+).
Note: When powered by 802.3at (PoE+), the AP operates with the optimal performance.
If both DC power and PoE are available, DC power is preferred. |
| External power supply | LAN 1 supports 48 V/10 W PoE output to an attached device. |
| Max power consumption | Max power consumption: 25 W
DC powered: 25 W
PoE powered (802.3af): 15 W
PoE+ powered (802.3at): 25 W
Idle mode: 8 W |
WLAN |
| Max. number of associated STAs | 256 (up to 128 STAs per radio) |
| Max. number of BSSIDs | 32 (up to 16 BSSIDs per radio) |
| STA management | SSID hiding
Each SSID can be configured with the authentication mode, encryption mechanism, and VLAN attributes independently.
Remote intelligent perception technology (RIPT)
Intelligent load balancing based on the STA quantity or traffic |
| STA limiting | SSID-based STA limiting
Radio-based STA limiting |
| Bandwidth limiting | STA/SSID/AP-based rate limiting |
| Wireless roaming | Layer 2 and Layer 3 roaming |
| Security and Authentication | RG-AP180P-L |
| Authentication and encryption | Remote Authentication Dial-In User Service (RADIUS)
PSK, web, 802.1x, WPA, WPA2, and WPA3 authentication
WPA3-Personal (SAE) and WPA3-Personal hybrid
QR code-based guest authentication
SMS authentication
MAB authentication
Data encryption: WPA-TKIP, WPA-PSK, WPA2-AES, WEP (64/128-bit) |
| Data frame filtering | Allowlist, static blocklist, and dynamic blocklist |
| WIDS | WIDS
User isolation
Rogue AP detection and containment |
| ACL | Dynamic ACL assignment
ACL assignment based on time spans
ACL assignment (complete entry) based on MAC addresses
Execution of pre-configured ACLs (entry index) based on MAC addresses |
| CPP | Supported |
| NFPP | Supported |
Management |
| Network management | NTP server and NTP client
SNTP client
SNMP v1/v2c/v3
Fault inspection and alarm
Information statistics and logging |
| Network management platform | Web-based management (Eweb) |
| STA access management | Console and Telnet-based management
FTP client and TFTP client |
| Fat/Fit/Cloud mode switchover | When the AP works in Fit mode, it can be switched to Fat mode through an AC.
When the AP works in Fat mode, it can be switched to Fit mode through the console port or Telnet.

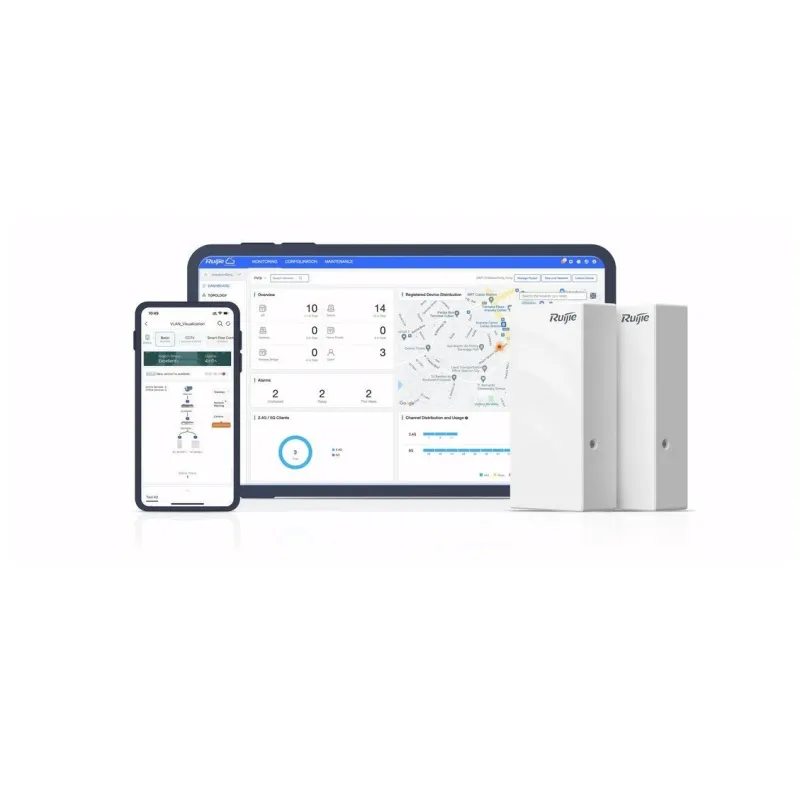

When the AP works in Cloud mode, it can be managed through Ruijie Cloud. |
| Routing and Switching | RG-AP180P-L |
| IP service | Static IPv4 address and DHCP-assigned IPv4 address |
| Multicast | Multicast-to-unicast conversion |
| IPv6 basics | IPv6 addressing, Neighbor Discovery (ND), ICMPv6, IPv6 Ping
IPv6 DHCP Client |
| IP routing | IPv4/IPv6 static routing |
| VPN | PPPoE client
IPsec VPN |
Dimensions and Weight |
| Unit dimensions (W x H x D) | 86 mm x 170 mm x 43 mm ( 3.4 in × 6.7 in × 1.7 in) |
| Shipping dimensions (W x D x H) | 399 mm x 367 mm x 245 mm ( 15.8 in × 14.5 in × 9.7 in) |
| Unit weight | Main unit: 0.3 kg (0.66 lbs)
Mounting bracket: 0.1 kg (0.22 lbs) |
| Shipping weight | 0.54 kg (1.19 lbs) |

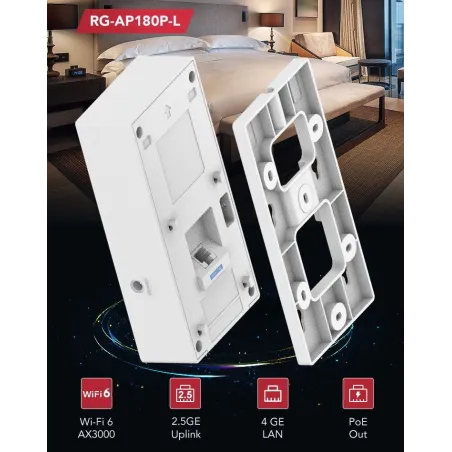

| Mounting | Wall-mount (a mounting bracket is delivered with the main unit)
Compatible with 86-mm, EU, and US standard junction boxes |
| Color | Elegant white |
| Lock option | Kensington lock |
Environment and Reliability |
| Temperature | Operating temperature: 0°C to 40°C (–32°F to +104°F)
Storage temperature: –40°C to 70°C (–40°F to +158°F)
Note: At an altitude between 3,000 m (9,843 ft) and 5,000 m (16,404 ft), every time the altitude increases by 220 m (722 ft), the maximum temperature decreases by 1°C (1.8°F). |
| Humidity | Operating humidity: 5% to 95% RH (non-condensing)
Storage humidity: 5% to 95% RH (non-condensing) |
| Environment standard | Storage and operating environment: NEBS GR-63-CORE_Issue3_2006 GB/T 2423.6-1995 |
| Mean Time Between Failure (MTBF) | 200,000 hours (22 years) at the operating temperature of 25°C (77°F) |
Certifications and Regulatory Compliance |
| Regulatory compliance | GB 4943.1
CE Marked, EN 55032. EN 55035
EN/IEC 61000-3-2, EN 61000-3-3
IEC/EN 62368-1 (replacing IEC/EN 60950-1)
RED Directive 2014/53/EU
EMC Directive 2014/30/EU
Low Voltage Directive 2014/35/EU |
| Certifications | Wi-Fi Alliance:
2.4 GHz and 5 GHz Spectrum Capabilities
Wi-Fi CERTIFIED a, b, g, n, ac, ax (6)
WPA2™-Enterprise 2018-04
WPA2™-Personal 2021-01
WPA3™-Enterprise 2020-02
WPA3™-Personal 2020-12
WPA™-Enterprise
WPA™-Personal
WMM®, W-Fi Agile Multiband™ |
| ประกัน | 3 ปี |
