Product Specification
|
|
Overview
|

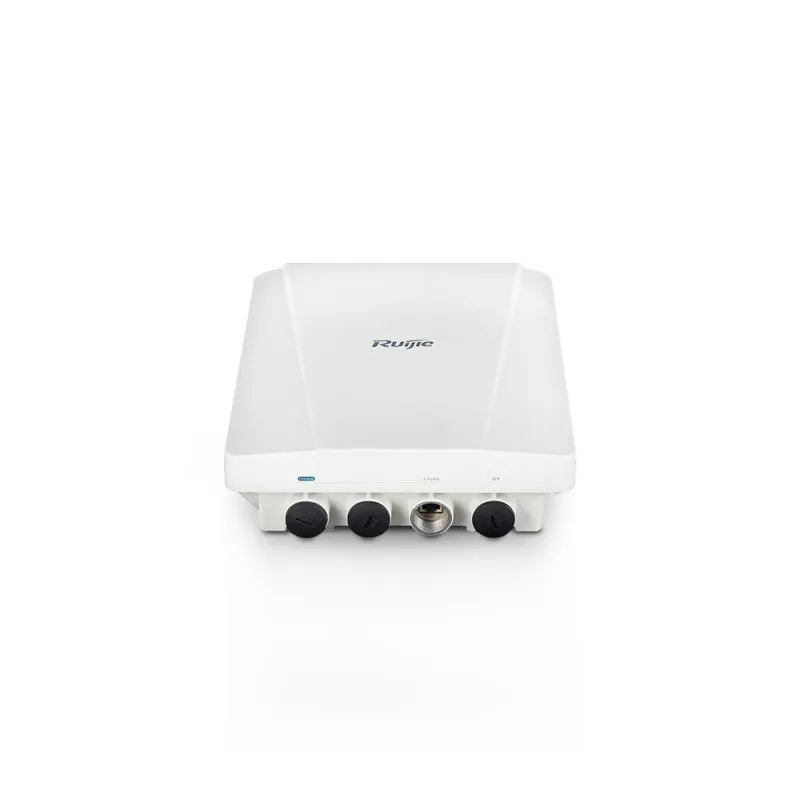

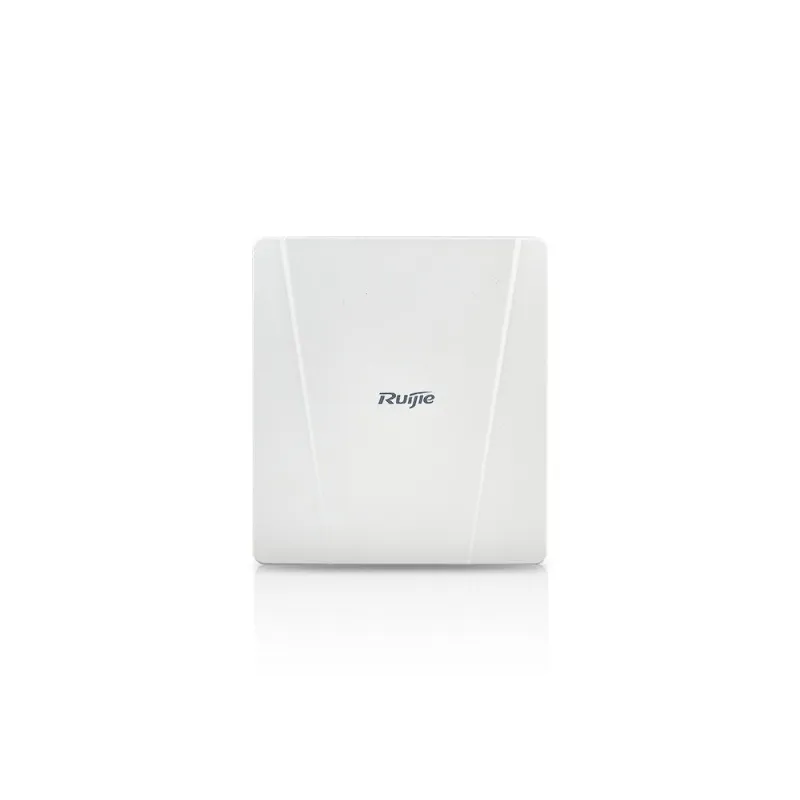

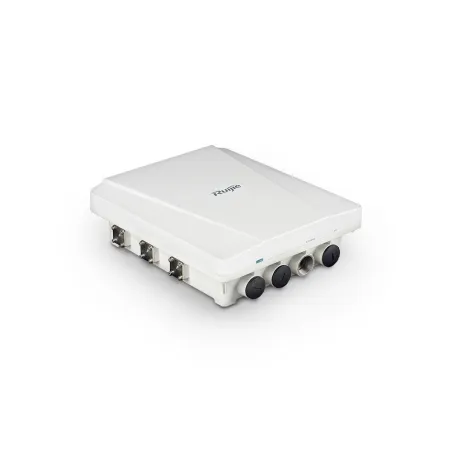

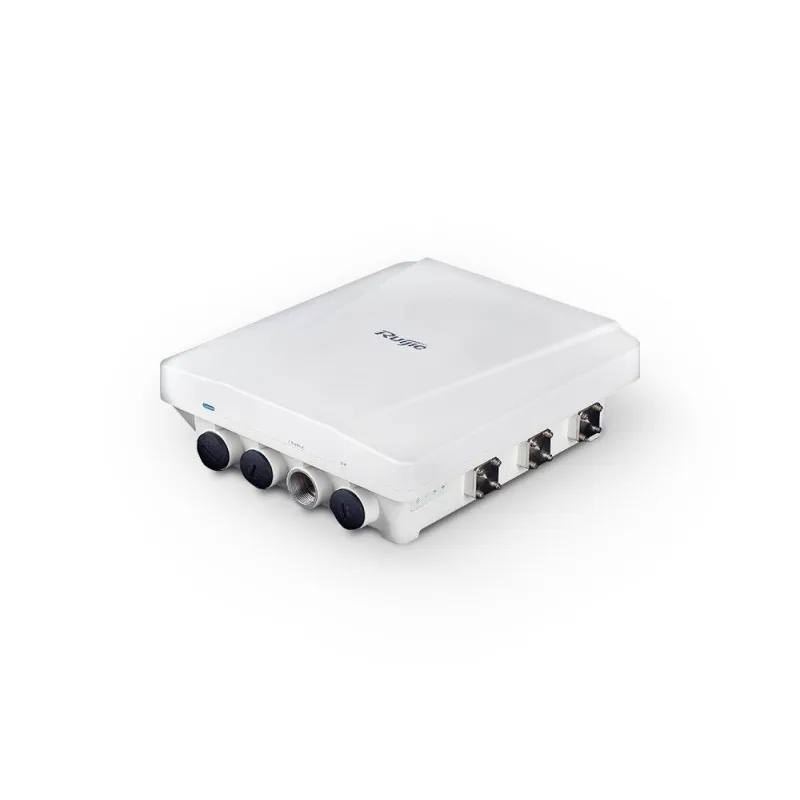

Ruijie RG-AP630(CD) Wireless Access Point AC Outdoor ความเร็ว 1.167Gbps MIMO Dual-Band, Port Lan Gigabit และ1 Port SFP (Combo) กันนำ้กันฝุ่นมาตรฐาน IP67 รองรับการ Control แบบ Stanalone, Free Cloud Control, Hardware Controll
รองรับการทำ Authenticate แบบ Captive Portal, Social Login
พร้อม Ruijie Cloud License แบบ Lifetime
|
|
Radio
|
Concurrent dual-radio dual-band
|
|
Wireless Protocol
|
802.11a/b/g/n/ac
|
|
Operating Bands
|
802.11b/g/n: 2.4GHz to 2.483GHz
.802.11a/n/ac: 5.150GHz to 5.350GHz, 5.47GHz to 5.725GHz, 5.725GHz to 5.850GHz
|
|
Antenna
|
Built-in directional antenna
|
|
Antenna Gain
|
10dBi
|
|
Max Throughput
|
300Mbps@2.4G
867Mbps@5G
1.167Gbps per AP
|
|
Spatial Streams
|
2
|
|
Modulation
|
OFDM: BPSK@6/9Mbps
QPSK@12/18Mbps
16-QAM@24Mbps
64-QAM@48/54Mbps
DSSS: DBPSK@1Mbps
DQPSK@2Mbps
CCK@5.5/11Mbps
MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM and 256QAM
|
|
Receiver Sensitivity
|
11b: -99dBm(1Mbps), -93dBm(5.5Mbps), -90dBm(11Mbps)
11a/g:-93dBm(6Mbps), -85dBm(24Mbps), -82dBm(36Mbps), - 77dBm(54Mbps)
11n:-92dBm@MCS0, -73dBm@MCS7, -92dBm@MCS8, -73dBm@MCS15
11ac HT20: -90dBm (MCS0) , -63dBm (MCS9)
11ac HT40: -85dBm(MCS0) , -60dBm (MCS9)
11ac HT80: -82dBm(MCS0) , -58dBm (MCS9)
|
|
Maximum Transmit Power
|
27dBm
Note: The transmit power is configurable to up to 15dBm in 1dBm steps. The actual transmit power depends on local laws and regulations.
|
|
IP Rating
|
IP67
|
|
Ports
|
1 10/100/1000Mbps ETH1/PoE IN port (RJ-45 connector); 1 SFP port (combo with ETH1)
|
|
Power Supply
|
PoE (802.3af)
Compatible with POE+
Not Include
|
|
Power Consumption
|
<12.95W
|
|
Maximum clients per AP
|
Up to 512
|
|
SSID capacity
|
Up to 14 per radio
Up to 28 per AP
|
|
SSID hiding
|
Support
|
|
Configuring the authentication mode. Encryption mechanism and VLAN attributes for each SSID
|
Support
|
|
Remote Intelligent Perception Technology (RIPT)
|
Support
|
|
X-speed
|
Support
|
|
Intelligent load balancing based on the number of users or traffic
|
Support
|
|
STA control
|
SSID/radio-based
|
|
Bandwidth control
|
STA/SSID/AP-based speed control
|
|
Preference for 5GHz (band select)
|
Support
|
|
Wireless position tracking
|
Support
|
|
Dynamic Frequency Selection(DFS)
|
Future Release Support
|
|
PSK, Web, and 802.1x authentication
|
Support
|
|
Data encryption
|
WPA (TKIP) , WPA2 (AES), WPA-PSK, and WEP (64 or 128 bits)
|
|
QR code authentication
|
Support
|
|
SMS authentication
|
Support
|
|
PEAP authentication
|
Support
|
|
Data frame filtering
|
Whitelist, static/dynamic blacklist
|
|
User isolation
|
Support
|
|
Rogue AP detection and countermeasure
|
Support
|
|
Dynamic ACL assignment
|
Support
|
|
WAPI
|
Support
|
|
RADIUS
|
Support
|
|
CPU Protection Policy (CPP)
|
Support
|
|
Network Foundation Protection Policy (NFPP)
|
Support
|
|
Wireless Intrusion Detection System(WIDS)
|
Support
|
|
Wireless Intrusion Prevention System (WIPS)
|
Support
|
|
IPv4 address
|
Static IP address or DHCP reservation
|
|
IPv6 CAPWAP tunnel
|
Support
|
|
ICMPv6
|
Support
|
|
IPv6 address
|
Manual or automatic configuration
|
|
Multicast
|
Multicast to unicast conversion
|
|
Network management
|
SNMP v1/v2C/v3, Telnet, SSH, TFTP, and FTP and web management
|
|
Visualized wireless heat map analysis
|
Support (need to integrate with SNC)
|
|
Real-time spectrum analysis
|
Support (need to integrate with SNC)
|
|
Fault detection and alarm
|
Support
|
|
Cloud AC management
|
Support
|
|
Statistics and logs
|
Support
|
|
FAT/FIT switching
|
The AP working in FIT mode can switch to the FAT mode through the RG-WS wireless AC.
The AP working in FAT mode can switch to the FIT mode through a local console port or Telnet.
|
|
Lock
|
Support
|
|
LED Indicators
|
Power status and WDS signal strength
|
|
Wi-Fi Alliance Certification
|
Support
|
|
Safety Standard
|
GB4943, UL/CSA 60950-1, EN/IEC 60950-1, EN/IEC 60950-22
|
|
EMC Standard
|
GB9254-2008, EN301 489, EN55022, FCC Part15
|
|
Health Standard
|
FCC Bulletin OET-65C ,EN 50385, IC Safety Code 6
|
|
Radio Standard
|
FCC Part15,EN300328, EN301893
|
|
Vibration Standard
|
GB/T 2423
|
|
Dimensions (W x D x H) (mm)
|
276 × 246 × 90
|
|
Weight
|
<2.5kg
|
|
Temperature
|
Operating Temperature: -40°C to 55°C
Storage Temperature: -40°C to 70°C
|
|
Humidity
|
Operating Humidity: 5% to 95% (non-condensing)
Storage Humidity: 5% to 95% (non-condensing)
|
|
Installation Mode
|
Wall/pole-mount installation
|
|
ประกัน
|
3 ปี
|
