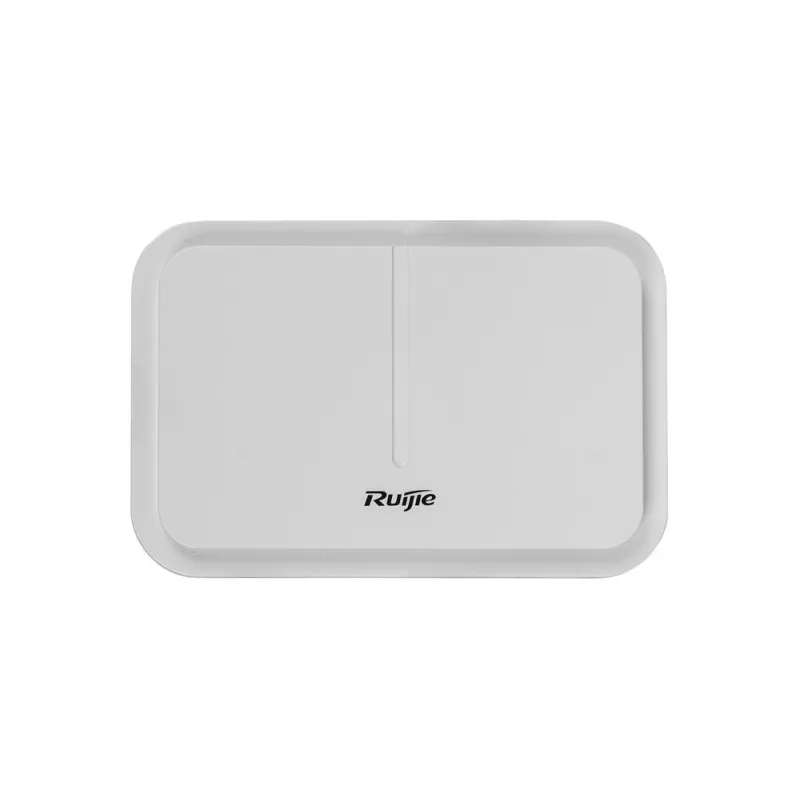

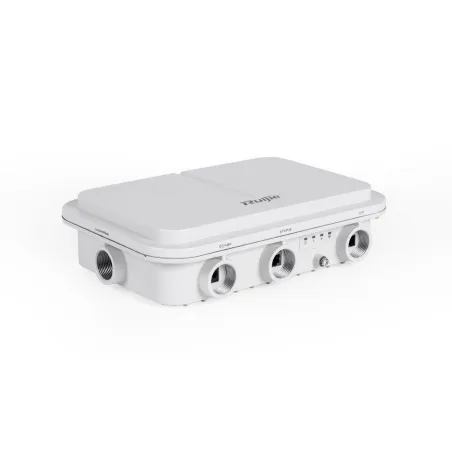

Ruijie RG-AP680(CD) Wireless Access Point Outdoor มาตรฐาน WIFI6 ความเร็ว 1.775Gbps , Port Lan Gigabit, 1 Port SFP, เสา 60 องศา สำหรับ Point To Point ระยะไม่เกิน 3Km ที่ต้องการความเร็วสูงสุด
Review ระบบ Controller Managed & Monitor อุปกรณ์ Ruijie ผ่าน Cloud
Ruijie RG-AP680(CD) Wireless Access Point Datasheet
Ruijie RG-AP680(CD) Series Access Points Hardware Installation and Reference Guide
How Wi-Fi6 and 5G change our Campus Network Design-Ruijie Networks Wi-Fi 6 Technology White Paper
WiFi6 (802.11ax) Technology White Paper
Product Specification | |
Overview | Ruijie RG-AP680(CD) Wireless Access Point Outdoor มาตรฐาน WIFI6 ความเร็ว 1.775Gbps , Port Lan Gigabit, 1 Port SFP, เสา 60 องศา สำหรับ Point To Point ระยะไม่เกิน 3Km ที่ต้องการความเร็วสูงสุด กันนำ้กันฝุ่นมาตรฐาน IP68 รองรับการ Control แบบ Stanalone, Free Cloud Control, Hardware Controll พร้อม Ruijie Cloud License แบบ Lifetime |
Radio | Dual-radio dual-band |
Protocol | Concurrent 802.11ax and 802.11a/b/g/n/ac BLE 5.0 |
Operating Bands | 802.11b/g/n/ac/ax : 2.4G ~ 2.4835GHz |
Antenna | Built-in directional antenna |
Antenna Loba Orientation | Internal Directional: 60 degrees total |
Antenna Gain | 9dBi |
Spatial Streams | 4 spatial streams, MU-MIMO |
Max Throughput | Up to 0.575Gbps@2.4G |
Modulation | OFDM : BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps DSSS : DBPSK@1Mbps, DQPSK@2Mbps, and CCK@5.5/11Mbps MIMO-OFDM : BPSK, QPSK, 16QAM, 64QAM and 256QAM OFDM : BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps DSSS : DBPSK@1Mbps, DQPSK@2Mbps, and CCK@5.5/11Mbps MIMO-OFDM : BPSK, QPSK, 16QAM, 64QAM,256QAM and 1024QAM |
Receiver Sensitivity | 1b : -91dBm (1Mbps), -88dBm (5Mbps), -85dBm (11Mbps) |
Maximum Transmit Power | 28dBm |
Adjustable Power | 1dBm |
Dimensions | 251mm × 168mm × 64mm (without mounting bracket) |
Weight | 1.5kg |
Service Ports | 1 10/100/1000Base-T Ethernet uplink port (PoE) |
Management Port | 1 console port |
Bluetooth | Support switching between Bluetooth serial port and iBeaconSupport switching between Bluetooth serial port and iBeacon |
Power Supply | Support PoE (802.3af / 802.3at) (ไม่มีในชุด) |
Power Consumption | 12.95W |
Operating Environment | Operating Temperature: -40~65°C |

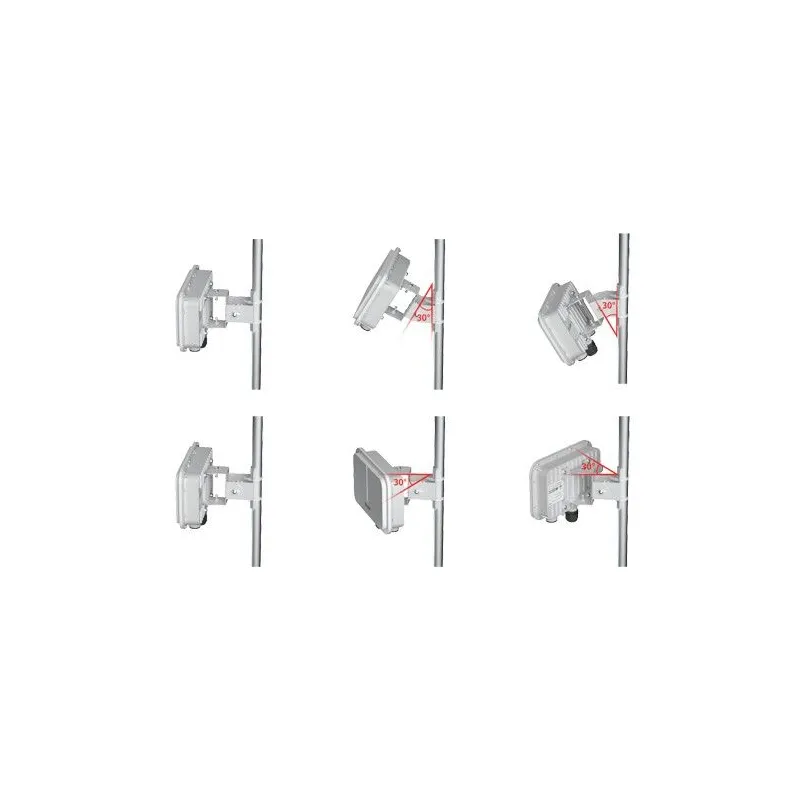

Installation Mode | Wall/pole-mount installation |
IP Rating | IP68 |
Surge Protection | Common mode +/-9kV |
Safety Standard | GB4943, EN/IEC 60950-1 |
EMC Standard | GB9254, EN301 489 |
Radio Standard | SRRC, EN300 328, EN301 893 |
Software Features |
|
Maximum clients per AP | 1024 |
SSID capacity | Up to 32 |
SSID hiding | Support |
Configuring the authentication mode, encryption mechanism and VLAN attributes for each SSID | Support |
Remote Intelligent Perception Technology (RIPT) | Support |
Smart device recognition | Support |
Intelligent load balancing based on the number of users or traffic | Support |
STA control | SSID/radio-based |
Bandwidth control | STA/SSID/AP-based speed control |
PSK and web authentication | Support |
Data encryption | WPA (TKIP), WPA-PSK, WPA2 (AES), WEP (64 / 128-bit) |
WeChat authentication | Support |
QR code authentication | Support |
SMS authentication | Support |
PEAP authentication | Support |
Data frame filtering | Whitelist, static/dynamic blacklist |
User isolation | Support |
Rogue AP detection and countermeasure | Support |
Dynamic ACL assignment | Support |
RADIUS | Support |
CPU Protection Policy (CPP) | Support |
Network Foundation Protection Policy (NFPP) | Support |
Routing | Static IP address or DHCP |
Supported wireless LAN controllers | Ruijie WS Series Wireless Controller |
Management protocol | Telnet, SSH, TFTP, Web |
Wireless Intelligent AI Optimization Service (WIS) | Support |
SNMP | SNMPV1,V2c,V3 |
Syslog / Debug | Support |
FAT/FIT/MACC mode switching | Factory default firmware supports FAT (standalone) or FIT mode (WS controller) or MACC mode (Ruijie MACC-Base or Ruijie Cloud) management |
ประกัน | 3 ปี |
