Product Specification
|
|
Overview
|

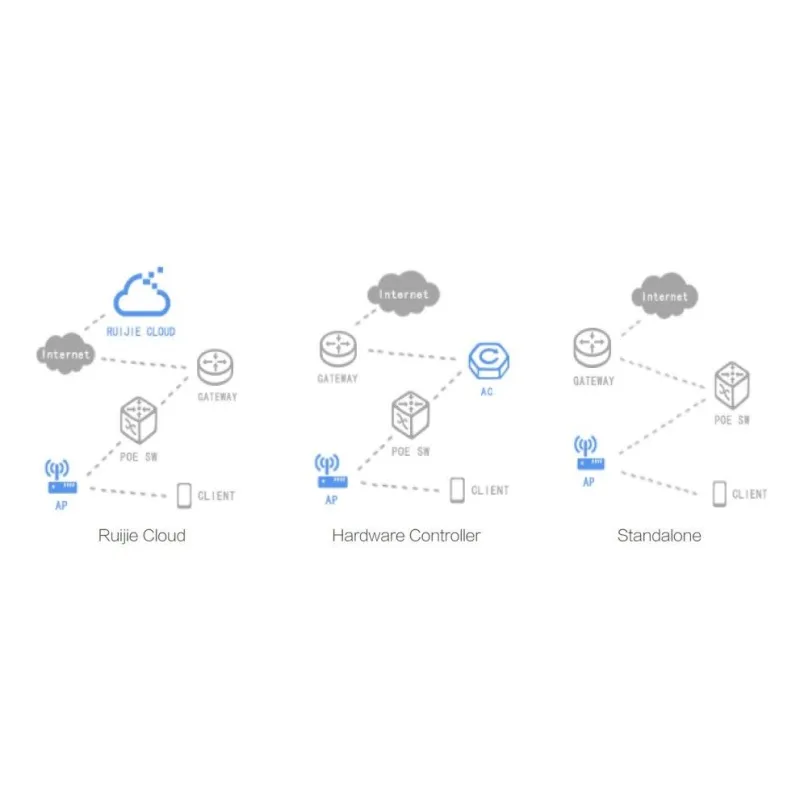

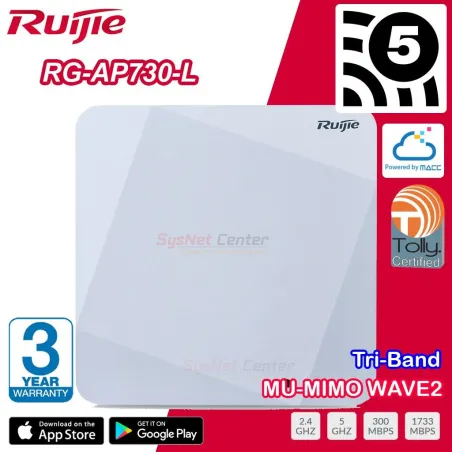

Ruijie RG-AP730-L Wireless Access Point AC Tri-Band Wave 2 ความเร็วสูงสุด 2.130Gbps Dual-Band 2x2 MU-MIMO, Port Lan Gigabit, รองรับการ Control แบบ Stanalone, Free Cloud Control, Hardware Control
รองรับการทำ Authenticate แบบ Captive Portal, Social Login
พร้อม Ruijie Cloud License แบบ Lifetime
|
|
Type
|
Indoor Ceiling/Wall-mounting
|
|
Radio
|
Tri-band (2.4G+5G+5G)
|
|
Protocol
|
802.11a/b/g/n/ac Wave 2
|
|
Operating Bands
|
802.11b/g/n: 2.4GHz to 2.483GHz
802.11a/n/ac: 5.150GHz to 5.350GHz, 5.47GHz to 5.725GHz, 5.725GHz to 5.850GHz (vary depending on countries)
|
|
Antenna
|
Built-in Antenna
|
|
Max Throughput
|
2,130Mbps
|
|
Spatial Streams
|
2 x 2
|
|
Maximum Transmit Power
|
100 mW
|
|
IP Rating
|
IP41
|
|
Ports
|
1 10/100/1000BASE-T Ethernet uplink
Port LAN1 supports PoE+
1 Console Port
|
|
Power Supply
|
Not Include
Local power supply (DC 48V/0.6A)
PoE (802.3at）
|
|
Power Consumption
|
<25.5W
|
|
Maximum clients per AP
|
768
|
|
BSSID capacity
|
48
|
|
Remote Intelligent Perception Technology (RIPT)
|
Support
|
|
Intelligent load balancing based on the number of users or traffic
|
Support
|
|
STA control
|
Support
|
|
Bandwidth control
|
Support
|
|
Preference for 5GHz (band select)
|
Support
|
|
Band Steering (5G Priority)
|
Support
|
|
PSK, Web, 802.1x authentication
|
Support
|
|
PPSK authentication
|
Support
|
|
Data encryption
|
WPA (TKIP), WPA2 (AES), WPA-PSK, and WEP (64 or 128 bits)
|
|
PEAP authentication
|
Support
|
|
User isolation
|
Support
|
|
Rogue AP detection and countermeasure
|
Support
|
|
RADIUS
|
Support
|
|
Wireless Intrusion Detection System(WIDS)
|
Support
|
|
Wireless Intrusion Prevention System (WIPS)
|
Support
|
|
IPv4 address
|
Static IP address or DHCP reservation
|
|
IPv6 address
|
Manual or automatic configuration
|
|
Multicast
|
Multicast to unicast conversion
|
|
Network management
|
SNMP v1/v2C/v3, Telnet, TFTP, Web management
|
|

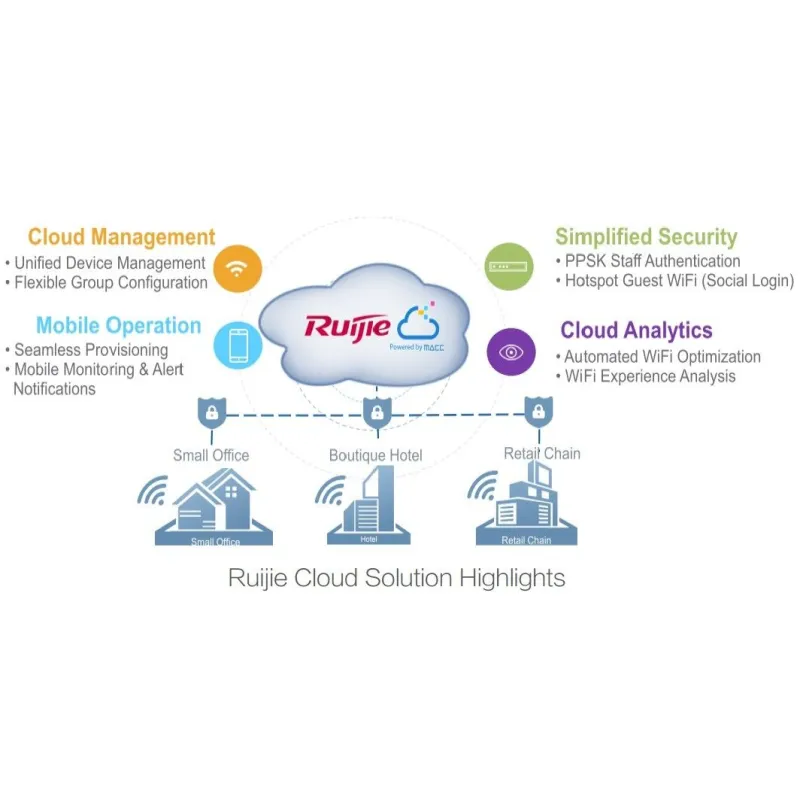

Cloud AC management
|
Support
|
|
FAT/FIT switching
|
Support
|
|
Lock
|
Support
|
|
LED Indicators
|
1 LED indicator (red, green, blue, orange, and flashing modes, breathing flashing mode for smart device access, and the indicator can be switched off to enable silence mode)
|
|
Wi-Fi Alliance Certification
|
Support
|
|
Radio Standard
|
EN300 328
EN301 893
|
|
EMC Standard
|
GB9254
EN301 489-1
EN301 489-17
|
|
Safety Standard
|
GB4943
EN/IEC 60950-1
|
|
Dimensions (W x D x H) (mm)
|
230x230x42
|
|
Weight
|
1.3kg
|
|
Temperature
|
Operating Temperature:
-10°C to 50°C
Storage Temperature:
-40°C to 70°C
|
|
Humidity
|
Operating Humidity:
5% to 95% (non-condensing)
Storage Temperature:
5% to 95% (non-condensing)
|
|
ประกัน
|
3 ปี
|
