Product Specification
|
|
Overview
|

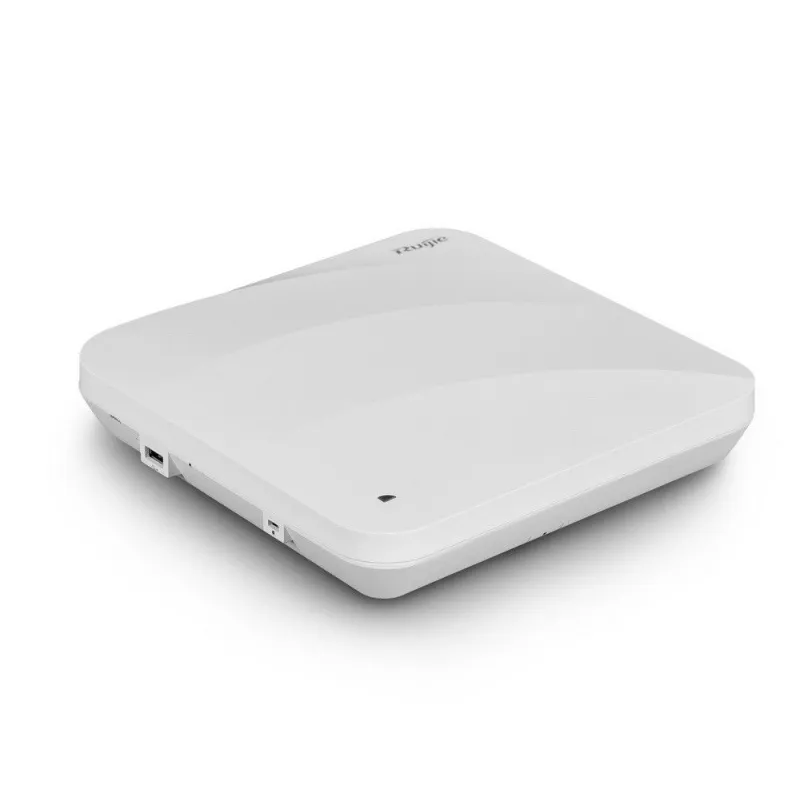

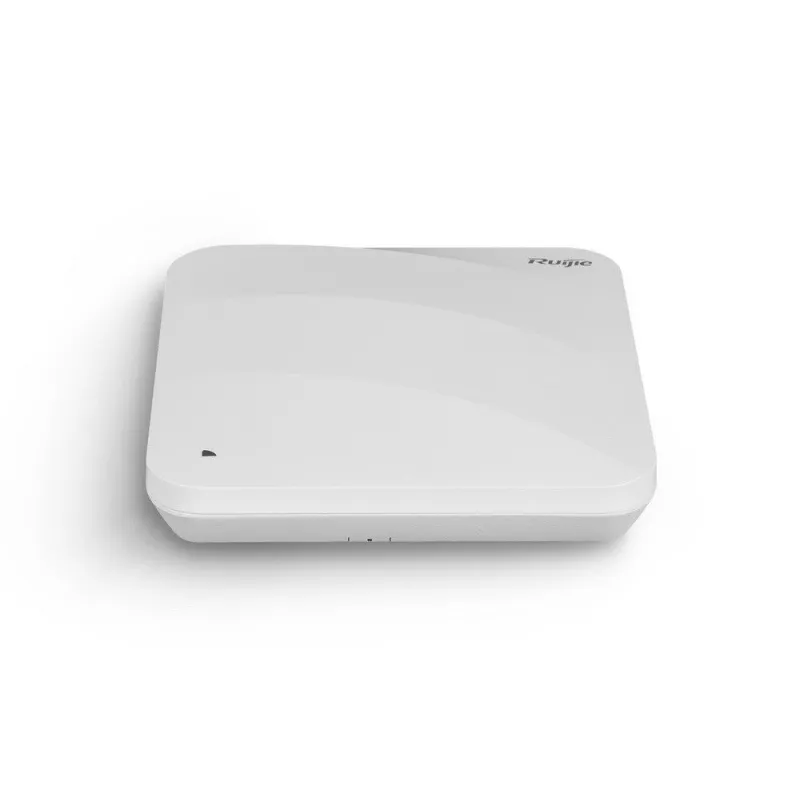

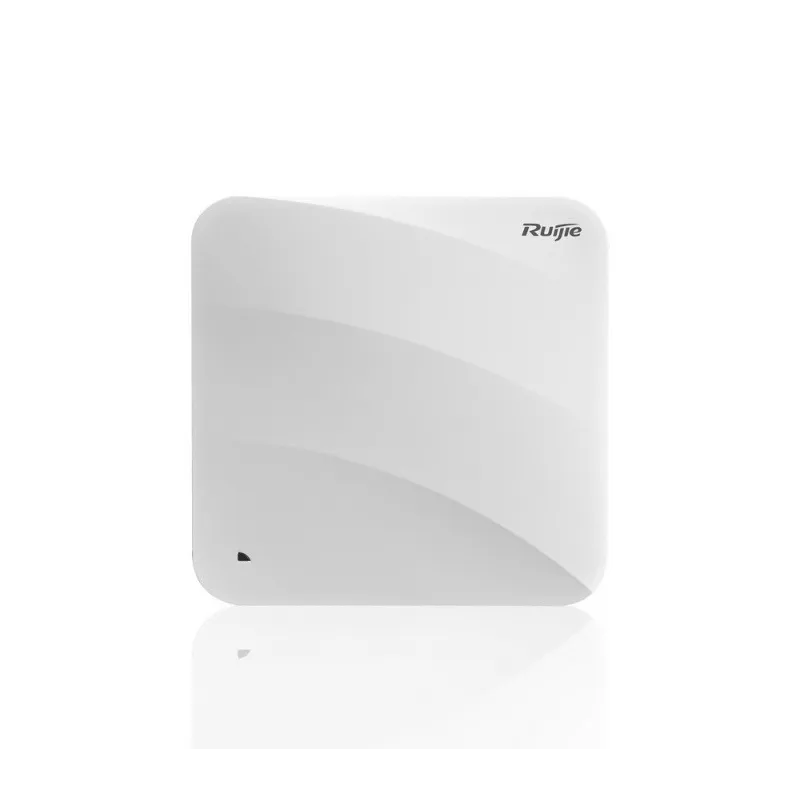

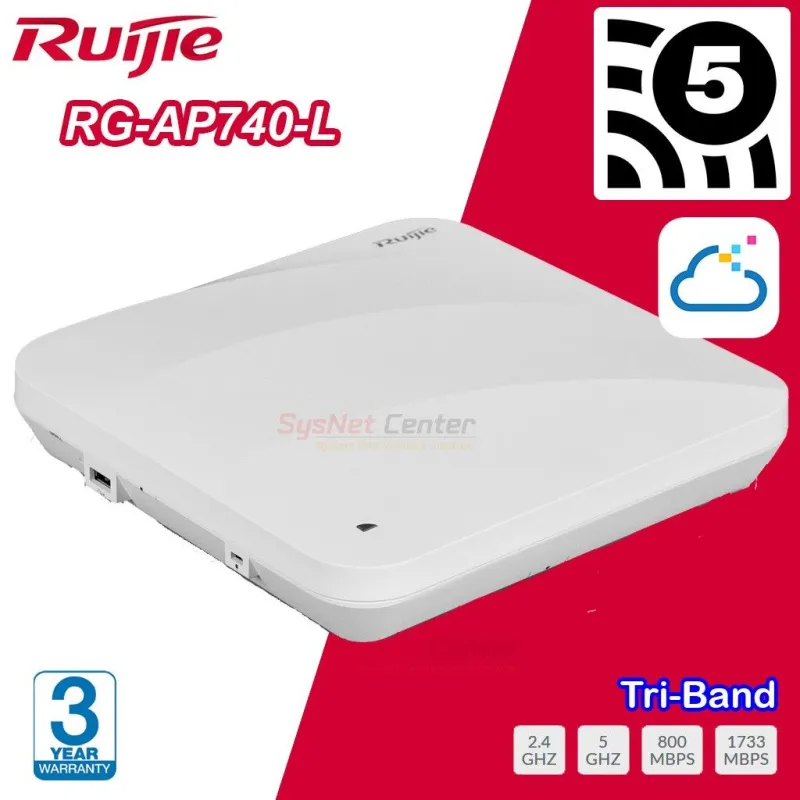

Ruijie RG-AP740-L Wireless Access Point ac MU-MIMO Wave 2 ความเร็ว 2.966Gbps Tri-Band 4x4 MU-MIMO Wave 2, Port Lan Gigabit, รองรับการ Control แบบ Stanalone, Free Cloud Control, Hardware Control
รองรับการทำ Authenticate แบบ Captive Portal, Social Login
พร้อม Ruijie Cloud License แบบ Lifetime
|
|
Radio
|
Concurrent tri-radio dual-band
|
|
Protocol
|
802.11a/b/g/n/ac
|
|
MU-MIMO Wave 2
|
|
Operating Bands
|
802.11b/g/n: 2.4GHz to 2.483GHz
|
|
802.11a/n/ac: 5.150GHz to 5.350GHz,
5.47GHz to 5.725GHz,
5.725GHz to 5.850GHz (vary depending on countries)
|
|
Antenna
|
Built-in "X-Sense 4" Smart Antenna
|
|
4×4 MU-MIMO
|
|
Max Throughput
|
1733Mbps/800Mbps/433Mbps per radio
|
|
2966Mbps per AP
|
|
Spatial Streams
|
4
|
|
Modulation
|
OFDM: BPSK@6/9Mbps
|
|
QPSK@12/18Mbps
|
|
16-QAM@24Mbps
|
|
64-QAM@48/54Mbps
|
|
DSSS:
|
|
DBPSK@1Mbps
|
|
DQPSK@2Mbps
|
|
CCK@5.5/11Mbps
|
|
MIMO-OFDM:
|
|
PSK, QPSK, 16QAM, 64QAM and 256QAM
|
|
Receiver Sensitivity
|
11b：-91dBm(1Mbps)，-88dBm(5Mbps)，-85dBm(11Mbps)
|
|
11a/g：-89dBm (6Mbps -80dBm (24Mbps)，-76dBm (36Mbps)，-71dBm (54Mbps)
|
|
11n：-83dBm@MCS0，-65dBm@MCS7，-83dBm@MCS8，-65dBm@MCS15
|
|
11ac HT20：-83dBm (MCS0) , -57dBm (MCS9)
|
|
11ac HT40：-79dBm (MCS0) , -57dBm (MCS9)
|
|
11ac HT80：-76dBm (MCS0) , -51dBm (MCS9)
|
|
Maximum Transmit Power
|
100mw
|
|
Adjustable Power
|
1dBm
|
|
IP Rating
|
IP41
|
|
Service Port
|
2 10/100/1000BASE-T Ethernet uplink ports (Both ports support PoE) 1 USB port
|
|
Management Port
|
1 console port
|
|
Power Supply
|
Local power supply (DC 48V) and PoE+ (802.3af/802.3at)
|
|
Support dual PoE for power backup
|
|
(Power adapters sold separately)
|
|
Power Consumption
|
< 25.4W
|
|
Maximum clients per AP
|
Up to 612
|
|
BSSID capacity
|
Up to 16 per radio Up to 48 per AP
|
|
SSID hiding
|
Support
|
|
Configuring the authentication mode, encryption mechanism and VLAN attributes for each SSID
|
Support
|
|
Remote Intelligent Perception Technology (RIPT)
|
Support
|
|
X-speed
|
Support
|
|
Intelligent load balancing based on the number of users or traffic
|
Support
|
|
STA control
|
SSID/radio-based
|
|
Bandwidth control
|
STA/SSID/AP-based speed control
|
|
Preference for 5GHz (band select)
|
Support
|
|
Wireless position tracking
|
Support
|
|
Dynamic Frequency Selection(DFS)
|
Future Release Support
|
|
PSK, Web, and 802.1x authentication
|
Support
|
|
Data encryption
|
WPA (TKIP), WPA2 (AES),
WPA-PSK, and WEP (64 or 128 bits)
|
|
SMS authentication
|
Support
|
|
PEAP authentication
|
Support
|
|
Data frame filtering
|
Whitelist, static/dynamic blacklist
|
|
User isolation
|
Support
|
|
Rogue AP detection and countermeasure
|
Support
|
|
Dynamic ACL assignment
|
Support
|
|
RADIUS
|
Support
|
|
Wireless Intrusion Detection System(WIDS)
|
Support
|
|
Wireless Intrusion Prevention System (WIPS)
|
Support
|
|
iBeacon
|
Support
|
|
IPv4 address
|
Static IP address or DHCP reservation
|
|
IPv6 CAPWAP tunnel
|
Support
|
|
ICMPv6
|
Support
|
|
IPv6 address
|
Manual or automatic configuration
|
|
Multicast
|
Multicast to unicast conversion
|
|
Network management
|
SNMP v1/v2C/v3, Telnet, TFTP, Web management
|
|
One-click Optimization
|
Support
|
|
(need to integrate with WIS)
|
|
Fault detection and alarm
|
Support
|
|
Cloud AC management
|
Support
|
|
Statistics and logs
|
Support
|
|
FAT/FIT switching
|
The AP working in FIT mode can switch to the FAT mode through the RG-WS wireless AC.
|
|
The AP working in FAT mode can switch to the FIT mode through a local console port or Telnet.
|
|
Lock
|
Support
|
|
LED Indicators
|
1 LED (red, green, blue, orange, and flashing modes, breathing flashing mode for smart device access, and the indicator can be switched off to silent mode)
|
|
Wi-Fi Alliance Certification
|
Support
|
|
Safety Standard
|
GB4943, EN/IEC 60950-1
|
|
EMC Standard
|
GB9254, EN301 489
|
|
Health Standard
|
EN 62311
|
|
Radio Standard
|
EN300 328, EN301 893
|
|
Vibration Standard
|
IEC60068 2-31, ETSI EN300 019,
|
|
NEBS GR-63-CORE
|
|
Dimensions (W x D x H) (mm)
|
230 × 230 × 42
|
|
(Height of AP only, excluding case and mount kit)
|
|
Weight
|
1.3kg
|
|
Temperature
|
Operating Temperature: -10°C to 50°C
|
|
Storage Temperature: -40°C to 70°C
|
|
Humidity
|
Operating Humidity: 5% to 95% (non-condensing)
|
|
Storage Humidity: 5% to 95% (non-condensing)
|
|
ประกัน
|
3 ปี
|
