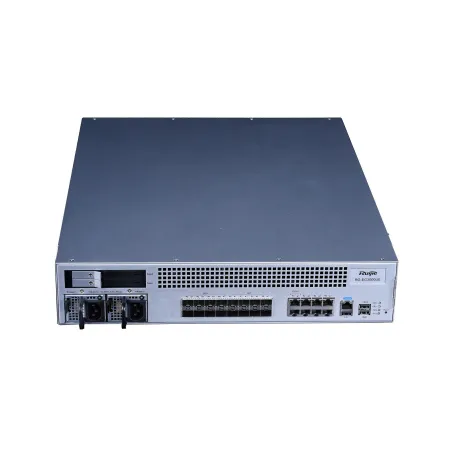

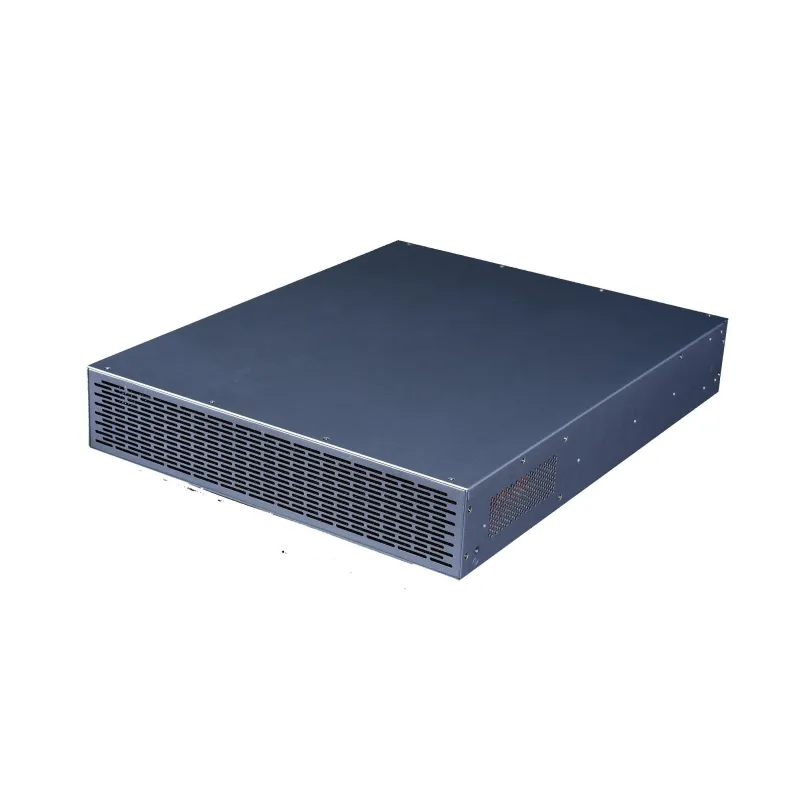

Ruijie RG-EG3000XE Next-Generation Integrated Gateway Throughput 60Gbps

Product Specification

Overview

Ruijie RG-EG3000XE Next-Generation Integrated Gateway Throughput 60Gbps, 8 Port Gigabit, 8 Port SFP+ 10Gbps, 2 QSFP+ 40Gbps, L7 DPI, Flow Control, VPN, Audit Log

16,000,000 Sessions รองรับ 20,000 Users

CPU

Multi-core MIPS

Fixed Ports

8 GE combo ports
8 10G SFP+ ports
2 40G QSFP+ ports

Hard Disk

1 hard disk slots
(hard disks sold separately)

Power Slots

2 (Power Supply Unit Included)

Power Redundancy

Yes (Hot Swappable)

Memory

32G

Copper Bypass

1 pair (2 ports)

Fiber Bypass

2

Management Ports

1 console port
1 USB 2.0 port

Dimensions
(W x D x H) (mm)

440*550*88.1

Rack Height

2U

Weight

14.3KG

Power Supply

AC input:
Rated voltage range: 100V to 240V AC
Maximum voltage range: 90V to 264V AC
Frequency: 50Hz to 60Hz

Power Consumption

<150W

Performance

60 Gbps (1518 bytes)
40 Gbps (512bytes)
11 Gbps (64 bytes)

Concurrent Session

16,000,000

Recommended Concurrent User

20k

Portal Authentication Capacity

10K (Max Concurrent Users)

Portal Authentication Type

Username/Password Auth (Local, Windows-based AD/LDAP Integration)
One-click Authentication;
Guest Voucher (Ruijie Cloud required);

Seamless Authentication (Portal)

Support

Network Protocol

Support TCP/IP protocols, including IP, ICMP, TCP, UDP, etc.
Support multiple routing protocols, including static routing, RIP (V1 / V2) and OSPF
Support DHCP Relay and DHCP Server
Support PPPoE
Support NAT and multiple NAT ALG including FTP, H.323, DNS, etc.
Support ARP, trusted ARP, proxy ARP, etc.
Support Ping and Traceroute fault detection
Support QoS (PQ, CQ, FIFO, WFQ, CBWFQ, etc.)

Application Visibility

Support self-developed 43 types of applications / more than 120  application features, customizable protocol identification:
P2P: BitTorrent, eMule, Thunder, EDONKEY, FlashGet & etc.
Multimedia: YouTube, Facebook Video, WebEx Conference & etc.
Social Media: Facebook, Twitter, LinkedIn, Pinterest & etc.
VOIP/Chat: Skype, Viber, Google Hangout, Jabber, Facebook Messenger & etc.
Instant Messaging/Email: Gmail, MSN, QQ, YAHOO & etc.
Software Update: Window, McAfee, Kaspersky, ESET & etc.
Cloud-based File Collaboration: GoogleDrive, Dropbox, OneDrive, iCloud & etc.
Enterprise Application：HTTP, FTP, SMTP, POP3, IMAP, Telnet, LOTUS-NOTES, SQL Server, Oracle, Mysql, HTTPS & etc.

Network Security

Anti-ARP Spoofing
Defense against malicious attacks from internal and external networks
Support secure address binding
Block WAN Ping
Prevent Port Scan Attack
Prevent Fragmentation Attack
Prevent ICMP Flood Attack
Prevent Teardrop Attack
Prevent Ping of Death Attack
Prevent Land Attack
Prevent Smurf / Fraggle attack
Prevent SYN Flood Attack

URL Filtering

Support custom URLs
Support remote HTTP automatic URL library upgrade
Local log storage (NAT log, traffic log, URL log, etc.)
Support storage on external log server

IPsec VPN Tunnel

4000

Layer 2 Features

Support Bridging
Support LAN Port Aggregation

Ruijie Cloud Integration Feature

Support device health monitoring status
Support centralized configuration change management & backup
Support Top 10 Application/User traffic visualization
Support device firmware management
Support event-based alarm notification

Other Features

Support web authentication
Support push advertising page
Support IPsec VPN
Support smart DNS
Support multi-link load balancing
Support remote HTTP online upgrade for signature library, software version, etc.

Service and Support

Support multi-link load balancing
Support remote HTTP online upgrade for signature library, software version, etc.
Lifetime Free signature library upgrade

ประกัน

3 ปี
