RG-S2915-10GT2MS-P-L Ruijie L2+ Managed PoE+ Switch 8-Port Lan ,2 Port 2.5G SFP
  • RG-S2915-10GT2MS-P-L Ruijie L2+ Managed PoE+ Switch 8-Port Lan ,2 Port 2.5G SFP
  • RG-S2915-10GT2MS-P-L Ruijie L2+ Managed PoE+ Switch 8-Port Lan ,2 Port 2.5G SFP

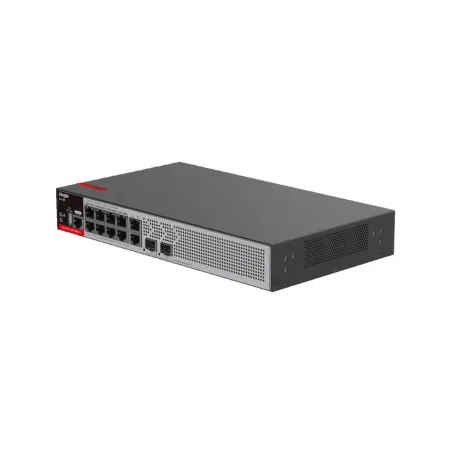

RG-S2915-10GT2MS-P-L Ruijie L2+ Managed PoE+ Switch 8-Port Lan ,2 Port 2.5G SFP

Ruijie Networks

RG-S2915-10GT2MS-P-L

RG-S2915-10GT2MS-P-L, L2+ Managed PoE+ Switch 8-Port Lan ความเร็ว Gigabit พร้อม 2 Port SFP 2.5G, Surge protection 10kV, จ่ายไฟ POE 8 Port 125W

฿0.00
ยังไม่ได้รวมภาษี
จำนวน
20 รายการ

Rating:
(0)


ตัวแทนจำหน่าย Ruijie อย่างเป็นทางการ สอบถามราคาส่วนลดพิเศษ


Support / ติดตั้งด้วยทีมงาน
Certificate


สอบถามรายละเอียดสินค้าเพิ่มเติม LINE: @sysnet

Click ขอใบเสนอราคา

close

แบบฟอร์มขอใบเสนอราคา



รายละเอียด

RG-S2915-L Series Simplified Gigabit Switch Datasheet
Ruijie RG-S2915-L Series Switches Configuration Guide (V1.2)

Ruijie RG-S2915-L Series Switches Command Reference (V1.1)

RG-S2915-L Series Switches Web-based Configuration Guide (V1.0)

Ruijie RG-S2915-L Series Switches Hardware Installation and Reference Guide (V1.1)



Ruijie RG-S2915-10GT2MS-P-L, 8-Port gigabit L2+ managed PoE+ switch with two 2.5G uplink fiber ports

Highlight Features

  • 2.5G uplink, which can upgrade gigabit networks to 10GE networks, and meet 40GE/100GE networking requirements in the future
  • RLDP used to provide smooth network connections
  • 10 kV surge protection for ports and high reliability
  • Compliance with standard protocols and application in various scenarios
  • Ease of use through Ruijie Cloud for management and remote O&MUnique CPU protection policy, ensuring stability of the switch and nonstop services



Product Specification

Overview

Ruijie RG-S2915-10GT2MS-P-L L2+ Managed PoE+ Switch 8-Port Lan ความเร็ว 1Gbps พร้อม 2 Port SFP 2.5G, Surge protection 10kV, จ่ายไฟ POE 8 Port 125W
รองรับการ Managed ผ่าน Ruijie Cloud

Switching Capacity

30Gbps

Packet Forwarding Rate

22.5 Mpps

Fixed Service Ports

10 × 10/100/1000Base-T Ethernet ports with auto-negotiation
2 × 2.5GE/1GE SFP ports

Fixed Management Ports

1 × RJ45 console port, 1 × USB port

Cable Hot Swapping

Supported by service interfaces and power ports

CPU

ARM A9 CPU, 1.2GHz

SDRAM

512MB

MAC Address

16000

ARP Table

512

Jumbo Frame

9126

Routing Table Size (IPv4/IPv6)

64

ACL Entries

500

Device Size (W × D × H)

297 mm × 170 mm × 44.5 mm

Weight

2.5 kg

Rack Size

1 RU

Maximum Power Consumption

141 W (the PoE power is 125 W)

Rated Input Voltage Range

100 V AC to 240 V AC, 50 Hz to 60 Hz

PoE

PoE/PoE+ supported

Number of Fixed Fans

1

Heat Dissipation

Air-cooled heat dissipation

Noise

≤ 37 dB

Fan Speed Adjustment

Supported

Operating Temperature

0°C to 45°C

Storage Temperature

-40°C to 70°C

Temperature Monitoring

Supported

Temperature Alarm

Supported

Overtemperature Protection

Supported

Layer 2 Features

IEEE 802.1Q VLAN

Port-based VLAN
Voice VLAN

LLDP

Supported

MAC

Supported

RLDP

Supported

Spanning Tree

IEEE802.1d STP
IEEE802.1w RSTP

QinQ

Basic QinQ
Flexible QinQ

IGMP Snooping

IGMP v1,v2 Snooping

Layer 3 Features

ARP

ARP proxy
ARP Entry Timeout

Interface Features

Link Aggregation

Load balancing mode configurable
LACP

Mirror

Common service ports and aggregated ports can be configured as the source and destination ports of mirroring.
One-to-many mirroring, many-to-one mirroring, RSPAN

Ethernet

Jumbo frames

Application Protocol Features

DHCP

DHCP server
DHCP client
DHCP snooping
DHCP relay

DNS

DNS Client

NTP

NTP Client
NTP Server

TFTP

TFTP Client

Routing Protocol Specification

IP Routing

IPv4/IPv6 static routing
RIP, RIPng

ACL and QoS

ACL

Standard IP ACLs (IP-based hardware ACLs)
Extended IP ACLs (hardware ACLs based on IP addresses or TCP/UDP port IDs)
MAC-based extended ACLs (ACLs based on source MAC addresses or destination MAC addresses)
ACL 80
Global ACLs
ACL redirection

QoS

Flow-based rate limiting on the ingress
Port rate limiting
IEEE 802.1p/DSCP traffic classification
Eight priority queues per port
SP, WRR, DRR, SP+WFQ, SP+WRR, SP+DRR queue scheduling

Security Features

Filtering of invalid MAC addresses
Hardware CPP, NFPP
IP source guard
IEEE 802.1X authentication
RADIUS and TACACS+

PoE

IEEE 802.3af and 802.3at power supply standards
Automatic and energy saving power supply management mode
Uninterrupted power supply in hot start mode
Scheduled powering on /off PoE ports on the basis of time policy
Port priority
Note: Only RG-S2915-24GT4MS-P-L and RG-S2915-10GT2MS-P-L support the PoE function.

Ruijie Cloud

Supported

Management

SNMP, CLI (telnet/console), syslog/debug, NTP, TFTP, SSH, Web, and sFLOW

ประกัน

3 ปี



Killer Layer 2+ Access Switch RG-S2915-10GT2MS-P-L

Compliant with IEEE 802.3af and IEEE 802.3at (PoE+) standards, the switch can reliably
supply required power to IP surveillance, teleconference systems, and wireless network.

Ruijie RG-S2915-L Series

Ruijie RG-S2915-L Series



2.5G Uplink Provides Higher Bandwidth, Faster Speed and Wider Coverage

The 2.5G uplink optical port breaks the bottleneck of gigabit access, delivering higher
bandwidth and faster forwarding rate to support more access terminals.

 Ruijie RG-S2915 Switch Series



10 kV Surge Protection

Industry-leading port surge protection capability, strong protection ability, adaptation to harsh environment


Ruijie RG-S2915 Switch Series



Proprietary CPP Enables Stable and Reliable Running
and Uninterrupted Connection

The CPU Protection Policy (CPP) feature protects the CPU by controlling the type and size of packets sent to the CPU. This ensures the processing of normal protocol packets and management packets, and fully protects the CPU from unauthorized traffic, malicious attacks and excessive resource consumption.


Ruijie RG-S2915 Switch Series



RLDP - Rapid Link Detection Protocol

Eliminate network loops automatically

 Ruijie RG-S2915 Switch Series

Cloud, Make Your Business Easy

 Ruijie RG-S2915 Switch Series







รายละเอียดสินค้า
20 รายการ

ข้อมูลสินค้า

Layer Switch
L2 Managed
ความเร็ว Port Lan
1Gbps (Gigabit)
จำนวน Port Lan
8 Port
มาตรฐานจ่ายไฟ POE
802.3af/at (30W)
จำนวน Port POE
8 Port
SFP Port Gigabit
1 Port
SFP Port 2.5Gigabit
มากกว่า 2 Port
