Product Specification |

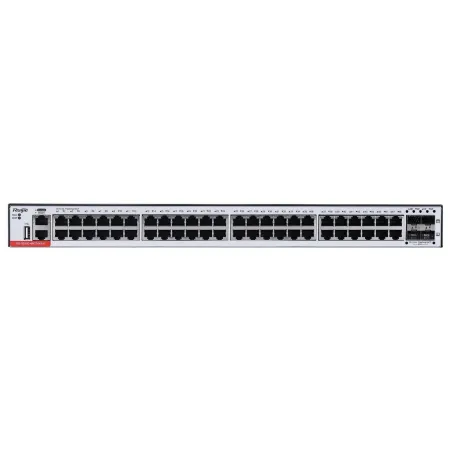

Overview | Ruijie RG-S5300-48GT4XS-E L3-Managed Switch 48 Port, 4 Port SFP+ ,รองรับ VSU, IPv4/IPv6 Dual-stack Multi-layer Switching, Dynamic Routing RIP, OSPF, IS-IS, BGP |
Fixed Ports | 48 x 10/100/1000Mbps
adaptive electrical
ports, 2 x 1G SFP
ports, 2 x 1G/10G
SFP+ ports (the default rate is 1Gbps)
(Note: 10G uplink port activation software license needs to purchase separately) |
Switching Capacity | 432 G/4.32 Tbps |
Packet Forwarding Rate | 144 Mpps/166 Mpps |
MAC Address | 32K |
ARP Table | 4K |
Routing Table Size (IPv4/IPv6) | 8K (IPv4/IPv6) |
ACL Entries | In: 3,500
Out: 1,500 |
802.1Q VLAN | The following are supported:
4K 802.1Q VLAN
Port-based VLAN
MAC-based VLAN
Private VLAN
Voice VLAN
GVRP |
QinQ | Basic QinQ
Flexible QinQ |
ACL | The following are supported:
Standard IP ACLs (IP-based hardware ACLs)
Extended IP ACLs (hardware ACLs based on IP addresses or TCP/UDP port IDs)
MAC-based extended ACLs (hardware ACLs based on source MAC addresses, destination MAC addresses, and optional Ethernet type)
Time-based ACLs
Expert-level ACLs (hardware ACLs based on flexible combinations of the VLAN ID, Ethernet type, MAC address, IP address, TCP/UDP port ID, protocol type, and time)
ACL 80
IPv6 ACLs
Global ACLs
ACL redirection |
QoS | The following are supported:
Port traffic identification
Port traffic rate limiting
802.1p/DSCP/ToS traffic classification
Eight priority queues per port
SP, WRR, SP+WRR, RED/WRED queue scheduling mechanisms |
Mirror | One-to-one mirroring, many-to-one mirroring, and one-to-many mirroring
RSPAN
Flow-based local and remote mirroring |
DHCP | The following are supported:
DHCP server
DHCP client
DHCP snooping
DHCP relay
IPv6 DHCP snooping
IPv6 DHCP client
IPv6 DHCP relay |
Multiple Spanning Tree Protocol (MSTP) Instances | 65 |
Maximum Aggregation Port (AP) | 128 |
Security Features | The following are supported:
3-tuple binding (IP address, MAC address, and port)
3-tuple binding (IPv6 address, MAC address, and port)
Filtering of invalid MAC addresses
Port- and MAC-based 802.1x authentication
MAB authentication
Portal authentication and Portal 2.0 authentication
ARP-check
DAI
ARP packet rate limiting |
Security Features | Gateway ARP spoofing prevention
Broadcast storm suppression
Hierarchical management of administrators and password protection
RADIUS and TACACS+
AAA (IPv4/IPv6) for device login management
SSH and SSH V2.0
BPDU guard
IP source guard
CPP, and NFPP
Port protection |
ERPS | G.8032 v1/v2, Sing-ring, Tangent-ring, Intersecting-ring, Load balancing, compatible with products of this protocol. |
PoE | The following are supported:
IEEE 802.3af and 802.3at power supply standards
Automatic and energy saving power supply management mode
Uninterrupted power supply in hot start mode
Scheduled powering on /off PoE ports on the basis of time policy
Port priority
Note: Only RG-S5300-24GT2SFP2XS-P-E and RG-S5300-24GT4XS-P-E support the PoE function. |
IP Routing | The following are supported:
IPv4/IPv6 static routing
RIP, RIPng, OSPFv2, OSPFv3, BGP, and ISIS
Routing policy |
IPv6 Basic Protocol | IPv6 addressing, Neighbor Discovery (ND), ICMPv6, IPv6 ping, IPv6 Tracert, and IPv6 multicast |
VSU Features | The following are supported:
VSU technology
Local stacking and remote stacking
Inter-chassis link binding in a stack
Virtualization via standard service interfaces |
Zero Configuration | CPE WAN Management Protocol (CWMP(TR069)) |
Management Features | SNMPv1/v2c/v3, CLI(Telnet/Console), RMON(1, 2, 3, 9), SSH, Syslog, NTP/SNTP, Web, CLI(Telnet/Console), RMON, SSH, Syslog/Debug, NTP/SNTP, FTP, TFTP, Web, and sFLOW |
Dimensions (W × D × H) | 442 mm × 220 mm × 43.6 mm |
Rack Height | 1RU |
MTBF (hours) | >200K |
Power Supply | AC input:
Rated voltage range: 100 V to 240 V
Maximum voltage range: 90 V to 264 V
Frequency: 50/60 Hz |
Fan | Fan speed regulating and alarm function |
Power Consumption | ≤55 W |
Temperature | Operating temperature: 0oC to 45oC
Storage temperature: -40oC to 70oC |
Relative Humidity | Operating humidity: 10% to 90%RH
Storage humidity: 5% to 95%RH |
Operating Altitude | 0m to 5,000m |
Lightening Protection on Communication Port | 10kV (Common Mode) |
Lightning Protection on Power Port | Common Mode 6KV/Differential Mode 6KV |
ประกัน | 3 ปี |
