Product Specification
|
|
Overview
|

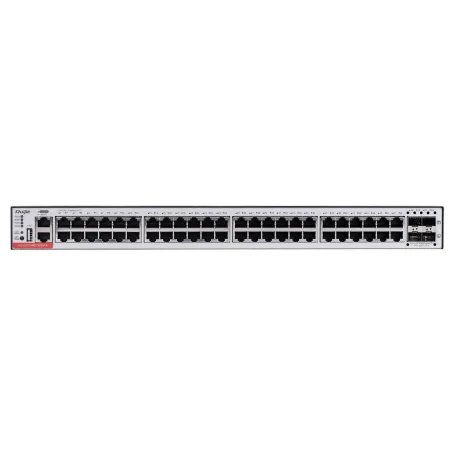

Ruijie RG-S5310-48GT4XS-P-E L3-Managed POE Switch 48 Port, 4 Port SFP+ ,รองรับ VSU, IPv4/IPv6 Dual-stack Multi-layer Switching, Dynamic Routing RIP, OSPF, IS-IS, BGP
รองรับการจ่ายไฟ POE มาตรฐาน IEEE802.3af/at/bt (ใช้ร่วมกับ Power Module RG-PA600i-P-F, RG-PA1000i-P-F)
|
|
Fixed Ports
|
48 x 10/100/1000BASE-T
4 x 1G/10G SFP+ ports
(RG-S5310-48GT4XS-P-E support PoE+)
|
|

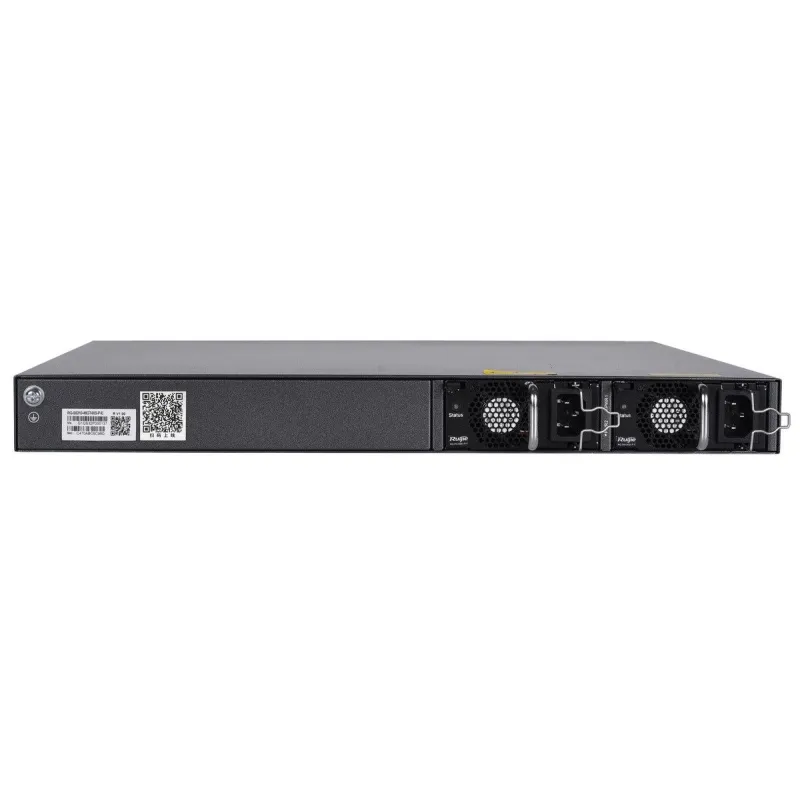

Power Slot
|
2
|
|
Switching Capacity
|
176Gbps
|
|
Packet Forwarding Rate
|
131Mpps
|
|
802.1Q VLAN
|
The following are supported:
4K 802.1Q VLAN
Port-based VLAN
MAC-based VLAN
Private VLAN
Voice VLAN
GVRP
|
|
QinQ
|
Basic QinQ
Flexible QinQ
|
|
ACL
|
The following are supported:
Standard IP ACLs (IP-based hardware ACLs)
Extended IP ACLs (hardware ACLs based on IP addresses or TCP/UDP port IDs)
MAC-based extended ACLs (hardware ACLs based on source MAC addresses, destination MAC addresses, and optional Ethernet type)
Time-based ACLs
Expert-level ACLs (hardware ACLs based on flexible combinations of the VLAN ID, Ethernet type, MAC address, IP address, TCP/UDP port ID, protocol type, and time)
ACL 80
IPv6 ACLs
Global ACLs
ACL redirection
|
|
QoS
|
The following are supported:
Port traffic identification
Port traffic rate limiting
802.1p/DSCP/ToS traffic classification
Eight priority queues per port
SP, WRR, SP+WFQ, SP+WRR, RED/WRED queue scheduling mechanisms
|
|
Mirror
|
One-to-one mirroring, many-to-one mirroring, and one-to-many mirroring
RSPAN
Flow-based local and remote mirroring
|
|
DHCP
|
The following are supported:
DHCP server
DHCP client
DHCP snoop
DHCP relay
IPv6 DHCP snooping
IPv6 DHCP client
IPv6 DHCP relay
|
|
Security Features
|
The following are supported:
3-tuple binding (IP address, MAC address, and port)
3-tuple binding (IPv6 address, MAC address, and port)
Filtering of invalid MAC addresses
Port- and MAC-based 802.1x authentication
MAB authentication
Portal authentication and Portal 2.0 authentication
ARP-check
DAI
ARP packet rate limiting
Gateway ARP spoofing prevention
Broadcast storm suppression
Hierarchical management of administrators and password protection
RADIUS and TACACS+
AAA (IPv4/IPv6) for device login management
SSH and SSH V2.0
BPDU guard
IP source guard
CPP, NFPP
Port protection
|
|
ERPS
|
G.8032 v1/v2, Sing-ring, Tangent-ring, Intersecting-ring, Load balancing, compatible with products of this protocol.
|
|
PoE
|
The following are supported:
IEEE 802.3af and 802.3at power supply standards
Automatic and energy saving power supply management mode
Uninterrupted power supply in hot start mode
Scheduled powering on /off PoE ports on the basis of time policy
Port priority
Note: Only RG-S5310-24GT4XS-P-E and RG-S5310-48GTXS-P-E support the PoE function.
|
|
IP Routing
|
The following are supported:
IPv4/IPv6 static routing
RIP, RIPng, OSPFv2, OSPFv3, BGP, and ISIS
Routing policy
|
|
IPv6 Basic Protocol
|
IPv6 addressing, Neighbor Discovery (ND), ICMPv6, IPv6 ping, IPv6 Tracert, and IPv6 multicast
|
|
VSU Features
|
The following are supported:
VSU technology
Local stacking and remote stacking
Inter-chassis link binding in a stack
Virtualization via standard service interfaces
|
|
Zero Configuration
|
CPE WAN Management Protocol (CWMP(TR069))
|
|
Management Features
|
SNMPv1/v2c/v3, CLI(Telnet/Console), RMON(1, 2, 3, 9), SSH, Syslog, NTP/SNTP, Web, CLI(Telnet/Console), RMON, SSH, Syslog/Debug, NTP/SNTP, FTP, TFTP, Web, and sFLOW
|
|
Dimensions (W × D × H)
|
442 mm × 420 mm × 43.6 mm
|
|
Power Supply
|
AC input:
Rated voltage range: 100 V to 240 V
Maximum voltage range: 90 V to 264 V
Frequency: 50/60 Hz
RG-S5310-24GT4XS-P-E and RG-S5310-48GT4XS-P-E power supplies:
AC input:
Rated voltage range: 200 V to 240 V
Maximum voltage range: 176 V to 264 V
Frequency: 50/60 Hz
|
|
Fan
|
Fan speed regulating and alarm function
|
|
Power Consumption
|
Non PoE: ≤55W
PoE: <1570W (PoE full load)
|
|
Temperature
|
Operating temperature: 0C to 45C
Storage temperature: -40C to 70C
|
|
Relative Humidity
|
Operating humidity: 10% to 90%RH
Storage humidity: 5% to 95%RH
|
|
Lightning Protection
|
10kV
|
|
ประกัน
|
3 ปี
|
