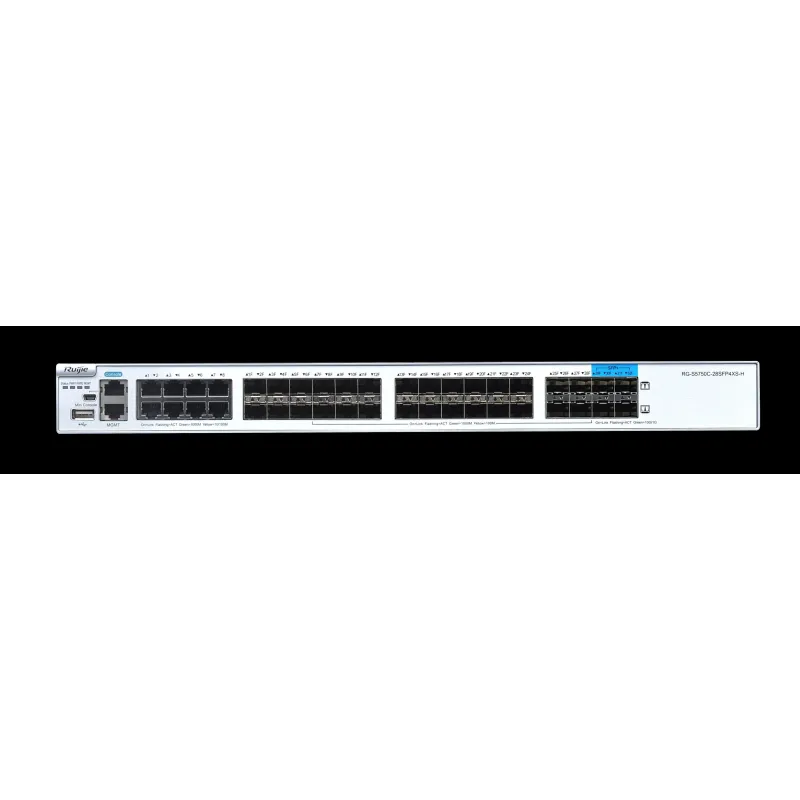

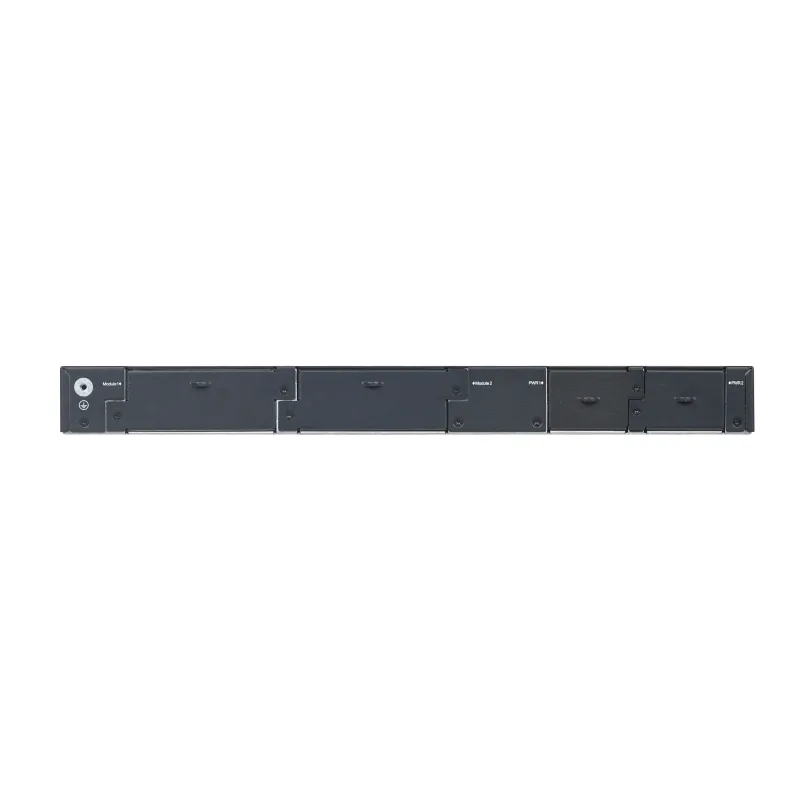

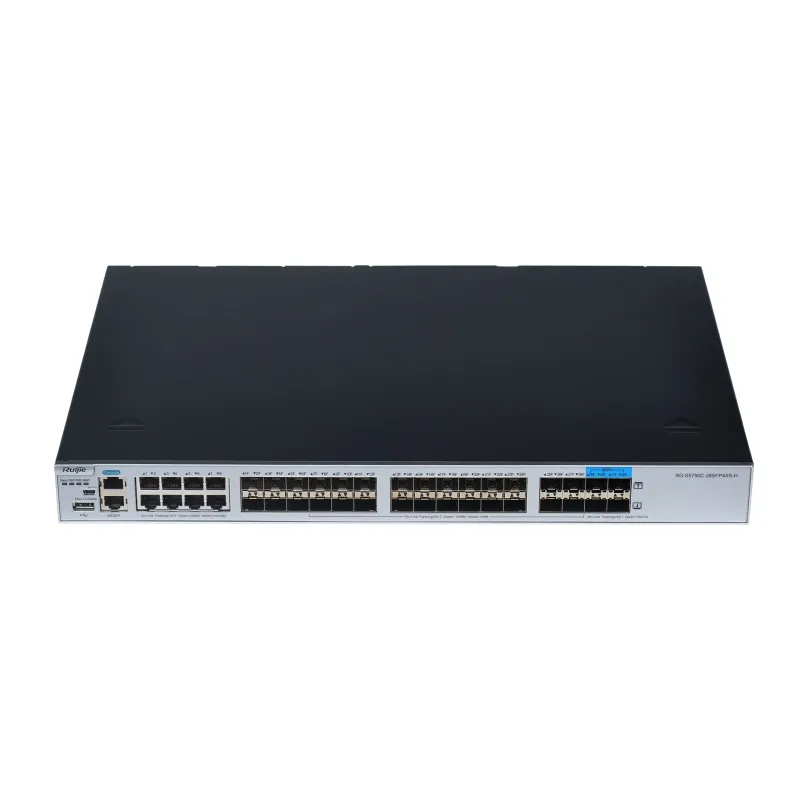

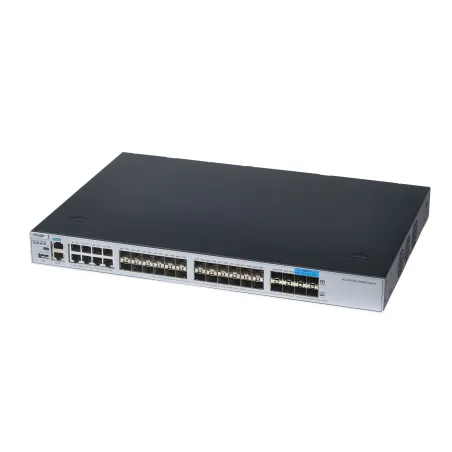

Ruijie RG-S5750C-28SFP4XS-H L3-Managed SFP Switch 28 Port, 4 Port SFP+

Ruijie Networks
Ruijie RG-S5750C-28SFP4XS-H L3-Managed SFP Switch 28 Port, 4 Port SFP+, 8 Port Comboรองรับ IPv4/IPv6 Routing Protocol RIP, OSPF, IS-IS, BGP
฿0.00
ยังไม่ได้รวมภาษี
จำนวน
สินค้าหมด



ทักทาง Line@ สอบถามราคาลดพิเศษได้เลยครับ


Line: @sysnet
Click โทรสอบถามข้อมูลเพิ่มเติม

รายละเอียด

Ruijie RG-S5750-H Switch Series Datasheet
Ruijie RG-S5750H Series Switches Hardware Installation and Reference Guide, V1.D

Ruijie Transceiver Installation and Reference Guide

Ruijie RG-S5700H Series Switches RGOS Configuration Guide

Ruijie RG-Switch RGOS Web-Based Configuration Guide

Ruijie RG-S5700H Series Switches RGOS Command Reference

Ruijie CPU Protection Policy Technical White Paper

Ruijie IP Surveillance Technical White Paper

Tolly Ruijie-S5750-H Switch

Product Specification

Overview

Ruijie RG-S5750C-28SFP4XS-H L3-Managed SFP Switch 28 Port, 4 Port SFP+, 8 Port Comboรองรับ IPv4/IPv6 Routing Protocol RIP, OSPF, IS-IS, BGP

รองรับ Stack Card เพื่อใส่ Port QSFP+

GE RJ45 port

8 Combo

GE SFP port

28

10GE SFP+ port

4

Card slot

2

Card type

1-port QSFP+ dedicated stack card

ETH management port

1

Console port (RJ45)

1

Console port (Mini USB)

1

USB 2.0 port

1

Switching capacity

598Gbps/5.98Tbps

Forwarding rate

222Mpps

MAC table size

64,000

ARP table size

20,000

Jumbo frame

9216 Bytes

Packet buffer

32Mbit

Dimensions(WxDxH)

440 X 280 X 44mm

Unit weight

4.2kg

Type

Hot swappable

Redundancy

1+1

Maximum power rating

140W

Idle power rating

55W

Dissipation mode

Air-cooled heat dissipation. Intelligent speed adjustment

Number of fan

3

Airflow

Air flows in from the left and exhausts from the right

Operating temperature

0 ℃ ~ 50 ℃

Storage temperature

-40 ℃ ~ 70 ℃

Ethernet

Full-duplex, Half-duplex, Auto negotiation, Flow control on interface, Jumbo frames, Link aggregation(IEEE802.3ad, LACP, maximum 8 member ports per AP), 2048 maximum aggregation ports, Load balancing, Broadcast storm control

VLAN

IEEE802.1Q, 4094 VLAN ID, 4094 VLANIF interface, Access mode, Trunk mode, Default VLAN, Port-based VLAN, MAC-based VLAN, Protocol based VLAN, IP subnet-based VLAN, Voice VLAN, GVRP, Super VLAN, Private VLAN, Guest VLAN

MAC

Automatic learning and aging of MAC addresses, Static and dynamic MAC address entries, Interface-based and VLAN-based MAC address learning limiting, Sticky MAC, MAC address spoofing guard

ARP

Static ARP, Trusted ARP, Gratuitous ARP, Proxy ARP, Local proxy ARP, ARP trustworthiness detection, ARP-based IP guard

STP

STP(IEEE802.1D), RSTP(IEEE802.1w), MSTP(IEEE802.1s), 64 MST instances, Port Fast, BPDU guard, BPDU filter, TC guard, TC filter, Root guard, Auto edge, BPDU transparent transmission, BPDU tunnel, VLAN-Specific Spanning Tree(VSST, working with PVST, PVST+ and RPVST)

ERPS

G.8032 v1/v2, Single-ring, Tangent-ring, Intersecting-ring, Load balancing

L2 multicast

IGMP v1/v2/v3 snooping, IGMP filter, IGMP fast leave, IGMP querier, IGMP security control, IGMP profile, MLD v1/v2 snooping, MLD filter, MLD fast leave, MLD source check

QinQ

Basic QinQ, Selective QinQ(Flexible QinQ), 1:1 VLAN switching, N:1 VLAN switching VLAN mapping, TPID configuration, MAC address replication, L2 transparent transmission, Priority replication, Priority mapping

IPv4 unicast routing

IPv4 static routing, RIPv1/v2, OSPFv2, BGP4, MBGP, IS-IS, PBR, VRF, ECMP, WCMP, Routing policies, 12000 IPv4 routing table

IPv6 unicast routing

IPv6 static routing, RIPng, OSPFv3, BGP4+, IS-ISv6, PBRv6, VRFv6, Packet–based load balancing and flow-based load balancing, 6000 IPv6 routing table

IPv6 feature

ND(Neighbor Discovery), 10000 ND entries, ND snooping, 6 over 4 manual tunnel, 6 to 4 auto tunnel, ISATAP, IPv4 over IPv6 tunnel, IPv6 over IPv6 tunnel, GRE tunnel (4 over 6), GRE tunnel (6 over 6), IPv6 extender option head, Manually configure local address, Automatically create local address, 0-64 bit mask, 65-128 bit mask

Multicast routing

IGMPv1/v2/v3, MLDv1/v2, PIM-DM, PIM-SM, PIM-SSM, PIM-DMv6, PIM-SMv6, MSDP, MCE, IGMP proxy, MLD proxy, Multicast static routing, 8000 IPv4 multicast routing table, 4000 IPv6 multicast routing table

DHCP

DHCP server/relay/client, DHCPv6 server/relay/client, DHCP option 43/82/138

MPLS

MPLS labels and forwarding, LSP, LDP, Inter-domain LDP LSP

MPLS L3 VPN

BGP VPN, IS-IS VPN, OSPF VPN

BFD

Single-hop BFD, BFD for IPv4 static routes/OSPF/IS-IS/BGP4/VRRP/MPLS/PBR, BFD for IPv6 static routes/OSPFv3/IS-ISv6/BGP4+/VRRPv6/PBRv6

DLDP

DLDP for IPv4 static routes/OSPF/BGP4/VRRP/PBR

LLDP

IEEE802.1AB 2005, ANSI/TIA-1057, LLDP, LLDP-MED, LLDP-PoE

RLDP

Uni-directional link detection, Bi-directional forwarding detection, Downlink loop detection

VSU

9 VSU(Virtual Switch Unit) stacked members, 80Gbps maximum stacking bandwidth with service port VSL connection, Traffic balancing

VRRP

VRRPv3, VRRP+

REUP

REUP(Ruijie Rapid Ethernet Uplink Protection Protocol) for dual uplink backup, VLAN load balancing

GR

GR for RIP/OSPF/IS-IS/BGP/MPLS L3 VPN/LDP

RNS

RNS test for ICMP/DNS/TCP, Track support for RNS

Stream classification

Classification based on IEEE802.1p/DSCP/TOS

Shaping

Rate-limit on ingress/egress traffic on interface

Congestion avoidance

RED, WRED, Tail drop

Congestion management

SP, WRR, DRR, WFQ, SP+WFQ, SP+WRR, SP+DRR, 8 queue priorities per port

ACL entries

3500 IPv4/v6 rules

ACL type

Standard IP ACL, Extended IP ACL, MAC-extended ACL, Time-based ACL, Expert ACL, ACL80, IPv6 ACL, SVI router ACL, ACL logging, ACL counter, ACL remark, ACL redirection, Security channel, Protected port, Port security

ARP security

ARP check, DAI, Trusted ARP, ARP trustworthiness detection, Gateway-targeted ARP spoofing prevention, ARP rate-limit

Attack defense

CPP(CPU Protection Policy), NFPP(Network Foundation Protection Policy) guard for ARP/IP/ICMP/DHCP/DHCPv6/ND/Self-defined attack, URPF

IP

IP source guard v4/v6, 3500 IPv4 source guard user capacity, 1500 IPv6 source guard user capacity

DHCP

DHCP snooping, DHCPv6 snooping, DHCP snooping on option 82

AAA

Local, RADIUS, RADIUS v6, TACACS+

IEEE802.1X

IEEE802.1X port/MAC based authentication, Dynamic VLAN and ACL assignment, MAC authentication bypass

Web portal

Ruijie 1st-Gen and 2nd-Gen portal authentication, Portal authentication/accounting, Portal detection and escape

Login

CLI, Console, Telnet, Telnet for IPv6, SSH v1.5/v2.0, SSH for IPv6, SCP, SNMP-based NMS, Web-based UI, Fast deploy(Ruijie Cloud App), Cloud management

File

Multiple boot configuration, Multiple firmware

Network

Ping(v4/v6), Traceroute(v4/v6), sFlow, SNMPv1/v2c/v3, HTTP, HTTPS, RMON(1,2,3,9), CWMP(TR069), Syslog, MIB

Application

DNS client v4/v6, TFTP Server/Client, TFTP Client v6,  FTP Server/Client, FTP Server/Client v6, NTP Server/Client, NTP Server/Client v6, SNTP, EEE(IEEE802.3az), OpenFlow v1.0, OpenFlow v1.3, Hot patch, Z-PoE (Non-stop PoE)

Mirroring

Many-to-one mirroring, One-to-many mirroring, Flow-based mirroring, Over devices mirroring, VLAN-based mirroring, VLAN-filtering mirroring, AP-port mirroring, SPAN, RSPAN, ERSPAN

Hardware monitoring

Power supply monitoring, Fan status and alarm monitoring

ประกัน

3 ปี



รายละเอียดสินค้า

Data sheet

ประเภท Switch
L2/L3 Managed
ความเร็ว Port Lan
1Gbps (Gigabit)
SFP Port Gigabit
1-2 Port
SFP+ Port 10-Gigabit
1-2 Port
