Product Specification |

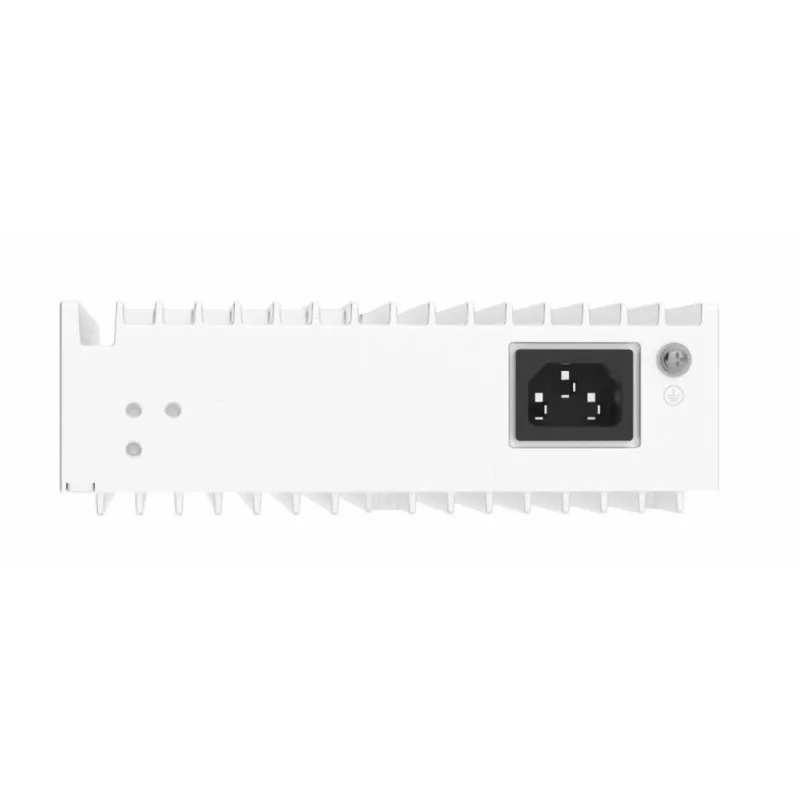

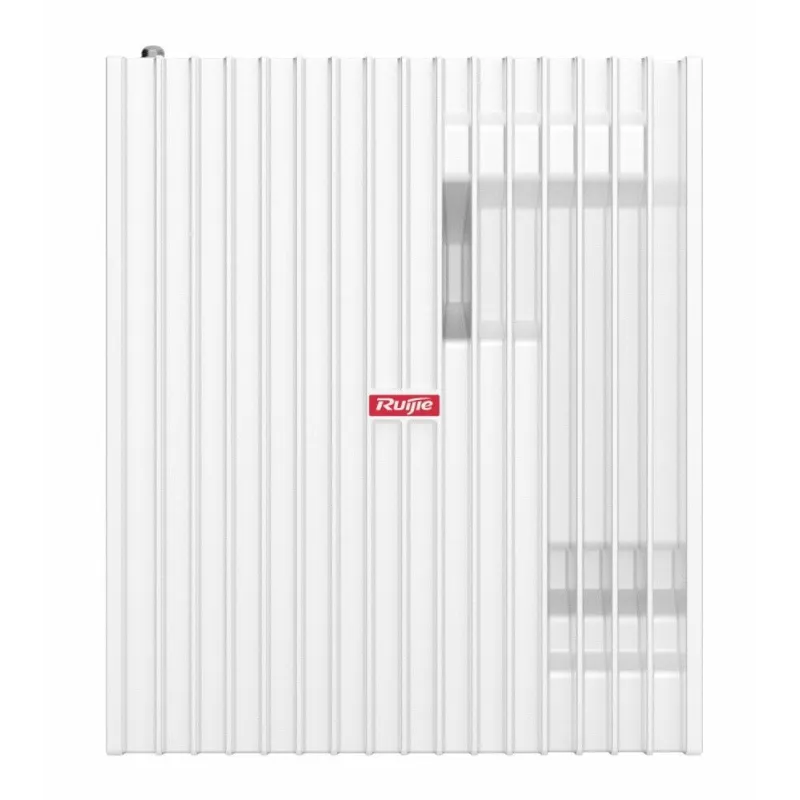

Overview | Ruijie RG-SF2920-8GT2MG2XS, 8-Port Gigabit Switch, 10G SFP+ Port, 2.5G Port Lan, Surge protection 8kV รองรับ VLAN, Link Aggregate, Dynamic Routing |
Fixed ports | 8 × 10/100/1000M adaptive electrical ports
2 × 1000M/2.5G adaptive ports
2 × 1/10G SFP+ ports
fixed single AC power supply |
Switching capacity | 66Gbps |
Packet forwarding rate | 49.1Mbps |
PoE | Not supported |
MAC address table | Static MAC addresses
MAC address filtering |
802.1Q VLAN | The following items are supported:
4094 IEEE 802.1Q VLANs
Port-based VLAN |
QinQ | Basic QinQ
Flexible QinQ |
L2 ring network technology | In compliance with the G.8032 international standard ring network protocol ERPS, switching time ≤ 50 ms, well compatible with other products that support this protocol |
Link aggregation | Load balancing
LACP dynamic aggregation
The LACP priority, negotiation mode, and maximum number of ports that can be aggregated can be configured.
Cross-VSU AP |
Mirroring | Common service ports and aggregate ports can be used as the source and destination ports of SPAN.
Flow- and VLAN-based SPAN
One-to-one mirroring, one-to-many mirroring, many-to-one mirroring, RSPAN, ERSPAN Cross-device traffic mirroring |
DHCP | The following are supported:
DHCP server
DHCP client
DHCP snooping
DHCP relay |
IP routing | Static black hole routing, RIP, RIPng, OSPF, and OSPFv3 |
ACL | Standard IP ACLs (IP-based hardware ACLs)
Extended IP ACLs (hardware ACLs based on IP addresses or TCP/UDP port IDs)
MAC-based extended ACLs (hardware ACLs based on source MAC addresses, destination MAC addresses, and optional Ethernet type)
Time-based ACLs
ACL 80
IPv6 ACLs
Global ACLs
ACL redirection |
QoS | The following are supported:
Port traffic identification
Port traffic rate limiting
802.1p/DSCP/ToS traffic classification
Eight priority queues per port
SP, WRR, DRR, SP+WFQ, SP+WRR, SP+DRR, RED/WRED queue scheduling mechanisms |
Security features | Filtering of invalid MAC addresses
Broadcast storm suppression
Hierarchical management of administrators and password protection
RADIUS and TACACS+
SSH and SSH V2.0
BPDU guard
CPP, NFPP
Port protection |
EEE | EEE in compliance with IEEE 802.3az: When EEE is enabled, power consumption of ports is significantly reduced. |
Management features | SNMP, CLI (telnet/console), RMON, SSH, syslog/debug, NTP/SNTP, FTP, TFTP, Web, RLDP |
Size (W × D × H) (mm) | 210 × 235 × 55 |
Power supply | AC input:
Rated voltage range: 200 V to 240 V
Maximum voltage range: 180 V to 264 V
Frequency: 50 Hz to 60 Hz
HVDC input: |
Fan | Fanless design, natural heat dissipation |
Temperature | Operating temperature: 0°C to 45°C
Storage temperature: –40°C to 70°C |
Humidity | Operating humidity: 5% to 95% RH
Storage humidity: 5% to 95% RH |
ประกัน | 3 ปี |
