Ruijie RG-SF2920-8GT2MG2XS-P 8-Port GE All-Optical PoE Switch, 5G Lan Ports, POE 125W
  • Ruijie RG-SF2920-8GT2MG2XS-P 8-Port GE All-Optical PoE Switch, 5G Lan Ports, POE 125W
  • Ruijie RG-SF2920-8GT2MG2XS-P 8-Port GE All-Optical PoE Switch, 5G Lan Ports, POE 125W
  • Ruijie RG-SF2920-8GT2MG2XS-P 8-Port GE All-Optical PoE Switch, 5G Lan Ports, POE 125W
  • Ruijie RG-SF2920-8GT2MG2XS-P 8-Port GE All-Optical PoE Switch, 5G Lan Ports, POE 125W
  • Ruijie RG-SF2920-8GT2MG2XS-P 8-Port GE All-Optical PoE Switch, 5G Lan Ports, POE 125W

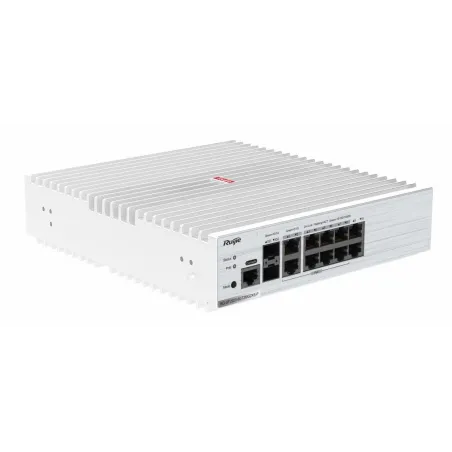

Ruijie RG-SF2920-8GT2MG2XS-P 8-Port GE All-Optical PoE Switch, 5G Lan Ports, POE 125W

Ruijie RG-SF2920-8GT2MG2XS, 8-Port Gigabit Switch, 10G SFP+ Port, 5G Port Lan, Surge protection 8kV, จ่ายไฟ POE 125W รองรับ VLAN, Link Aggregate, Dynamic Routing
฿0.00
ยังไม่ได้รวมภาษี
จำนวน
Out-of-Stock

ตัวแทนจำหน่าย Ruijie/Reyee อย่างเป็นทางการ

ทีมงาน Certificate Support

รายละเอียด

Ruijie RG-SF2920 Series Switch Datasheet

Ruijie RG-SF2920-8GT2MG2XS-P Highlight Features

  • Various port combinations, surge protection greater than 8 kV, PoE+, 8 × 10/100/1000Mbps copper ports with auto-negotiation, 2 × Gigabit/5G copper ports, and 2 × 10G uplink fiber ports
  • New 5G Ethernet port, meeting the requirements of new services and enhancing service scalability
  • Reliability enhancement, metal enclosure, metal Ethernet ports, independent optical transceiver design, and more stable data forwarding
  • Easy and effective network-wide management, ensuring high security and reliability for networksSmall size, flexible and fast installation, efficient heat dissipation, and low noise



Product Specification

Overview

Ruijie RG-SF2920-8GT2MG2XS-P, 8-Port Gigabit Switch, 10G SFP+ Port, 5G Port Lan, Surge protection 8kV, จ่ายไฟ POE 125W รองรับ VLAN, Link Aggregate, Dynamic Routing

Fixed ports

8 × 10/100/1000M adaptive electrical ports
2 × 1000M/2.5G/5G adaptive electrical ports
2 × 1/10G SFP+ ports
fixed single AC power supply;
eEectrical ports 3-10 support PoE/PoE+;
Maximum PoE output power: 125 W

Switching capacity

76Gbps

Packet forwarding rate

56.5Mbps

PoE

In compliance with IEEE 802.3af (15.4W) and IEEE 802.3at (30W)
Automatic and energyefficient power supply management modes
Warm start to implement uninterrupted power supply
Port priority
Scheduled power-on/off of PoE ports

MAC address table

Static MAC addresses
MAC address filtering

802.1Q VLAN

The following items are supported:
4094 IEEE 802.1Q VLANs
Port-based VLAN

QinQ

Basic QinQ
Flexible QinQ

L2 ring network technology

In compliance with the G.8032 international standard ring network protocol ERPS, switching time ≤ 50 ms, well compatible with other products that support this protocol

Link aggregation

Load balancing
LACP dynamic aggregation
The LACP priority, negotiation mode, and maximum number of ports that can be aggregated can be configured.
Cross-VSU AP

Mirroring

Common service ports and aggregate ports can be used as the source and destination ports of SPAN.
Flow- and VLAN-based SPAN
One-to-one mirroring, one-to-many mirroring, many-to-one mirroring, RSPAN, ERSPAN Cross-device traffic mirroring

DHCP

The following are supported:
DHCP server
DHCP client
DHCP snooping
DHCP relay

IP routing

Static black hole routing, RIP, RIPng, OSPF, and OSPFv3

ACL

Standard IP ACLs (IP-based hardware ACLs)
Extended IP ACLs (hardware ACLs based on IP addresses or TCP/UDP port IDs)
MAC-based extended ACLs (hardware ACLs based on source MAC addresses, destination MAC addresses, and optional Ethernet type)
Time-based ACLs
ACL 80
IPv6 ACLs
Global ACLs
ACL redirection

QoS

The following are supported:
Port traffic identification
Port traffic rate limiting
802.1p/DSCP/ToS traffic classification
Eight priority queues per port
SP, WRR, DRR, SP+WFQ, SP+WRR, SP+DRR, RED/WRED queue scheduling mechanisms

Security features

Filtering of invalid MAC addresses
Broadcast storm suppression
Hierarchical management of administrators and password protection
RADIUS and TACACS+
SSH and SSH V2.0
BPDU guard
CPP, NFPP
Port protection

EEE

EEE in compliance with IEEE 802.3az: When EEE is enabled, power consumption of ports is significantly reduced.

Management features

SNMP, CLI (telnet/console), RMON, SSH, syslog/debug, NTP/SNTP, FTP, TFTP, Web, RLDP

Size (W × D × H) (mm)

210 × 250 × 55

Power supply

AC input:
Rated voltage range: 200 V to 240 V
Maximum voltage range: 180 V to 264 V
Frequency: 50 Hz to 60 Hz
HVDC input:

Fan

Fanless design, natural heat dissipation

Temperature

Operating temperature: 0°C to 45°C
Storage temperature: –40°C to 70°C

Humidity

Operating humidity: 5% to 95% RH
Storage humidity: 5% to 95% RH

ประกัน

3 ปี



All-Optical Ethernet Switch RG-SF2920U-8GT2MG2XS

The Ethernet architecture and novel Fiber-to-the-Room (FTTR) deployment delivers 10G fiber-to-the-room access.
This switch provides 8 × 1G Ethernet ports with auto-negotiation, 2 × 5G optical ports, 2 × 10G uplink optical ports, rich interfaces, and is PoE+ compatible, supporting full service expansion.


Ruijie RG-SF2920-8GT2MG2XS-P

Ruijie RG-SF2920-8GT2MG2XS-P



Small Size, Space Saving, Aesthetically Pleasing Design,
and No Security Concern

Ruijie RG-SF2920-8GT2MG2XS-P

Ruijie RG-SF2920-8GT2MG2XS-P
Ruijie RG-SF2920-8GT2MG2XS-P



New 5G Ethernet Port Providing a Higher Access Rate

The 5G Ethernet port supports a high-speed downlink transmission and allows Wi-Fi 6 access points to connect to the network at full load with an access rate of 5G.
It provides a higher data rate and sharply enhances the service expansion capability.


Ruijie RG-SF2920-8GT2MG2XS-P



Enhanced Reliability, Independent Optical Transceiver Design,
and More Stable Data Forwarding

In the traditional POL optical solution, ONUs use an on-board optical transceiver design. However, there is a trade-off between the signal quality and welding reliability, resulting in a high failure rate. The Simplified Optical Ethernet solution adopts point-to-point transmission and provides a more reliable independent optical transceiver design. The high-quality signal transmission is free from external interference and data forwarding is more stable.


Ruijie RG-SF2920-8GT2MG2XS-P



Managed by the INC Controller to Achieve Easy and Efficient O&M Management

You can check the link health status, handle alarms and troubleshoot faults through the INC, which dramatically improves the O&M efficiency.
A switch can be flexibly replaced based on service needs without reconfiguration. Service ports supports auto-sensing, achieving automatic O&M.The switch automatically completes registration and configuration after it accesses the all-optical network, achieving plug and play, no commissioning and fast onboarding.

Ruijie RG-SF2920-8GT2MG2XS-P



รายละเอียดสินค้า

ข้อมูลสินค้า

ประเภท Switch
L2/L3 Managed
ความเร็ว Port Lan
1Gbps (Gigabit)
2.5Gbps (Multi-Gigabit)
5Gbps (Multi-Gigabit)
จำนวน Port Lan
8 Port
มาตรฐานจ่ายไฟ POE
802.3af/at (30W)
จำนวน Port POE
8 Port
SFP+ Port 10-Gigabit
1 Port
